1. Bubuka
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Extel Video Intercom System. This system is designed to enhance your home security and convenience by allowing you to see, speak to, and grant access to visitors from your indoor monitor or a connected smartphone. Please read this manual thoroughly before installation and use to ensure proper functioning and safety.
2. Émbaran Kasalametan
Salawasna taat kana tungtunan kaamanan handap:
- Pastikeun sadaya sambungan listrik didamel ku tukang listrik anu mumpuni sareng sasuai sareng kode listrik lokal.
- Disconnect power before performing any installation, maintenance, or wiring work.
- Do not expose the outdoor unit to direct water spray or submerge it.
- Keep the indoor monitor away from high humidity, extreme temperatures, and direct sunlight.
- Use only the specified 24V power supply for this device.
3. Eusi Paket
Pastikeun yén sadaya komponén aya dina pakét anjeun:
- 1 x Indoor Monitor (7-inch screen)
- 1 x Outdoor Unit (Camera with call button)
- 1 x Adaptor Daya (24V)
- Pasang Hardware (screws, colokan témbok)
- Manual pamaké
4. Setup jeung Instalasi
The Extel Video Intercom System requires wired connection between the indoor monitor and the outdoor unit. Careful planning of cable routing is essential.
4.1. Instalasi Unit Luar

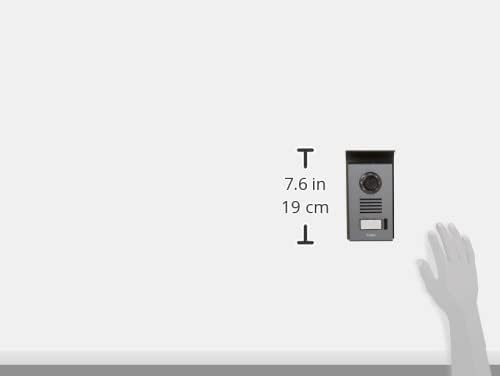

Choose a suitable location for the outdoor unit, typically near your main entrance, at a height that allows visitors to be clearly seen. Ensure it is protected from direct rain and sunlight if possible. The unit should be mounted securely to a solid surface.
4.2. Pamasangan Monitor Jero Ruangan
Select a central and easily accessible location inside your home for the indoor monitor. Mount it at eye level for comfortable viewing. Ensure the location allows for easy connection to the outdoor unit and a power outlet.
4.3. Sambungan Wiring
Connect the outdoor unit to the indoor monitor using appropriate wiring. This system operates at 24V. Refer to the detailed wiring diagram provided in a separate document or on the manufacturer's website for specific terminal connections. Ensure all connections are secure and insulated.
4.4. Sambungan Daya
Once all wiring is complete, connect the 24V power adapter to the indoor monitor and plug it into a suitable power outlet. The system will power on automatically.
5. Parentah Operasi
5.1. Narima Telepon
When a visitor presses the call button on the outdoor unit, the indoor monitor will ring and display the visitor's image. You can then press the 'Answer' button on the monitor to speak with the visitor.
5.2. ViewPangunjung
At any time, you can press the 'Monitor' button on the indoor unit to view the live feed from the outdoor camera. This allows you to check your entrance without a visitor initiating a call.
5.3. Opening Gates/Doors
If your system is connected to an electric gate or door lock, you can open it by pressing the 'Unlock' button on the indoor monitor during a call or while monitoring the outdoor unit.
6. Mobile App Integration
The Extel Video Intercom System can be connected to your smartphone via the 'Extel Connect' application, available for Android and Apple devices. This feature allows for remote monitoring and control.
6.1. Ngunduh App
Milarian pikeun 'Extel Connect' in the Apple App Store or Google Play Store and install it on your smartphone.
6.2. Masangkeun sareng Smartphone
Follow the in-app instructions to pair your smartphone with the intercom system. This typically involves connecting the indoor monitor to your home Wi-Fi network and then scanning a QR code or entering a device ID into the app.
6.3. Pemantauan sareng Kontrol Jarak Jauh
Once paired, you can:
- Receive notifications when a visitor presses the call button.
- View live video from the outdoor unit.
- Speak with visitors remotely.
- Open gates or doors from your smartphone.
7. Pangropéa
Pangropéa rutin ngajamin umur panjang sareng kinerja optimal tina sistem interkom anjeun.
- beberesih: Ngagunakeun lemes, damp cloth to clean the indoor monitor and outdoor unit. Avoid abrasive cleaners or solvents.
- Perawatan lensa: Keep the camera lens on the outdoor unit clean and free from obstructions for clear image quality.
- Apdet parangkat lunak: Check the Extel website or the 'Extel Connect' app for any available firmware or software updates for your system.
8. Cara ngungkulan
If you encounter issues with your Extel Video Intercom System, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya gambar dina monitor indoor | Loose wiring, power issue, camera fault | Check all wiring connections. Ensure power is supplied. Contact support if problem persists. |
| Henteu aya sora nalika komunikasi | Microphone/speaker issue, volume settings | Check volume settings on the monitor. Inspect microphone/speaker for obstructions. |
| Smartphone app not connecting | Wi-Fi issue, incorrect pairing, app error | Ensure monitor is connected to Wi-Fi. Re-pair the device in the app. Restart app/phone. |
| Gate/door not unlocking | Wiring to lock, lock mechanism fault | Verify wiring to the electric lock. Test the lock mechanism independently. |
For more detailed troubleshooting or issues not listed here, please refer to the official Extel support websitus atanapi ngahubungan layanan palanggan.
9. Spésifikasi
Key technical specifications for the Extel Video Intercom System (Model 720308):
| Fitur | Spésifikasi |
|---|---|
| Produsén | Extel |
| Nomer modél | 720308 |
| Ukuran layar | 7 inci (18 cm) |
| Téhnologi konektipitas | Wired (intercom), Wireless (smartphone app) |
| Sumber Daya | Kabel Listrik |
| Voltage | 24 volt |
| Konsumsi Daya | 1 Watt |
| Controller Type Compatibility | Android, Apple iOS |
| Jumlah Saluran | 2 (e.g., for gate and door control) |
| Beurat produk | 2.2 pon |
10. Garansi jeung Rojongan
This Extel product comes with a manufacturer's warranty. Please refer to the warranty card included in your package or visit the official Extel websitus pikeun istilah jeung kaayaan jaminan lengkep.
For technical assistance, spare parts, or further inquiries, please contact Extel customer support through their official websitus atanapi inpormasi kontak anu disayogikeun dina dokuméntasi produk anjeun. Nalika ngahubungi dukungan, punten gaduh nomer modél anjeun (720308) sareng detil pameseran siap.
