The Laney A-SOLO is a professional, compact, and portable acoustic instrument combo amplifier designed to deliver a clean and clear amplified acoustic tone. It is suitable for various settings, from studio recording to live stage pintonan.
Ieu amplifier features two completely independent channel strips, offering flexibility for connecting a microphone and an instrument, two different acoustic instruments, or a blend of separate mic and pickup connections from a single instrument. Equally at home or on the biggest stages in the world, the A-SOLO can be your main sound source on an intimate stage or your personal monitor on bigger stages. The A-SOLO includes professional-grade features such as feedback elimination and a DI output, making it a versatile solution.
Gambar 1: Hareupeun view of the Laney A-SOLO Acoustic Instrument Combo Amplifier. This image shows the compact brown cabinet with a black speaker grille and the Laney logo.
Guide Setup
1. Unpacking na panempatan
- Ati-ati ngaleupaskeun amplifier from its packaging.
- Place the A-SOLO on a stable, flat surface. Ensure adequate ventilation around the unit.
- Tetep dina amplifier away from direct sunlight, heat sources, and excessive moisture.
2. Sambungan Daya
- Pastikeun ampswitch kakuatan lifier urang aya dina Pareum posisi.
- Connect the supplied Power Supply Unit (PSU) to the POWER input on the rear panel of the amppangagung.
- Plug the PSU into a suitable mains power outlet.
3. Instrument and Microphone Connection
The A-SOLO features two independent channels, each with a combination XLR/Jack input.
- Saluran 1 (CH1): Connect your primary acoustic instrument (e.g., guitar, violin) or a microphone using a standard 1/4" jack cable or an XLR cable. This channel supports phantom power for condenser microphones.
- Saluran 2 (CH2): Connect a second instrument or microphone. This channel also supports phantom power.

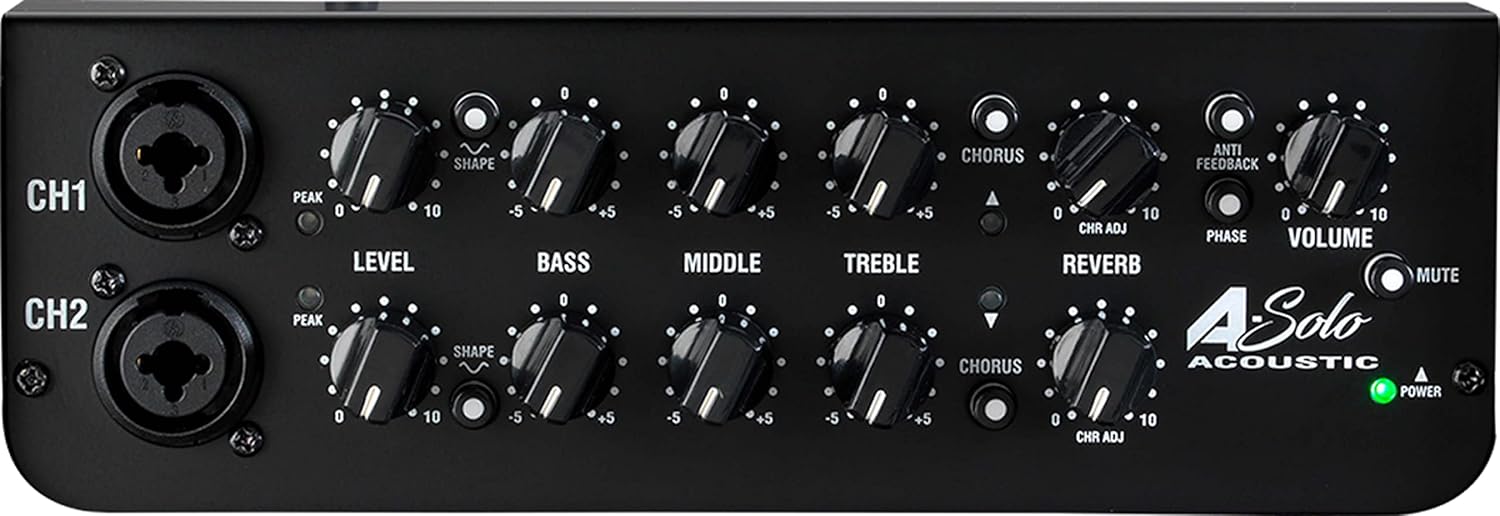

Figure 2: Top panel view of the Laney A-SOLO showing the control knobs and input jacks for Channel 1 and Channel 2.
Parentah Operasi
Kadali Panel hareup
- CH1 / CH2 Inputs: Combination XLR/Jack inputs for connecting instruments or microphones.
- LED PUNCAK: Illuminates when the input signal is too high, indicating potential clipping. Adjust the TINGKAT control to prevent this.
- TINGKAT: Controls the input gain for each channel.
- BENTUK: Provides a pre-set EQ curve for quick tonal adjustments.
- BASS, TENGAH, TREBLE: 3-band equalizer for precise tone shaping on each channel.
- CHORUS: Adds a modulation effect to the sound. The CHR ADJ knob adjusts the intensity.
- REVERB: Adds spatial ambience to the sound.
- ANTI Eupan Balik: Helps to reduce unwanted feedback.
- FASE: Inverts the phase of the input signal, which can help with feedback reduction or tonal shaping.
- JILID: Master volume control for the entire ampkaluaran lifier.
- Bisu: Silences the ampkaluaran lifier.
- DAYA LED: Nunjukkeun ka amplifier dihurungkeun.
Sambungan Panel Rear

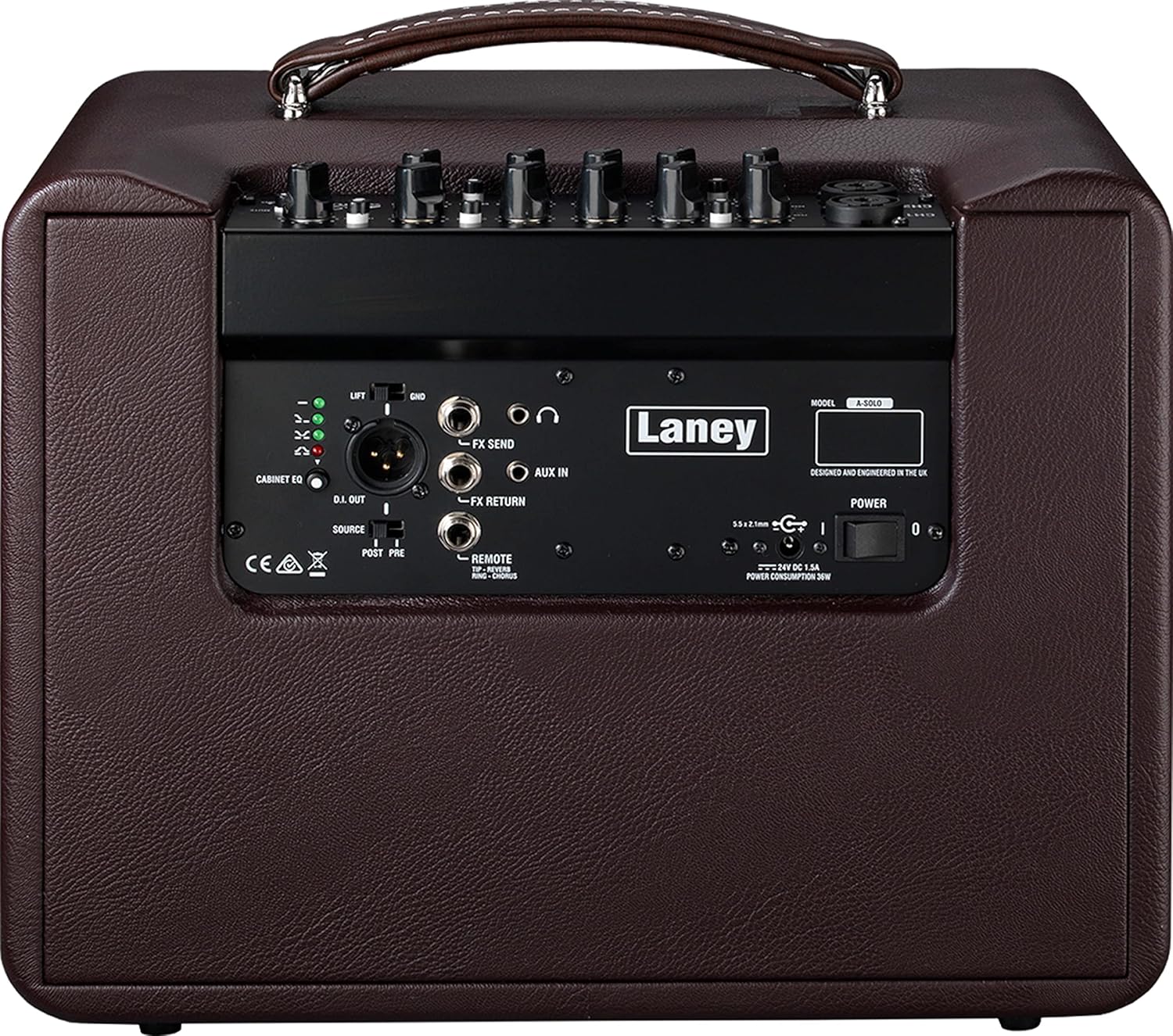

Gambar 3: Panel tukang view of the Laney A-SOLO, showing various input/output connections and controls.
- DI OUT (XLR): Balanced XLR output for connecting to a PA system or recording interface. Can be set to PRE (before EQ) or POST (after EQ) using the SOURCE switch.
- Saklar LIFT/GND: Ground lift switch for the DI output to eliminate hum.
- CABINET EQ: Provides different tonal characteristics for the ampkaluaran lifier.
- FX SEND / FX RETURN: Loop for connecting external effects pedals.
- AUX IN (3.5mm): Stereo input for connecting external audio devices like MP3 players or phones.
- HEADPHONE: Stereo output for private monitoring.
- Jauh: Input for an optional footswitch (FS2-MINI) to control certain functions.
- Saklar Daya: Ngahurungkeun amplifier atawa mareuman.
Pangropéa
- beberesih: Paké lemes, lawon garing pikeun ngabersihan exterior nu amplifier. Do not use abrasive cleaners, solvents, or waxes.
- Ventilasi: Ensure that the ventilation openings are not blocked. Overheating can damage the unit.
- Panyimpenan: Lamun teu dipaké pikeun période nambahan, nyimpen éta amplifier in a cool, dry place, away from extreme temperatures and humidity.
- Angkutan: Always disconnect all cables before moving the amplifier. Use the integrated handle for carrying.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya Sora |
|
|
| Eupan balik (Jeritan nada luhur) |
|
|
| Sora Distort |
|
|
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Laney customer support for further assistance.
spésifikasi
| Fitur | Rincian |
|---|---|
| Modél | A-SOLO |
| Kaluaran Wattage | 60 Watt |
| Speaker | 8 Inch Coaxial Woofer |
| Saluran | 2 Saluran bebas |
| Input | Combination XLR/Jack (x2), Aux In (3.5mm) |
| Kaluaran | DI Out (XLR), Headphones |
| Balukar | Paduan Suara, Reverb |
| Fitur husus | Anti-Feedback, Phase Switch, Phantom Power, FX Loop |
| Sumber Daya | Corded Electric (PSU supplied) |
| Ukuran (L x W x H) | 10.16 x 10.43 x 13.66 inci |
| Item Beurat | 14.74 pon (6.7 Kilogram) |
| Warna | coklat |
| Alat nu cocog | Guitar, Microphone, other acoustic instruments |
Garansi sareng Rojongan
Laney products are manufactured to high standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Laney websitus.
For technical support, service, or inquiries regarding your Laney A-SOLO amplifier, please contact Laney customer support directly. Contact information can typically be found on the official Laney websitus atanapi dina bungkusan produk anjeun.
Optional protection plans may be available for extended coverage. Please check with your retailer or Amazon for details on available protection plans.
