1. Produk Langkungview
The Diyeeni Photocell Switch is an automatic lighting control device designed to activate or deactivate lighting based on ambient illumination levels. It features a three-wire system for compatibility and offers energy-saving benefits, extended operational life, and reliable performance. This switch is ideal for applications requiring automatic light switching in low visibility conditions, such as outdoor lighting, LED installations, and monitoring systems.

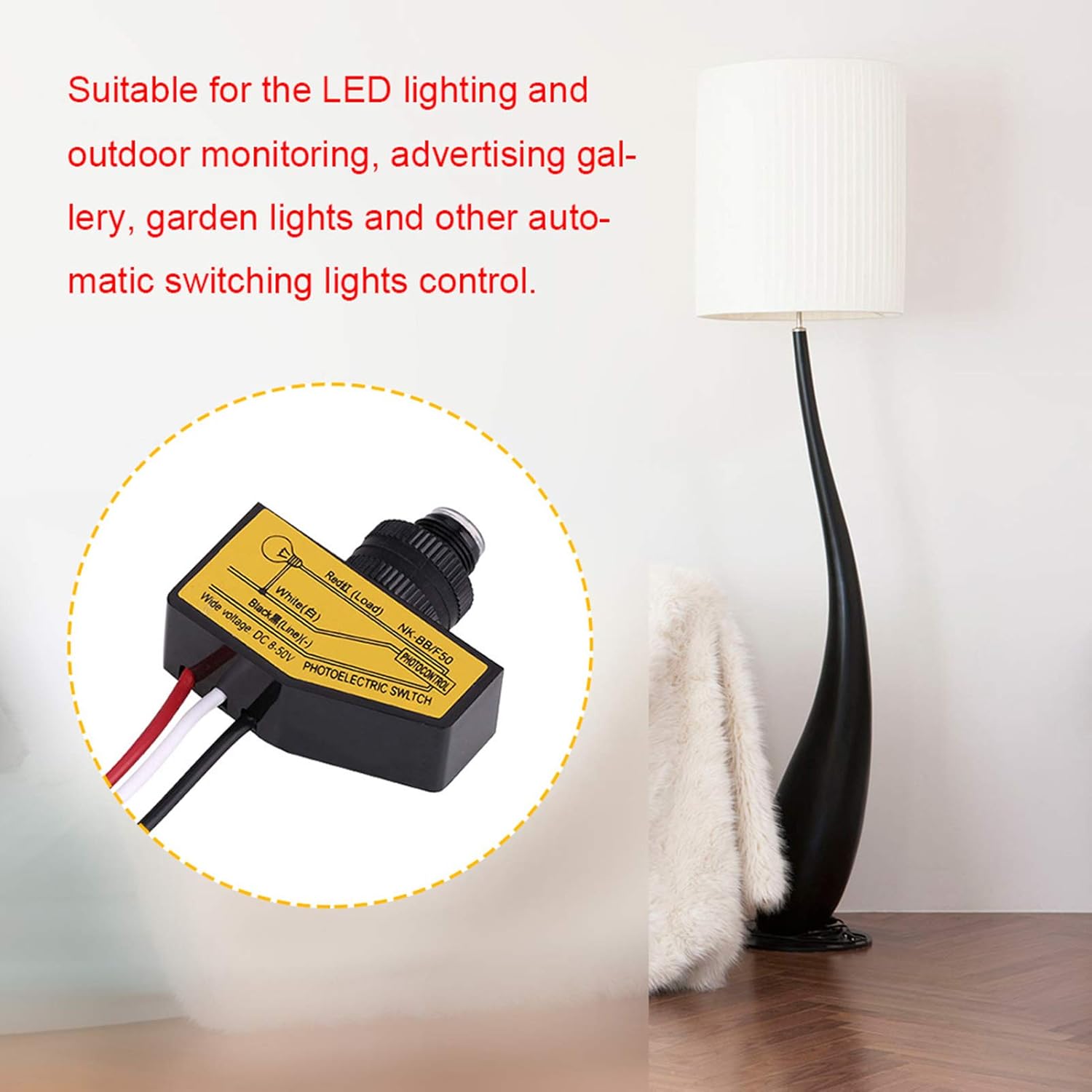

Gambar 1.1: Photocell switch integrated into an outdoor lighting setup, demonstrating its application in automatic light control for LED lighting, outdoor monitoring, and garden lights.
Fitur konci:
- Automatic illumination detection circuit for dusk-to-dawn operation.
- Energy-saving design with long operational life.
- Three-wire system for broad compatibility.
- Suitable for LED lighting and various outdoor automatic switching applications.
Gambar 1.2: Diwincik view of the mini light switching sensor, highlighting its compact design and the integrated photocell for automatic light detection. This sensor is designed for energy efficiency, long life, and reliable performance.
2. Setup jeung Instalasi
Proper installation is crucial for the optimal performance and safety of your photocell switch. Please follow these instructions carefully.
2.1 Parentah Wiring
The photocell switch utilizes a three-wire system. Ensure all power is disconnected before attempting any wiring.
Gambar 2.1: This image displays the wiring diagram and physical dimensions of the photocell switch. The label indicates connections for Red (Load), White (Line), and Black (Line). Dimensions are approximately 40mm (length) x 15.6mm (width) x 20mm (height).
- Kawat beureum: Connect to the Load (e.g., light fixture).
- Kawat bodas: Connect to the Neutral Line.
- Kawat Hideung: Connect to the Live Line.
The leads length is approximately 150mm.

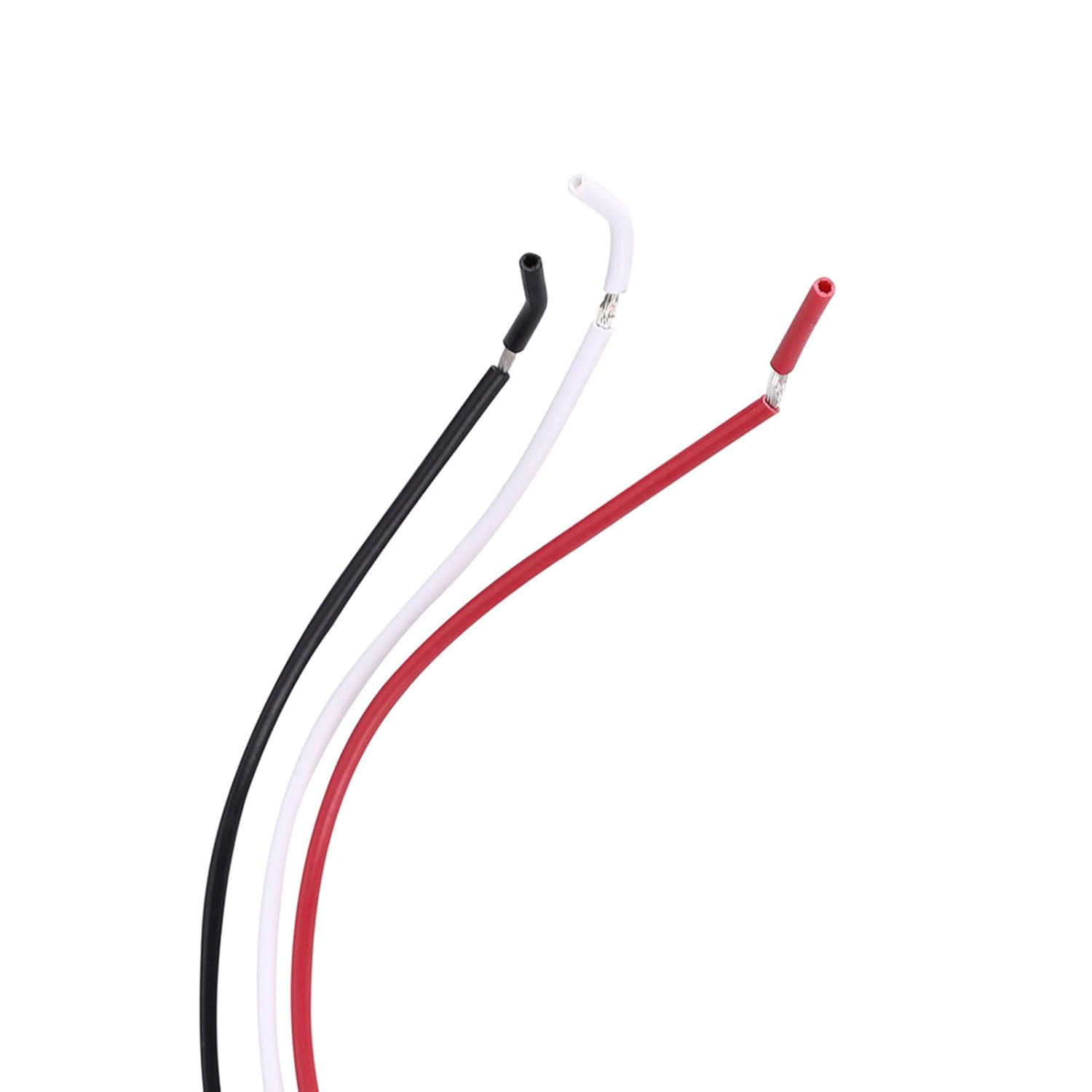

Gambar 2.2: A nutup-up view of the red, white, and black wires extending from the photocell switch, illustrating the three-wire system for electrical connection.
2.2 Pamasangan
The photocell switch is designed for wall mount installation. Ensure the sensor is positioned where it can accurately detect ambient light without obstruction from artificial light sources or shadows.
2.3 Pertimbangan Lingkungan
- The device has an International Protection Rating of IP66, indicating it is dust-tight and protected against powerful water jets.
- Operating environment temperature range: -25°C to 70°C (-13°F to 158°F).
- Avoid installation in corrosive gas environments.
2.4 Variasi produk
Please note that both new and old types of this product may be shipped. Functionality remains consistent across both versions.
Gambar 2.3: This image shows a comparison between the 'New Type' and 'Old Type' models of the photocell switch, illustrating minor aesthetic differences while maintaining core functionality.
3. Parentah Operasi
The Diyeeni Photocell Switch operates automatically based on ambient light conditions.
3.1 Operasi otomatis
- The switch will automatically turn ON when the ambient light level falls between 5-10 Lux (LX).
- The switch will automatically turn Pareum when the ambient light level rises between 30-60 Lux (LX).
- An anti-interference delay of approximately 0.6 seconds is built-in to prevent rapid switching due to momentary light fluctuations.
3.2 Métode Kontrol
The device is listed with a 'Remote' control method and 'Wi-Fi' connectivity protocol. For specific details on remote control functionality or Wi-Fi setup, please refer to additional product documentation or contact customer support.
4. Pangropéa
The Diyeeni Photocell Switch is designed for long-term, reliable operation with minimal maintenance.
4.1 Perawatan Umum
- Periodically inspect the sensor lens for dirt, dust, or obstructions. Clean gently with a soft, dry cloth if necessary.
- Ensure the wiring connections remain secure and free from corrosion.
- Avoid exposing the device to harsh chemicals or abrasive materials.
4.2 Harepan Umur
The working life of the photocell switch is rated for approximately 6500 cycles.
5. Cara ngungkulan
If you encounter issues with your photocell switch, refer to the following common problems and solutions.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lampuna teu hurung nalika sareupna. | Insufficient darkness detected; sensor obstructed; power issue; faulty wiring. | Ensure sensor is not exposed to artificial light. Check for physical obstructions on the sensor. Verify power supply and wiring connections. |
| Light does not turn OFF at dawn. | Insufficient light detected; sensor obstructed; faulty wiring. | Ensure sensor is exposed to natural daylight. Check for physical obstructions on the sensor. Verify wiring connections. |
| Light flickers or cycles rapidly. | Momentary light fluctuations; sensor interference. | The built-in anti-interference delay should mitigate this. If persistent, check for external light sources causing rapid changes near the sensor. |
| Taya kakuatan pikeun switch. | Power supply issue; incorrect wiring. | Check the circuit breaker. Verify all wiring connections are correct and secure. |
6. Spésifikasi
Detailed technical specifications for the Diyeeni Photocell Switch.
Gambar 6.1: Sisi profile of the photocell switch, showing its compact form factor and the entry point for the three-wire system.
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | Diyeeniimx8vn0s5g |
| Modeu Operasi | Automatic (Dusk to Dawn) |
| Voltage Rentang | 12V, 24V, 36V, 48V DC |
| Pasokan Voltage (Operasi) | 8V ka 50V DC |
| Peunteun ayeuna | 5 Amps (Load Current) |
| Arus sayaga | 0.5mA (silent state) |
| Konsumsi Daya | 0.6W maksimum |
| Anti-interference Delay | Kurang leuwih 0.6 detik |
| Sensitivity (ON) | 5-10 Lux (LX) |
| Sensitivity (OFF) | 30-60 Lux (LX) |
| Suhu Lingkungan | -25°C nepi ka 70°C (-13°F nepi ka 158°F) |
| Kalembaban anu aya hubunganana | 99% RH |
| Kahirupan Gawé | 6500 siklus |
| Detector Grade (IP Rating) | IP66 |
| Tipe Pamasangan | Tembok Gunung |
| Métode kontrol | Jauh |
| Protokol konektipitas | Wifi |
| Leads Length | 150 mm |
| Ukuran produk (L x W x H) | 40 x 15.6 x 20 mm (1.57" x 0.61" x 0.79") |
| Item Beurat | 0.704 ons |
| Bahan | Potosél |
Gambar 6.2: Hareupeun view of the photocell switch, showing the light-sensing element and the threaded collar for secure mounting.
7. Garansi jeung Rojongan
For warranty information, technical support, or any inquiries regarding your Diyeeni Photocell Switch, please refer to the product packaging or contact Diyeeni customer service directly. Contact details can typically be found on the manufacturer's websitus atawa ngaliwatan titik pameseran Anjeun.
