AMX NX-3200 NetLinx NX Integrated Controller User Manual

1. Bubuka

The AMX NX-3200 NetLinx NX Integrated Controller is designed for advanced control and automation in various environments, including large lecture halls, boardrooms, media rooms, and integrated homes. It offers robust security features, such as NX Master Security firmware and Dual NIC, to ensure secure communication over computer networks, meeting IT industry security standards. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your NX-3200 controller.

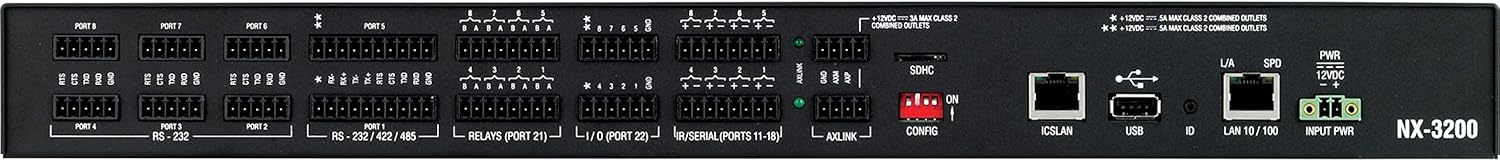

Figure 1: AMX NX-3200 NetLinx NX Integrated Controller, showing the rear panel and side view.

2. Émbaran Kasalametan

Before operating the AMX NX-3200, read and understand all safety instructions. Retain this manual for future reference.

• Pastikeun alat dipasang di tempat anu ventilasina saé pikeun nyegah panas teuing.
• Only use the power supply provided or specified by AMX.
• Ulah ngantep alat ieu kakeunaan kalembaban, hujan, atanapi suhu anu ekstrim.
• Hindarkeun nempatkeun barang beurat dina alat.
• Rujukkeun sadaya jasa ka petugas jasa anu mumpuni. Ulah nyobian muka atanapi ngalereskeun unit nyalira.

3. Eusi Paket

Pastikeun yén sadaya item aya dina bungkusan:

• AMX NX-3200 NetLinx NX Integrated Controller
• Catu daya (12VDC)
• Parabot Pemasangan (upami aya)
• Dokuméntasi (manual ieu, pituduh ngamimitian gancang)

4. Produk Langkungview

4.1 Panel payun

Figure 2: Front Panel of the AMX NX-3200.

The front panel of the NX-3200 provides status indicators and a TO PC port for direct connection. Key components include:

• TO PC (USB) Port: For direct connection to a computer for initial configuration and firmware updates.
• LINK/ACT LED: Indicates network link status and activity.
• LED STATUS: Displays the operational status of the controller.
• OUTPUT LED: Indicates output activity.
• LED INPUT: Indicates input activity.
• ICS LAN LED: Status indicator for the ICS LAN connection.
• SERIAL (TX/RX) LEDs: Indicators for transmit and receive activity on serial ports 1-8.
• RELAYS LEDs: Status indicators for relay outputs 1-8.
• IR/SERIAL LEDs: Indicators for IR/Serial ports 1-8.
• I/O LEDs: Status indicators for I/O ports 1-8.

4.2 Panel tukang

Figure 3: Rear Panel of the AMX NX-3200.

The rear panel provides all necessary connections for integrating the NX-3200 into your system. These include:

• RS-232 Ports (1-8): For serial communication with various devices.
• RS-232/422/485 Ports (1-8): Configurable serial ports for flexible communication.
• Relay Ports (1-8): For controlling external devices requiring contact closure.
• I/O Ports (1-8): General purpose input/output ports.
• IR/Serial Ports (1-8): For infrared control or additional serial communication.
• ICS LAN Port: Ethernet port for network connectivity and control.
• LAN 10/100 Port: Additional Ethernet port for network connectivity, supporting Dual NIC functionality.
• USB Ports (Type A and B): For connecting USB devices or for direct PC connection.
• PWR (12VDC) Input: Panyambung input kakuatan.
• CONFIG Button: For system configuration and reset functions.

5. Setélan

5.1 Pasang Controller

The NX-3200 is designed for rack mounting or placement on a flat surface. Ensure adequate ventilation around the unit.

• For rack mounting, secure the controller using appropriate rack ears and screws (sold separately or included in package).
• When placing on a surface, ensure it is stable and free from obstructions to airflow.

5.2 Nyambungkeun Daya

1. Connect the provided 12VDC power supply to the PWR input on the rear panel.
2. Colokkeun catu daya kana stop kontak listrik anu cocog.
3. The controller will power on automatically. Observe the STATUS LED on the front panel.

5.3 Sambungan Jaringan

The NX-3200 features Dual NIC for enhanced network security and flexibility.

• ICS LAN: Connect an Ethernet cable from your network switch or router to the ICS LAN port for control network communication.
• LAN 10/100: Connect an Ethernet cable to the LAN 10/100 port for a secondary network connection, if required for specific applications or network segmentation.

5.4 Connecting Control Devices

Connect your AV equipment, HVAC systems, lighting, and other devices to the appropriate ports on the rear panel.

• Serial Devices: Use RS-232, RS-422, or RS-485 ports as needed. Refer to the device's documentation for wiring requirements.
• Relay Devices: Connect devices requiring contact closure to the Relay ports.
• I/O Devices: Connect sensors or other input/output devices to the I/O ports.
• IR Emitters: Connect IR emitters to the IR/Serial ports for controlling IR-controlled equipment.

5.5 Konfigurasi Awal

Initial configuration is typically performed using AMX programming software via the TO PC USB port or over the network.

1. Connect a computer to the TO PC USB port on the front panel using a standard USB cable.
2. Install the necessary AMX software (e.g., NetLinx Studio) on your computer.
3. Follow the software instructions to discover the controller and upload your control program.
4. Alternatively, if the controller has a default IP address or is configured for DHCP, it can be accessed over the network.

6. Ngoperasikeun Controller

6.1 Pamahaman Indikator LED

The front panel LEDs provide visual feedback on the controller's status and activity:

• LED STATUS:
  • Héjo padet: Operasi normal.
  • Héjo kedip-kedip: Booting up or performing a task.
  • Beureum padet: Error or fault condition.
• LINK/ACT LED:
  • Héjo padet: Network link established.
  • Héjo kedip-kedip: Kagiatan jaringan.
• Other TX/RX, RELAYS, IR/SERIAL, and I/O LEDs illuminate to indicate data transmission, reception, or active states on their respective ports.

6.2 Operasi Dasar

Once configured and programmed, the NX-3200 operates autonomously based on the loaded control program. User interaction typically occurs through connected control interfaces (e.g., touch panels, keypads, web interfaces) that communicate with the controller.

• Ensure all controlled devices are powered on and connected correctly.
• Use your programmed control interface to send commands to the NX-3200, which then executes the corresponding actions (e.g., turning on a projector, adjusting volume, closing blinds).

6.3 Secure Communication

The NX-3200 supports NX Master Security firmware for secure communication. Ensure your network infrastructure and programming leverage these features for enhanced data protection, especially in enterprise and government environments.

7. Pangropéa

7.1 beberesih

• Pegatkeun sambungan kakuatan saméméh beberesih.
• Anggo kaén anu lembut sareng garing pikeun ngusap bagian luar unit.
• Do not use liquid cleaners or aerosol sprays, as they may damage the unit.
• Ensure ventilation openings remain clear of dust and debris.

7.2 Apdet firmware

Periodically check the AMX website for firmware updates. Keeping your controller's firmware up-to-date ensures optimal performance, security, and access to new features.

1. Download the latest firmware from the official AMX support portal.
2. Follow the instructions provided with the firmware update package for installation, typically using AMX programming software.

8. Cara ngungkulan

If you encounter issues with your NX-3200, refer to the following common problems and solutions:

8.1 Reset pabrik

A factory reset will erase all custom configurations and programming, restoring the controller to its default settings. Use this as a last resort.

1. Disconnect power from the NX-3200.
2. Pencét jeung tahan tombol KONFIG tombol dina panel pungkur.
3. While holding the CONFIG button, reconnect power.
4. Continue holding the CONFIG button until the STATUS LED changes color or flashes in a specific pattern (refer to AMX documentation for exact sequence), then release.
5. The controller will reboot with factory default settings.

9. Spésifikasi

Technical specifications for the AMX NX-3200 NetLinx NX Integrated Controller:

10. Garansi jeung Rojongan

For warranty information and technical support, please refer to the official AMX website or contact your authorized AMX dealer.

• AMX Official Websitus: www.amx.com
• Bantosan Téknis: Contact information can be found on the AMX webbagian rojongan situs urang.
• Simpen resi pameseran anjeun sareng nomer séri produk nalika ngahubungi dukungan.
