Activeshop Electric Massage Table 684a User Manual

1. Bubuka

This manual provides essential information for the safe and efficient use of your Activeshop Electric Massage Table 684a. This high-efficiency massage table is designed for physiotherapy treatments and professional massage applications. It features an electric motor for height adjustment, manual adjustments for the backrest and tilt, and a comfortable headrest with a face cut-out. The table is built with a sturdy curved metal frame and includes retractable wheels for easy movement. The upholstery is made from premium black synthetic leather, which is easy to clean.

Image 1.1: Activeshop Electric Massage Table 684a with the backrest slightly raised, showcasing desain na.

2. Warnings Kasalametan

• Kapasitas Beban Maksimum: Do not exceed the maximum load capacity of 200 kg (440 lbs). Exceeding this limit can cause damage to the table and potential injury to users.
• Ujung seukeut: Be aware of sharp metal edges on the frame during handling and operation.
• Kabel listrik: Ensure the power cord is not pinched, damaged, or placed in a position where it could be a tripping hazard. Disconnect from power before cleaning or maintenance.
• Surface Stabil: Always operate the table on a stable, level surface to prevent tipping.
• Barudak jeung Pets: Keep children and pets away from the table, especially during operation.

3. Setélan

The Activeshop Electric Massage Table 684a comes pre-assembled, requiring no complex setup. Follow these steps to prepare your table for use:

1. Ngabongkar bungkusan: Carefully remove the table from its packaging. Retain packaging for future transport or storage.
2. Posisi: Place the table in your desired location. Ensure there is adequate space around the table for safe operation and client access.
3. Stabilkeun: If the retractable wheels were used for movement, ensure they are retracted or locked to prevent unintended movement during use.
4. Sambungan Daya: Colokkeun kabel listrik kana stop kontak listrik grounded.

4. Parentah Operasi

The massage table offers electric height adjustment and manual backrest/tilt adjustments.

4.1 adjustment Jangkungna listrik

The table's height is adjusted using the integrated electric motor. Locate the foot pedal or hand control (depending on model variant) connected to the motor. Press the appropriate button or pedal to raise or lower the table to the desired working height. Ensure no obstructions are present during adjustment.

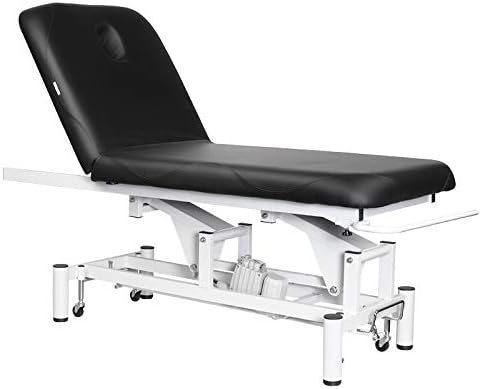

Gambar 4.1: View of the electric motor mechanism located beneath the table for height adjustment.

4.2 Manual Backrest and Tilt Adjustment

The backrest and overall tilt of the table are adjusted manually. To adjust the backrest, locate the adjustment levers or knobs typically found on the side or underneath the backrest section. Release the locking mechanism, adjust the backrest to the desired angle, and then secure the locking mechanism firmly. Similarly, for overall tilt, use the designated manual controls.

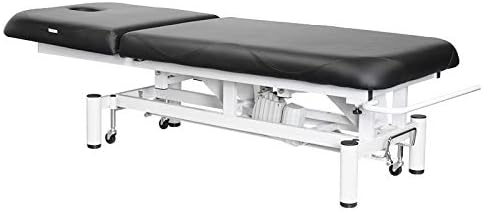

Image 4.2: Table in fully flat position.

Image 4.3: Table with backrest elevated.

5. Pangropéa

Regular maintenance ensures the longevity and hygiene of your massage table.

• Ngabersihan upholsteri: The premium synthetic leather upholstery is easy to clean. Use a soft cloth dampened with mild soap and water. Avoid harsh chemicals, abrasive cleaners, or solvents, as these can damage the material. Wipe dry immediately.
• Ngabersihkeun pigura: Ngusap pigura logam jeung iklanamp cloth to remove dust and debris. Ensure all parts are dry to prevent rust.
• Motor and Moving Parts: Periodically inspect the electric motor and moving parts for any signs of wear or damage. Keep the area around the motor free from dust and hair. Do not attempt to lubricate internal motor components unless specified by a qualified technician.
• Pengikat: Check all bolts and fasteners regularly to ensure they are tight. Tighten if necessary.

6. Cara ngungkulan

If you encounter issues with your massage table, refer to the following common troubleshooting steps:

• Table Not Adjusting Electrically:
  • Pariksa naha kabel listrik dicolokkeun sacara aman kana stop kontak listrik.
  • Pastikeun saklar daya (upami aya) aya dina posisi 'ON'.
  • Verify that the foot pedal or hand control is properly connected and not damaged.
  • Check for any obstructions preventing movement.
• Méja Karasa Teu Stabil:
  • Ensure the table is placed on a flat, level surface.
  • Check that all retractable wheels are fully retracted or locked.
  • Inspect all frame connections and bolts for tightness. Tighten any loose fasteners.
• Manual Adjustments Are Stiff:
  • Ensure the locking mechanisms for the backrest or tilt are fully disengaged before attempting to adjust.
  • Check for any debris or obstructions in the adjustment mechanisms.

Upami léngkah-léngkah ieu henteu ngabéréskeun masalah, mangga ngahubungi dukungan palanggan.

7. Spésifikasi

Image 7.1: Activeshop Electric Massage Table 684a with key dimensions indicated.

8. Garansi

The Activeshop Electric Massage Table 684a comes with a garansi 2 taun from the date of purchase. This warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or exceeding the maximum load capacity. Please retain your proof of purchase for warranty claims.

9. Rojongan

For technical assistance, warranty claims, or any questions regarding your Activeshop Electric Massage Table 684a, please contact your retailer or the manufacturer's customer service department. Refer to your purchase documentation for specific contact details.
