V7 KW550ESBT Bluetooth Keyboard User Manual

1. Bubuka

The V7 KW550ESBT Bluetooth Keyboard is designed to enhance your productivity with versatile connectivity options. This compact, ultra-slim keyboard offers a comfortable and quiet typing experience, featuring laser-etched keys for long-lasting durability. It supports connection to multiple devices via Bluetooth or a 2.4 GHz USB dongle.

fitur konci ngawengku:

• Seamless switching between up to 2 Bluetooth devices or connection via the included 2.4 GHz USB dongle.
• Scissor-switch keys for comfortable and quiet typing.
• Laser-etched keys for enhanced durability.
• Ultra-slim and compact design.
• Includes two AAA batteries for immediate use.

2. Eusi Paket

Mangga parios pakét kanggo barang-barang ieu:

• V7 KW550ESBT Bluetooth Keyboard
• 2.4 GHz USB Receiver (dongle)
• 2 x Batré AAA
• Manual pangguna (dokumén ieu)

Image: The V7 KW550ESBT keyboard shown with its accompanying 2.4 GHz USB receiver, ready for connection.

3. Setélan

3.1. Pamasangan batré

1. Tangtukeun lokasi kompartemen batré dina handapeun kibor.
2. Buka panutup kompartemen batré.
3. Pasangkeun dua batré AAA, pastikeun polaritasna bener (+/-).
4. Tutup panutup kompartemen batré aman.

3.2. Connecting via 2.4 GHz USB Dongle

1. Remove the 2.4 GHz USB receiver from its storage slot (usually within the battery compartment or a dedicated slot).
2. Colokkeun panarima USB ka port USB nu sadia dina komputer atawa alat Anjeun.
3. The keyboard should automatically connect. If not, ensure the keyboard is powered on and the connection indicator light (if present) is active.

3.3. Nyambungkeun via Bluetooth

The V7 KW550ESBT keyboard supports connecting to up to two Bluetooth devices.

1. Pastikeun keyboard diaktipkeun.
2. Press and hold the Bluetooth pairing key (refer to keyboard layout for specific key, often indicated by a Bluetooth symbol or 'BT1'/'BT2') for a few seconds until the Bluetooth indicator light starts blinking, indicating it's in pairing mode.
3. Dina alat anjeun (komputer, tablet, smartphone), buka setélan Bluetooth.
4. Milarian pikeun available devices and select "V7 KW550ESBT" (or similar name) from the list.
5. Turutan ajakan dina layar pikeun ngarengsekeun prosés papasangan. Anjeun bisa jadi dipenta pikeun nuliskeun kodeu nu dipintonkeun dina layar Anjeun maké kibor.
6. Repeat for a second Bluetooth device if desired, using the other Bluetooth pairing key.

3.4. Ngalihkeun Antara Alat nu Nyambung

To switch between connected devices (Bluetooth 1, Bluetooth 2, or 2.4 GHz USB), press the corresponding function key (e.g., Fn + BT1, Fn + BT2, or Fn + 2.4G if available). Refer to your keyboard's specific layout for these keys.

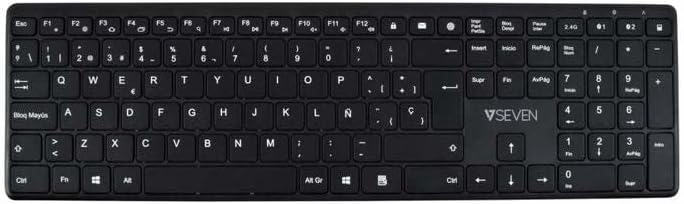

Gambar: luhur-handap view of the V7 KW550ESBT keyboard, showing the full QWERTY layout and function keys.

4. Ngoperasikeun kibor

4.1. Standard Key Functions

The keyboard features a standard QWERTY layout with all essential alphanumeric keys, punctuation, and modifier keys (Shift, Ctrl, Alt, Windows/Command).

4.2. Multimedia jeung kenop Fungsi

The top row of keys (F1-F12) often doubles as multimedia or special function keys. These functions are typically accessed by pressing the Fn key simultaneously with the desired F-key. Common functions include:

• Volume control (mute, decrease, increase)
• Media playback (play/pause, previous, next)
• Pangaturan kacaangan layar
• fungsi pilarian
• Layar konci

Refer to the icons printed on your specific keyboard's F-keys for exact functionality.

4.3. Quiet Typing Experience

The scissor-switch key design minimizes typing noise, making it suitable for quiet environments.

Gambar: Sisi profile of the V7 KW550ESBT keyboard, highlighting its ultra-slim design.

5. Pangropéa

5.1. beberesih

Pikeun ngabersihan kibor anjeun:

• Turn off the keyboard and disconnect it from your device.
• Make kaen nu lemes, teu aya lint rada dampdikumbah ku cai atawa solusi beberesih hampang.
• Wipe the keycaps and surface gently. Avoid excessive moisture.
• Pikeun lebu sareng lebu antara konci, paké hawa anu dikomprés.

5.2. Ngagantian batré

When the keyboard's performance degrades or the battery indicator (if present) signals low power, replace the AAA batteries as described in Section 3.1.

6. Cara ngungkulan

If you encounter issues with your V7 KW550ESBT keyboard, try the following solutions:

7. Spésifikasi

8. Garansi jeung Rojongan

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official V7 websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
