Buku Panduan Pangguna Lampu LED Kepala Bergerak Audibax Oregon 60

1. Bubuka

Hatur nuhun pikeun meuliasing the Audibax Oregon 60 Moving Head LED Light. This professional lighting fixture is designed to provide dynamic and vibrant lighting effects for various events and venues. Featuring a powerful 60W RGBW LED and an additional LED ring, the Oregon 60 offers versatile color mixing and precise beam control. To ensure safe and optimal performance, please read this manual thoroughly before operation and retain it for future reference.

2. Parentah Kasalametan

Salawasna perhatikeun pancegahan kaamanan di handap ieu pikeun nyegah kejutan listrik, seuneu, atanapi tatu:

• Sasayogian tanaga: Connect the unit only to a grounded power outlet with the correct voltage as specified on the device.
• Uap: Do not expose the unit to rain or moisture. Avoid using it in damp atawa lingkungan baseuh.
• Panas: Keep the unit away from heat sources. Ensure adequate ventilation to prevent overheating.
• Palayanan: Do not attempt to repair the unit yourself. Refer all servicing to qualified personnel.
• Pamasangan: Ensure the unit is securely mounted using appropriate hardware. Always use a safety cable when suspending the unit.
• Direct Eye Exposure: Avoid direct eye exposure to the light source. The light output can be harmful to the eyes.
• beberesih: Disconnect from power before cleaning. Use a soft, dry cloth.

3. Eusi Paket

Saatos ngabongkar bungkusan, mangga pariksa yén sadaya barang anu didaptarkeun di handap aya sareng dina kaayaan anu saé:

• Audibax Oregon 60 Moving Head LED Light
• Kabel Daya
• Mounting Bracket (if included)
• Manual pangguna (dokumén ieu)

4. Produk Langkungview

The Audibax Oregon 60 is a compact yet powerful moving head fixture. It features a main 60W RGBW LED for vibrant color mixing and an additional LED ring for dynamic visual effects. The unit includes a display and control buttons for easy navigation of settings, as well as DMX input/output for professional control.

Gambar 4.1: Hareupeun view of the Audibax Oregon 60 Moving Head LED Light with its main LED and surrounding LED ring illuminated in blue and red, showcasing kamampuhan cahayana dinamis.

4.1 Front Panel and Controls

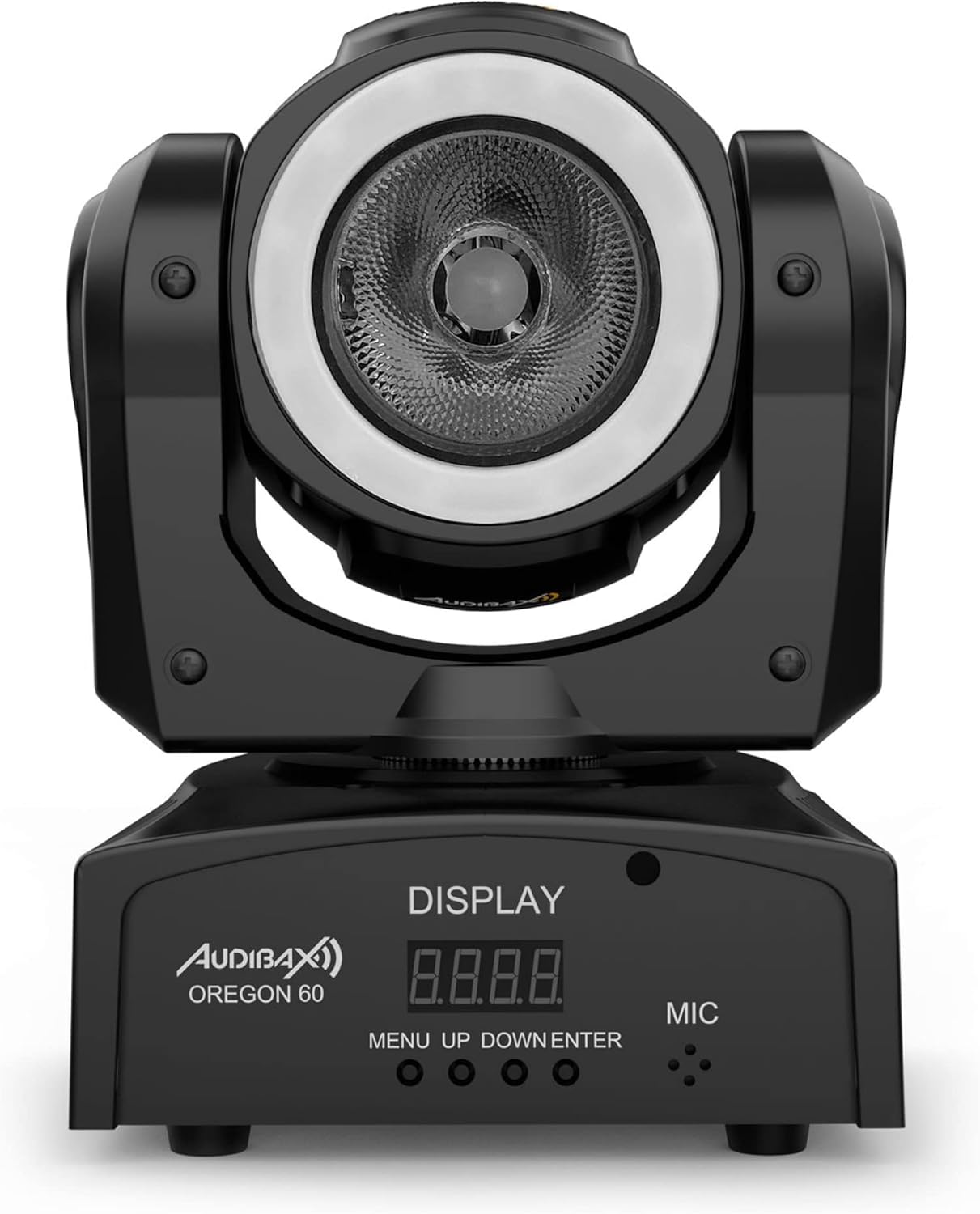

Gambar 4.2: Detil hareup view of the Audibax Oregon 60, highlighting the digital display and the 'MENU', 'UP', 'DOWN', and 'ENTER' control buttons, along with the built-in microphone.

• tampilan: Digital screen for menu navigation and status indication.
• Tombol MENU: Accesses the main menu and navigates back.
• Tombol luhur/handap: Napigasi ngaliwatan pilihan menu tur saluyukeun nilai.
• Tombol ENTER: Confirms selections and saves settings.
• MIC: Built-in microphone for sound-activated modes.

4.2 Panel pungkur jeung sambungan

Gambar 4.3: Rear panel of the Audibax Oregon 60, displaying the DMX IN and OUT ports, and the power input socket, along with a caution label.

• DMX IN: 3-pin XLR input for DMX control signal.
• DMX OUT: 3-pin XLR output for linking to other DMX fixtures.
• DAYA DI: IEC power input socket for connecting the main power cable.

5. Setélan

5.1 Pamasangan

The Audibax Oregon 60 can be mounted in various positions (floor, truss, wall) using the included mounting bracket. Always ensure the mounting surface or truss is capable of supporting the fixture's weight and use a safety cable for overhead installations.

1. Attach the mounting bracket securely to the fixture using the provided screws.
2. Secure the fixture to a truss or suitable surface using a clamp (not included) and the mounting bracket.
3. For overhead mounting, always attach a safety cable to the designated safety point on the fixture and secure it to the truss or support structure.

5.2 Sambungan Daya

Connect the supplied power cable to the POWER IN socket on the rear of the fixture and then to a grounded electrical outlet.

5.3 Sambungan DMX (Opsional)

For DMX control, connect a DMX controller to the DMX IN port of the first fixture. Use DMX OUT to link to the DMX IN of subsequent fixtures in a daisy chain. Ensure the last fixture in the chain has a DMX terminator (not included) connected to its DMX OUT port.

6. Modeu Operasi

The Audibax Oregon 60 offers several operating modes, which can be selected via the onboard display and control buttons.

6.1 Navigasi Menu

Pencét éta MENU tombol pikeun asup ka ménu utama. Anggo UP jeung TURUN buttons to scroll through options. Press Asupkeun to select an option or confirm a setting. Press MENU again to go back or exit the menu.

6.2 Modeu DMX

In DMX mode, the fixture is controlled by an external DMX controller. Set the DMX address using the menu. Refer to the DMX channel chart (usually provided in a separate DMX manual or appendix) for specific control functions.

1. Pencét MENU pikeun ngaksés ménu utama.
2. Navigate to the DMX Address setting (e.g., "Addr").
3. Paké luhur/handap to set the desired DMX start address.
4. Pencét Asupkeun pikeun mastikeun.

6.3 Modeu Otomatis

Auto mode runs pre-programmed light shows without the need for an external controller.

1. Pencét MENU pikeun ngaksés ménu utama.
2. Navigate to "Auto" or a similar option.
3. Pencét Asupkeun to select. You may have options to choose different auto programs or adjust speed.

6.4 Modeu Diaktipkeun ku Sora

In sound-activated mode, the fixture reacts to ambient sound via its built-in microphone.

1. Pencét MENU pikeun ngaksés ménu utama.
2. Navigate to "Sound" or a similar option.
3. Pencét Asupkeun to select. The fixture will now react to music or sound.

6.5 Master / budak Mode

This mode allows multiple Oregon 60 units to synchronize their operation without a DMX controller. One unit acts as the Master, and others as Slaves.

1. Unit Induk: Set one fixture to "Master" mode (e.g., "Mstr" in the menu) and select an Auto or Sound program.
2. Slave Units: Set all other fixtures to "Slave" mode (e.g., "Slav" in the menu).
3. Connect the DMX OUT of the Master unit to the DMX IN of the first Slave unit. Continue daisy-chaining DMX OUT to DMX IN for all subsequent Slave units.
4. The Slave units will now mimic the Master unit's program.

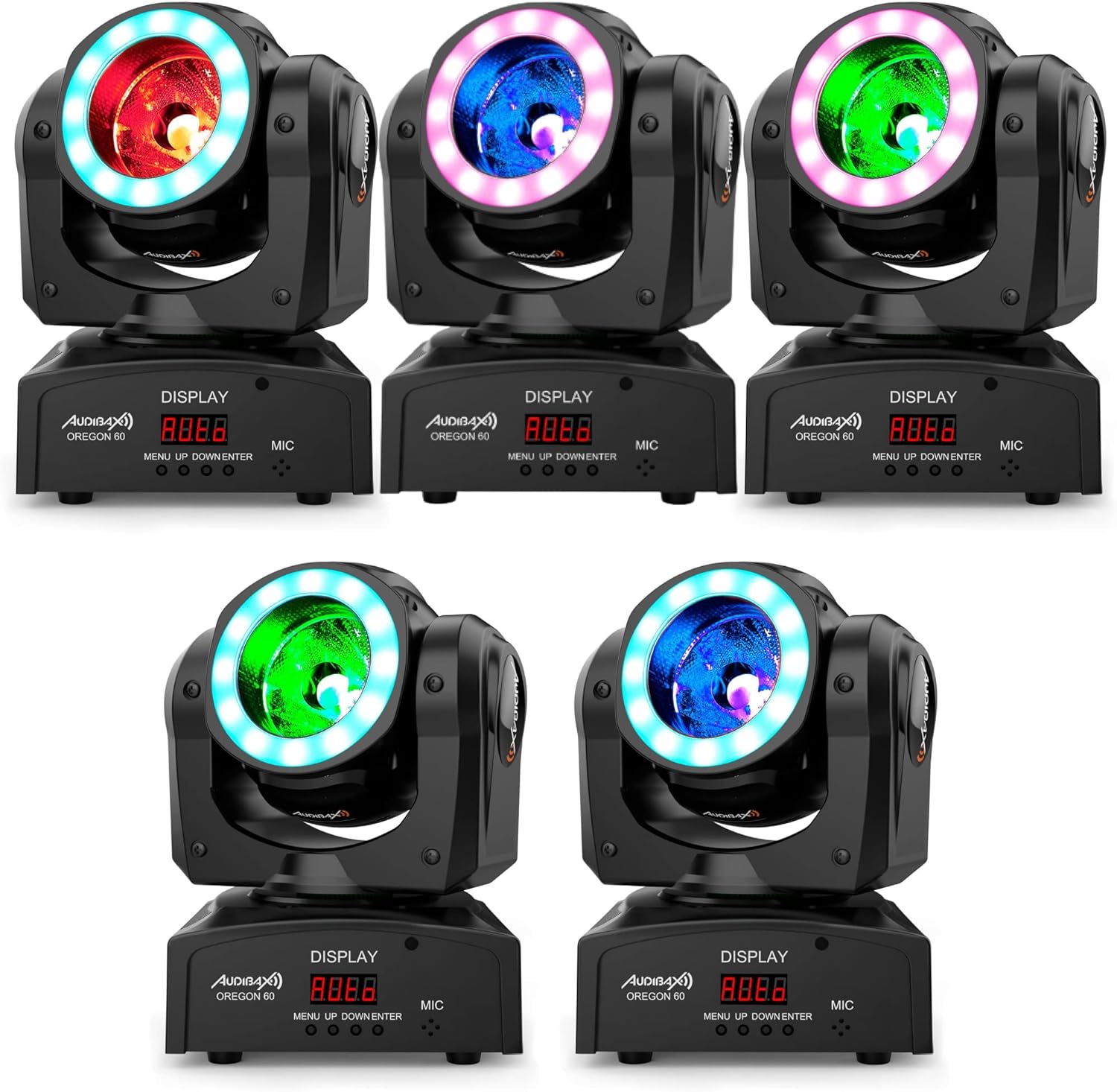

Gambar 6.1: An array of Audibax Oregon 60 moving head lights, each emitting different colors (red, blue, green), demonstrating their synchronized or varied lighting capabilities in a multi-unit setup.

7. Pangropéa

Regular maintenance ensures the longevity and optimal performance of your Audibax Oregon 60.

• beberesih: Périodik ngabersihan lénsa sareng luar casing with a soft, lint-free cloth. Do not use abrasive cleaners or solvents. Ensure the unit is disconnected from power before cleaning.
• Ventilasi: Pastikeun bukaan ventilasi bersih tina lebu sareng lebu.
• Pamariksaan: Pariksa kabel listrik, kabel DMX, sareng perangkat keras pemasangan sacara rutin pikeun tanda-tanda karusakan atanapi karusakan. Ganti komponén anu ruksak langsung.

8. Cara ngungkulan

If you encounter issues with your Audibax Oregon 60, refer to the following common problems and solutions:

9. Spésifikasi

Technical specifications for the Audibax Oregon 60 Moving Head LED Light:

• model: Oregon 60
• Ukuran produk (L x W x H): 29 x 20 x 23 cm
• beurat: 2.5 kg
• Sumber cahaya: 60W RGBW LED + LED Ring
• Bahan: Poliuretana
• Sumber Daya: Kabel Listrik
• Modeu Kontrol: DMX, Auto, Sound-Activated, Master/Slave
• Jumlah modél produsén: 10157450

10. Garansi jeung Rojongan

Audibax products are designed and manufactured to the highest quality standards. For information regarding warranty terms and conditions, please refer to the warranty card included with your product or visit the official Audibax website. For technical support, spare parts, or service inquiries, please contact Audibax customer service through their official channels.

Pabrikan: Audibax

ASIN: B084296QTH
