1. Bubuka
This manual provides essential information for the installation, operation, and maintenance of your Ground Zero Hydrogen GZHW 20XSPL passive subwoofer. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your product.
Gambar 1: Sisi view of the Ground Zero GZHW 20XSPL Subwoofer, showcasing its robust construction and yellow basket.
2. Émbaran Kasalametan
Salawasna perhatikeun pancegahan kaamanan di handap ieu:
- Pastikeun sadaya sambungan aman sareng insulated leres pikeun nyegah sirkuit pondok.
- Ulah ngalaan subwoofer ka Uap kaleuleuwihan atawa hawa ekstrim.
- Always disconnect power before making any connections or performing maintenance.
- Taroskeun ka pamasangan profésional upami anjeun henteu yakin ngeunaan léngkah-léngkah pamasangan.
- Operating at excessively high volumes can cause hearing damage.
3. Setup jeung Instalasi
The Ground Zero GZHW 20XSPL is a passive subwoofer designed for integration into car audio systems or home theater setups. Proper installation is crucial for optimal performance.
3.1 Ngabongkar bungkusan
Carefully remove the subwoofer from its packaging. Inspect for any signs of damage during transit. Retain the packaging for future transport or storage.
3.2 Pamasangan Pertimbangan
This subwoofer is designed for flush mounting. Ensure the mounting surface is sturdy enough to support the subwoofer's weight (approximately 8.7 kg) and withstand vibrations. The mounting diameter required is 187 mm, and the mounting depth is 145 mm.
Gambar 2: Sisi profile of the subwoofer, illustrating its compact depth for flush mounting.
3.3 Wiring jeung sambungan
The GZHW 20XSPL features a dual voice coil design with an impedance of 2 x 1 Ohm or 2 x 2 ohms. Proper wiring is essential to match your amplifier's capabilities and achieve the desired impedance. Refer to your ampmanual lifier pikeun beban impedansi cocog.
- Parallel Wiring (0.5 Ohm or 1 Ohm total): Connect positive terminals of both voice coils together, and negative terminals of both voice coils together. Then connect to the amplifier. This configuration results in a lower impedance.
- Series Wiring (2 Ohm or 4 Ohm total): Connect the positive terminal of one voice coil to the negative terminal of the other voice coil. The remaining positive and negative terminals connect to the amplifier. This configuration results in a higher impedance.
Always use high-quality speaker wire of appropriate gauge for the power levels involved. Ensure all connections are tight and free from corrosion.

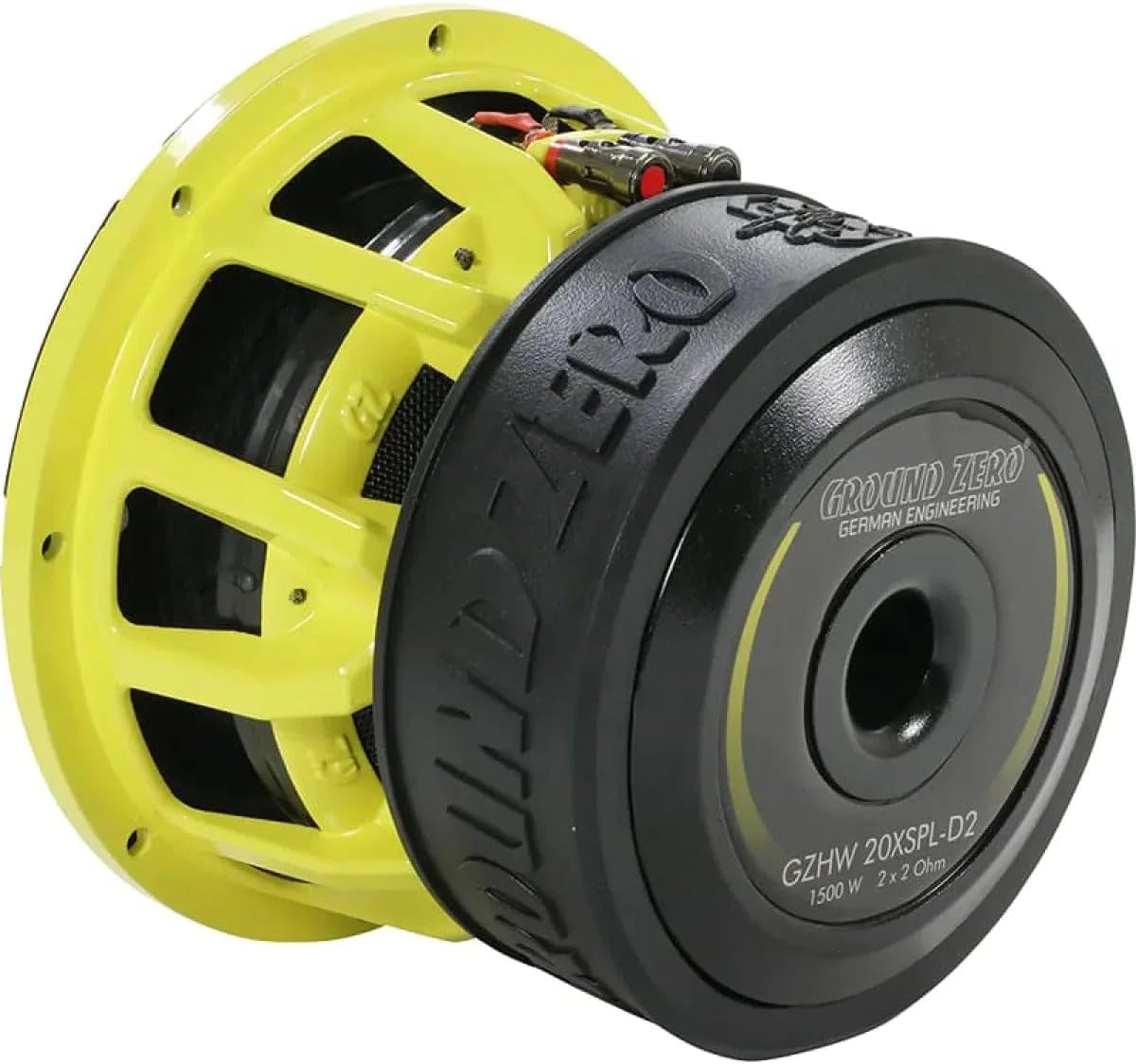

Gambar 3: Tukangeun view of the subwoofer, showing the robust magnet structure and speaker terminals for wiring.
4. Parentah Operasi
Once installed, the GZHW 20XSPL subwoofer operates as part of your audio system. Its performance is dependent on the amplifier and audio source it is connected to.
4.1 Penanganan kakuatan
The subwoofer has a recommended power handling of 300-1500 W, with an RMS power of 700 W and a peak power of 1500 W. It is crucial to match the amplifier's output to these specifications to prevent damage. Underpowering can be as damaging as overpowering, as it can lead to amplifier clipping, which produces distorted signals harmful to the subwoofer.
4.2 Periode Pemberhentian
Allow a break-in period of approximately 20-30 hours of normal listening before operating the subwoofer at high volumes. This allows the suspension components (surround and spider) to loosen up and reach their optimal compliance, improving overall performance and longevity.
4.3 Setélan Audio
Adjust the low-pass filter (LPF) on your amplifier or head unit to properly integrate the subwoofer with your main speakers. A typical LPF setting for subwoofers is between 60 Hz and 100 Hz. Experiment with phase settings (0° or 180°) to achieve the best blend with your other speakers.
Gambar 4: Hareupeun view of the subwoofer cone, highlighting the reinforced paper cone and 3D logo dustcap.
5. Pangropéa
The Ground Zero GZHW 20XSPL subwoofer requires minimal maintenance to ensure its longevity.
- beberesih: Anggo lawon anu lemes sareng garing pikeun ngusap kerucut sareng sakurilingna. Hindarkeun nganggo bahan kimia anu keras atanapi pembersih anu abrasif.
- Pamariksaan: Periodically check the speaker terminals for secure connections and signs of corrosion. Inspect the surround for any cracks or tears.
- Lingkungan: Keep the subwoofer in a dry environment, away from direct sunlight and extreme temperatures. While not waterproof, it is designed for robust use within typical vehicle or home environments.
6. Cara ngungkulan
If you experience issues with your GZHW 20XSPL subwoofer, consult the following table before seeking professional assistance.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya Sora ti Subwoofer |
|
|
| Sora Distort |
|
|
| Kaluaran Bass Lemah |
|
|
7. Spésifikasi Téknis
Detailed specifications for the Ground Zero GZHW 20XSPL Subwoofer:
| Fitur | Spésifikasi |
|---|---|
| Ngaran modél | Ground Zero Hydrogen GZHW 20XSPL |
| Nomer modél | 39733433139379 |
| Tipe | Subwoofer pasip |
| Ukuran | 8 inci (20 cm) |
| RMS Power nanganan | 700 W |
| Penanganan Daya Puncak | 1500 W |
| Dianjurkeun Amplifier Kakuatan | 300-1500 W |
| Impedansi | 2 x 1 Ohm or 2 x 2 Ohm (Dual Voice Coil) |
| Efisiensi (SPL) | 80 dB |
| Sora Coil | 63 mm Copper |
| Bahan Congcot | Tulang Tulang |
| Sakuriling | Long-throw Sandwich Surround |
| Jinis Baskét | Solid Cast Aluminum |
| Maximum Excursion (Xmax) | 40 mm |
| Diaméterna Pamasangan | 187 mm |
| Pamasangan Jerona | 145 mm |
| Resonant Frequency (Fs) | 38.3 Hz |
| Total Q (Qts) | 0.381 |
| Equivalent Air Volume (Vas) | 4.77 ltr |
| Ukuran produk (L x W x H) | 200 x 200 x 150 cm (kira-kira 8 x 8 x 6 inci) |
| Beurat produk | 8.7 kg (kira-kira 19.2 lbs) |
8. Garansi jeung Rojongan
For detailed warranty information and technical support, please refer to the official Ground Zero website or contact your authorized Ground Zero dealer. Warranty terms and conditions may vary by region and retailer.
Disarankeun pikeun nyimpen bukti pameseran anjeun pikeun klaim garansi.
