Bubuka
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Hinkley Marquis 52-Inch 5-Blade Ceiling Fan. Please read all instructions carefully before beginning installation and retain this manual for future reference. Proper installation and operation are essential for optimal performance and safety.
Image: Hinkley Marquis 52-Inch 5-Blade Ceiling Fan in Pewter finish with five wooden-look blades.
Émbaran Kasalametan
PERHATOSAN: Pikeun ngirangan résiko kahuruan, sengatan listrik, atanapi tatu pribadi, salawasna turutan pedoman kaamanan ieu.
- Ensure the electrical supply is disconnected at the circuit breaker or fuse box before installation or servicing.
- Sadaya kabel listrik kedah dilakukeun ku tukang listrik anu mumpuni luyu sareng kode listrik nasional sareng lokal.
- Struktur pamasanganana kedah mampuh nahan beurat kipas (sakitar 18.92 pon).
- Ulah beroperasi kipas kalayan bilah ruksak atawa perumahan.
- Jaga jarak minimal 7 kaki ti lanté ka sisi handap bilah kipas.
- Avoid placing objects in the path of the rotating blades.
Eusi pakét
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- Majelis kipas siling
- Kipas Angin (5)
- Pamasangan Hardware
- Kadali jauh
- Instruksi Manual
spésifikasi
| merek | Hinkley |
| Nomer modél | 901352FPW-NIA |
| Warna | Pewter |
| Desain kipas listrik | Kipas Ceuli |
| Sumber Daya | Kabel Listrik |
| Tipe Kamar | Dining Room, Bedroom, Living Room |
| Dianjurkeun Mangpaat | Sirkulasi hawa, cooling |
| Tipe rengse | Réngsé |
| Voltage | 120 volt |
| Pindah Tipe | Pull Chain (Remote Control included) |
| Item Beurat | 18.92 pon |
| Komponén Kaasup | Jauh |
| Pamakéan jero rohangan / outdoor | Luar |
| Métode kontrol | Jauh |
| Dimensi produk | 52 x 52 x 13.25 inci |
| Dirakit Jangkungna | 13.25 inci |
| Dirakit Panjang | 52 inci |
| Dirakit Lebar | 52 inci |
| Bahan Teduh | Kaca |
| Arah Cahaya | Lampu handap |
Émbaran énergi
Image: EnergyGuide label indicating an estimated yearly energy cost of $13 and an airflow of 3,742 Cubic Feet Per Minute.
Setup sareng Instalasi
Professional installation by a qualified electrician is highly recommended for safety and proper function. Ensure all local electrical codes are followed.
Cék Pra-Pasang
- Pariksa yén kotak listrik parantos dipasang kalayan pageuh sareng dipeunteun pikeun pangrojong kipas siling.
- Confirm that the chosen location allows for proper blade clearance from walls and other obstructions.
Pasang Kipas Angin
- Secure the mounting bracket to the electrical outlet box using the provided screws.
- Angkat rakitan motor kipas kalayan ati-ati teras gantungkeun tina braket pemasangan.
Sambungan Wiring
Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full installation guide (not included in this summary). Ensure all connections are secure and insulated.
Attaching Blades and Canopy
- Attach the fan blades to the motor housing using the blade screws. Ensure all blades are securely fastened.
- Install the canopy over the mounting bracket, securing it with the designated screws.

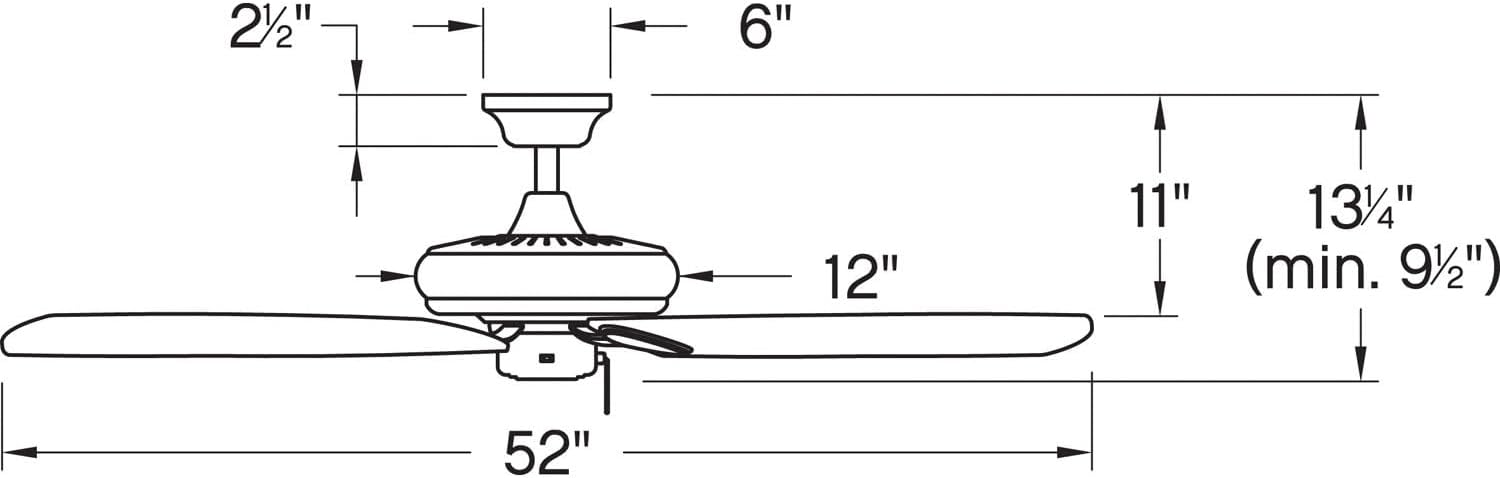

Image: Dimensional diagram of the ceiling fan, illustrating key measurements for installation.
Parentah Operasi
The Hinkley Marquis ceiling fan is operated using the included remote control. It also features smart home compatibility (WiFi accessory sold separately).
Fungsi Remote Control
- Laju kipas: Use the speed buttons to adjust the fan's rotation speed (typically low, medium, high).
- Kontrol cahaya: Press the light button to turn the light on or off. Hold the button to dim or brighten the light (if dimmable).
- Arah kipas: A button may be present to reverse the fan's direction for seasonal use (downward airflow for cooling, upward for heat circulation).
Smart Home kasaluyuan
This fan is designed to be smart home compatible. A WiFi accessory, sold separately, is required to enable features such as speed, light, and seasonal mode control via a smart device or voice activation. This allows for setting schedules and preferences for enhanced convenience.
Image: WiFi compatibility features, highlighting smartphone control, voice activation, and scheduling options (requires separate accessory).
Pangropéa
Regular maintenance ensures the longevity and efficient operation of your ceiling fan.
beberesih
- Pareuman heula kipas dina pemutus sirkuit sateuacan diberesihan.
- Ngagunakeun lemes, damp cloth to clean the fan blades and motor housing. Avoid abrasive cleaners that may damage finishes.
- Ulah make cai langsung kana motor kipas atawa komponén listrik.
Mariksa Sambungan
Periodically check all screws and connections on the fan and mounting hardware to ensure they are secure. Tighten any loose screws as needed.
Pamérésan masalah
Upami anjeun ngalaman masalah sareng kipas siling anjeun, tingal masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas teu ngamimitian | Kipasna teu aya daya; kabel sambunganna kendor; batré remot kontrol lemah. | Check circuit breaker/fuse; ensure all wiring connections are secure; replace remote control battery. |
| Kipas angin ngagelebug | Sekrup bilahna leupas; bilahna teu saimbang; braket pemasanganna leupas. | Tighten all blade screws; ensure blades are balanced (balancing kit may be required); check mounting bracket for secure attachment. |
| Operasi ribut | Loose screws; motor not seated properly; fan not broken in. | Check and tighten all screws; ensure motor housing is properly secured; allow for a break-in period (usually 24 hours). |
| Lampu teu jalan | Bulb needs replacement; loose wire connection; remote control issue. | Replace light bulb; check light kit wiring; ensure remote control battery is functional. |
Garansi sareng Rojongan
For specific warranty information and details regarding your Hinkley Marquis ceiling fan, please refer to the warranty card included with your product or visit the official Hinkley website. For technical support or assistance with parts, contact Hinkley customer service directly.
You can find more information and contact details on the official Hinkley websitus: www.hinkley.com
