1. Bubuka
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your TEXAS Smart 4400 Electric Lawn Mower. Please read this manual thoroughly before operating the machine and keep it for future reference.
1.1 Émbaran Kasalametan
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Familiarize yourself with the controls and proper use of the equipment. Keep children and bystanders away from the operating area.
- Salawasna nganggo alat pelindung diri (APD) anu merenah, kalebet pelindung panon sareng sapatu anu kuat.
- Mariksa daérah anu badé dipotong sareng cabut obyék anu tiasa dialungkeun ku sabeulah.
- Ulah ngoperasikeun mesin motong jukut dina kaayaan baseuh atanapi dina lamping anu lungkawing.
- Disconnect the power supply before cleaning, adjusting, or performing maintenance.
2. Produk Langkungview
The TEXAS Smart 4400 is a powerful electric lawn mower designed for efficient lawn care. Key features include a robust 1800 Watt motor, a 44 cm cutting width, and a 55-liter grass catcher.
Gambar 2.1: Gemblengna view of the TEXAS Smart 4400 Electric Lawn Mower, showing its yellow and black design with the handle and grass catcher.
2.1 Komponén utama
- Handlebar with control levers
- Perumahan motor
- Dek motong
- Kabayang
- Tukang jukut
- Motong adjustment jangkungna uas
- sambungan kabel kakuatan

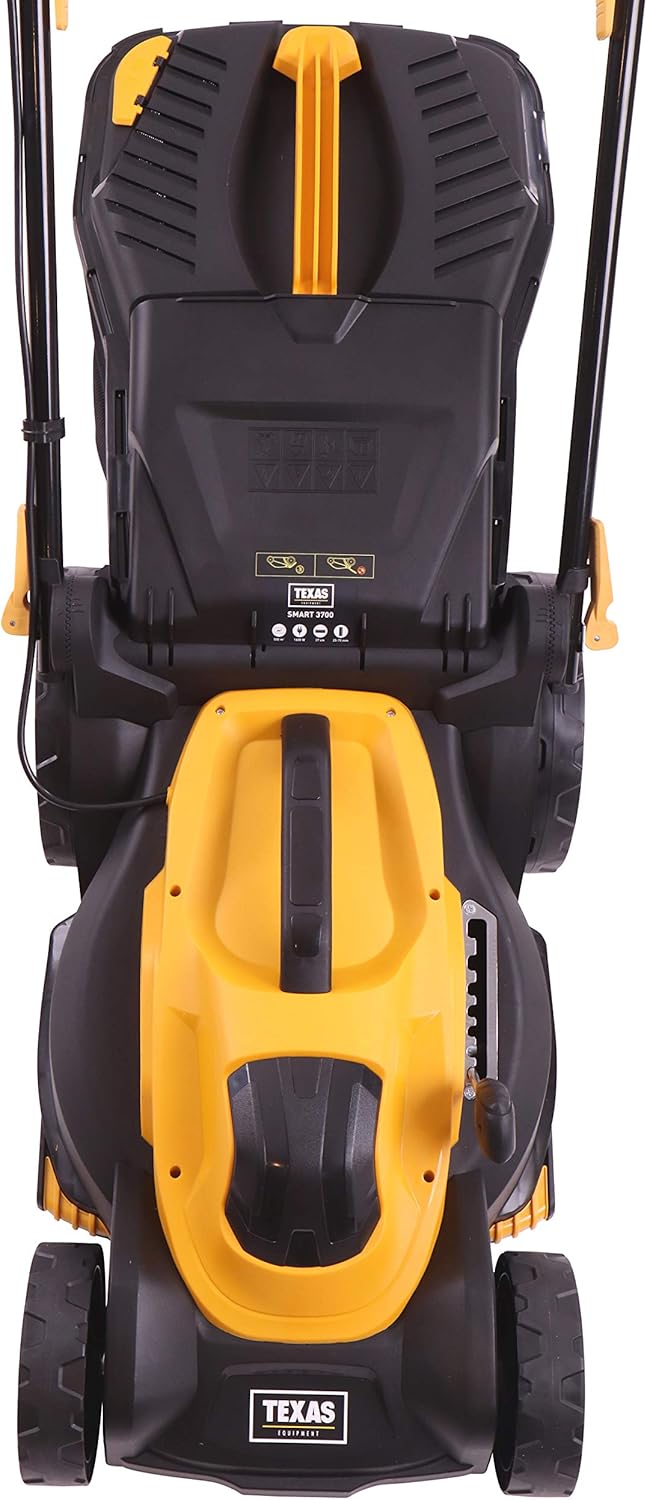

Gambar 2.2: Top view of the mower, highlighting the motor housing and handle attachment points.
3. Setup jeung Majelis
Before first use, the lawn mower requires some assembly.
3.1 Majelis Handlebar
- Attach the lower handlebar sections to the mower body using the provided bolts and knobs. Ensure they are securely fastened.
- Connect the upper handlebar section to the lower sections. Align the holes and secure with the quick-release clamps atanapi bolts.
- Ensure all cables are routed correctly and not pinched.
Figure 3.1: Detail of the handlebar controls, including the safety switch and operating lever.
3.2 Rakitan Panyekel Jukut
- Assemble the grass catcher according to the diagrams in the separate assembly sheet (if provided). Typically, this involves snapping the fabric bag onto the frame.
- Lift the rear discharge flap of the mower.
- Hook the assembled grass catcher onto the mower body. Ensure it is securely seated to prevent grass clippings from escaping.
Figure 3.2: The lawn mower with its 55-liter grass catcher properly attached.
4. Parentah Operasi
4.1 Ngamimitian sareng Ngeureunkeun Mower
- Connect the mower's power cable to a suitable outdoor extension cord, ensuring the extension cord is rated for outdoor use and the correct voltage (230V / 50Hz).
- Colokkeun kabel ekstensi kana stop kontak anu di-ground.
- To start, press the safety button (usually red) and simultaneously pull the operating lever towards the handlebar. Release the safety button once the motor starts.
- To stop, release the operating lever. The blade will stop rotating within a few seconds.
4.2 Nyaluyukeun jangkungna motong
The mower features a central cutting height adjustment with 7 positions, ranging from 20 mm to 75 mm.
- Ensure the mower is switched off and disconnected from the power supply.
- Locate the cutting height adjustment lever, typically near one of the rear wheels.
- Pull the lever outwards and move it to the desired height setting. The settings are usually numbered or indicated by notches.
- Release the lever, ensuring it locks firmly into place.
Figure 4.1: The central lever for adjusting the cutting height, showing the multiple available settings.
4.3 Mulching Function
The TEXAS Smart 4400 includes a mulching function. To activate mulching, remove the grass catcher and insert the mulching plug (if provided) into the discharge chute. This will recirculate the grass clippings under the cutting deck, finely chopping them and returning them to the lawn as natural fertilizer.
5. Pangropéa
Pangropéa rutin ngajamin umur panjang sareng kinerja optimal tina mesin pemotong rumput anjeun.
5.1 beberesih
- Salawasna pegatkeun sambungan catu daya saméméh beberesih.
- Clean the underside of the cutting deck after each use to prevent grass buildup. Use a plastic scraper or brush.
- Ngusap handap exterior of mower kalawan iklanamp cloth. Do not use high-pressure washers or excessive water directly on the motor or electrical components.
- Empty and clean the grass catcher regularly.
5.2 Kamanusaan sarta Studi agul
The cutting blade should be inspected regularly for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn. If the blade is dull or damaged, it should be sharpened or replaced by a qualified service technician.
Awas: Handling the blade requires extreme caution. Always wear heavy-duty gloves.
5.3 Panyimpenan
Store the lawn mower in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. The handlebar can often be folded for more compact storage.
6. Cara ngungkulan
Bagian ieu alamat masalah umum Anjeun bisa sapatemon jeung mower padang rumput hejo Anjeun.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mower teu ngamimitian. | Teu aya catu daya; saklar kaamanan teu hurung; motor kelebihan beban. | Check power connection and extension cord; ensure safety button and operating lever are pressed correctly; allow motor to cool down if overloaded. |
| kinerja motong goréng. | Dull or damaged blade; cutting height too low for grass condition; grass catcher full. | Have blade sharpened or replaced; adjust cutting height; empty grass catcher. |
| Geter kaleuleuwihi. | sabeulah ruksak atawa henteu saimbang; komponén leupas. | Inspect blade for damage and replace if necessary; check all fasteners for tightness. |
| Grass catcher detaches frequently. | Improper attachment; worn latching mechanism. | Ensure grass catcher is fully seated and latched; inspect latching points for wear. (Note: Some users have reported this issue; ensure secure attachment.) |
| Power cable strain relief broken. | Maké jeung cimata. | Secure the cable to the handle using a cable tie or similar temporary solution to prevent strain on the connection point. Contact service for replacement part. |
7. Spésifikasi
Technical data for the TEXAS Smart 4400 Electric Lawn Mower:
- model: TEXAS-4400
- Daya Motor: 1800 Watt
- Voltage: 230 Volt / 50 Hz
- Laju tanpa beban: 3500 U/min (RPM)
- Lebar motong: 44 cm
- Motong Jangkungna: 20 - 75 mm (7 positions, central adjustment)
- Volume Penangkap Jukut: 55 liter
- Tingkat sora: 96 dB
- beurat: 16.5 kg (Product weight), 19.9 kg (Item weight)
- Bahan: logam
- warna: Konéng
8. Garansi jeung Rojongan
Your TEXAS Smart 4400 Electric Lawn Mower is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical support, spare parts, or warranty claims, please contact your retailer or the official Texas customer service. Contact information can typically be found on the manufacturer's websitus atanapi dina bungkusan produk.
Kanggo inpo nu leuwih lengkep, buka di Texas Brand Store.
