PIONEER TS-A1300C A Series 5-1/4" Component Speakers

Bubuka

The Pioneer TS-A1300C 5-1/4" component speaker system is designed to deliver enhanced audio performance in your vehicle. This system includes woofers and separate tweeters, allowing for flexible installation to optimize sound staging. The woofers feature a Carbon and Mica reinforced polypropylene (IMPP) cone for rigidity, responsive low-frequency output, and durability.

• Penanganan kakuatan: 300 W Max Power (50 W Nominal)
• Tweeter: 20 mm polyimide (PI) hard dome tweeter for clear highs
• Woofer: 5-1/4" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction
• Pamasangan: Universal woofer basket design for expanded installation options

Naon dina Box

Carefully unpack all components and ensure all items are present before beginning installation.

Image: All components of the Pioneer TS-A1300C component speaker system, including woofers, tweeters, wiring, and mounting hardware.

• (2) 5-1/4" Woofers
• (2) 20mm Tweeters (with attached 10" speaker leads terminated with quick-connects)
• (2) Lengths of Speaker Wire (each has quick slides to connect to the woofer, a 40" tweeter output leg with integrated crossover, and an 11" input leg)
• (2) Tweeter Angled Surface Mount Housings
• (2) Tweeter Flush Mount Rings
• (2) Tweeter Factory Mount Brackets
• (8) 3/4" Screws
• (6) 1/2" Screws
• (2) Speed Clips
• (2) Adhesive Backed Foam Discs
• Lembar Garansi 1 Taun
• Installation Template and Specs on Box

Guide instalasi

This section provides general guidance for installing your Pioneer TS-A1300C component speakers. Refer to the detailed installation template and specifications provided on the product packaging for precise measurements and vehicle-specific instructions.

1. Persiapan

• Pegatkeun sambungan terminal batré négatip wahana pikeun nyegah kolor listrik.
• Remove existing speakers and trim panels as necessary to access mounting locations.
• Identify suitable mounting locations for the woofers and tweeters. The universal woofer basket design allows for flexible installation.

2. Pamasangan Woofer

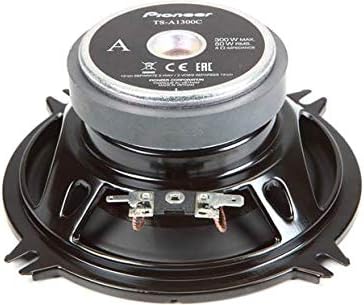

Gambar: Tukangeun view of a Pioneer TS-A1300C woofer, showing the magnet and terminals.

• Mount the 5-1/4" woofers securely in the designated speaker openings using the provided screws. Ensure a tight fit to prevent vibrations.
• Connect the woofer wires to the vehicle's speaker wiring, observing correct polarity (positive to positive, negative to negative).

3. Pamasangan Tweeter

Gambar: Deukeut view of a Pioneer TS-A1300C tweeter with its integrated crossover wiring.

• Choose between flush mount, angled surface mount, or factory mount brackets for the 20mm tweeters based on your vehicle's interior and desired sound dispersion.
• Install the tweeters in a location that provides optimal sound imaging, typically higher up in the vehicle's cabin.
• Connect the tweeter wires, which include an integrated crossover, to the appropriate speaker output from your ampliifier atanapi head unit.

4. Wiring sareng Sambungan

• Pastikeun sadaya sambungan aman sareng insulated pikeun nyegah sirkuit pondok.
• Jalur spiker kabel jauh ti bagian pindah sarta titik ciwit poténsial.
• Once all speakers are connected, re-install any removed trim panels.

Parentah Operasi

The Pioneer TS-A1300C component speakers are passive devices and do not require direct power. Their operation is dependent on the amplifier or head unit they are connected to.

• Daya Hurung: Once correctly installed and connected to an amplifier/head unit, the speakers will produce sound when the audio system is powered on.
• Kontrol volume: Adjust volume and audio settings (bass, treble, balance, fader) via your vehicle's head unit or external amppangagung.
• AmpSetélan Lifier: Upami nganggo éksternal amplifier, ensure its gain settings are properly adjusted to match the output of your head unit and prevent distortion.

Pangropéa

Proper maintenance ensures the longevity and optimal performance of your speakers.

• beberesih: Gently wipe the speaker grilles and cones with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Pamariksaan: Périodik pariksa sambungan spiker keur tightness tur pastikeun euweuh kawat anu frayed atawa kakeunaan.
• Lingkungan: Protect speakers from excessive moisture, direct sunlight, and extreme temperatures.

Pamérésan masalah

If you experience issues with your speakers, refer to the following common troubleshooting steps:

Taya Sora ti Speaker

• Pariksa sambungan: Pastikeun sadaya kabel speaker disambungkeun pageuh kana speaker sareng amplampu/head unit, kalayan polaritas anu leres.
• AmpUnit Panguat/Sirah: Pariksa yén anjeun amplifier or head unit is powered on and functioning correctly. Check its fuses.
• Sumber: Confirm the audio source (radio, CD, Bluetooth) is active and playing.
• Volume: Pastikeun polumeu dihurungkeun sareng henteu dijempékeun.

Sora Distort

• Tingkat volume: Leutikan volume. Distorsi sering kajadian nalika ampliifier geus overdriven.
• AmpKeuntungan Lifier: Adjust the gain settings on your amplifier. Upami gain disetel teuing luhur, éta tiasa nyababkeun distorsi.
• Karusakan Speaker: Inspect speaker cones for any visible damage or tears.

Sora intermittent

• Sambungan Leupas: Pariksa deui sadaya sambungan kabel naha aya anu kendor atanapi korosi.
• Karusakan kabel: Inspect speaker wires for cuts or pinches that could cause intermittent contact.

spésifikasi

Émbaran jaminan

This Pioneer product is covered by a garansi 1 taun. Please refer to the included '1 Year Warranty sheet' in your product packaging for detailed terms, conditions, and claim procedures. Retain your proof of purchase for warranty service.

Émbaran Kasalametan

PERHATOSAN: Produk ieu ngandung bahan kimia anu dipikanyaho Nagara California pikeun nyababkeun kanker sareng cacad kalahiran atanapi cilaka réproduktif sanés.

Always follow local regulations for disposal of electronic components. Ensure proper ventilation during installation and operation.
