Buku Panduan Batré PERUN Power G 2.0 Ah 20V

1. Bubuka

This manual provides essential information for the safe and effective use of your PERUN Power G 2.0 Ah 20V Lithium-ion battery. This battery is designed for use with compatible YARD Force and PowerG 20V power tools. Please read these instructions carefully before first use and retain them for future reference.

Gambar 1: Hiji overhead view of the PERUN Power G 20V 2.0 Ah Lithium-ion battery and its compatible charging unit, both in black.

2. Émbaran Kasalametan

Always observe the following safety precautions to prevent injury or damage to the battery and tools.

• Ngecas: Use only the specified PERUN charger for this battery. Charging with an incompatible charger may cause fire, injury, or damage.
• Panyimpenan: Store the battery in a cool, dry place, away from direct sunlight, heat sources, and moisture. Do not store in temperatures exceeding 40°C (104°F) or below -10°C (14°F).
• Penanganan: Do not short-circuit the battery terminals. Avoid dropping or subjecting the battery to strong impacts. Do not open, disassemble, or modify the battery.
• pembuangan: Dispose of batteries responsibly according to local regulations. Do not dispose of batteries in household waste or fire.
• Perlindungan Overload: The battery features integrated protection against overcurrent, overcharge, and deep discharge to enhance safety and prolong battery life.

3. Produk Langkungview

The PERUN Power G 2.0 Ah 20V battery is a robust power source for your cordless tools. It features a compact design and an intuitive LED charge indicator.

3.1. Komponén batré

• Paket batré: Unit kakuatan utama.
• Indikator muatan LED: Three LED lights to display the current charge level.
• Charge Indicator Button: Activates the LED charge indicator.
• Terminal sambungan: For connecting to tools and the charger.

Gambar 2: A close-up view of the PERUN Power G 20V 2.0 Ah battery, highlighting its three-level LED charge indicator and power button.

4. Setup jeung Ngecas

Sateuacan nganggo heula, pastikeun batréna tos dicas pinuh.

4.1. Muatan Awal

1. Sambungkeun carjer ka colokan listrik anu cocog.
2. Geserkeun batréna kana carjer nepi ka ngaklik kana tempatna.
3. The charger's indicator lights will show the charging status. Typically, a red light indicates charging, and a green light indicates a full charge. Refer to your specific charger's manual for detailed light patterns.
4. Saatos dicas pinuh, cabut batré tina carjer.

The battery features fast charge technology and does not develop a memory effect, allowing you to charge it at any state of discharge without impacting its overall lifespan.

Figure 3: A detailed image of the PERUN Power G 20V battery charging unit, showing the connection terminals and indicator lights.

4.2. Checking Battery Charge Level

Press the button next to the LED indicators on the battery. The number of illuminated LEDs indicates the remaining charge:

• 3 LED: muatan pinuh
• 2 LED: muatan sedeng
• 1 LED: Muatan saeutik, geura dicas deui

5. Parentah Operasi

The PERUN Power G 2.0 Ah 20V battery is compatible with all G-Power 20V power tools, including those from YARD Force and PowerG.

5.1. Ngapasangkeun Batré kana Pakakas

1. Pastikeun alat dipareuman.
2. Sejajarkeun batréna sareng slot batré dina alat.
3. Slide the battery firmly into the slot until it clicks into place, indicating a secure connection.

5.2. Removing the Battery from a Tool

1. Pastikeun alat dipareuman.
2. Press the battery release button (if present on the tool or battery).
3. Cabut batréna tina alatna.

Figure 4: An illustrative diagram showing the PERUN Power G 20V battery at the center, surrounded by various compatible power tools such as drills, saws, and garden equipment.

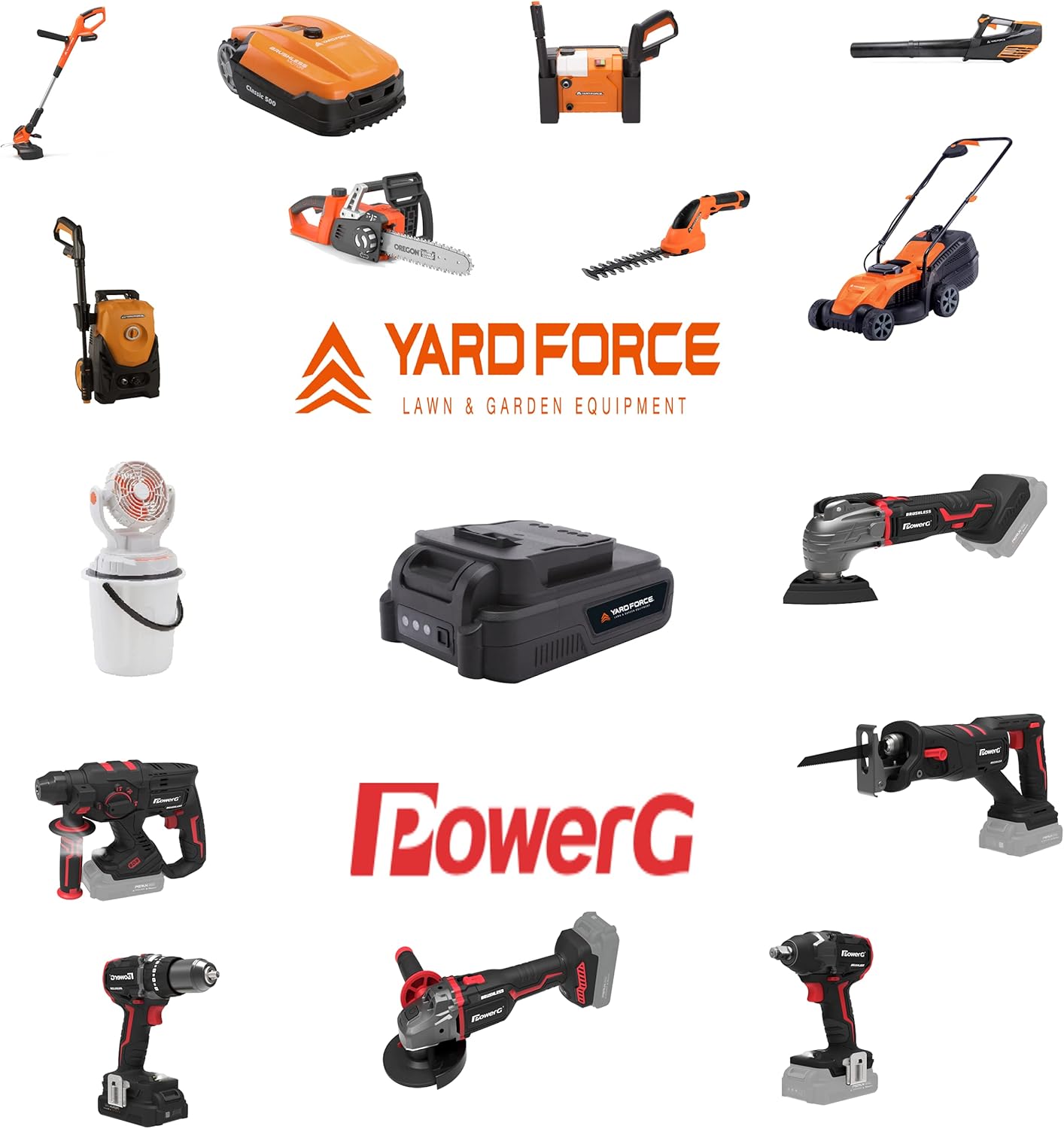

Figure 5: A comprehensive image displaying the PERUN Power G 20V battery system, featuring the battery and a wide range of compatible YARD Force and PowerG tools, including lawnmowers, trimmers, and blowers.

6. Pangropéa sareng Panyimpenan

Proper maintenance and storage will extend the life of your battery.

• beberesih: Keep the battery and its terminals clean and free from dust and debris. Use a dry cloth to wipe surfaces.
• Panyimpenan: For long-term storage, charge the battery to approximately 50-60% capacity. Store in a cool, dry place, away from extreme temperatures. Avoid storing fully charged or completely discharged for extended periods.
• Suhu: Do not expose the battery to temperatures below -10°C (14°F) or above 40°C (104°F) during operation or storage.

7. Cara ngungkulan

If you encounter issues with your PERUN Power G battery, refer to the following common problems and solutions:

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information or technical support, please refer to the documentation included with your purchase or contact PERUN customer service directly. Keep your proof of purchase for any warranty claims.
