Buku Panduan Pangguna Bangku Serbaguna COSCO FITNESS Power 7800

1. Bubuka sarta Émbaran Kasalametan

Thank you for choosing the COSCO FITNESS Power 7800 Multi-Purpose Bench. This manual provides essential information for the safe assembly, operation, and maintenance of your fitness equipment. Please read it thoroughly before use and retain it for future reference.

Pancegahan Kasalametan Penting:

• Taroskeun ka dokter sateuacan ngamimitian program latihan naon waé.
• Pastikeun sadaya bolts sareng mur dikencangkeun sacara aman sateuacan unggal dianggo.
• Ulah ngaleuwihan beurat pangguna maksimum 100 kg (220 lbs).
• Jauhkeun barudak sareng piaraan tina alat nalika dianggo.
• Paké bangku dina datar, permukaan stabil.
• Inspect the equipment for wear or damage before each workout. Do not use if damaged.
• Paké attire latihan luyu jeung footwear.

2. Produk Langkungview

The COSCO FITNESS Power 7800 is a versatile multi-purpose bench designed for a comprehensive strength training workout. It features adjustable positions for incline, decline, and flat exercises, integrated butterfly bars, and a high pulley for lat pull-downs.

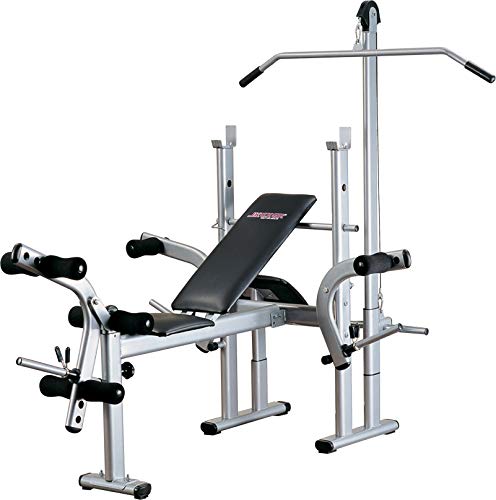

Figure 2.1: The COSCO FITNESS Power 7800 Multi-Purpose Bench. This image displays the complete bench assembly, including the adjustable backrest, seat, leg developer, butterfly arms, and the overhead lat pull-down station.

3. Setup jeung Majelis

The COSCO FITNESS Power 7800 Multi-Purpose Bench is designed for easy assembly. It is recommended to assemble the unit with at least two people.

3.1 Komponen anu Kaasup:

• COSCO Power 7800 Multi-Purpose Bench frame and components
• Hardware rakitan (bolts, kacang, washers)
• Tools for assembly (if provided, otherwise standard wrenches/allen keys are required)

3.2 Léngkah-léngkah Majelis:

1. Unpack all components and verify against the parts list (refer to the separate assembly diagram if included with your product).
2. Assemble the main frame components, ensuring all connections are secure but not fully tightened until all parts are in place.
3. Attach the adjustable bench sections (backrest and seat) to the main frame.
4. Install the leg developer attachment.
5. Mount the integrated butterfly bars.
6. Assemble and attach the high pulley system for lat pull-downs.
7. Once all components are in place, fully tighten all bolts and nuts.
8. Perform a stability check by gently shaking the assembled bench to ensure no wobbling.

4. Parentah Operasi

4.1 Adjusting Bench Positions (Incline, Decline, Flat):

The bench offers multiple adjustable positions to target different muscle groups. To adjust, locate the adjustment pins or levers beneath the backrest and seat. Pull the pin, adjust the bench to the desired angle (incline, flat, or decline), and ensure the pin locks securely into place before use.

4.2 Using the Integrated Butterfly Bars:

The fixed integrated butterfly bars are designed for chest exercises. Sit on the bench, grasp the handles, and perform chest fly movements. Ensure smooth, controlled motions.

4.3 Using the High Pulley for Lat Pull-Down:

Attach a suitable weight plate (28mm diameter) to the weight post on the high pulley system. Sit on the bench facing the pulley, grasp the lat bar, and perform controlled pull-down movements. Ensure the cable system is free of obstructions and operates smoothly.

4.4 Weight Plate Compatibility:

The weight posts on the lat pull-down and leg developer are designed to fit standard 28mm diameter weight plates.

5. Pangropéa

• beberesih: Wipe down the bench and frame with a damp lawon sanggeus unggal pamakéan pikeun miceun kesang jeung lebu. Hindarkeun pembersih abrasive.
• Pariksa Hardware: Periodically check all bolts, nuts, and screws for tightness. Retighten as necessary to ensure stability and safety.
• Padding busa: Inspect foam padding for tears or excessive wear. Clean with a mild soap solution if needed.
• Cable System (Lat Pull-Down): Regularly inspect the cable for fraying or damage. Ensure pulleys move freely and are lubricated if necessary.
• Panyimpenan: The bench is foldable for compact storage. Ensure it is folded correctly and stored in a dry, safe place when not in use.

6. Cara ngungkulan

• Bench is unstable/wobbles: Ensure the bench is on a flat, level surface. Check and tighten all assembly bolts and nuts.
• Difficulty adjusting bench positions: Ensure adjustment pins are fully disengaged before attempting to move the bench. Check for any obstructions.
• Lat pull-down cable is stiff or noisy: Inspect the cable for damage or kinks. Check pulleys for smooth operation and lubricate if needed. Ensure weight plates are properly loaded and not obstructing movement.
• Unusual noises during use: Stop exercising immediately. Inspect all connections and moving parts for loose hardware or damage.

7. Spésifikasi

8. Émbaran jaminan

Specific warranty details for the COSCO FITNESS Power 7800 Multi-Purpose Bench are not provided in this manual. Please refer to your purchase documentation or contact Cosco customer support for warranty terms and conditions.

9. Rojongan Palanggan

For assistance with assembly, operation, or any other inquiries regarding your COSCO FITNESS Power 7800 Multi-Purpose Bench, please contact Cosco customer support. Contact information can typically be found on the product packaging or the official Cosco websitus.

Anjeun oge bisa nganjang ka Cosco Store on Amazon pikeun inpo produk leuwih.
