Bubuka
This manual provides essential information for the safe and efficient operation of your BEPER P102CON001 Vacuum Sealer. This appliance is designed to extend the freshness of food by removing air from specially designed bags and sealing them, preventing freezer burn, reducing spoilage, and preserving nutritional value. Please read these instructions carefully before first use and keep them for future reference.
Parentah Kasalametan
- Salawasna cabut colokan alat tina stop kontak sateuacan beberesih atanapi nalika teu dianggo.
- Entong neuleumkeun alat, kabel listrik, atanapi nyolok kana cai atanapi cairan sanésna.
- Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kaasup murangkalih) anu kakurangan kamampuan fisik, indrawi, atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kasalametanana. .
- Keep children away from the appliance during operation and storage.
- Entong jalankeun alat upami kabel listrik atanapi colokan rusak, atanapi upami alatna gagal atanapi parantos ruksak dina cara naon waé.
- Use only original BEPER accessories and bags designed for this vacuum sealer.
- The appliance features an overheating protection system. If the device overheats, allow it to cool down before resuming operation.
- Ensure the sealing strip is clean and dry before each use to ensure a proper seal.
Komponén produk
Familiarize yourself with the main parts of your BEPER P102CON001 Vacuum Sealer:
- tutup: Covers the vacuum chamber and sealing strip.
- Kamar vakum: Daérah dimana hawa dikaluarkeun tina kantong.
- Jalur segel: Heats up to create a secure seal on the bag.
- Releasing Valve: Used to release pressure after vacuum sealing.
- Air Suction Port: Where air is drawn out during vacuuming.
- Tombol kontrol:
- VAC SEAL: Initiates vacuuming and then sealing.
- EUREUN: Ngeureunkeun operasi ayeuna.
- SEGEL: Initiates sealing only (without vacuuming).

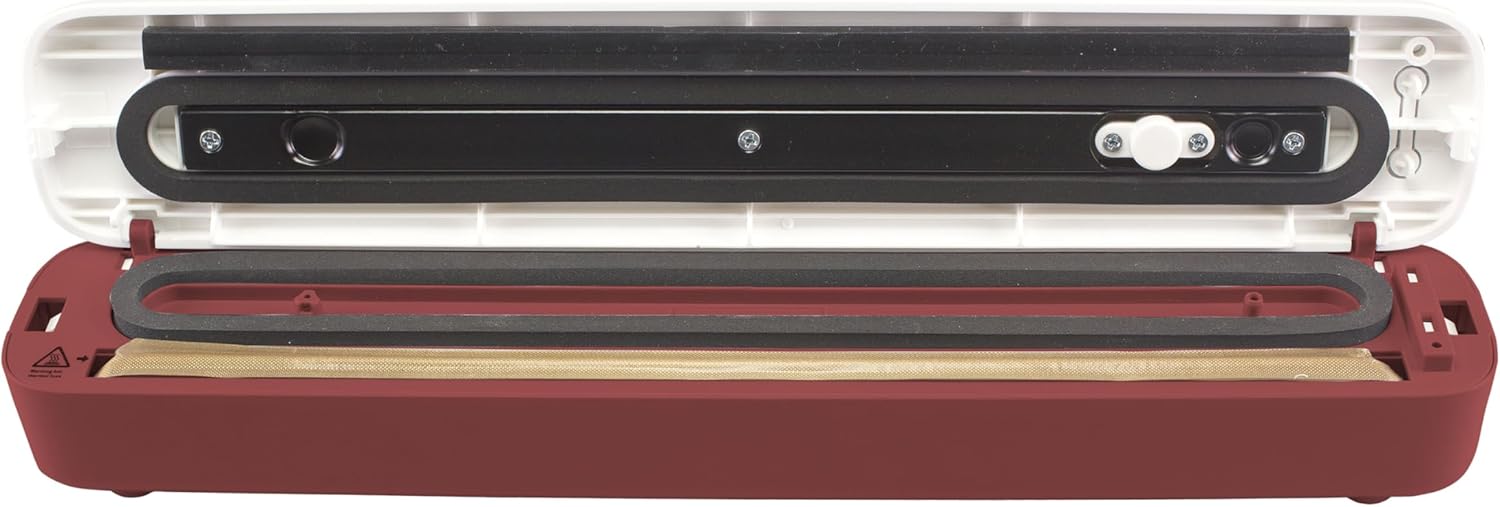

Image: The BEPER P102CON001 Vacuum Sealer with its lid open, revealing the internal components such as the sealing strip and vacuum chamber, essential for its operation.
Disetél
- Ngabongkar: Carefully remove the vacuum sealer and all accessories from its packaging.
- mariksa: Pariksa alat pikeun tanda-tanda karusakan. Ulah make lamun ruksak.
- panempatan: Place the vacuum sealer on a flat, stable, and dry surface. Ensure there is enough space around the unit for proper ventilation.
- Sambungan Daya: Colokkeun kabel listrik kana stop kontak listrik anu cocog.
Gambar: A luhur-handap view of the BEPER P102CON001 Vacuum Sealer, illustrating its compact design and readiness for setup on a kitchen counter.
Parentah Operasi
Nyiapkeun Kantong
Ensure the bag is clean and dry, especially the area where the seal will be made. Do not overfill the bag; leave at least 7-10 cm of space from the top for proper sealing. The appliance comes with 5 reusable bags measuring 25 x 30 cm.
Image: A stack of five clear, reusable vacuum sealer bags, each measuring 25x30 cm, included with the BEPER P102CON001.
Vakum Sealing Dahareun
- Place the food item inside a vacuum sealer bag.
- Buka tutup tina sealer vakum.
- Place the open end of the bag into the vacuum chamber, ensuring it lies flat and smooth over the sealing strip. The bag should not extend beyond the sealing strip.
- Close the lid firmly until you hear a click, indicating it is securely locked.
- Pencét éta VAC SEAL button. The appliance will automatically vacuum the air out of the bag and then proceed to seal it.
- Once the process is complete, the indicator light will turn off. Press the Releasing Valve to release the vacuum pressure, then open the lid.
- Remove the sealed bag. Check the seal to ensure it is airtight.
Image: A close-up of a hand initiating the vacuum and seal process by pressing the 'VAC SEAL' button on the BEPER P102CON001, with a bag containing food positioned for sealing.
Image: The BEPER P102CON001 Vacuum Sealer shown with a perfectly vacuum-sealed steak in a bag, demonstrating the successful preservation of food.
Sealing Only (without Vacuum)
This function is useful for sealing bags of dry goods that do not require vacuuming, such as chips or bread, or for creating custom-sized bags from a roll.
- Place the open end of the bag directly over the sealing strip, ensuring it is flat and smooth. Do not place it inside the vacuum chamber.
- Tutup tutup pageuh nepi ka clicks.
- Pencét éta SEGEL button. The appliance will heat the sealing strip to create a seal.
- Once the indicator light turns off, press the Releasing Valve and open the lid.
- Kaluarkeun kantong anu disegel.
Image: An illustrative diagram of the BEPER P102CON001 Vacuum Sealer, highlighting its dual functions (vacuum+seal, seal only), the 30 cm sealing area, and the inclusion of 5 bags.
Pangropéa jeung beberesih
Beberesih rutin mastikeun kinerja anu optimal sareng manjangkeun umur sealer vakum anjeun.
- Cabut colokan: Salawasna cabut colokan alat sateuacan beberesih.
- Luar: Ngusap bagian luar alat ku lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
- Vacuum Chamber and Sealing Strip: Carefully wipe the vacuum chamber and the sealing strip with a damp cloth to remove any food residue or moisture. Ensure these areas are completely dry before closing the lid or storing the appliance.
- Panyimpenan: Simpen alat di tempat anu garing, jauh tina sinar panonpoé langsung sareng di luar jangkauan barudak.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Alat henteu hurung. | Teu plugged di; gangguan stop kontak listrik. | Pastikeun kabel listrik dicolokkeun sacara aman kana stop kontak anu tiasa dianggo. |
| Vacuuming is not effective. | Bag not properly placed; lid not fully closed; bag leakage. | Ensure the bag opening is flat within the vacuum chamber. Close the lid firmly until it clicks. Check the bag for holes or tears. |
| Kantong teu disegel leres. | Sealing strip is dirty or wet; bag is wrinkled; appliance overheated. | Clean and dry the sealing strip. Smooth out any wrinkles in the bag. Allow the appliance to cool down if it has been used continuously. |
| Air re-enters the bag after sealing. | Improper seal; food with sharp edges; bag not suitable. | Ensure a complete, even seal. Pad sharp food items. Use only bags designed for vacuum sealing. |
If you encounter issues not listed here or if problems persist, please contact customer support or a qualified service technician.
spésifikasi
- merek: BEPER
- model: P102CON001
- kakuatan: 85 W
- Bahan: Plastik ABS
- Ukuran produk: 43 x 10 x 7 cm
- Sealing Strip Length: 30 cm
- Asesoris kaasup: 5 reusable vacuum bags (25 x 30 cm)
- Fitur husus: Automatic vacuum and sealing function, prevents mold and bacteria, reduces food waste.
Garansi sareng Rojongan
For detailed warranty information, please refer to the documentation provided with your purchase or visit the official BEPER website. If you require technical support or have questions regarding your BEPER P102CON001 Vacuum Sealer, please contact your retailer or the manufacturer's customer service department.
