1. Produk Langkungview
The Hifonics BG-4000.1D Brutus Gamma Monoblock Amplifier is a Super D Class car audio amplifier designed to deliver powerful sound to subwoofers. It features a robust aluminum construction for efficient cooling and minimal distortion, along with advanced control capabilities for precise audio tuning.

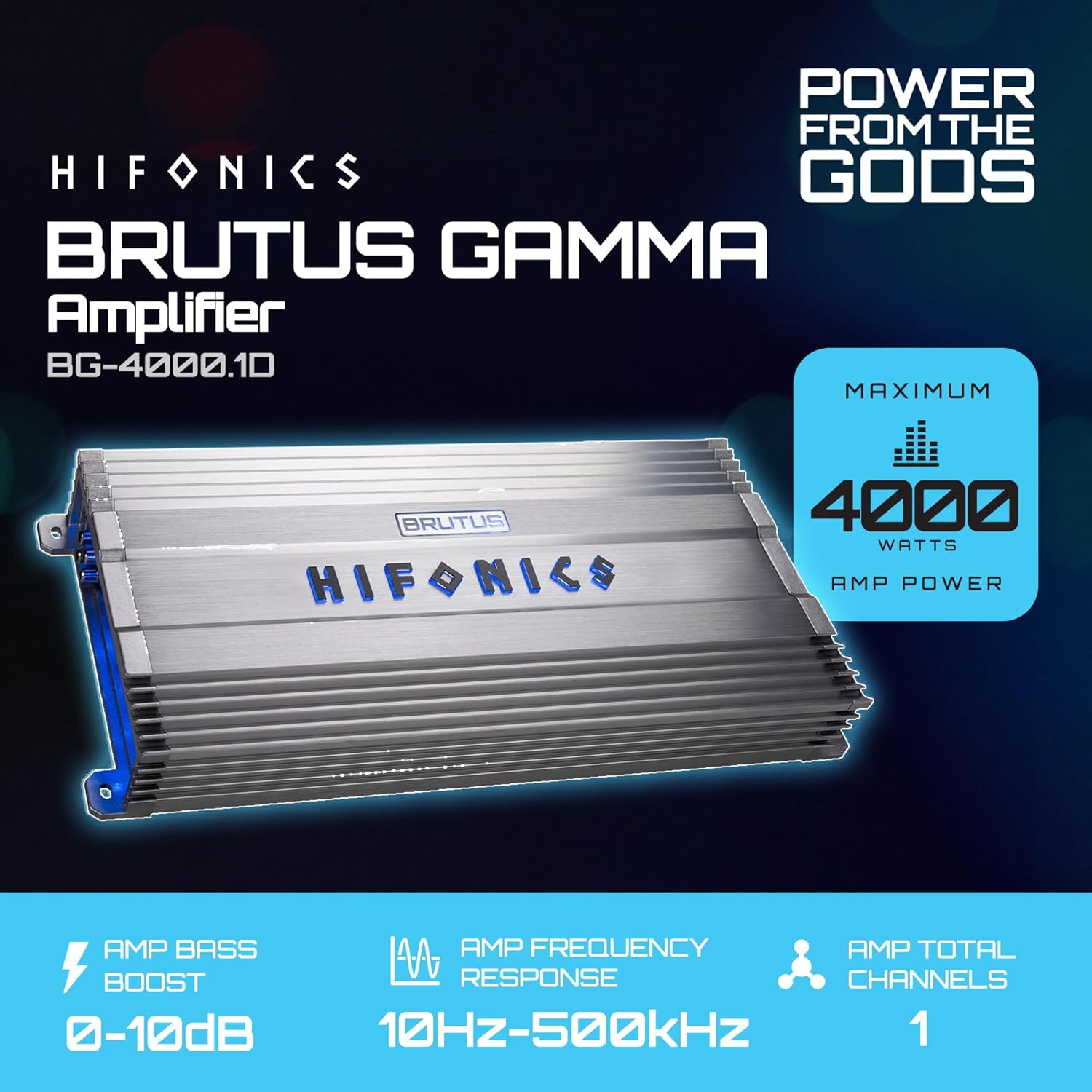

Gambar 1: Hareupeun view of the Hifonics BG-4000.1D Brutus Gamma Monoblock Amplirén, nuduhkeuncasing its sleek design and Hifonics branding.
Ieu amplifier is engineered for high performance, providing up to 4000 watts at 1 ohm, 2200 watts at 2 ohms, and 1100 watts at 4 ohms. It includes a wired bass remote for convenient control and features Ultra-Fi MOSFET output device technology for powerful and clear sound reproduction.
2. Émbaran Kasalametan
WARNING: Failure to follow these safety instructions may result in fire, electric shock, injury, or damage to the product or vehicle.
- Salawasna pegatkeun sambungan batré kandaraan urang saméméh ngajalankeun sagala pagawean listrik.
- Pastikeun grounding ditangtoskeun tina amplifier to the vehicle chassis.
- Use appropriate gauge wiring for power, ground, and speaker connections to prevent overheating and damage.
- Pasang éta amplifier in a well-ventilated area to prevent overheating. Avoid mounting in enclosed spaces without adequate airflow.
- Protect all wiring from sharp edges and moving parts.
- Ulah ngalaan ampLifier kana Uap atanapi suhu ekstrim.
- Seek professional installation if you are unsure about any part of the setup process.
3. Setup jeung Instalasi
3.1 Pamasangan Amppangagung

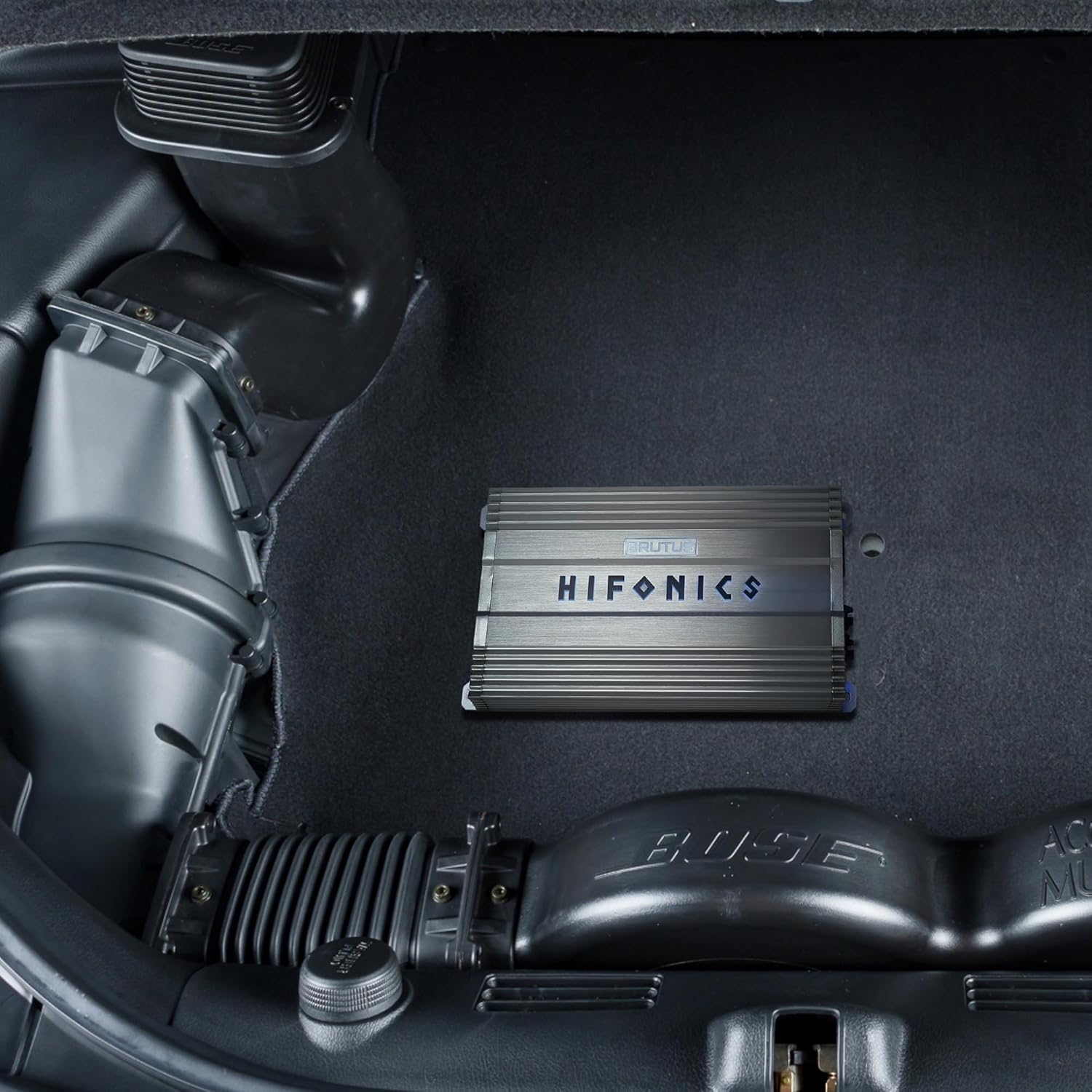

Select a mounting location that provides adequate ventilation and is protected from moisture. The amplifier's aluminum heat sink is designed for efficient cooling, but proper airflow is still essential. Secure the ampditempelkeun pageuh kana permukaan anu padet nganggo perangkat keras anu merenah.
Gambar 2: Sisi view tina amplifier, illustrating its compact dimensions (L) 21.94" x (W) 11.81" x (H) 4.06" and built-in bass control.
3.2 Sambungan Wiring
All connections should be made with the vehicle's battery disconnected. Use high-quality, appropriate gauge wiring for all connections.
Image 3: Rear panel of the amplifier showing power, ground, remote, and speaker output terminals. Note the illuminated power and protect indicators.
Sambungan Daya sareng Taneuh:
- + 12V (Kakuatan): Connect to the positive terminal of the vehicle's battery via an appropriate fuse or circuit breaker (not included).
- GND (tanah): Connect to a clean, unpainted metal surface of the vehicle chassis. Ensure a solid, low-resistance connection.
- REM (Jauh): Sambungkeun ka output ngahurungkeun jarak jauh tina head unit anjeun.
Gambar 4: Deukeut view of the secure molded connection terminals for power, ground, remote, and speaker outputs, designed for high-temperature and impact resistance.
Sambungan Kaluaran Speaker:
- Connect your subwoofer(s) to the "MONO OUTPUT" terminals. Ensure correct polarity (+ to + and - to -).
- The amplifier supports mono operation and is stable down to 1 ohm.
Sambungan Input RCA:
- Connect the RCA input cables from your head unit's subwoofer output to the amplifier's "INPUT" RCA jacks.
Image 5: Close-up of the amplifier's control panel, including RCA inputs, gain, low-pass filter, subsonic filter, phase, and bass boost adjustments.
3.3 Mimiti Power-Up
After all connections are secure, reconnect the vehicle's battery. The power indicator LED on the amplifier's end panel should illuminate, indicating proper operation. If the protect LED illuminates, refer to the troubleshooting section.
4. Parentah Operasi
4.1 Ngaluyukeun kadali
The BG-4000.1D amplifier features several adjustable controls to fine-tune your audio output:
- NGASILKEUN: Adjusts the input sensitivity to match the output of your head unit. Start with the gain at minimum and slowly increase until desired volume is achieved without distortion.
- LPF (Low-Pass Filter): Controls the upper frequency limit for the subwoofer. Typically set between 40Hz and 180Hz to ensure only low frequencies are sent to the subwoofer.
- SUBSONIC: Filters out extremely low frequencies that are inaudible and can damage subwoofers. Typically set between 10Hz and 40Hz.
- FASE: Adjusts the phase of the subwoofer output (0° or 180°) to optimize bass response with other speakers in the vehicle.
- BASS BOOST: Provides an adjustable bass enhancement (0dB to 12dB) at a specific frequency. Use sparingly to avoid distortion.
4.2 Wired Bass Remote
The included wired bass remote allows for convenient adjustment of the subwoofer output level from the driver's seat. Connect the remote to the dedicated port on the amppanel kontrol lifier urang.
4.3 Indikator LED
- PWR (Kakuatan) LED: Caang héjo nalika ampliifier hurung sareng tiasa dianggo normal.
- PRT (Protect) LED: Illuminates beureum nalika amplifier ngadeteksi gangguan (contona, panas teuing, korsleting, voltase rendahtage). If this LED lights up, turn off the audio system and investigate the cause.
For optimal performance, refer to the detailed instructions in the full product manual for specific settings and tuning recommendations.
5. Pangropéa
- beberesih: Paké kaen lemes, garing pikeun ngabersihan ampjaba lifier urang. Ulah make bahan kimia kasar atawa cleaners abrasive.
- Ventilasi: périodik pariksa yén amplifier's heat sink fins are free from dust and debris to ensure proper cooling.
- Sambungan: Ensure all power, ground, and speaker connections remain tight and free from corrosion.
6. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Teu Aya Daya (LED Daya pareum) | Blown fuse, loose power/ground/remote wire, no remote signal. | Check fuse, verify all connections are secure, ensure head unit is sending a remote signal. |
| Protect LED is on | Overheating, short circuit in speaker wiring, low impedance load. | Nyanggakeun amplifier to cool, check speaker wiring for shorts, verify speaker impedance is within amplifier's limits. |
| Taya Kaluaran Sora | Loose RCA cables, incorrect gain setting, speaker wires disconnected. | Check RCA connections, adjust gain, verify speaker wire connections. |
| Sora Distort | Gain set too high, improper LPF/Subsonic settings, poor quality audio source. | Reduce gain, adjust LPF/Subsonic filters, use a higher quality audio source. |
7. Spésifikasi
| Fitur | Rincian |
|---|---|
| Modél | BG-4000.1D |
| merek | Hifonics |
| Amplifier Kelas | Super D Class |
| Jumlah Saluran | 1 (Monoblok) |
| Daya Kaluaran (1 Ohm) | 1 channel x 4,000 watts |
| Daya Kaluaran (2 Ohm) | 1 channel x 2,200 watts |
| Daya Kaluaran (4 Ohm) | 1 channel x 1,100 watts |
| Voltage | 12 Volt (DC) |
| Maksimum Suplai Voltage | 12 Volt (DC) |
| Tipe Pamasangan | Pasang Mobil |
| Bahan | alumunium |
| Item Beurat | 13.52 pon |
| Fitur husus | Wired Bass Remote, Variable Electronic Crossover, Electronic Equalizer, Ultra-Fi MOSFET Output Technology, Overload & Speaker Short Protection |
7.1 Video produk
Video 1: Official Hifonics video showcasing the Brutus Gamma BG Amplifier series, highlighting its features and design.
8. Jaminan & Dukungan
8.1 Émbaran jaminan
This Hifonics product is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Keep your proof of purchase for warranty claims.
8.2 Rojongan Palanggan
For technical assistance, troubleshooting, or warranty inquiries, please contact Hifonics customer support. Visit the official Hifonics websitus pikeun inpormasi kontak sareng sumber dukungan anu paling énggal.
