Buku Panduan Pangguna Mesin Cuci Indesit BTWS72200SPN 7kg 1200RPM Top-Load

1. Bubuka

Thank you for choosing an Indesit appliance. This user manual provides essential information for the correct and safe use of your new Indesit BTWS72200SPN top-load washing machine. Please read these instructions carefully before using the appliance and keep them for future reference.

This washing machine is designed for domestic use only. It features a 7 kg capacity and a spin speed of 1200 RPM, offering efficient and effective laundry care.

2. Parentah Kasalametan

Salawasna turutan pancegahan kaamanan dasar nalika nganggo alat-alat listrik pikeun ngirangan résiko kahuruan, kejutan listrik, sareng tatu pikeun jalma.

• Kasalametan listrik: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords or multiple adapters. The voltage and frequency must match the specifications (220-230V, 50Hz).
• Sambungan cai: Sambungkeun selang asupan cai kana keran cai tiis. Pastikeun sadaya sambungan pageuh pikeun nyegah bocor.
• Barudak sareng Jalma Rentan: Alat ieu tiasa dianggo ku murangkalih umur 8 taun ka luhur sareng jalmi anu gaduh kamampuan fisik, indrawi atanapi méntal anu kirang atanapi kirang pangalaman sareng pangaweruh upami aranjeunna parantos dipasihan pangawasan atanapi instruksi.
• Pamasangan: The appliance must be installed by a qualified person in accordance with local regulations. Ensure the machine is level and stable.
• Pangropéa: Always unplug the appliance before performing any cleaning or maintenance.
• Pamakéan: Do not overload the washing machine. Do not wash items that are soiled with flammable substances.

3. Setup jeung Instalasi

3.1 Ngabongkar bungkusan

Carefully remove all packaging materials. Keep packaging materials out of reach of children. Remove any transport bolts or bracing devices from the rear of the machine before use. Refer to the installation guide for detailed instructions on removing transport bolts.

3.2 Posisi

Place the washing machine on a flat, stable floor. Ensure there is adequate space around the appliance for ventilation and access. The dimensions are approximately 40 cm (Width) x 60 cm (Depth) x 90 cm (Height).

3.3 Naratas

Saluyukeun suku adjustable di handapeun mesin pikeun mastikeun eta sampurna tingkat. Mesin tingkat ngirangan geter sareng bising nalika operasi.

3.4 Sambungan cai

Connect the water inlet hose to a cold water tap. Ensure the hose is not kinked or twisted. Connect the drain hose to a suitable drain pipe or place it over a sink, ensuring it is securely fastened to prevent displacement during draining.

3.5 Sambungan Listrik

Plug the power cord into a grounded electrical outlet. The appliance requires 220-230V AC at 50Hz and a 10A current. The power cable length is 1.2 meters. Do not use adapters or extension cords.

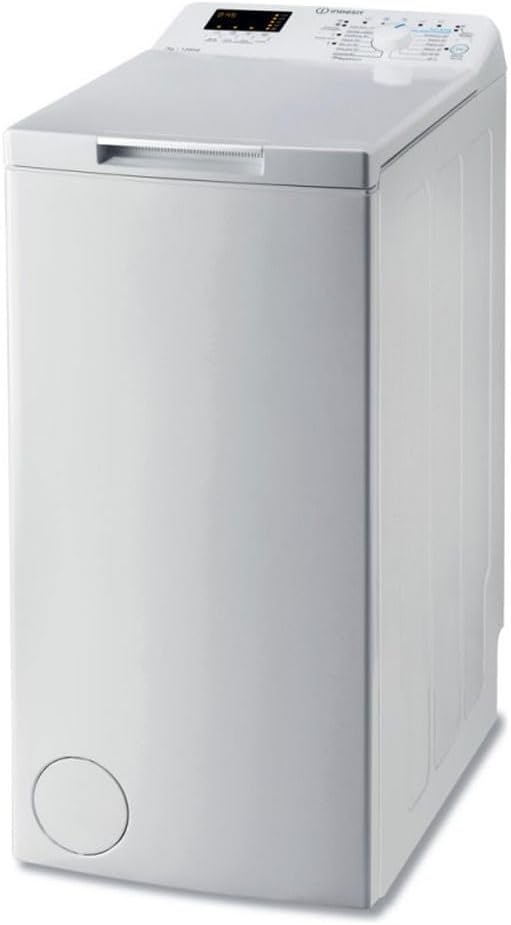

Gambar 1: Hareupeun view of the Indesit BTWS72200SPN top-load washing machine.

4. Parentah Operasi

4.1 Control Panel Leuwihview

The control panel features a rotary knob for program selection, various buttons for additional functions, and a digital display for cycle information and remaining time.

angka 2: Tutup-up view of the washing machine's control panel, showing the program selector knob and function buttons.

4.2 Ngamuat laundry

Open the top lid of the washing machine. Load laundry into the drum, ensuring not to exceed the maximum capacity of 7 kg. Distribute the load evenly to prevent imbalance during spinning.

Gambar 3: View of the open drum, ready for loading laundry.

4.3 Nambahkeun Detergent

Add the appropriate amount of detergent and fabric softener to the designated compartments in the dispenser drawer. Refer to your detergent packaging for recommended dosages.

4.4 Milih hiji Program

Turn the rotary knob to select the desired washing program. The digital display will show the estimated cycle duration.

4.5 Ngamimitian sareng Ngareureuhkeun Siklus

Press the Start/Pause button to begin the selected program. To pause a running cycle, press the Start/Pause button again. The 'Add Garment' function allows you to add items during the initial stages tina hiji siklus.

5. Program nyeuseuh

Your Indesit washing machine offers a variety of programs tailored for different fabric types and soil levels. Below are descriptions of key programs:

• Extra Wash: Ideal for tough, dried-on stains like coffee or chocolate. Select this option with any rapid cycle for enhanced cleaning results.
• Kapas 60: Provides excellent washing results for cotton garments at 60°C, completing in approximately 59 minutes.
• Sintétik 40: Effectively removes stains from synthetic items using a 40°C cycle, finishing in about 59 minutes.
• Kapas 40: Specifically designed for extra care of cotton garments, removing stains at 40°C in approximately 45 minutes.
• Water Balance Plus: An innovative program designed to significantly reduce water, energy, and time consumption. For small loads, it can save up to 70% water and 50% energy, with the cycle being 35% faster.
• Tunda: Allows you to program your wash cycles to start at a later time, offering convenience and flexibility.
• Turn & Wash: A dedicated program for cotton and synthetic garments. Simply turn the knob to select 'Turn & Wash' for great results in less than 45 minutes.
• RapidWash: A set of 5 quick cycles, each lasting less than 59 minutes. These cycles are designed for various fabric types including cotton, synthetics, and wool, providing high-quality washing in a short time.

General wash programs also include Cold, Eco, Rinse and Spin, and Spin/Drain.

6. Pangropéa jeung beberesih

Pangropéa rutin ngajamin umur panjang sareng kinerja optimal mesin cuci anjeun.

6.1 Ngabersihan Exterior

Ngusap permukaan luar kalayan lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.

6.2 Ngabersihan Dispenser Deterjen

Périodik piceun jeung bersihkeun laci dispenser detergent handapeun cai ngalir pikeun nyegah akumulasi résidu.

6.3 Ngabersihan Filter

The washing machine has a filter that collects lint and small objects. Refer to the detailed instructions in the full manual for how to access and clean this filter regularly.

6.4 Care for the Drum

To prevent odors, leave the lid slightly ajar after each wash to allow the drum to air dry. Periodically run a maintenance wash cycle with a washing machine cleaner.

7. Cara ngungkulan

Sateuacan ngahubungi layanan palanggan, pariksa heula masalah umum ieu:

• Mesin teu ngamimitian: Ensure the power cord is plugged in, the door is closed properly, and the Start/Pause button has been pressed. Check if the water supply tap is open.
• Cai henteu ngocor: Check if the drain hose is kinked or blocked. Ensure the filter is clean.
• Geter kaleuleuwihan/noise: Ensure the machine is level and all transport bolts have been removed. Check if the load is balanced inside the drum.
• Detergent residue: Ensure you are using the correct amount of detergent and that the dispenser drawer is clean.

If the problem persists after checking these points, please refer to the full troubleshooting guide in the comprehensive manual or contact Indesit customer support.

8. Spésifikasi Téknis

9. Garansi jeung Rojongan

For information regarding warranty terms and conditions, please refer to the warranty card provided with your appliance or visit the official Indesit website. For technical assistance, spare parts, or to report a fault, please contact Indesit customer support in your region. Have your appliance model number (BTWS72200SPN) and serial number ready when contacting support.
