Redragon K598 TKL Wireless Mechanical Keyboard User Manual

1. Bubuka

This manual provides detailed instructions for the Redragon K598 TKL Wireless Mechanical Keyboard. Please read this guide thoroughly to ensure proper setup, operation, and maintenance of your device. The K598 is a compact 87-key tenkeyless keyboard designed for gaming and general use, featuring RGB backlighting and Outemu Brown mechanical switches.

2. Eusi Paket

Pastikeun yén sadaya item aya dina pakét anjeun:

Redragon K598 TKL Wireless Mechanical Keyboard
Kabel USB (pikeun ngecas sareng sambungan kabel)
Manual pangguna (dokumén ieu)

3. Setup jeung Konéktipitas

3.1 Ngecas kibor

Before initial use, fully charge the keyboard. Connect the provided USB cable to the keyboard's USB port and to a powered USB port on your computer or a USB wall adapter. The keyboard features a built-in Lithium Polymer battery. A full charge provides approximately 60 hours of use with LEDs off, or 30 hours with LEDs on.

3.2 Sambungan Nirkabel (2.4GHz)

Locate the wireless USB receiver, typically stored in a compartment on the keyboard.
Colokkeun panarima USB ka port USB nu sadia dina komputer Anjeun.
Ensure the power switch on the keyboard is set to the "ON" position.
Kibor kedahna otomatis nyambung ka komputer anjeun.

3.3 Sambungan kabel

To use the keyboard in wired mode, simply connect the USB cable from the keyboard to your computer. The keyboard will function as a wired device and charge simultaneously. This also allows for seamless switching between wired and wireless modes.

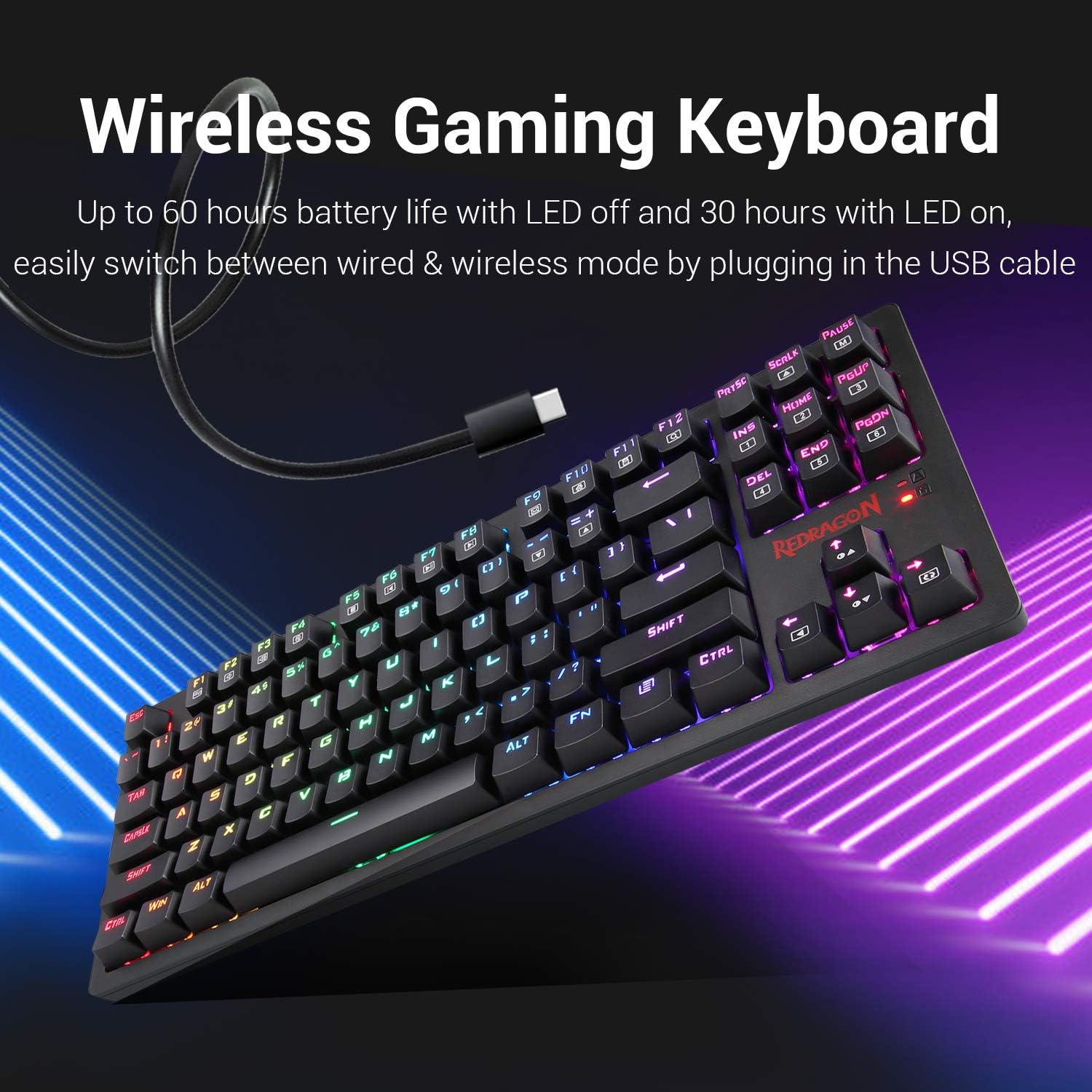

Redragon K598 TKL Wireless Mechanical Keyboard connected via USB cable — Figure 1: The Redragon K598 TKL Wireless Mechanical Keyboard connected via its USB cable, illustrating both wired operation and charging capabilities. The image highlights the compact design and RGB backlighting.

4. Parentah Operasi

4.1 Fungsi Keyboard Dasar

The Redragon K598 is a standard 87-key layout. All keys function as labeled. For specific multimedia or function key combinations, refer to the keycap legends, often used in conjunction with the FN konci.

4.2 RGB Backlighting Control

The keyboard features user-programmable RGB backlighting with 18 distinct lighting modes. You can customize colors, brightness, and animation speed.

To cycle through lighting modes: Press FN + TAMAT.
To change single colors (8 options): Press FN + INS.
To adjust brightness (6 levels): Use dedicated brightness control keys or FN + Arrow Up/Down (if available, otherwise implied by "6 brightness levels").
To adjust breathing speed: Use dedicated speed control keys or FN + Arrow Left/Right (if available, otherwise implied by "adjustable breathing speed").

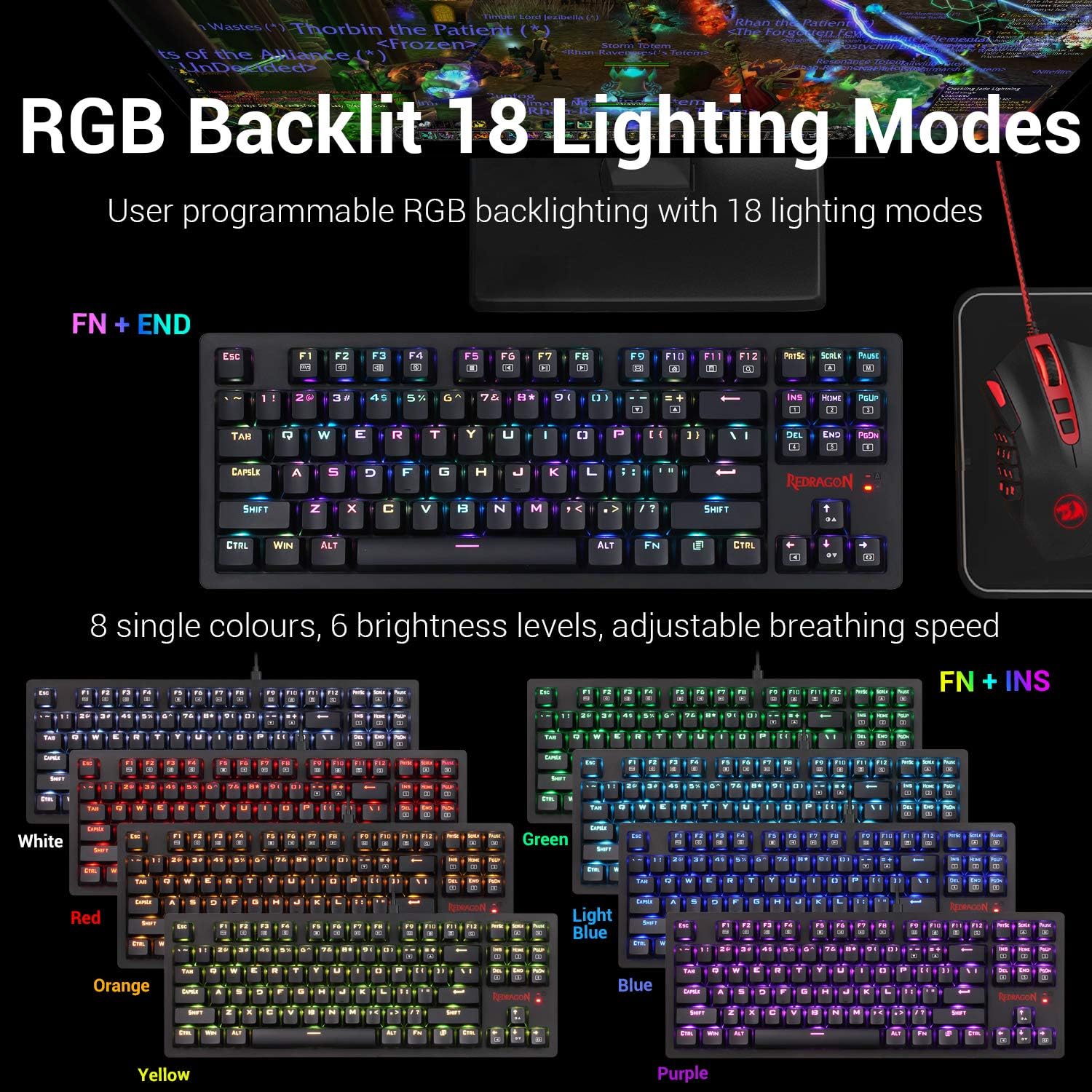

Redragon K598 TKL keyboard showing various RGB lighting modes and color options — Figure 2: Illustration of the Redragon K598 TKL keyboard's RGB backlighting capabilities, demonstrating 18 lighting modes and various single-color options (White, Red, Orange, Yellow, Green, Light Blue, Blue, Purple). Key combinations like FN + END and FN + INS are shown for mode and color changes.

4.3 Key Switch Characteristics

The K598 keyboard is equipped with Outemu Brown mechanical switches. These switches are characterized by a tactile bump, medium resistance, and quiet travel, providing precise tactile feedback suitable for both typing and gaming.

Angkatan aktuasi: 45gf +/- 10gf
Keystroke Travel: 2.2mm +/- 0.6mm
Daya tahan: Ultra-durable keys tested to 50 million keystrokes.

Close-up of Outemu Brown mechanical key switches on the Redragon K598 keyboard — Gambar 3: A lengkep view of the Outemu Brown mechanical key switches, highlighting their design and placement within the Redragon K598 keyboard. This image emphasizes the tactile nature of the switches.

Banner image detailing Outemu Brown key switches with specifications — Figure 4: A banner image providing further details on the Outemu Brown Key Switches, including actuation force (45gf +/- 10gf) and keystroke travel (2.2mm +/- 0.6mm), and emphasizing their durability.

4.4 Keyboard Construction and Keycaps

The K598 features a solid ABS construction with plate-mounted mechanical keys, designed for durability under demanding use. The keycaps are precision-engineered to provide crystal clear uniform backlighting and are resistant to wear, ensuring legends do not scratch off over time.

Redragon K598 TKL keyboard showcasing solid ABS construction and precision engineered keycaps — Figure 5: This image illustrates the solid ABS construction of the Redragon K598 TKL keyboard and highlights the precision-engineered keycaps designed for uniform backlighting and durability.

4.5 Tenkeyless Design

The compact 87-key tenkeyless (TKL) design of the K598 saves desk space without compromising performance. This layout is preferred by many gamers for its ergonomic benefits and reduced footprint, allowing more room for mouse movement.

Diagram illustrating the compact tenkeyless design of the Redragon K598 keyboard — Figure 6: A visual representation of the Redragon K598's tenkeyless design, showing its compact 87-key layout compared to a full-sized keyboard, emphasizing space-saving benefits.

5. Pangropéa

5.1 Ngabersihan kibor

Pikeun ngajaga kinerja sareng penampilan optimal, bersihkeun keyboard anjeun sacara rutin. Make kaen nu lemes, teu aya lint rada dampened with water or a mild cleaning solution. Avoid harsh chemicals, abrasive materials, or excessive moisture. For cleaning between keycaps, use compressed air or a small brush.

5.2 Panyimpenan

When not in use for extended periods, store the keyboard in a dry, cool environment away from direct sunlight and extreme temperatures. Ensure the keyboard is powered off to conserve battery life.

6. Cara ngungkulan

Upami anjeun ngalaman masalah sareng kibor Redragon K598 anjeun, tingali masalah sareng solusi umum ieu:

Keyboard not responding (Wireless Mode):
- Pastikeun saklar daya kibor dina kaayaan ON.
- Pastikeun panarima USB parantos dicolokkeun kalayan pageuh kana port USB anu tiasa dianggo dina komputer anjeun.
- Check the keyboard's battery level. Connect the USB cable to charge if the battery is low.
- Coba colokkeun panarima USB kana port USB anu béda.
- Balikan deui komputer anjeun.
Keyboard not responding (Wired Mode):
- Pastikeun kabel USB disambungkeun pageuh kana kibor sareng komputer anjeun.
- Coba nganggo port USB anu béda dina komputer anjeun.
- Uji nganggo kabel USB anu béda upami sayogi.
- Balikan deui komputer anjeun.
RGB Backlighting not working or incorrect:
- Pastikeun kibor diaktipkeun sareng dicas.
- Ngaliwatan modeu cahaya nganggo FN + TAMAT.
- Saluyukeun tingkat kacaangan.
- If using wireless mode, low battery can affect LED performance. Charge the keyboard.
Konci ngulang atanapi henteu ngadaptar:
- Clean the affected key switch area with compressed air to remove debris.
- Pastikeun keycap leres seated.
- Upami masalahna tetep, éta tiasa nunjukkeun kasalahan hardware.
Software installation issues:
- Ensure you download the correct software version for your specific keyboard model from the official Redragon websitus.
- Temporarily disable antivirus or firewall software during installation if it interferes.
- Jalankeun installer salaku administrator.

7. Spésifikasi

Fitur	Rincian
merek	Redagon
Nomer modél	K598
Dimensi produk	14.37 x 5.31 x 1.36 inci (36.5 x 13.5 x 3.45 cm)
Item Beurat	1.57 pon (0.71 kg)
Téhnologi konektipitas	USB (Wired) / 2.4GHz Wireless
Alat nu cocog	PC (Windows)
Katerangan kibor	Gaming, Tenkeyless (87-key)
Fitur husus	Backlit, Ergonomic, Rechargeable
Lampu tukang kibor	RGB (18 modes, 8 single colors)
Tombol Saklar	Outemu Brown Mechanical Switches
Jenis Batré	1 batré Litium Polimér (kaasup)
Sumber Daya	Batré Rechargeable
Komponén Kaasup	Kabel USB
Tanggal Sadia munggaran	25 Désémber 2024

8. Garansi jeung Rojongan

8.1 Émbaran jaminan

Specific warranty details for the Redragon K598 TKL Wireless Mechanical Keyboard are typically provided with the product packaging or available on the official Redragon websitus. Punten tahan bukti pameseran anjeun pikeun klaim garansi.

8.2 Rojongan Palanggan

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Redragon customer support. Visit the official Redragon websitus pikeun inpo kontak jeung sumber tambahan.

Redragon Resmi Websitus: www.redragonusa.com
