The Texas Premium 4275 Trike Gasoline Lawn Mower is a versatile 4-in-1 machine designed for efficient lawn care. It features a 4-stroke engine, 42 cm cutting width, and a 45-liter collection bag. This model offers multiple functions including collection, mulching, and rear/side discharge, making it suitable for areas up to 800 m². Its robust steel cutting deck and centralized 6-position cutting height adjustment (25 to 75 mm) ensure precise and adaptable mowing.

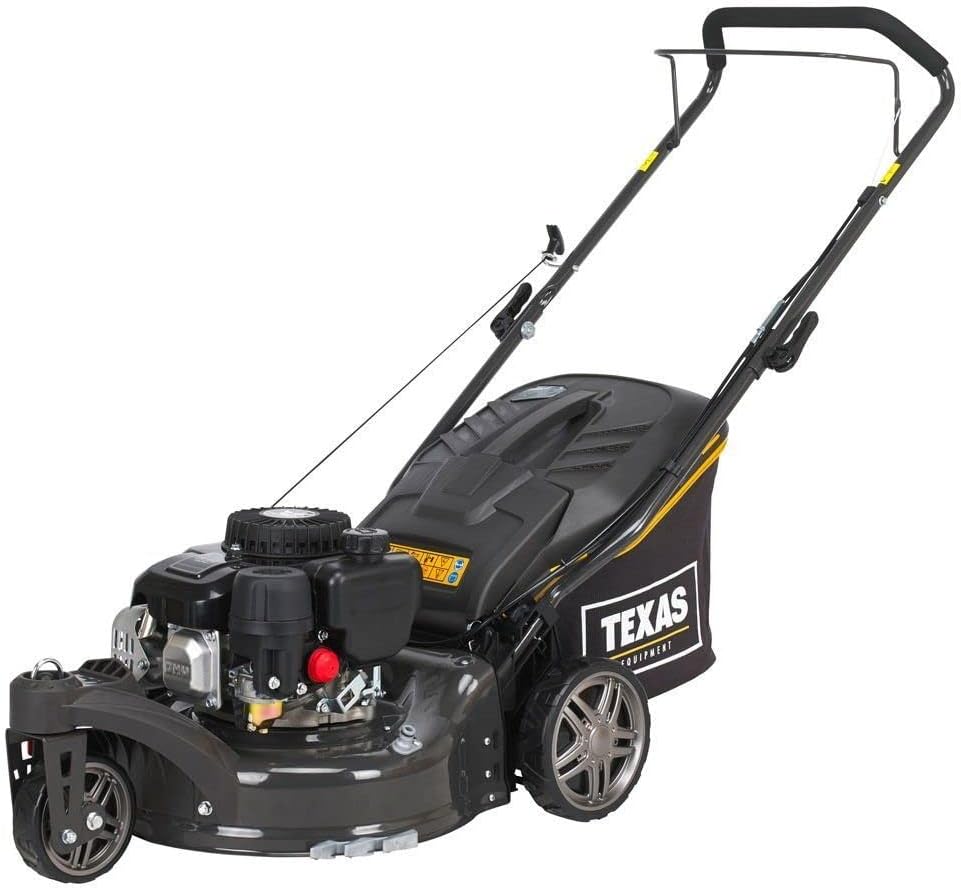

Gambar 1: Gemblengna view of the Texas Premium 4275 Trike Gasoline Lawn Mower.
Parentah Kasalametan
Always prioritize safety when operating the lawn mower. Failure to follow these instructions may result in serious injury or damage to the equipment.
- Baca sakabéh manual saméméh operasi.
- Anggo alat pelindung diri (APD) anu merenah, kalebet pelindung panon, pelindung pangrungu, sapatu anu kuat, sareng calana panjang.
- Jauhkeun barudak jeung piaraan ti wewengkon operasi.
- Inspect the area for debris before mowing. Remove any objects that could be thrown by the blade.
- Never operate the mower in wet grass or rain.
- Pareuman mesin sareng pegatkeun sambungan kabel busi sateuacan ngalaksanakeun pangropéa, beberesih, atanapi ngabersihkeun sumbatan.
- Refuel in a well-ventilated area with the engine off and cool. Do not smoke while refueling.
- Do not modify the mower in any way.
Disetél
1. Unpacking jeung Majelis
Carefully remove all components from the packaging. The main unit, handle, grass collection bag, and any accessories should be present. Assembly instructions are provided by our technical team.
2. Nanganan Majelis
Attach the upper handle to the lower handle, and then secure the entire handle assembly to the mower body. Ensure all bolts and knobs are tightened securely. The control levers should be easily accessible.

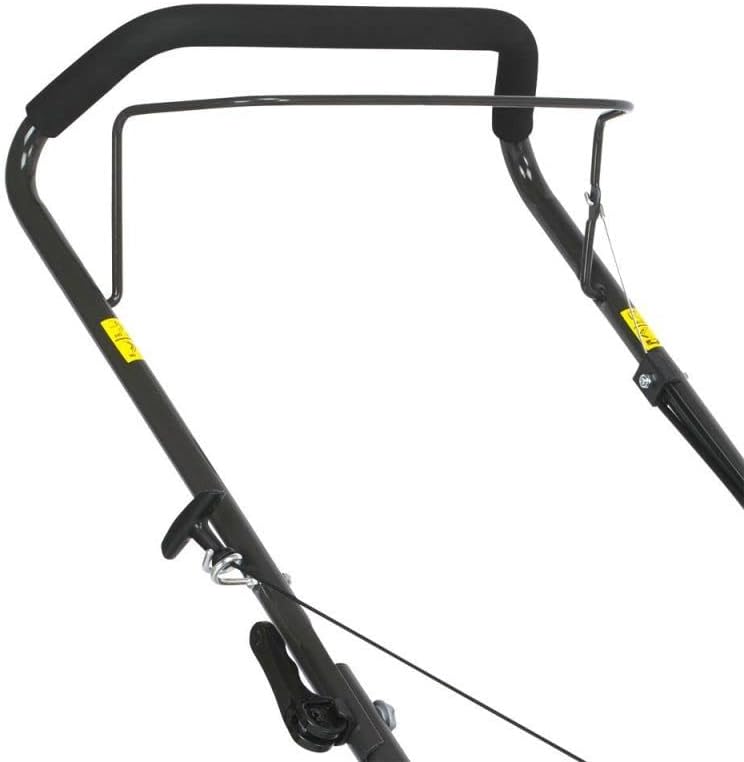

Figure 2: Close-up of the handlebar controls, including the engine stop lever.
3. Nambahan Oli Mesin
The mower is delivered without engine oil. Before first use, fill the engine with 0.4 liters of SAE30 or 15W40 engine oil specifically for engines. Locate the oil fill cap, usually marked with an oil can symbol. Use a funnel to prevent spills. Do not overfill.
Gambar 3: Detil view of the engine, showing the oil fill cap and air filter housing.
4. Nambahan Suluh
Fill the fuel tank with unleaded gasoline (95 E5). The fuel tank capacity is 0.75 liters. Never use old gasoline (more than 3 months after purchase) to ensure optimal carburetion and prevent engine issues. Ensure the fuel cap is securely fastened after filling.
Parentah Operasi
1. Mimitian Mesin
- Ensure the fuel tank is filled and the oil level is correct.
- Push the primer bulb (if present) a few times until fuel is visible.
- Hold the engine stop lever (bail bar) against the handle.
- Tarik kabel starter pageuh sareng lancar dugi ka mesin hurung.
- Once started, release the starter cord slowly.
2. Nyaluyukeun Jangkungna Motong
The cutting height can be adjusted centrally to 6 positions, ranging from 25 mm to 75 mm. Locate the height adjustment lever, typically near one of the wheels, and move it to the desired setting. Ensure all wheels are set to the same height for an even cut.
Figure 4: Front trike wheel with visible height adjustment mechanism.
3. Téhnik Mowing
This mower is a push-type model. For best results, mow in overlapping rows. Avoid cutting more than one-third of the grass blade length at a time. The 4-in-1 function allows for collection into the 45L grass bag, mulching, or rear/side discharge depending on your needs. Attach the grass bag for collection or the mulching plug/side discharge chute for other functions.
Figure 5: Rear wheel and the attachment point for the grass collection bag.
Pangropéa
Pangropéa rutin ngajamin umur panjang sareng kinerja optimal tina mesin pemotong rumput anjeun.
1. beberesih
- After each use, clean the underside of the cutting deck to prevent grass buildup.
- Remove any grass clippings from the engine cooling fins.
- Do not use high-pressure washers directly on the engine or electrical components.
2. Engine Oil Change
Change the engine oil after the first 5 hours of operation, and then every 25 hours or annually, whichever comes first. Refer to the engine manual for specific instructions on draining and refilling oil.
3. Air Filter Inspection
Inspect the air filter regularly and clean or replace it if it is dirty. A clogged air filter can reduce engine performance.
4. Spark Colokkeun
Check the spark plug annually. Clean or replace it if it is fouled or worn. Ensure the correct gap is maintained.
5. Perawatan sabeulah
Periodically inspect the cutting blade for sharpness and damage. A dull blade can tear grass, leading to an unhealthy lawn. Sharpen or replace the blade as needed. Always disconnect the spark plug wire before working on the blade.
6. Panyimpenan
Before storing the mower for an extended period (more than 3 months), always drain the carburetor. This prevents fuel degradation and ensures easy starting next season. Store the mower in a clean, dry place.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Mesin teu ngamimitian | No fuel; Old fuel; No oil; Spark plug issue; Engine stop lever not engaged. | Fill fuel tank; Use fresh fuel; Add oil; Check/replace spark plug; Hold engine stop lever firmly. |
| Mesin jalan kasar atawa lapak | Dirty air filter; Old fuel; Clogged carburetor. | Clean/replace air filter; Drain old fuel and refill with fresh; Clean carburetor (professional service recommended). |
| Dipotong henteu rata | Dull or bent blade; Uneven height adjustment. | Sharpen/replace blade; Ensure all wheels are set to the same height. |
| Geter kaleuleuwihi | Bent blade; Loose blade bolt; Engine issue. | Inspect and replace bent blade; Tighten blade bolt; Consult service if engine related. |
spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Modél | NP80 |
| Tipe Mesin | 4-stroke, Gasoline |
| Papindahan | 79 cm³ |
| Kakuatan | 1.9 PS (1460 W) |
| Laju Mesin | 2900 U / mnt |
| Tipe Suluh | Unleaded 95 E5 |
| Kapasitas Tangki Suluh | 0.75 L |
| Jenis Oli Mesin | SAE30 or 15W40 (specific for engines) |
| Engine Oil Tank Capacity | 0.4 L |
| Tipe Drive | Teken |
| Cutting Deck Material | Baja |
| Fungsi | Collection, Mulching, Rear & Side Discharge |
| Lebar motong | 42 cm |
| Kapasitas Kantong Koléksi | 45 L |
| Motong adjustment Jangkungna | Centralized, 6 positions (25 to 75 mm) |
| Recommended Working Area | Nepi ka 800 m² |
| Beurat bersih | 19.5 kg |
| Warna | kulawu |
Garansi sareng Rojongan
Émbaran jaminan
This Texas Premium 4275 Trike Gasoline Lawn Mower comes with a garansi 3 taun. Punten tahan bukti pameseran anjeun pikeun klaim garansi.
Service Saatos-Penjualan
After-sales service is provided by an internal team of the lawn mower company, trained and approved by the manufacturer to service products of the brand. For technical assistance, spare parts, or service inquiries, please contact your retailer or the authorized service center. Always provide your product model (NP80) and serial number when contacting support.
