1. Bubuka
Hatur nuhun pikeun meuliasing the Globo Lighting SULLY LED Flush Mount Lamp. This manual provides essential information for the safe and efficient use of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
Gambar 1.1: Hareupeun view of the Globo Lighting SULLY LED Flush Mount Lamp, nuduhkeuncasing its sleek black metal and white diffuser design.
2. Émbaran Kasalametan
Salawasna tuturkeun pancegahan kaamanan dasar nalika masang sareng ngoperasikeun produk listrik pikeun ngirangan résiko seuneu, kejutan listrik, sareng tatu pribadi.
- Pegatkeun Daya: Always ensure the main power supply is switched off at the circuit breaker before beginning any installation, maintenance, or cleaning.
- Tukang listrik anu mumpuni: Installation should be performed by a qualified electrician or a competent person in accordance with local electrical codes.
- Voltage kasaluyuan: Mastikeun suplai voltage cocog jeung lamp's dieusian voltage (24 VDC).
- Pamasangan Aman: Anu lamp must be securely mounted to a structurally sound surface.
- Hindarkeun Uap: Do not install in excessively damp or wet locations unless the product is specifically rated for such environments.
- Henteu aya bagian anu tiasa dianggo pikeun pangguna: This LED fixture contains no user-serviceable parts. Do not attempt to disassemble or modify the lamp.
3. Eusi Paket
Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, contact your retailer.
- Globo Lighting SULLY LED Flush Mount Lamp (1 unit)
- Pemasangan Hardware (sekrup, jangkar dinding)
- Manual Pitunjuk (dokumén ieu)
4. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | SULLY |
| merek | Globo Cahaya |
| Bahan | logam |
| Tipe Sumber Cahaya | LED |
| Jumlah Sumber Cahaya | 1 (integrated LED array) |
| Voltage | 24 Volt DC (VDC) |
| Wattage | 24 Watt |
| Sumber Daya | Kabel Listrik |
| Tipe Kamar | Garden (Note: Typically for indoor use, verify IP rating for outdoor use) |
| ASIN | B08WHVNWBV |
5. Pamasangan
Alat anu diperyogikeun: Obeng, bor, pengupas kawat, voltage tester, gelas kaamanan.
- Nyiapkeun pikeun Instalasi: Turn off power at the main circuit breaker. Ensure the power is completely off using a voltage panguji.
- Hapus Perlengkapan anu Aya (upami aya): Carefully remove any existing light fixture, noting the wiring connections.
- Pamasangan bracket dipasang: Ngagantelkeun bracket ningkatna kana kotak simpang di siling ngagunakeun screws disadiakeun. Pastikeun éta aman fastened.
- Sambungan Wiring: Sambungkeun kabel listrik ti siling ka lamp's wires. Typically, connect live (black/brown) to live, neutral (white/blue) to neutral, and ground (green/yellow) to ground. Ensure all connections are secure with wire nuts.
Gambar 5.1: Internal view tina lamp showing the LED driver and wiring terminals. Ensure connections are made according to local electrical codes.
- Pasang Lamp to Bracket: Taliti align lamp with the mounting bracket and secure it using the provided screws. Ensure no wires are pinched during this step.
- Mulangkeun Daya: Sakali dina lamp upami parantos dipasang kalayan aman, mulangkeun deui daya dina pemutus sirkuit.
- Fungsi Uji: Turn on the light switch to test the lampoperasina.
6. Parentah Operasi
The Globo Lighting SULLY LED Flush Mount Lamp dirancang pikeun operasi basajan.
- Hurungkeun/Pareuman: Use a standard wall switch to turn the lamp hurung atawa pareum.
- Color Temperature/Color Changing: Ieu lamp may feature adjustable color temperature or color-changing capabilities. If so, these functions are typically controlled via a remote control (not included unless specified) or by cycling the wall switch rapidly. Refer to any additional documentation provided with a remote control if applicable.
Image 6.1: The SULLY lamp illuminated with a warm white light setting.

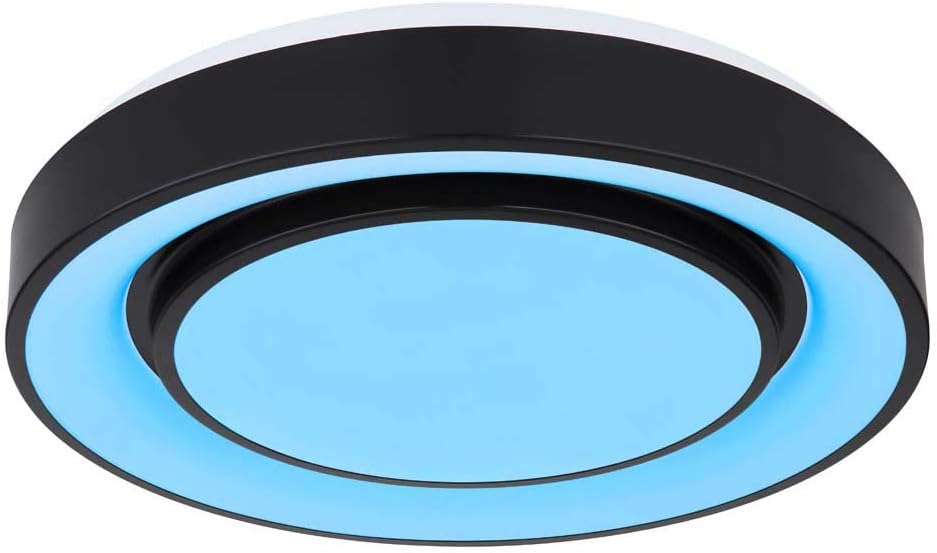

Image 6.2: The SULLY lamp illuminated with a blue light setting, indicating potential color-changing features.
7. Pangropéa
The Globo Lighting SULLY LED Flush Mount Lamp merlukeun pangropéa minimal.
- beberesih: Ensure the power is off before cleaning. Wipe the lamp kalayan lemes, garing, atanapi rada garingamp lawon. Ulah make cleaners abrasive, pangleyur, atawa bahan kimia kasar, sabab ieu bisa ngaruksak finish atawa komponén listrik.
- LEDs: The integrated LED light source is designed for long life and is not user-replaceable. Do not attempt to replace the LEDs.
- Pamariksaan: périodik mariksa lamp for any signs of damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.
8. Cara ngungkulan
Lamun sapatemon masalah sareng l Anjeunamp, tingal léngkah-léngkah ngungkulan umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lamp henteu hurung | Taya catu daya Sambungan kabel leupas Saklar témbok lepat | Pariksa circuit breaker jeung switch témbok. Pastikeun kakuatan hurung. Turn off power and check wiring connections. Tighten if loose. Uji saklar témbok nganggo alat anu sanés atanapi konsultasi ka tukang listrik. |
| Cahya ngageleber | Sambungan kabel leupas Incompatible dimmer switch (if applicable) | Turn off power and check wiring connections. Tighten if loose. Ensure any dimmer switch used is compatible with LED fixtures. Replace if necessary. |
| Incorrect color or function | Masalah kadali jauh Switch cycling error | Check remote control batteries or refer to remote instructions. Try cycling the wall switch off and on slowly, then rapidly, to reset or change modes. |
If these steps do not resolve the issue, contact a qualified electrician or the retailer for assistance.
9. Garansi jeung Rojongan
Globo Lighting products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or contact your retailer. Keep your proof of purchase for any warranty claims.
For technical support or further inquiries, please contact the retailer where the product was purchased or visit the official Globo Lighting websitus pikeun inpo kontak.
