1. Bubuka
The WAC Lighting Lotos LED Recessed Light is a wafer-thin lighting solution designed for both remodel and new construction applications. This innovative fixture features a remote driver, eliminating the need for a large housing and making it suitable for shallow ceiling installations with as little as 3-inch plenum clearance. The integrated LED module provides high-quality light output and efficiency, with a rated lifespan of 50,000 hours. This manual provides essential information for the safe installation, operation, and maintenance of your Lotos 6-inch LED Round Recessed Light.
2. Émbaran Kasalametan
Please read all instructions carefully before installation. Failure to do so may result in electric shock, fire, or other hazards. Always consult a qualified electrician if you are unsure about any part of the installation process.
- PERHATOSAN: Résiko shock listrik. Pegatkeun sambungan kakuatan dina sekering atawa circuit breaker saméméh instalasi atawa ngalayanan.
- Produk ieu kedah dipasang saluyu sareng kode pamasangan anu dianggo ku jalma anu wawuh sareng konstruksi sareng operasi produk sareng bahaya anu aya.
- Cocog jeung garing, Damp, and Wet Locations.
- IC-Rated for direct contact with insulation.
- Airtight construction prevents air leakage.
- Complies with ETL & cETL UL #1598, CEC Title 24, Energy Star 2.0, and Title 24 JA8-2016 standards.
- Ulah ngarobah fixture atawa komponén na.
3. Eusi Paket
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- LED Light and Trim (6-inch Round)
- Supir sareng Kabel LED
- Pamasangan Hardware Pack
- Instruksi Manual
4. Setup jeung Instalasi
The Lotos recessed light is designed for easy installation in various ceiling types. Ensure power is disconnected before proceeding.
4.1. Nyiapkeun Area Pamasangan
- Determine the desired location for the light fixture.
- For the 6-inch model, a 5.25-inch diameter cutout is required in the ceiling. Ensure the ceiling thickness is between 0.5 inches and 1.5 inches.
- Ensure sufficient plenum space (less than 2 inches) for the wafer-thin light and adequate space for the remote driver box.
4.2. Wiring the Driver Box
The driver box is constructed from 20-gauge steel and includes 5 knockouts for electrical connections. It supports a universal input voltage of 120V-220V-277V.
- Open the driver box and connect the building's electrical supply wires (hot, neutral, ground) to the corresponding wires inside the driver box using appropriate wire connectors.
- Secure the wiring and close the driver box.
4.3. Connecting the Light Fixture
The light engine connects to the driver box using a male-to-female quick connect locking cable.
- Connect the cable from the LED light fixture to the cable from the driver box, ensuring a secure, locking connection.
4.4. Installing the Light Fixture
The light fixture is held in place by retention clips.
- Carefully push the LED light fixture into the prepared ceiling cutout. The retention clips will secure the light in place.
- Ensure the fixture is flush with the ceiling surface.
This image displays the WAC Lighting Lotos 6-inch LED recessed light, featuring its slim, round profile connected via a cable to the remote driver box. The driver box includes a switch for color temperature selection.
A technical diagram illustrating the dimensions of the 6-inch Lotos LED recessed light and its remote driver. Key measurements include the light's diameter, overall height, and the length of the connecting cable, crucial for planning installation.
5. Parentah Operasi
5.1. Pilihan Suhu Warna (CCT)
The Lotos recessed light features 5-CCT selectable color temperatures, allowing you to customize the light output to your preference. A switch on the remote driver box enables selection between:
- 2700K (Bodas haneut)
- 3000K (Bodas Lemes)
- 3500K (Bodas Netral)
- 4000K (Bodas Tiis)
- 5000K (Beurang)
Catetan: Select the desired color temperature before installing the driver box in the ceiling, as the switch will not be accessible once installed.

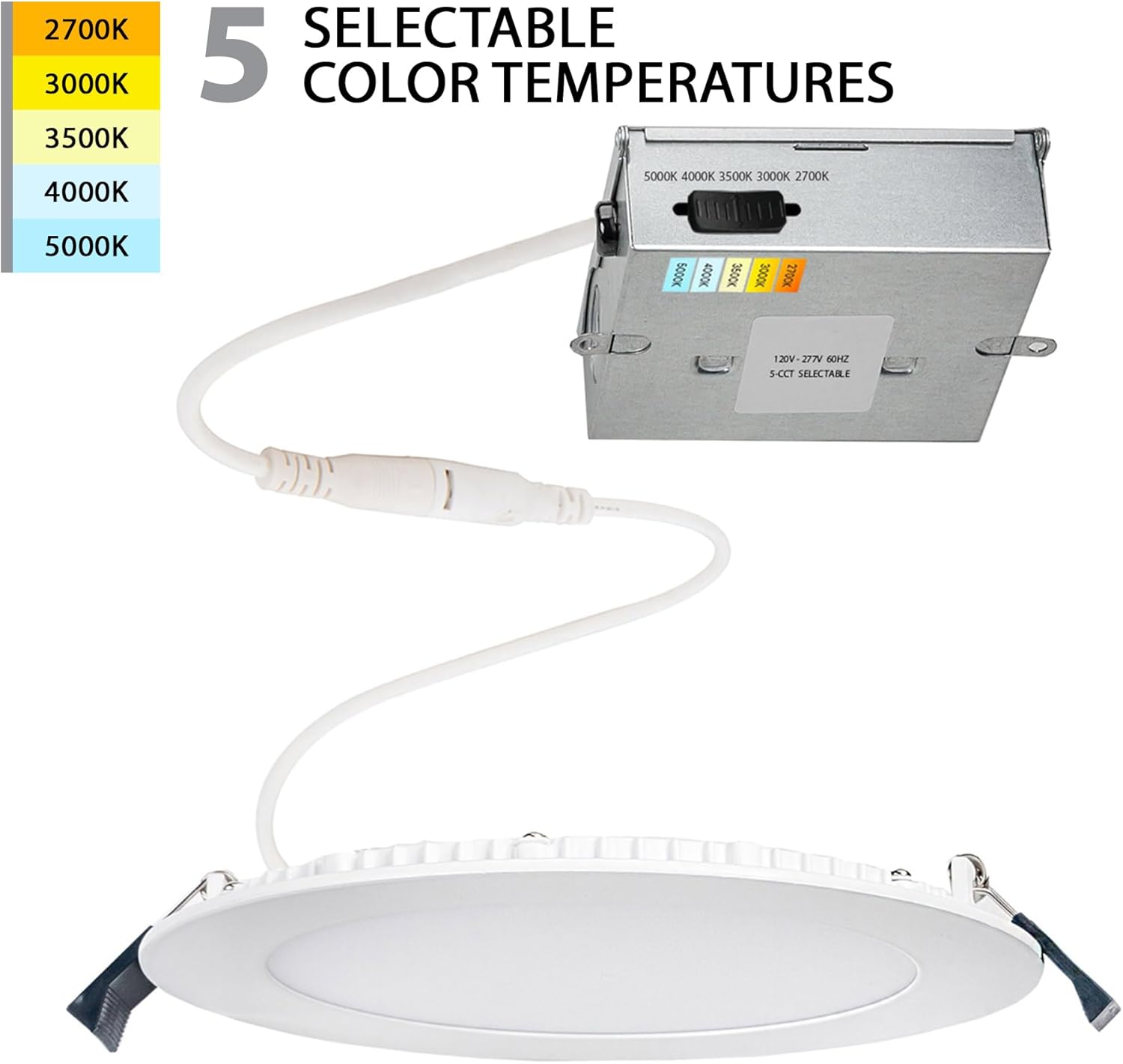

This image highlights the 5-CCT (Correlated Color Temperature) selectable feature of the Lotos recessed light. The remote driver box has a switch to choose between 2700K, 3000K, 3500K, 4000K, and 5000K, allowing customization of the light's warmth or coolness.
5.2. Dimming
The Lotos LED recessed light offers smooth and continuous dimming capabilities. It is compatible with electronic low voltage (ELV) or TRIAC dimmers.
- With ELV dimmers, the light can dim down to 10%.
- With TRIAC dimmers, the light can dim down to 5%.
For optimal performance, refer to WAC Lighting's dimmer compatibility chart, if available, for recommended dimmer models.
6. Pangropéa
The WAC Lighting Lotos LED recessed light requires minimal maintenance.
- beberesih: Pastikeun kakuatan pareum sateuacan beberesih. Ngusap alatna ku lemes, garing, atawa rada damp lawon. Ulah make cleaners abrasive atawa pangleyur, sabab bisa ngaruksak finish atawa komponén listrik.
- Modul LED: The LED module is integrated and not user-serviceable. Do not attempt to replace the LEDs.
7. Cara ngungkulan
If you experience issues with your Lotos LED recessed light, refer to the following common troubleshooting steps:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lampu teu hurung | No power supply; loose wiring; incorrect CCT selection; faulty fixture. | Check circuit breaker/fuse. Verify all wire connections are secure. Ensure CCT switch is set to a valid position. Contact a qualified electrician or WAC Lighting support. |
| Lampu kedip-kedip atanapi redup teu disangka-sangka | Incompatible dimmer; loose wiring; voltage turun naek. | Ensure dimmer is LED-compatible (ELV or TRIAC). Check wiring connections. Consider a whole-house surge protector if voltagfluctuations anu umum. |
| Light output is not as expected | Incorrect CCT setting; dimmer setting too low. | Adjust the CCT switch on the driver box. Increase dimmer level. |
| Driver box is bulky / Cord is too short | Limited space in ceiling; installation constraints. | Plan installation carefully to ensure adequate space for the driver box and cable length. Consider using an optional frame-in kit for pre-wiring if needed (Part # RER-FRAME). |
| Fixture burns out quickly | Power surges; faulty driver. | Ensure stable power supply. If issues persist, contact WAC Lighting for warranty support. |
8. Spésifikasi
| Fitur | Rincian |
|---|---|
| Nomer modél | R6ERDR-W9CS-WT |
| Ukuran | 6 inches (Round) |
| Konsumsi Daya | 14 Watt |
| Kaluaran Lumén | 1200 Lumén |
| Suhu Warna (CCT) | 5-CCT Tiasa Dipilih (2700K, 3000K, 3500K, 4000K, 5000K) |
| Indéks Rendering Warna (CRI) | 90 |
| Dipeunteun Jam | 50,000 jam |
| Voltage | 120V-277V Universal Input |
| Bahan Pangwangunan | Die-cast aluminum (fixture), 20-gauge steel (driver box) |
| Dimensi produk | 6.88 "L x 6.88" W x 0.94" H |
| Diaméter motong | 5.25 inches (for 6-inch model) |
| Ketebalan siling | 0.5 inci nepi ka 1.5 inci |
| Plenum Clearance | Less than 2 inches required |
| Dimming | Smooth and continuous with ELV (to 10%) or TRIAC (to 5%) dimmers |
| Sertifikasi | ETL & cETL UL #1598, IC-Rated, Airtight, CEC Title 24, Energy Star 2.0, Title 24 JA8-2016 |
| UPC | 790576833057 |
9. Garansi jeung Rojongan
WAC Lighting stands behind the quality of its products.
9.1. Émbaran jaminan
This WAC Lighting Lotos LED Recessed Light is covered by a 5-taun jaminan produsén kawates. Garansi ieu nyertakeun cacad dina bahan sareng pagawean dina panggunaan normal. Punten tahan bukti pameseran anjeun pikeun klaim garansi.
9.2. Rojongan Palanggan
For technical assistance, warranty claims, or any questions regarding your WAC Lighting product, please contact WAC Lighting customer support. Refer to the official WAC Lighting websitus pikeun inpo kontak ayeuna.
