Hinkley Atlantis Extra Large Wall Mount Outdoor Lantern Instruction Manual

Bubuka

Hatur nuhun pikeun meuliasing the Hinkley Atlantis Extra Large Wall Mount Outdoor Lantern. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read all instructions carefully before beginning installation and retain this manual for future reference.

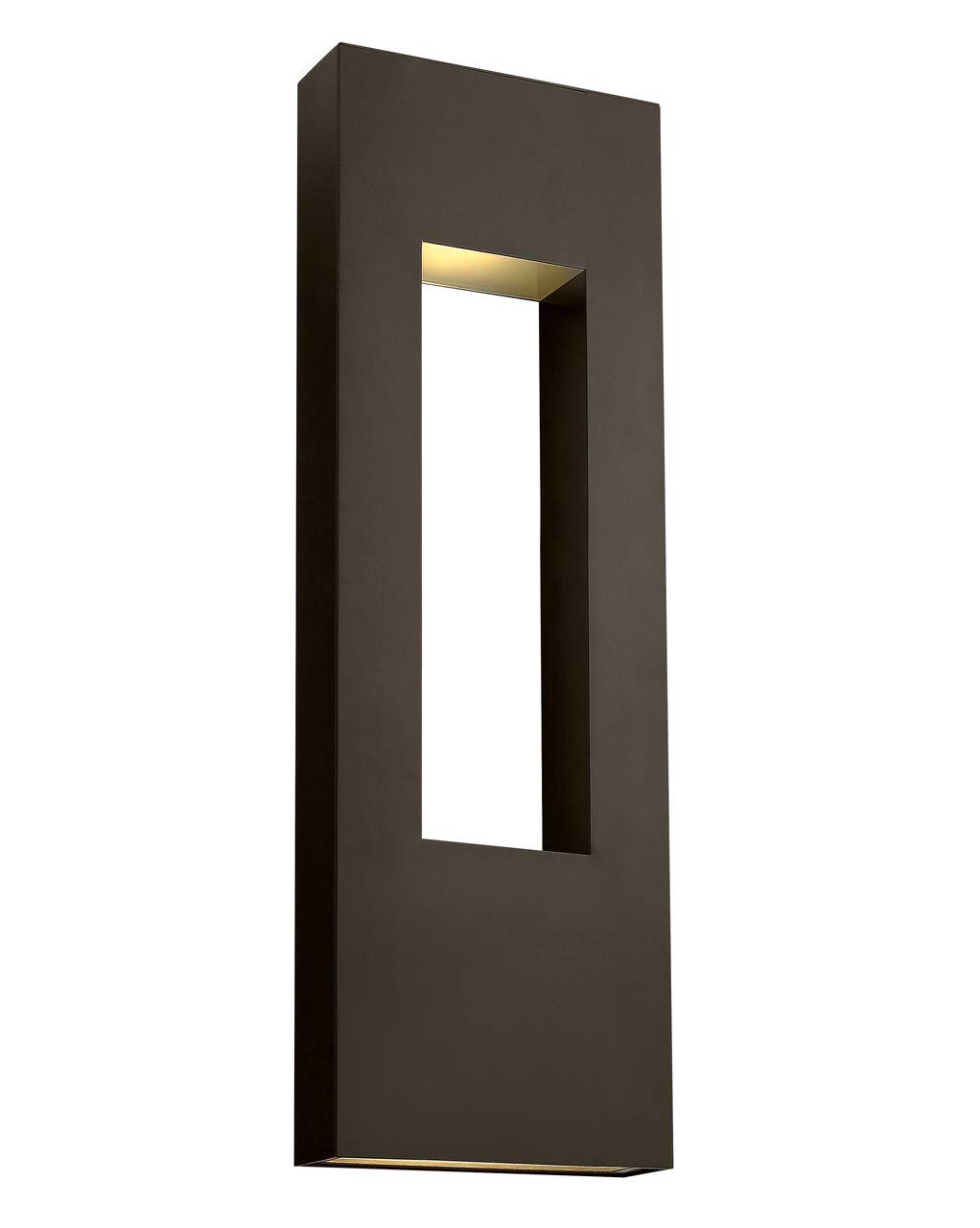

Image: Hinkley Atlantis Extra Large Wall Mount Outdoor Lantern (Model 1639BZ-LL).

Émbaran Kasalametan

• PERHATOSAN: Résiko shock listrik. Pegatkeun sambungan kakuatan dina kotak sekering atawa circuit breaker saméméh instalasi atawa ngalayanan.
• All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC) and Canadian Electrical Code (CEC). Consult a qualified electrician if you are unfamiliar with proper electrical wiring.
• This fixture is suitable for wet locations. Ensure all connections are properly sealed to prevent water intrusion.
• Do not install any fixture assembly closer than 6 inches from any combustible material.
• Always wear safety glasses and appropriate protective gear during installation.
• Handle the fixture and glass components with care to avoid breakage.

Eusi pakét

Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:

• Hinkley Atlantis Extra Large Wall Mount Outdoor Lantern Fixture
• Mounting Hardware Kit (crossbar, mounting screws, wire nuts)
• (3) GU10 LED Bulbs
• Manual Pitunjuk (dokumén ieu)

Setup sareng Instalasi

Pamasangan profésional disarankeun. Pastikeun kakuatan dipegatkeun dina pamutus sirkuit sateuacan neraskeun.

1. Nyiapkeun Surface Mounting: Ensure the electrical box is securely mounted and capable of supporting the fixture's weight (16 lbs).
2. Attach Mounting Crossbar: Secure the mounting crossbar to the electrical box using the provided screws.
3. Jieun sambungan listrik:
   • Sambungkeun fixture na hideung kawat ka sirkuit suplai hideung (panas) kawat.
   • Sambungkeun fixture na bodas kawat ka sirkuit suplai bodas (neutral) wire.
   • Sambungkeun fixture na taneuh kawat (tambaga bulistir atanapi héjo) ka sirkuit suplai taneuh wire and to the mounting crossbar.
   • Secure all connections with approved wire nuts and wrap with electrical tape for added safety.
4. Pasang Perlengkapan: Carefully align the fixture with the mounting screws on the crossbar. Secure the fixture to the mounting surface using the provided cap nuts or screws.
5. Pasang Bulbs: Insert the three (3) GU10 LED bulbs into their respective sockets. Ensure they are fully seated.
6. Mulangkeun Daya: Sakali pamasangan parantos réngsé sareng sadaya sambungan aman, balikkeun kakuatan dina pemutus sirkuit.

Gambar: Dimensi produk pikeun perencanaan instalasi.

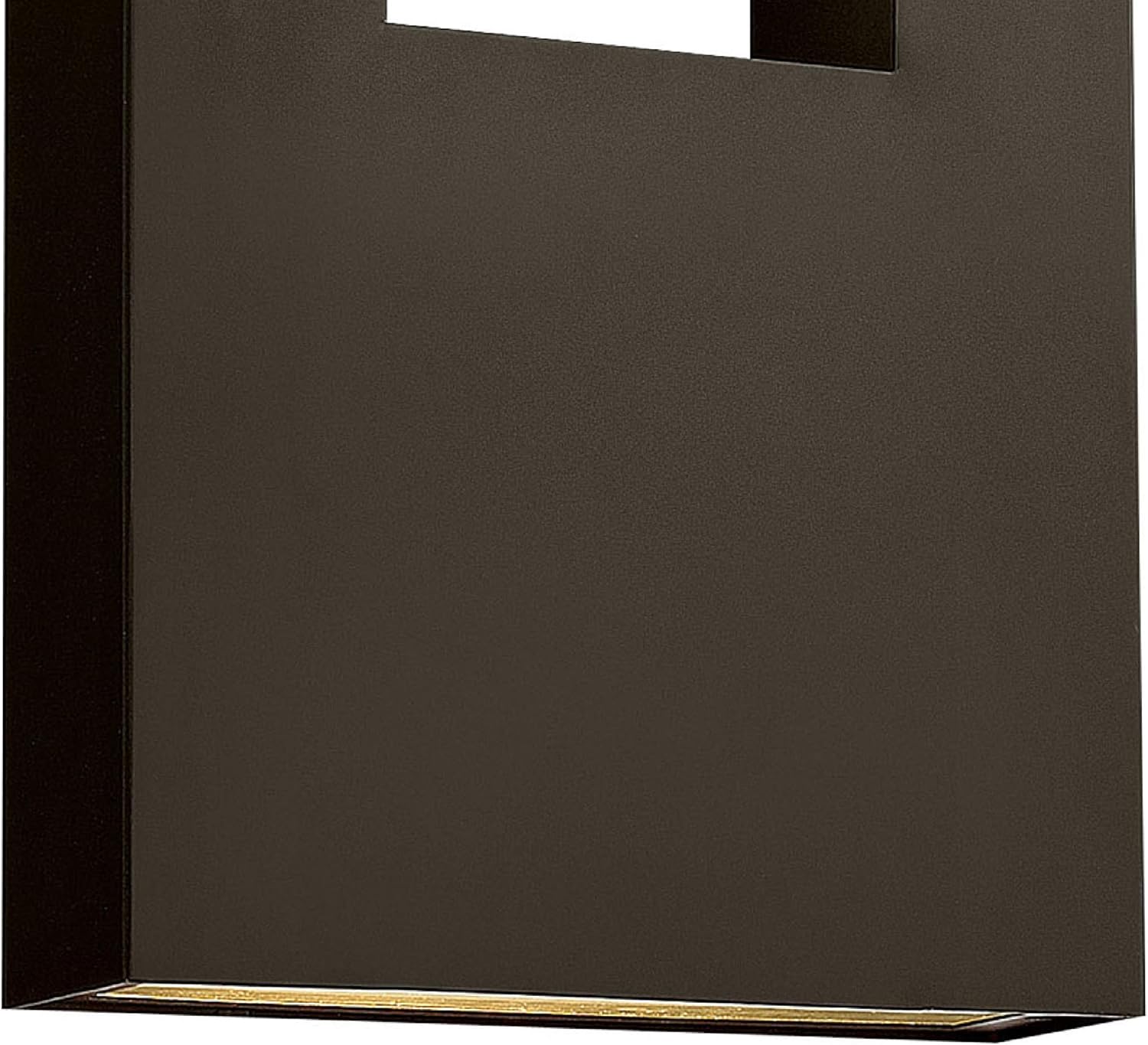

Images: Details of the light openings and etched glass lenses.

Parentah Operasi

This fixture is designed for standard wall switch operation. It is also dimmable when used with compatible dimming switches (sold separately).

• Hurungkeun/Pareuman: Paké switch témbok disambungkeun ka fixture pikeun ngahurungkeun atawa mareuman lampu.
• Fungsi dimming: If a compatible dimmer switch is installed, adjust the dimmer to control the light intensity. Ensure the GU10 LED bulbs used are dimmable.

Pangropéa

Pangropéa rutin bakal ngabantosan ngajaga penampilan sareng pungsionalitas alat anjeun.

• beberesih: Rapihkan alat dengan lembut, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish or etched glass.
• Ngagantian bohlam:
  1. Disconnect power to the fixture at the circuit breaker.
  2. Keun umbi tiis sagemblengna sateuacan diubaran.
  3. Carefully remove the old GU10 LED bulb by twisting it counter-clockwise.
  4. Insert a new 6.5W GU10 LED bulb by aligning the pins and twisting clockwise until secure.
  5. Balikkeun kakuatan ka fixture nu.
• Pamariksaan: Pariksa kabel sareng sambungan sacara berkala pikeun tanda-tanda karusakan atanapi karusakan.

Pamérésan masalah

spésifikasi

Video Produk Resmi

Garansi sareng Rojongan

Hinkley products are manufactured to the highest standards and are backed by a limited warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Hinkley websitus.

If you require technical assistance, replacement parts, or have questions regarding your Hinkley Atlantis fixture, please contact Hinkley Customer Support:

• Websitus: www.hinkley.com
• Telepon: Refer to the Hinkley websitus pikeun nomer kontak ayeuna.
• Surélék: Refer to the Hinkley websitus kanggo email kontak ayeuna.

Please have your model number (1639BZ-LL) and purchase date available when contacting support.
