Bubuka
The MARANTEC 122459 is a 4-channel handheld remote control designed for operating garage door systems. It utilizes the secure and proven Multi-Bit radio system, developed by Marantec for reliable drive control. This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your remote control.
Gambar 1: Hareupeun view of the MARANTEC 122459 Handheld Remote Control, showing the four control buttons and LED indicator.
Fitur produk
- Kontrol 4-Kanal: Ergonomic design allows operation of up to 4 doors or functions.
- Multi-Bit Wireless System: Features a secure 48-bit encryption with 70 million different transmission codes, ensuring high security.
- Easy Code Learning: Programming is simplified by copying the code from one button to another or via a standard coding plug.
- Indikator LED: A red LED signals button presses and indicates low battery status.
- Sumber Daya: Powered by a standard CR2032 battery.
- Kasaluyuan: Works with all Marantec motors equipped with bi-linked radio receivers and other drive systems using universal bi-linked receivers.
- Asesoris: Includes a keyring attachment and a wall mount for convenient storage.
- kualitas: Manufactured in Germany.
Eusi pakét
Pastikeun yén sadaya item aya dina bungkusan:
- MARANTEC 122459 Handheld Transmitter
- Tembok Gunung Bracket
- Dowels and Screws for Wall Mount
- Batré CR2032 (tos dipasang atanapi misah)
- Manual pangguna (dokumén ieu)
Disetél
1. Pamasangan batré
The remote control is powered by a CR2032 lithium-manganese dioxide battery. Ensure the battery is correctly installed with the positive (+) side facing up.
Gambar 2: Balik view of the remote control, showing the battery compartment. Open the compartment to insert or replace the CR2032 battery.
2. Programming the Remote Control (Code Learning)
The wireless code can be transmitted to the new remote control in two primary ways:
- Copying from an Existing Transmitter: Place the new remote control next to an existing, programmed Marantec Multi-Bit transmitter. Press and hold the desired button on the existing transmitter, then press and hold the corresponding button on the new transmitter. The LED on the new transmitter will indicate successful code transfer (refer to your drive unit's manual for specific LED patterns).
- Using the Standard Coding Plug or Drive Unit: Refer to your Marantec drive unit's instruction manual for detailed steps on how to program a new remote control directly into the drive's receiver. This typically involves pressing a programming button on the drive unit and then a button on the new remote control.
Each motor uses a unique code. If a transmitter is lost, a new code can be programmed for all other devices, rendering the lost transmitter non-functional for security purposes.
3. Instalasi témbok Gunung
The included wall mount allows for convenient storage of your remote control. Choose a suitable location near your garage door or entry point. Use the provided dowels and screws to securely attach the bracket to the wall.
Parentah Operasi
1. Paké dasar
To operate your garage door or other programmed function, simply press the corresponding button on the remote control. The red LED will illuminate to confirm the button press and signal transmission.

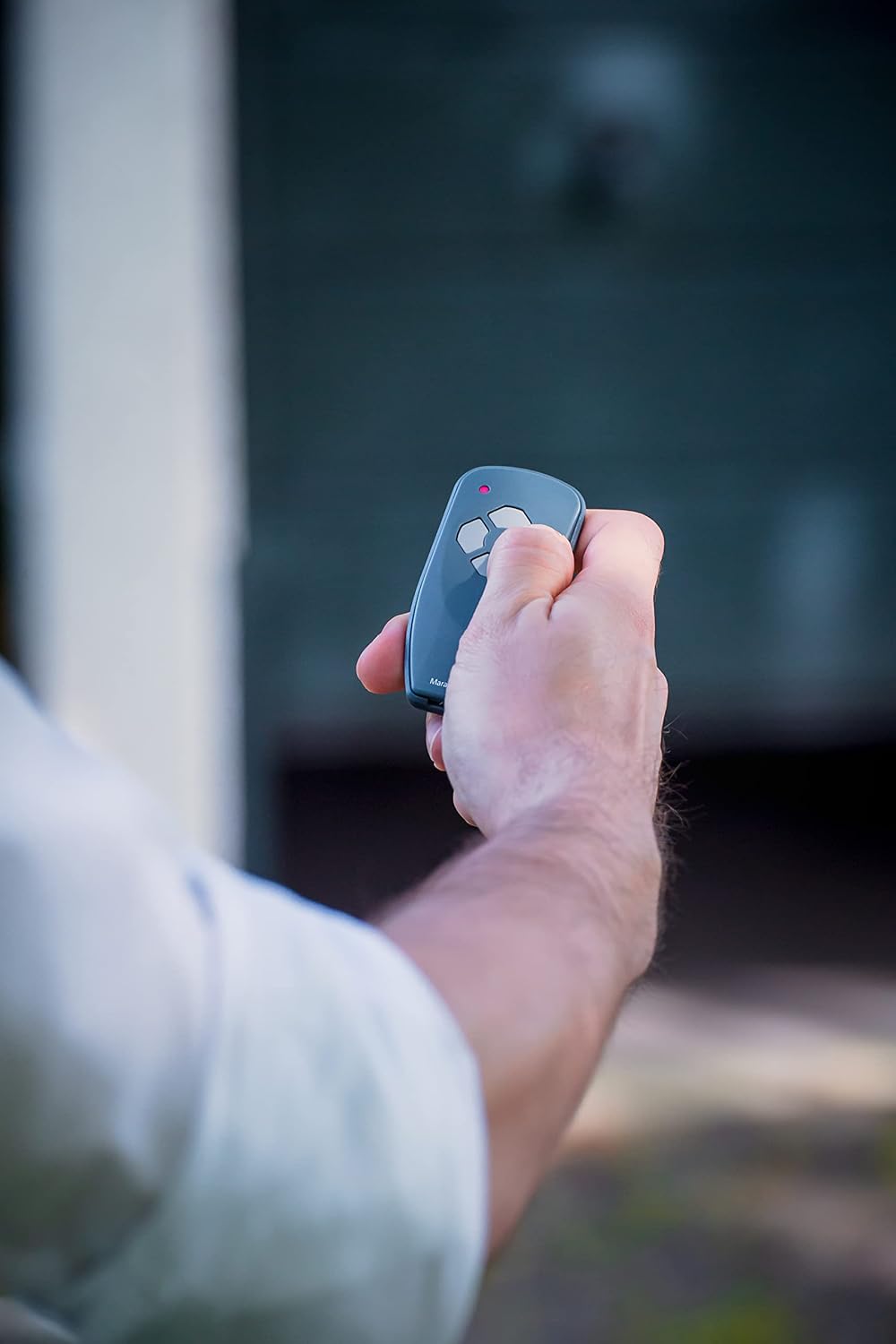

Figure 3: A hand holding the remote control and pressing one of the four buttons to activate a function.
2. LED Indicator Meanings
- Lampu Beureum Padet: Indicates a successful button press and signal transmission.
- Rapidly Flashing Red Light: Signals that the battery is low and needs to be replaced soon.
Pangropéa
1. Ngagantian batré
When the LED indicator flashes rapidly during operation, it is time to replace the CR2032 battery. To replace:
- Open the battery compartment cover on the back of the remote control (refer to Figure 2).
- Leupaskeun batré CR2032 heubeul.
- Selapkeun batré CR2032 anyar kalayan sisi positif (+) nyanghareup ka luhur.
- Tutup panutup kompartemen batré aman.
2. beberesih
Clean the remote control with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the casing atawa komponén internal.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Remote control does not operate the garage door. | Batré lemah atawa béak. | Ganti batré CR2032. |
| Remote control is not programmed or has lost its code. | Reprogram the remote control following the instructions in the "Programming the Remote Control" section. | |
| Kadali jauh di luar jangkauan. | Nyedek ka pambuka panto garasi. | |
| LED does not light up when a button is pressed. | Battery is completely depleted or incorrectly installed. | Check battery installation or replace the battery. |
| LED flashes rapidly when a button is pressed. | Batré lemah. | Ganti batré CR2032. |
spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Nomer modél | 122459 |
| Saluran | 4 |
| Ukuran (L x W x H) | 86 x 39 x 12 mm |
| Beurat | 40 gram |
| Warna | kulawu |
| Bahan | palastik |
| Jenis Batré | CR2032 Lithium-Manganese Dioxide |
| Produsén | Marantec |
| Negara asal | Jérman |
Émbaran Kasalametan
- Keep remote controls out of reach of children to prevent accidental operation of the garage door.
- Do not allow children to play with the remote control or the garage door opener.
- Buka panto garasi ngan lamun geus pinuh view tur bébas tina halangan.
- Never walk or drive through a moving garage door.
- Buang batré anu dipaké nurutkeun peraturan lokal.
- Do not expose the remote control to water or extreme temperatures.
Garansi sareng Rojongan
For warranty information or technical support, please refer to the documentation provided with your garage door opener system or contact Marantec customer service directly. Specific warranty details for the remote control are typically covered under the main drive unit's warranty.
