1. Bubuka
This manual provides detailed instructions for the safe and efficient operation of your Zero Breeze Mark 2 Portable Air Conditioner. Please read this manual thoroughly before use and retain it for future reference. The Zero Breeze Mark 2 is designed to provide portable cooling for various environments such as RVs, trucks, teardrop trailers, tents, boats, small cabins, or rooms.
Image showing the Zero Breeze Mark 2 Portable Air Conditioner, highlighting its compact and portable design.
2. Fitur Produk
- Kapasitas cooling: 2,300 BTU (650 Watts) for effective cooling.
- Cooling gancang: Lowers ambient air temperature by up to 30°F in approximately 10 minutes.
- Laju kipas anu tiasa disaluyukeun: Four fan speed settings for customized airflow.
- Modeu tiis: Three distinct cooling modes.
- Aplikasi serbaguna: Ideal for spaces up to 7 x 7 ft, including trucks, teardrop trailers, small rooms, cars, and tents.
- Pilihan Daya: Operates via a 3-prong AC adapter (included) or compatible off-grid power sources like solar generators and battery packs.
- Desain kompak: Weighs only 7.5 kg (16.5 lbs), making it highly portable.
- Dual Exhaust System: Features both cold air output and hot air exhaust for efficient temperature management.
3. Setélan
- Ngabongkar bungkusan: Carefully remove all components from the packaging. Ensure all parts are present: the main unit, exhaust ducts, power adapter, and any optional accessories.
- Posisi: Place the Zero Breeze Mark 2 on a stable, flat surface. Ensure there is adequate space around the unit for proper airflow.
- Attaching Exhaust Ducts:
- Identify the cold air output and hot air exhaust ports on the unit.
- Attach the flexible exhaust ducts to the designated ports. Secure them firmly.
- Extend the ducts as needed. The ducts are designed to extend significantly.

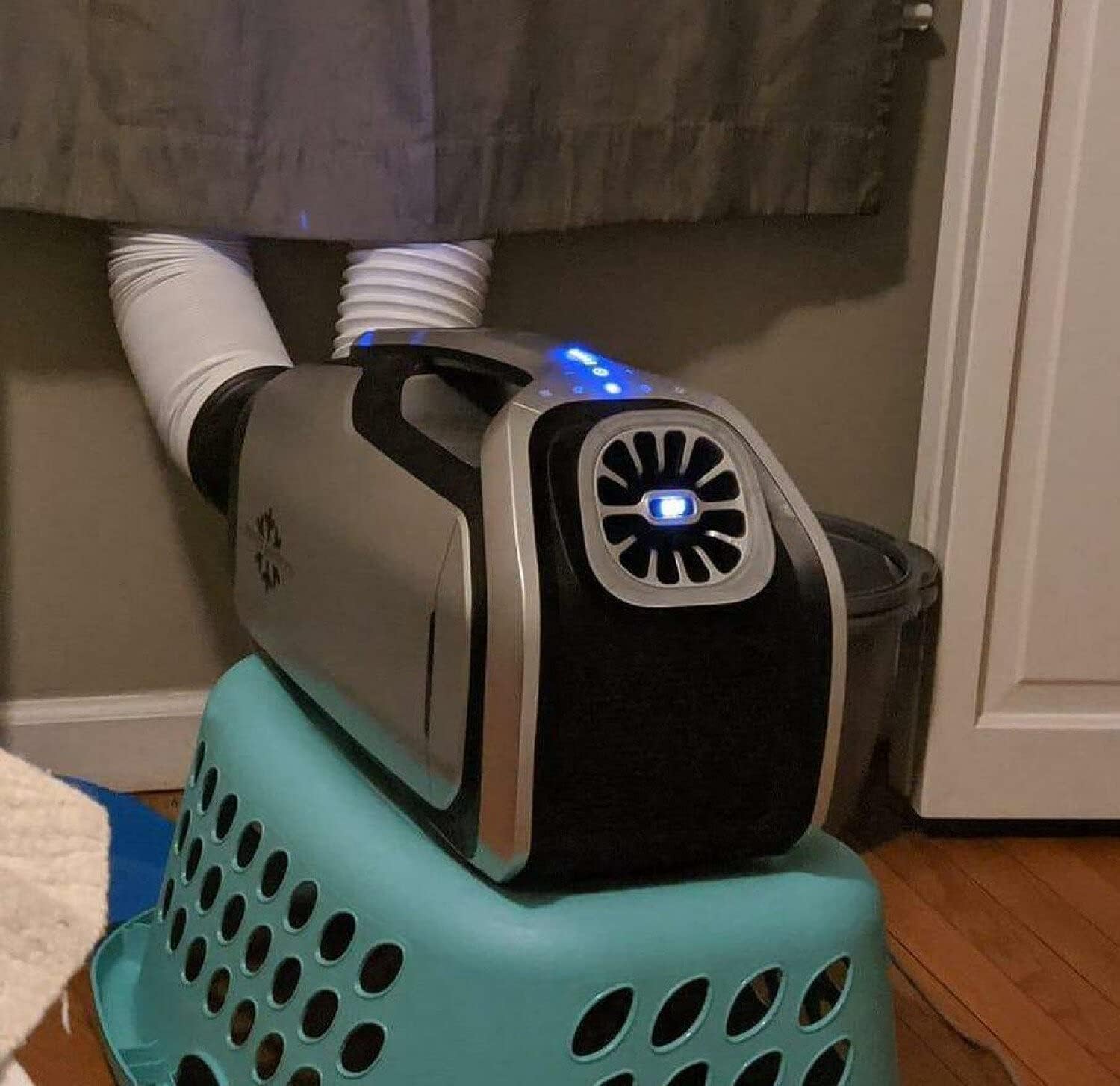

Image showing the Zero Breeze Mark 2 with its flexible exhaust ducts extended, ready for operation. One duct is for cold air output, and the other for hot air exhaust.
- Sambungan Daya:
- For AC power, connect the included 3-prong AC adapter to the unit and then to a standard electrical outlet.
- For off-grid power, connect the unit to a compatible solar generator or battery pack using the appropriate cables. (Note: Specific adapters for solar generators or car power may be sold separately).
Image illustrating the Zero Breeze Mark 2 connected to an external power source, demonstrating its off-grid capability.
- Condensation Drainage: Connect the condensation drainage tube to the designated port if continuous drainage is required. Position the other end of the tube to drain water away from the unit and any electrical components.
4. Parentah Operasi
- Hurungkeun/Pareuman: Pencét tombol daya dina panel kontrol pikeun ngaktipkeun atanapi mareuman unit.
- Nyaluyukeun Suhu: Use the temperature control buttons to set your desired cooling temperature. The display will show the current output temperature.
- Pilihan Kecepatan Kipas: Cycle through the four available fan speeds using the fan speed button to adjust airflow intensity.
- Modeu tiis: Select from the three cooling modes to optimize performance for your environment.
- Fungsi Saré: Activate the sleep function for quiet operation and automatic shut-off after a set period.
- Fungsi cahaya: The unit includes a light function for convenience in low-light conditions.
Pahareup-hareup view of the Zero Breeze Mark 2 control panel, highlighting the digital display and various function buttons for temperature, fan speed, and mode selection.
5. Pangropéa
- Saringan beberesih: Regularly check and clean the air filters to ensure optimal performance and airflow. Refer to the user manual for specific filter cleaning instructions.
- Manajemén kondensasi: Ensure the condensation drainage system is clear and functioning correctly to prevent water buildup.
- Panyimpenan: When not in use for extended periods, clean the unit, disconnect power, and store it in a dry, cool place.
6. Cara ngungkulan
Isu umum jeung Solusi
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Unit teu hurung. | Taya catu daya atawa sambungan leupas. | Check power cable connection to the unit and outlet/power source. Ensure the power source is active. |
| Cooling teu cukup. | Blocked air intake/exhaust, dirty filter, or room size too large. | Ensure ducts are clear and extended. Clean air filters. Verify the unit is used within its recommended cooling area (7x7 ft). |
| Leak cai. | Condensation drain tube is blocked or improperly connected. | Check the condensation drain tube for kinks or blockages. Ensure it is securely connected and draining properly. |
| Sora teu biasa. | Obstruction in fan or loose component. | Turn off the unit and inspect for any foreign objects in the fan area. If noise persists, contact customer support. |
7. Spésifikasi
| Fitur | Rincian |
|---|---|
| Ngaran Brand | Zero Breeze |
| Info modél | 2300 BTU Hawa Portabel |
| Item Beurat | 16.5 pon (7.5 kg) |
| Dimensi produk | 1 x 1 x 1 inches (Note: These dimensions may be placeholder data and not reflect actual product size.) |
| Kamampuh cooling | 2300 British Thermal Units (BTU) |
| Wattage | 605 watt |
| Voltage | 24 Volt (DC) |
| Tingkat Noise | 52 desibel |
| Tipe Pamasangan | Portabel |
| Fitur husus | Portabel |
| Ideal Cooling Area | 7 x 7 ft |
8. Garansi jeung Rojongan
For warranty information, technical support, or service inquiries, please refer to the official Zero Breeze websitus atanapi ngahubungan layanan palanggan maranéhanana langsung. Simpen resi pameseran anjeun salaku bukti pameseran.
Return Policy Note: Please be aware that return policies may vary by retailer. Some retailers may require customers to cover return shipping costs. Review the specific return policy of your purchase location.
