StarTech.com 2 Port Dual Monitor HDMI KVM Switch

1. Bubuka

This instruction manual provides detailed information on the installation, operation, and maintenance of your StarTech.com 2 Port Dual Monitor HDMI KVM Switch. This device allows you to control two computers from a single set of peripherals, including two HDMI monitors, a keyboard, a mouse, and other USB devices, supporting resolutions up to 4K at 60Hz.

2. Émbaran Kasalametan

Please read and understand all instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Bahaya listrik: Do not use damaged or frayed cables. Exposed wires can lead to electric shocks. Ensure all cables are properly connected and secured to prevent accidental disconnection.
• Heat Buildup: Overloaded or tightly bundled cables can overheat and pose a fire hazard. Ensure adequate ventilation and avoid bundling power cables.
• Ruksakna: Always unplug adapters by holding the plug, not the cable. Pulling by the cable can expose live wires, which could lead to electrical shocks or burns.

3. Produk Langkungview

The StarTech.com SV231DHU34K6 KVM switch is designed to streamline your workspace by enabling control of two computers with dual 4K HDMI displays and shared USB peripherals. Its robust steel housing ensures durability.

3.1. Fitur konci

• Supports dual 4K (3840 x 2160) resolution at 60Hz per monitor.
• HDMI 2.0, HDCP 2.2, and HDR10 support.
• Integrated 2-port USB 3.0 Hub (5Gbps) for sharing peripherals.
• Four USB 2.0 HID ports for keyboard and mouse.
• Hotkey and front-panel push-button switching.
• EDID and HDCP signal emulation for fast, seamless switching.
• Supports stereo analog and 7.1 digital audio.
• OS Independent compatibility (Windows, Mac, Linux).

3.2. Panel Hareup

angka 1: Layout Panel hareup

• Port USB HID: For connecting a keyboard or mouse.
• 5G USB Port: For connecting high-speed USB 3.0 devices.
• Tombol Pilihan Komputer (1, 2): Press to switch to the corresponding computer.
• Tombol PILIH: Used for various functions, including auto-scan activation.

3.3. Panél Pungkur

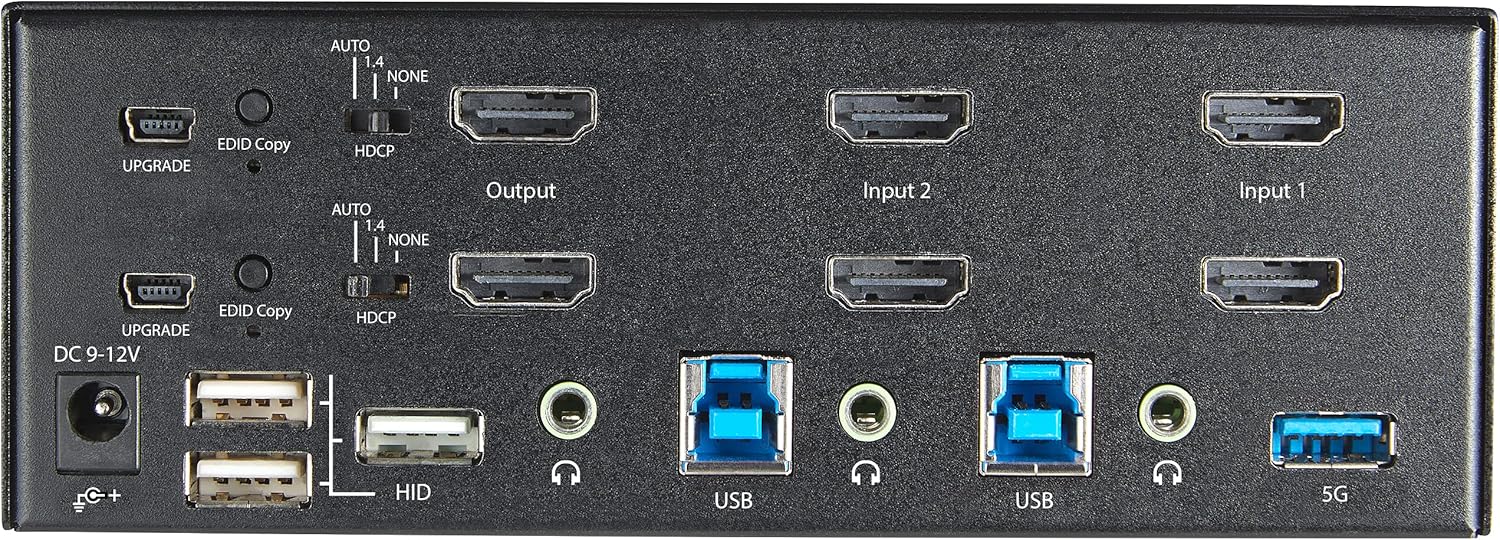

Gambar 2: Tata Letak Panel Rear

• Input Daya DC 9-12V: Sambungkeun adaptor kakuatan anu kalebet.
• UPGRADE Port: Pikeun apdet firmware.
• EDID Copy Button/Switch: Manages Extended Display Identification Data.
• Saklar HDCP: Manages High-bandwidth Digital Content Protection.
• Output (HDMI): Connect to your monitors.
• Input 1/Input 2 (HDMI): Connect to the HDMI outputs of your computers.
• USB (Tipe-B): Connect to the USB 3.0 ports of your computers.
• HID USB Ports (Type-A): For additional keyboard/mouse connections or other low-power USB devices.
• Audio Jacks (3.5mm): For connecting speakers/headphones and microphones.
• 5G USB Port (Type-A): For connecting high-speed USB 3.0 devices.

4. Setélan

4.1. Naon dina Box

• 1 x KVM Switch (SV231DHU34K6)
• 1 x Universal Power Adapter (NA / JP, EU, UK, ANZ)
• 4 x Suku Karét
• 1 x Pitunjuk Gancang-Mimitian

Note: HDMI cables, USB 3.0 Type-A to Type-B cables, and audio cables are not included and must be purchased separately.

4.2. Parentah sambungan

Follow these steps to connect your KVM switch:

1. Sambungkeun Monitor: Connect your two HDMI monitors to the 'Output' HDMI ports on the rear panel of the KVM switch.
2. Connect Computers (HDMI): Connect the HDMI outputs from Computer 1 to the 'Input 1' HDMI ports on the KVM switch. Repeat for Computer 2 and 'Input 2'. Ensure both HDMI outputs from each computer are connected for dual monitor support.
3. Connect Computers (USB): Connect the USB 3.0 Type-B ports on the KVM switch to the USB 3.0 Type-A ports on Computer 1 and Computer 2 using appropriate USB 3.0 cables. These connections enable keyboard, mouse, and USB hub functionality.
4. Sambungkeun Periferal:
   • Connect your keyboard and mouse to the 'HID' USB ports on the front or rear panel.
   • Connect other USB devices (e.g., printer, scanner, webcam) to the '5G' USB 3.0 ports on the front or rear panel.
5. Sambungkeun Audio (Opsional): If desired, connect your speakers/headphones and microphone to the 3.5mm audio jacks on the rear panel.
6. Sambungkeun Kakuatan: Connect the included universal power adapter to the 'DC 9-12V' power input on the rear panel, then plug it into a power outlet. The KVM switch will power on automatically.

Figure 3: KVM Switch with Ports for Connection

5. Operating the KVM Switch

5.1. Ngalihkeun Antara Komputer

You can switch between connected computers using either the front-panel push buttons or hotkey commands.

• Front-Panel Buttons: Press the '1' or '2' button on the front panel to directly switch to Computer 1 or Computer 2, respectively.
• Ngalihkeun Hotkey: Use keyboard hotkey combinations to switch computers. The default hotkey sequence is typically Scroll Lock, Scroll Lock, [1 or 2]. Refer to the Quick-Start Guide for a complete list of hotkey commands and customization options. A buzzer sound confirms the switch.

5.2. EDID and HDCP Emulation

The KVM switch includes EDID (Extended Display Identification Data) and HDCP (High-bandwidth Digital Content Protection) signal emulation. This feature ensures that your monitors remain synced and desktop settings are maintained when switching between computers, preventing display resolution changes or window rearrangement.

5.3. USB Hub Functionality

The integrated USB 3.0 hub allows you to share two USB 3.0 peripherals (connected to the 5G ports) and four USB 2.0 HID peripherals (connected to the HID ports) between the connected computers. Devices connected to these ports will function as if directly connected to the currently selected host computer.

5.4. Rojongan Audio

The KVM switch supports both digital audio (via HDMI, 7.1 Channel Audio) and separate 3.5mm stereo analog audio (2 Channel Audio). Ensure your displays and sources support the desired audio format for full compatibility.

6. Pangropéa

Pikeun mastikeun umur panjang sareng kinerja optimal saklar KVM anjeun, turutan pedoman pangropéa ieu:

• beberesih: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun bagian luar alat. Entong nganggo pembersih cair atanapi aerosol.
• Ventilasi: Ensure the KVM switch is placed in a well-ventilated area. Do not block any ventilation openings.
• Manajemén Kabel: Keep cables organized and untangled to prevent damage and ensure proper airflow. Avoid excessive bending or crimping of cables.
• Panyimpenan: Lamun teu dipaké pikeun période nambahan, nyimpen alat dina tiis, tempat garing jauh ti sinar panonpoé langsung jeung hawa ekstrim.

7. Cara ngungkulan

Upami anjeun mendakan masalah sareng switch KVM anjeun, tingal masalah sareng solusi umum ieu:

• No Display or Incorrect Resolution:
  • Ensure all HDMI cables are securely connected to both the KVM switch and your computers/monitors.
  • Verify that your HDMI cables are rated for 4K 60Hz if you are using 4K displays. Longer cables (e.g., over 3m/10ft) may require higher quality or active cables.
  • Check the display settings on your computers to ensure they are configured for the correct resolution and refresh rate.
  • Try power cycling the KVM switch and monitors.
• Kibor/Beurit Teu Ngabales:
  • Ensure the USB Type-B cables are securely connected from the KVM switch to your computers.
  • Verify that your keyboard and mouse are connected to the designated HID USB ports.
  • Cobi sambungkeun kibor/mouse langsung ka komputer pikeun mastikeun éta tiasa dianggo.
  • Some specialized keyboards/mice with advanced features may require direct connection or specific drivers.
• Alat USB Teu Dideteksi:
  • Ensure the USB Type-B cables are connected from the KVM switch to your computers.
  • Verify that the USB device is connected to the appropriate 5G USB 3.0 port.
  • Some high-power USB devices may require an external power source or a powered USB hub connected to the KVM's 5G port.
• Masalah Audio:
  • Check all 3.5mm audio cable connections.
  • Verify audio output settings on your computers.
  • Ensure your monitors or audio devices support the HDMI audio format being sent.
• Slow Switching Time:
  • The KVM switch is designed for fast switching. If experiencing delays, ensure EDID and HDCP emulation are functioning correctly.
  • Ensure all cables are of good quality and properly seated.

If the problem persists after attempting these solutions, please contact StarTech.com technical support.

8. Spésifikasi

9. Garansi jeung Rojongan

This StarTech.com KVM Switch (Model: SV231DHU34K6) is backed by a garansi 2 taun. StarTech.com also provides free lifetime technical support. For technical assistance or warranty claims, please visit the official StarTech.com websitus atanapi ngahubungan tim rojongan customer maranéhanana.

Kanggo inpo nu leuwih lengkep, mangga buka: www.startech.com
