WilTec XPOtool 1280W Wall and Ceiling Sander User Manual

1. Bubuka

Thank you for choosing the WilTec XPOtool 1280W Wall and Ceiling Sander. This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your new tool. Please read these instructions carefully before use and keep them for future reference.

2. Pitunjuk Kasalametan Umum

PERHATOSAN: Baca sadaya peringatan kaamanan, pitunjuk, ilustrasi, sareng spésifikasi anu disayogikeun sareng alat listrik ieu. Gagalna nuturkeun sadaya paréntah anu didaptarkeun di handap tiasa nyababkeun shock listrik, seuneu, sareng/atawa tatu anu serius.

• Kasalametan Area Gawé: Tetep wewengkon gawé beresih jeung well-cahayana. Wewengkon nu pabalatak atawa poek ngondang kacilakaan. Ulah ngajalankeun parabot kakuatan dina atmosfir ngabeledug, kayaning ku ayana cair kaduruk, gas, atawa lebu.
• Kasalametan listrik: Colokan alat listrik kedah cocog sareng stop kontak. Pernah ngaropéa colokan dina sagala cara. Entong nganggo colokan adaptor sareng alat listrik anu dibumikeun (dibumi). Hindarkeun kontak awak sareng permukaan bumi atanapi grounded.
• Kasalametan Pribadi: Always wear eye protection. Use dust masks, non-skid safety shoes, hard hats, or hearing protection for appropriate conditions. Do not overreach. Keep proper footing and balance at all times.
• Pamakéan sareng Perawatan Alat Daya: Ulah maksakeun alat kakuatan. Anggo alat kakuatan anu leres pikeun aplikasi anjeun. Pegatkeun sambungan colokan ti sumber listrik samemeh nyieun sagala panyesuaian, ngaganti asesoris, atawa nyimpen parabot kakuatan.
• Koléksi lebu: This tool features an integrated dust collection system. Ensure the dust bag is properly attached and emptied regularly to maintain efficiency and reduce airborne dust.

3. Produk Langkungview

The XPOtool 1280W Wall and Ceiling Sander is designed for efficient sanding of large surfaces such as plasterboard, wood, and other materials. It features a powerful motor, variable speed control, and an integrated vacuum system for a cleaner working environment.

komponén:

• Main Sander Unit
• Gagang bantu
• Selang Koléksi lebu
• Kantong Koléksi lebu
• Sanding Discs (various grits)
• Kabel listrik

Gambar 1: Leuwihview of the XPOtool 1280W Wall and Ceiling Sander, including the main unit, auxiliary handle, dust collection hose, dust bag, and several sanding discs.

4. Setélan

4.1 Ngagantelkeun gagang bantu

1. Locate the auxiliary handle and the designated mounting point on the sander body.
2. Screw the auxiliary handle firmly into place. Ensure it is securely fastened for stable operation.

4.2 Connecting the Dust Collection System

1. Connect one end of the dust collection hose to the dust outlet port on the sander.
2. Attach the other end of the hose to the inlet of the dust collection bag.
3. Ensure all connections are tight to prevent dust leakage and maximize suction efficiency.

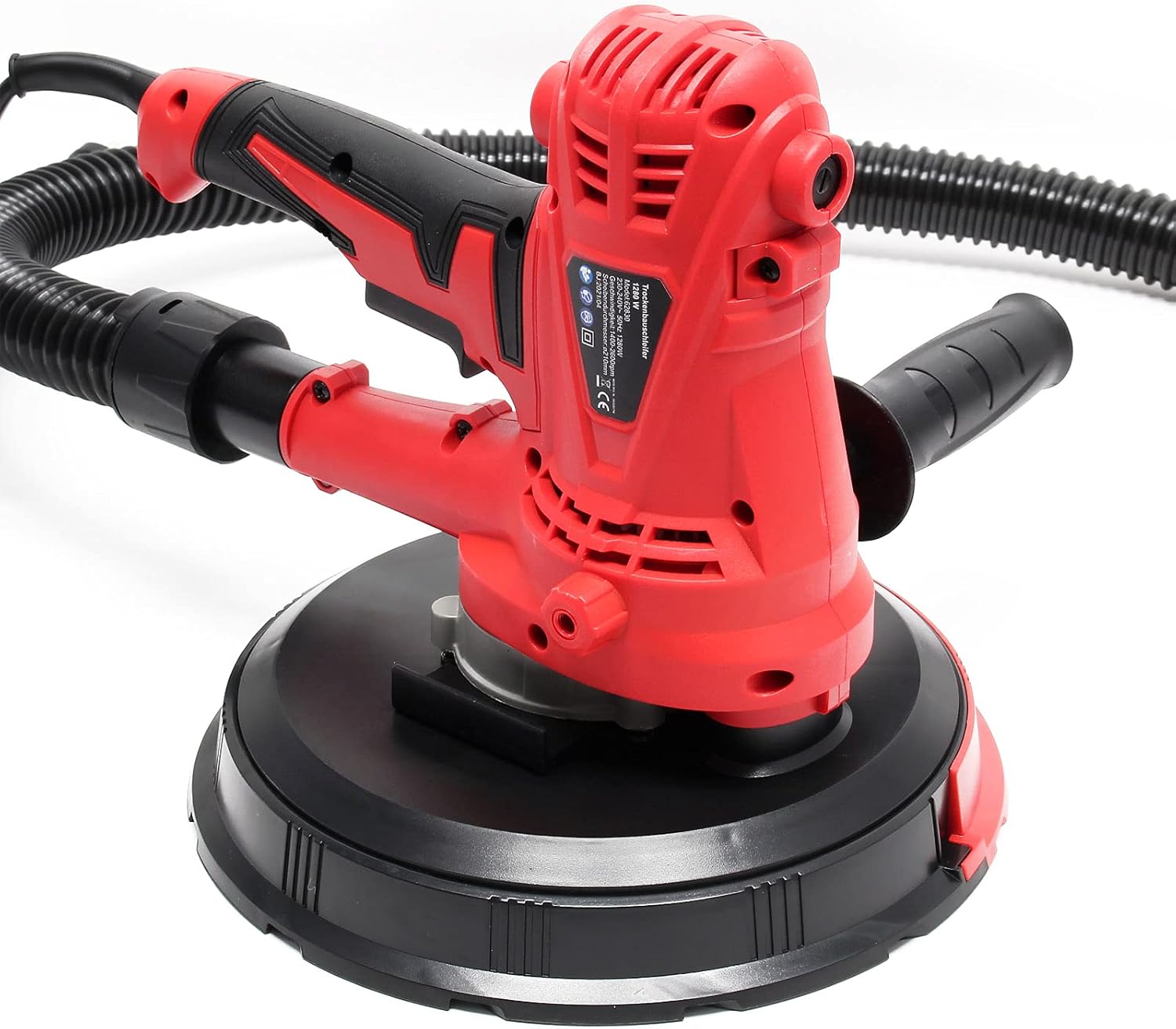

Gambar 2: Samping view of the sander demonstrating the attachment point for the dust collection hose.

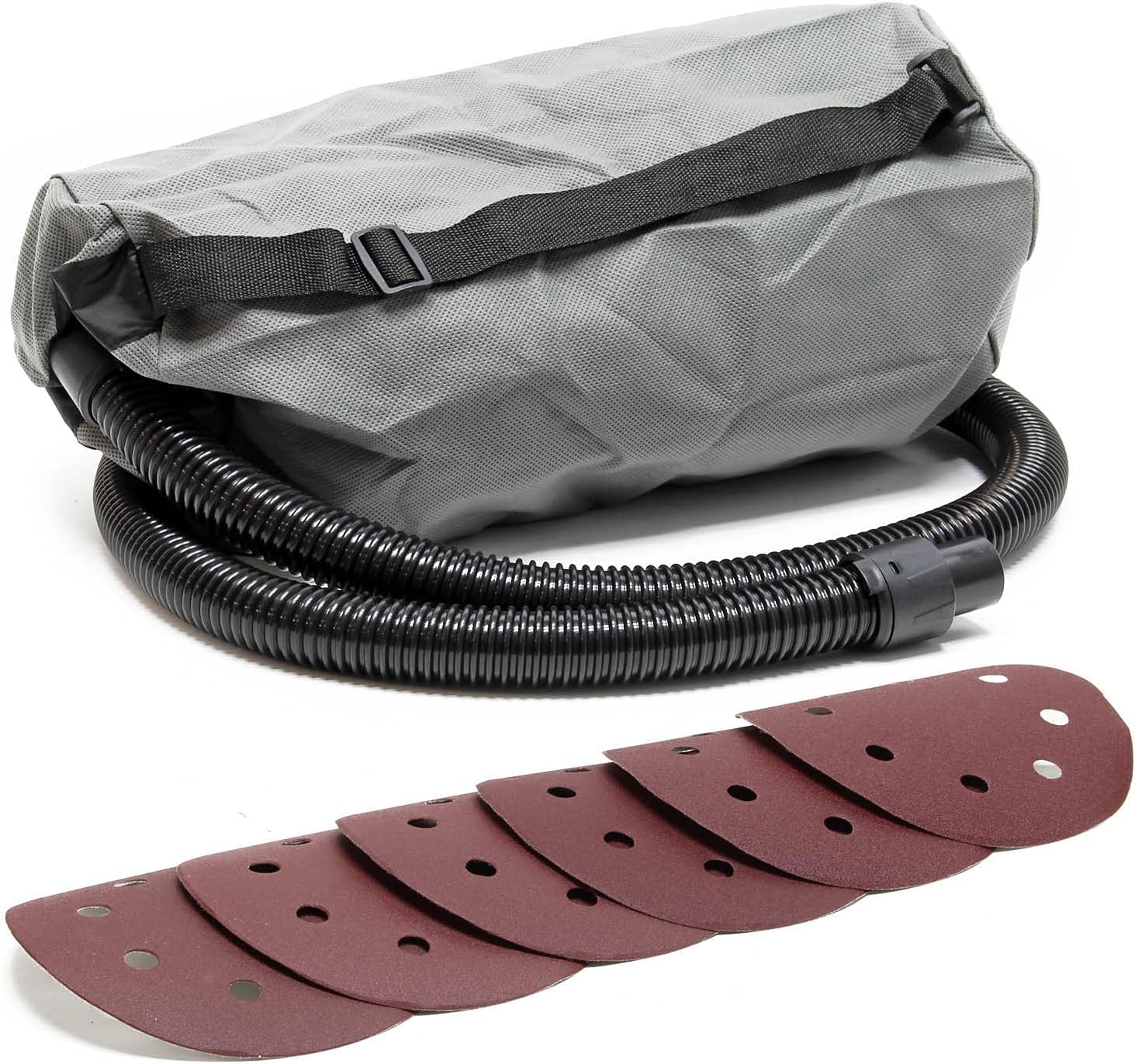

Gambar 3: The dust collection bag and various sanding discs included with the sander.

4.3 Installing Sanding Discs

1. Pastikeun sander dicabut tina sumber listrik.
2. The sanding pad uses a hook-and-loop fastening system. Align the holes on the sanding disc with the holes on the sanding pad.
3. Pencét cakram amplas pageuh kana bantalan pikeun ngamankeunana.
4. To remove, simply peel the disc off the pad.

Gambar 4: Handapeun view of the sander, showing the hook-and-loop sanding pad for disc attachment.

4.4 Sambungan Daya

Connect the power cord to a suitable electrical outlet. The sander is equipped with an extra-long 4-meter power cord for extended reach.

5. Parentah Operasi

5.1 Powering on / Pareum

1. Ensure the sander is properly set up and connected to power.
2. To turn on the sander, press the power switch. The integrated soft-start function will ensure a smooth startup.
3. To turn off, release or press the power switch again, depending on the switch type (toggle or momentary with lock).

5.2 Nyaluyukeun Speed

The sander features five variable speed levels, adjustable between 1400 and 2600 revolutions per minute. Use the speed adjustment dial to select the appropriate speed for your material and application.

• Lower speeds are suitable for delicate surfaces or fine finishing.
• Higher speeds are effective for aggressive material removal on robust surfaces.

Gambar 5: Pahareup-hareup view of the sander's controls, including the variable speed dial and power switch.

5.3 Using the Integrated Vacuum System

The integrated vacuum system directly collects sanding dust into the attached dust bag, significantly reducing airborne particles. The suction power is adjustable up to 98% for optimal dust management.

• Ensure the dust bag is empty before starting work.
• Monitor the dust bag and empty it when it becomes full to maintain effective suction.

5.4 Téhnik Sanding

• Sanding umum: Apply even, moderate pressure. Move the sander in smooth, overlapping passes across the surface.
• Tembok jeung siling: The 215mm sanding disc and 360° rotatable head are ideal for large surfaces. The auxiliary handle provides enhanced control.
• Edges and Corners: The removable sanding cover allows access to joints, corners, and edges. Carefully remove the cover when working in these areas.

5.5 LED Light (Optional)

The device allows for the connection of an external LED lamp (not included). If an LED lamp is connected, it can be activated via a dedicated switch to illuminate dark work areas.

6. Pangropéa

6.1 Cleaning the Dust Bag

Regularly empty the dust collection bag to maintain optimal suction performance and prevent clogging. Detach the bag, empty its contents, and reattach it securely.

6.2 Cleaning the Sanding Pad and Discs

Inspect the sanding pad for wear or damage. Replace if necessary. Remove any dust or debris from the hook-and-loop surface to ensure proper adhesion of new sanding discs. Replace sanding discs when they become worn or lose their abrasive quality.

6.3 beberesih umum

After each use, wipe down the exterior of the sander with a clean, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure ventilation openings are clear of dust and debris to prevent overheating. The motor is protected by a specially designed blade that helps prevent dust ingress.

7. Cara ngungkulan

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information, technical support, or spare parts inquiries, please refer to the purchase documentation or contact your retailer. Keep your proof of purchase for any warranty claims.
