Buku Panduan Pangguna Konsol Emulator Kinhank Super Console X Max

1. Bubuka

This manual provides detailed instructions for the setup, operation, and maintenance of your Kinhank Super Console X Max. This device integrates three operating systems: EmuELEC 4.3 for retro gaming, Android 9.0 for media and applications, and CoreELEC for a dedicated media center experience. Please read this manual thoroughly to ensure proper use and to maximize your experience with the console.

Image 1.1: The Kinhank Super Console X Max console, along with its accessories including two wireless controllers and a remote control, connected to a television.

2. Eusi Paket

Pastikeun yén sadaya item anu didaptarkeun di handap kalebet kana pakét anjeun:

• Kinhank Super Console X Max Unit
• Wireless Controllers (x2)
• TF Card (pre-installed with EmuELEC/Android)
• 4G CoreELEC Card
• Kabel HD
• Adaptor kakuatan
• Kadali jauh
• User Manual (Printed)

Image 2.1: Visual representation of all components included in the Kinhank Super Console X Max package.

3. Alat Leuwihview

3.1. Console Features

The Super Console X Max is powered by an Amlogic S905X3 Quad-Core processor, featuring an ARM Cortex-A55 CPU (up to 2.0GHz) and an ARM Mali-G31 MP2 GPU. It includes 4GB DDR3 RAM and 32GB eMMC storage. The console supports 4K HD and AV output, dual-band 2.4G+5G WiFi, Gigabit Ethernet, and Bluetooth 4.0.

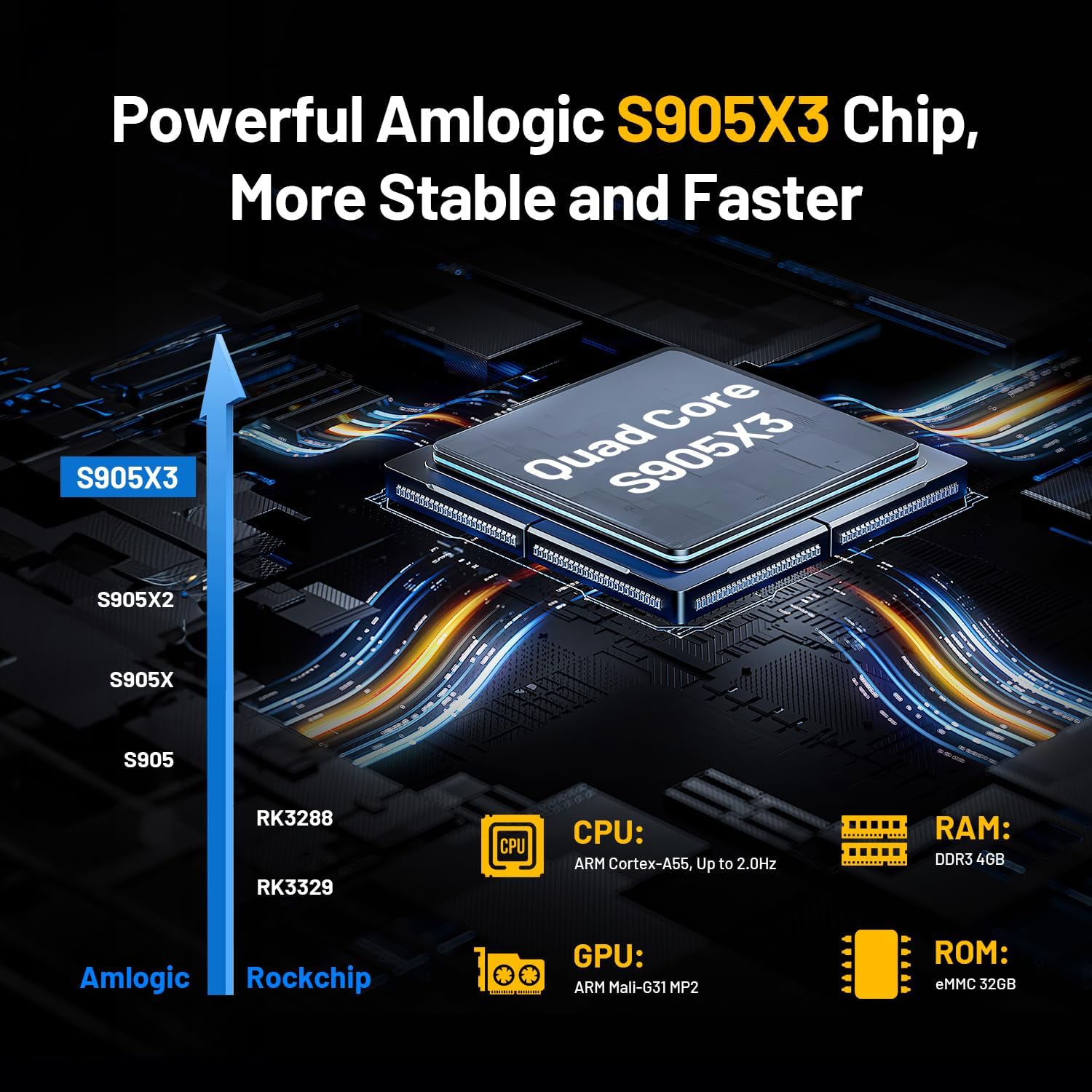

Image 3.1: Detailed specifications of the Amlogic S905X3 processor used in the console.

3.2. Palabuhan jeung sambungan

The console features various ports for connectivity and expansion:

• Slot Kartu TF: For inserting the system TF card or additional storage.
• Ngadeg tampik Pikeun nyambungkeun adaptor kakuatan.
• SPDIF: kaluaran audio digital.
• Kaluaran AV: Analog video and audio output for older displays.
• HD Kaluaran: HDMI port for high-definition video and audio.
• Port Ethernet: For wired network connection (Gigabit).
• Palabuhan USB 2.0: For connecting peripherals (e.g., controllers, USB drives).
• Palabuhan USB 3.0: Pikeun mindahkeun data-speed tinggi sareng alat nu cocog.

Gambar 3.2: Leuwihview of the console's input/output ports and their labels.

4. Parentah Setup

4.1. Sambungan Awal

1. Selapkeun Kartu TF: Ensure the main system TF card (pre-installed with EmuELEC/Android) is securely inserted into the TF card slot. If using the CoreELEC card, insert it into the TF card slot.
2. Nyambung ka tampilan: Connect the HD cable from the console's HD output port to an available HDMI input on your television or monitor. Alternatively, use the AV cable for older displays.
3. Sambungkeun Kakuatan: Plug the power adapter into the DC port on the console, then plug the adapter into a wall outlet.
4. Sambungkeun Controllers: Insert the USB dongle for the wireless controllers into one of the USB ports on the console. Ensure the controllers have batteries installed (3 AAA batteries required per controller, not included).
5. Daya Hurung: The console should power on automatically or can be powered on using the remote control.

Image 4.1: Connection options for video and audio output to different display devices.

4.2. Sambungan jaringan

The console supports both wired and wireless network connections.

• Sambungan kabel: Connect an Ethernet cable from your router to the console's Ethernet port.
• Sambungan nirkabel: Navigate to the network settings within the Android or EmuELEC interface, select your Wi-Fi network (2.4G or 5G), and enter the password.

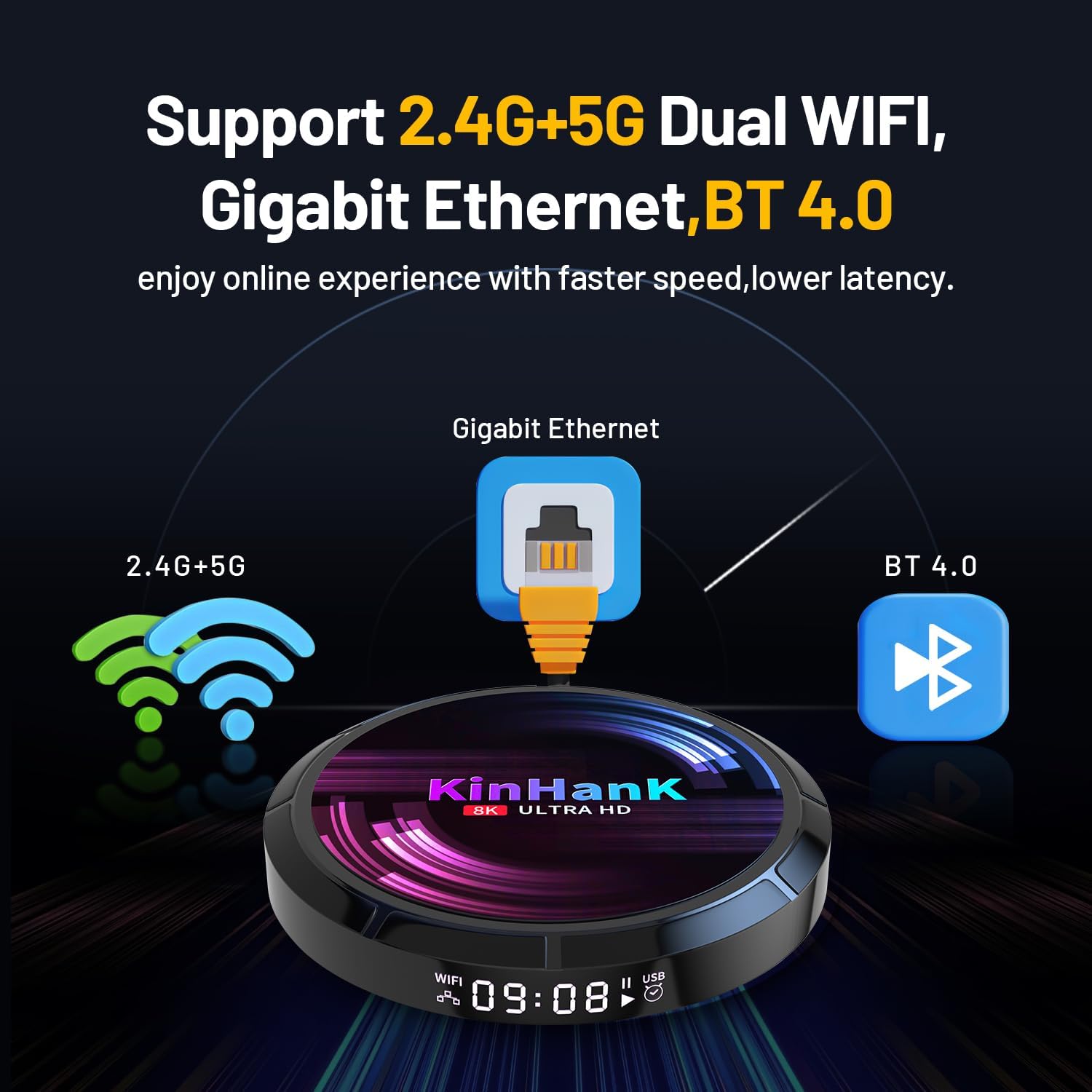

Gambar 4.2: Leuwihview of the console's network and wireless connectivity features.

5. Parentah Operasi

The Super Console X Max features three main operating systems:

Image 5.1: The console supports EmuELEC 4.3, Android TV 9.0, and CoreELEC for diverse functionalities.

5.1. Ngaganti Antara Sistem

The console typically boots into Android 9.0 by default. To switch to EmuELEC or CoreELEC:

• From Android to EmuELEC: Locate the EmuELEC application icon within the Android interface and launch it. The system will reboot into EmuELEC.
• From EmuELEC to Android: In EmuELEC, access the main menu, select 'Quit', then choose 'Reboot to Android'.
• Using CoreELEC: CoreELEC is typically run from a separate TF card. Power off the console, replace the main TF card with the CoreELEC card, then power on.

5.2. EmuELEC (Retro Gaming)

EmuELEC is designed for playing retro video games. Use the wireless controllers for navigation and gameplay.

• Napigasi: Use the D-pad or analog stick to browse game systems and titles.
• Pilih Game: Press the 'A' button (or equivalent) to select a game.
• Exit Game: During gameplay, press 'START' + 'SELECT' simultaneously to open the RetroArch menu, then select 'Quit' or 'Close Content'.
• Save/Load State: Use hotkeys (often 'SELECT' + 'R1' for save, 'SELECT' + 'L1' for load) to save and load game states.

5.3. Android 9.0 (Media & Apps)

Android 9.0 provides access to streaming services, applications, and general media consumption. Use the remote control for navigation.

• Layar Utama: Access installed applications and system settings.
• Pamasangan Aplikasi: Download and install applications from the pre-installed app store or by sideloading APK files.
• Setélan: Configure network, display, sound, and other system preferences.

5.4. CoreELEC (Media Center)

CoreELEC is a lightweight operating system optimized for media playback, typically used with Kodi. It offers a dedicated media center experience.

• Puterkeun Média: Maénkeun média lokal files from USB drives or network shares.
• Tambahan: Install Kodi add-ons for additional streaming content.
• Konfigurasi: Adjust audio, video, and network settings within the Kodi interface.

6. Pangropéa

• beberesih: Use a soft, dry cloth to clean the console and controllers. Avoid liquid cleaners.
• Panyimpenan: Simpen konsol di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• Apdet parangkat lunak: Periodically check for system updates for Android, EmuELEC, and CoreELEC to ensure optimal performance and access to new features. Follow official update procedures to avoid data loss or system instability.
• SD Card Backup: It is recommended to back up the contents of your system TF card to a computer to prevent data loss in case of card corruption.

7. Cara ngungkulan

• Henteu aya kakuatan: Ensure the power adapter is securely connected to the console and a working power outlet. Try a different outlet.
• Henteu aya tampilan: Verify the HD cable is properly connected to both the console and the TV. Ensure the TV input is set to the correct HDMI channel. Try a different HD cable or AV cable.
• Pangontrol Henteu Ngaréspon: Check if the USB dongle is inserted correctly. Ensure controllers have fresh batteries. Re-pair controllers if necessary (refer to controller-specific instructions).
• Games Not Loading/Running Slowly: Some games may require specific emulator settings. Ensure the TF card is properly inserted and not corrupted. For N64 games, performance can vary; adjusting emulator settings might help.
• Masalah Sambungan Jaringan: Check router and modem status. For Wi-Fi, ensure correct password entry and strong signal. For wired, verify Ethernet cable connection.
• Sistem Freezes/Kacilakaan: Power cycle the device by disconnecting and reconnecting the power adapter. If issues persist, consider performing a factory reset (backup data first).

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information and technical support, please refer to the documentation included with your product or contact Kinhank customer service through their official channels. Keep your purchase receipt as proof of purchase for warranty claims.
