1. Bubuka
This manual provides essential information for the safe installation, operation, and maintenance of your LEDONE Full Cut Off 60W LED Wall Pack Light. Please read these instructions thoroughly before installation and retain them for future reference. This fixture is designed for outdoor use in commercial and industrial settings, featuring a full cut-off design to minimize light pollution and a built-in photocell for dusk-to-dawn operation.

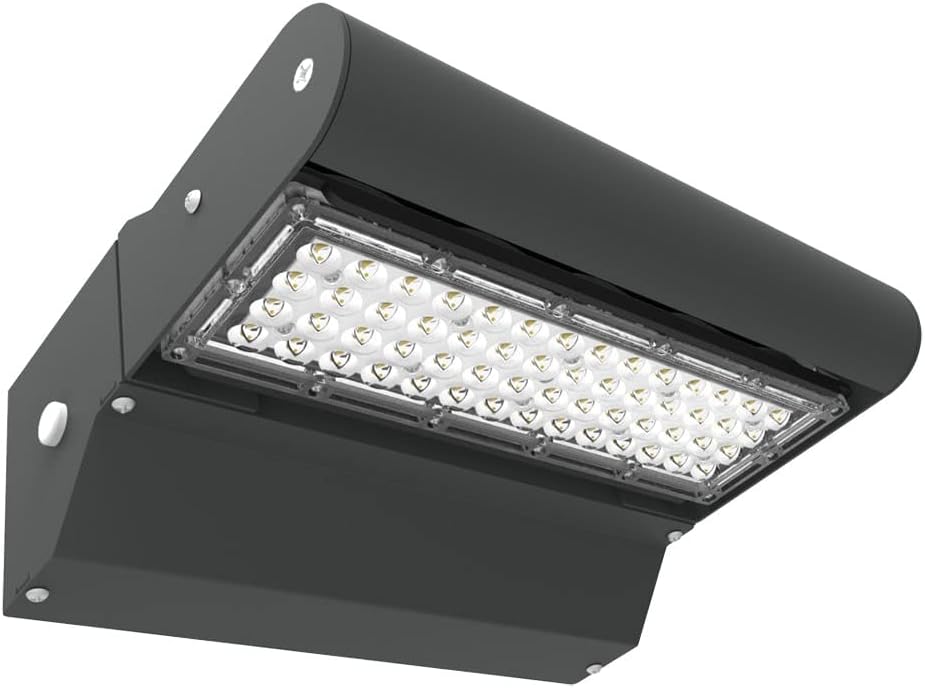

Gambar 1.1: Sisi hareup view of the LEDONE 60W Full Cut Off LED Wall Pack Light. This image displays the fixture's dark bronze housing and the array of LED lights behind a clear, tempered glass lens.
2. Émbaran Kasalametan
- PERHATOSAN: Résiko shock listrik. Pegatkeun sambungan kakuatan dina sekering atawa circuit breaker saméméh instalasi atawa ngalayanan.
- Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni saluyu sareng sadaya kode listrik nasional sareng lokal.
- Mastikeun suplai voltage is compatible with the fixture (120-277V AC).
- Do not handle live wires.
- Anggo kacamata sareng sarung tangan kaamanan nalika dipasang.
- Pastikeun alatna dipasang pageuh supados teu murag.
- Do not attempt to modify the fixture. Any modifications will void the warranty.
3. Eusi Paket
Verify that all components are present and undamaged before installation.
- 1 x LEDONE Full Cut Off 60W LED Wall Pack Light Fixture
- Pemasangan Hardware (sekrup, jangkar, gasket)
- Manual Pitunjuk (dokumén ieu)
4. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Modél | LOD-MSL-WP60W-50K |
| Wattage | 60W |
| Caang | 6806 Lumén |
| Éféktivitas | 126.51 Lumén / Watt |
| Suhu Warna | 5000K (Bodas) |
| Masukan Voltage | AC 120-277V |
| Tipe Sumber Cahaya | LED |
| Bahan Perumahan | Éléh-énggal Aluminium |
| Bahan Lensa | Kaca Tempered |
| Tipe rengse | Powder Coated (Bronze) |
| Tahan cai | IP65 Waterproof |
| Tipe Pamasangan | Tembok Gunung |
| Fitur husus | Dusk-to-Dawn Photocell, 15-Degree Rotatable Fixture |
| Rata Kahirupan | 50,000 Jam |
| Dimensi produk | 11.5 "L x 10.8" W x 3.9" H |
| Item Beurat | 8 pon |
| Sertifikasi | ETL Didaptarkeun |

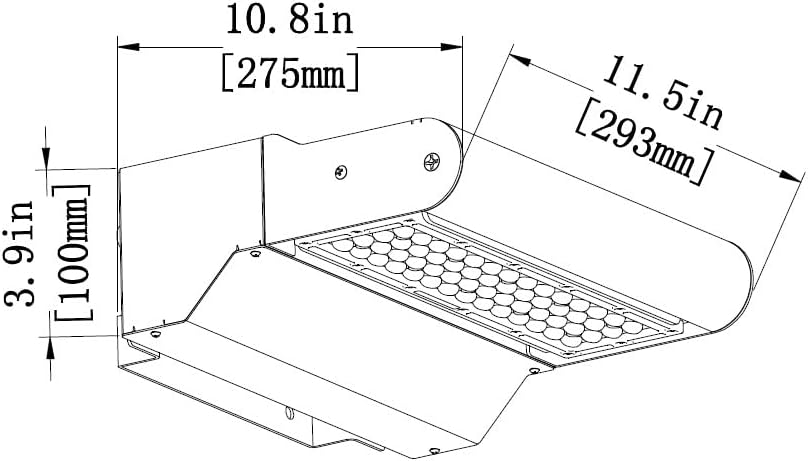

Image 4.1: Dimensional drawing of the LEDONE 60W Wall Pack Light, showing measurements of 11.5 inches (293mm) in length, 10.8 inches (275mm) in width, and 3.9 inches (100mm) in height.
5. Setup & Instalasi
Sateuacan Anjeun Ngawitan:
- Pareuman kakuatan dina pemutus sirkuit atanapi kotak sekering.
- Ensure the mounting surface is structurally sound and can support the fixture's weight.
- Have necessary tools ready: screwdriver, wire strippers, drill, sealant (if required for weatherproofing).
Parentah Pasang:
- Taliti piceun fixture tina bungkusan na.
- Detach the mounting plate from the back of the fixture.
- Position the mounting plate on the desired wall location. Mark the drilling points for the mounting screws.
- Bor liang pilot sareng pasang jangkar anu pas upami diperyogikeun.
- Secure the mounting plate to the wall using the provided screws. Ensure it is level and tight.
Gambar 5.1: Balik view of the LEDONE 60W Wall Pack Light, illustrating the integrated mounting bracket and conduit entry point for electrical wiring.
Parentah Wiring:
- Feed the electrical supply wires through the conduit entry point on the mounting plate.
- Connect the fixture's wires to the supply wires using appropriate wire connectors:
- Black wire (Fixture) to Live/Hot wire (Supply)
- White wire (Fixture) to Neutral wire (Supply)
- Green/Ground wire (Fixture) to Ground wire (Supply)
- Pastikeun sadaya sambungan aman sareng insulated leres.
- Carefully tuck all wires into the junction box or mounting plate cavity.
- Attach the fixture body to the mounting plate, ensuring a tight seal to maintain IP65 rating. Secure with screws.
- Apply silicone sealant around the edges of the fixture and conduit entry points if necessary to prevent water ingress.
- Balikkeun kakuatan dina circuit breaker.
6. Parentah Operasi
This LED wall pack light is equipped with a built-in photocell for automatic dusk-to-dawn operation. No manual intervention is required after installation.
- Fungsi Dusk-to-Subuh: The integrated photocell sensor detects ambient light levels. The fixture will automatically turn ON when natural light falls below a certain threshold (dusk) and turn OFF when sufficient natural light is detected (dawn).
- Rotatable Fixture: The fixture can be rotated by 15 degrees to adjust the light direction. This adjustment should be made during installation or maintenance when power is OFF. Loosen the appropriate screws, adjust the angle, and re-tighten securely.

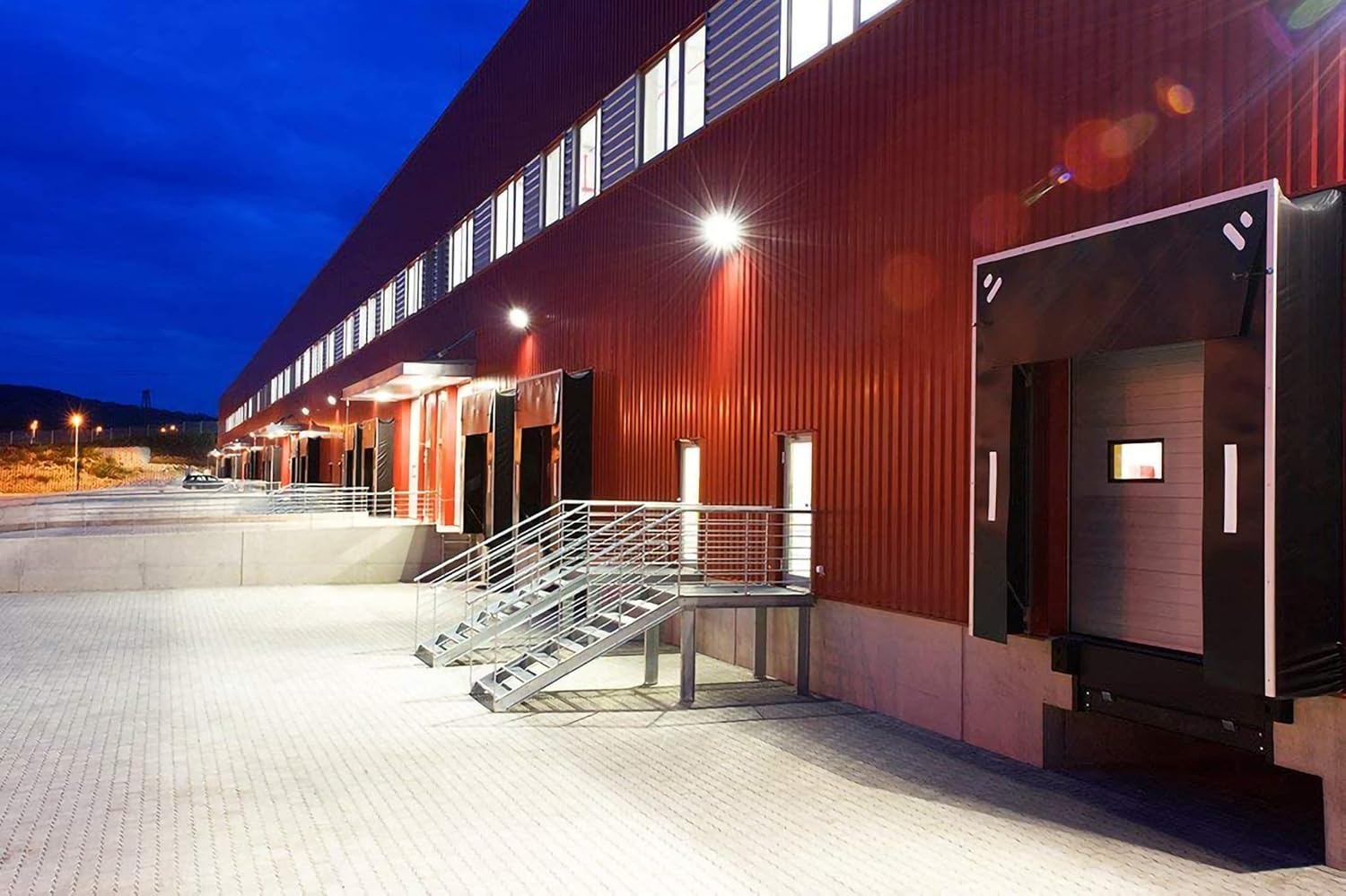

Image 6.1: LEDONE 60W Wall Pack Lights installed on the exterior of a commercial building at night, demonstrating their effective illumination for large outdoor areas.
7. Pangropéa
The LEDONE Wall Pack Light is designed for minimal maintenance. Regular inspection and cleaning will ensure optimal performance and longevity.
- beberesih: Periodically clean the exterior of the fixture, especially the lens and photocell, with a soft, damp cloth to remove dirt, dust, and debris. Ensure power is OFF before cleaning. Do not use abrasive cleaners or solvents.
- Pamariksaan: Pariksa unggal taun pikeun ningali aya tanda-tanda karusakan, kabel anu leupas, atanapi korosi. Pastikeun sadaya sekrup pemasanganna pageuh.
- Photocell: Keep the photocell sensor clear of obstructions (e.g., leaves, dirt, paint) to ensure proper dusk-to-dawn operation.
8. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lampuna teu hurung nalika sareupna. | No power supply; Faulty wiring; Photocell obstructed or faulty. | Check circuit breaker. Verify wiring connections. Clear any obstructions from the photocell. If problem persists, consult a qualified electrician. |
| Light stays ON during the day. | Photocell obstructed or faulty; Light source nearby interfering with photocell. | Clear any obstructions from the photocell. Relocate the fixture if another light source is directly illuminating the photocell. |
| Lampu kedip-kedip atanapi dims. | Loose wiring connection; Incorrect voltage; Fixture damage. | Turn off power and check all wiring connections. Ensure supply voltage is within 120-277V. If damage is suspected, discontinue use and contact support. |
9. Émbaran jaminan
The LEDONE Full Cut Off 60W LED Wall Pack Light is covered by a Garansi kawates. This product is designed for a long operational life of approximately 50,000 hours. For specific warranty terms and conditions, please refer to the warranty documentation provided at the time of purchase or contact LEDONE customer service.
10. Rojongan
LEDONE is committed to providing quality lighting solutions and customer service. If you have any questions, require technical assistance, or need to report an issue with your product, please contact LEDONE customer support. Our team is based in California and ready to assist you.
For further assistance, please visit the official LEDONE websitus atanapi tingali dokuméntasi pameseran anjeun kanggo detil kontak.
