Huepar 5-in-1 Electronic Wall Scanner (Model SFO1) Instruction Manual

Bubuka

Thank you for choosing the Huepar 5-in-1 Electronic Wall Scanner, Model SFO1. This device is designed to accurately detect studs (wood and metal), metal pipes, and live AC wires behind walls, floors, and ceilings. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your wall scanner. Please read it thoroughly before use and keep it for future reference.

Produk Leuwihview

The Huepar SFO1 wall scanner is equipped with an intelligent sensor chip, enabling high-precision detection of various materials. It features a large, backlit LCD display and an audible alert system for clear and efficient object localization.

Fitur konci:

• Deteksi Precision Tinggi: Accurately locates metal, wood, pipes, and live AC wires.
• Five Scan Modes: Includes three stud scan depths (1/2 inch, 1 inch, 1 1/2 inch), a metal scan mode, and an AC wire scan mode.
• Tampilan LCD Backlit: Provides clear readings even in low-light conditions.
• Waspada karungu: Assists in precisely identifying object locations.
• AC Wire Warning: Automatically alerts to live AC wires in all scan modes for enhanced safety.

komponén:

Familiarize yourself with the main components of your Huepar SFO1 wall scanner:

• Tombol Daya: Ngahurungkeun sareng mareuman alat.
• Tombol Scan: Initiates the scanning process.
• Tombol Mode: Cycles through the different detection modes.
• Layar LCD: Shows scan results, mode indicators, and battery status.
• Kompartemen batré: Holds the 9V battery.

This detailed diagram identifies all key physical components and explains the different icons and indicators displayed on the LCD screen, crucial for understanding device operation.

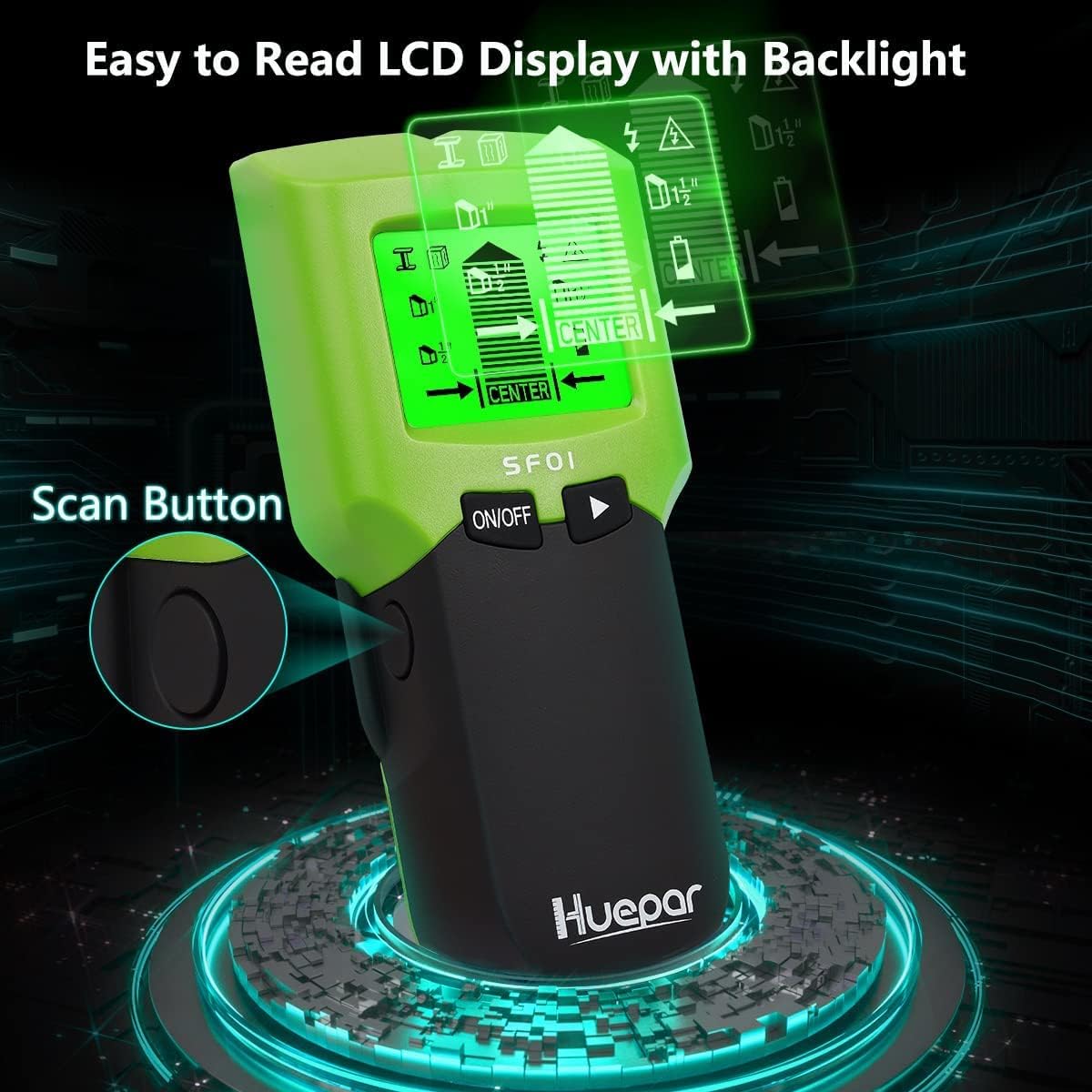

This image highlights the device's backlit LCD screen, which ensures clear readability of detection results even in low-light conditions, improving user experience.

Disetél

Pamasangan batré:

1. Tangtukeun lokasi kompartemen batré dina tonggong alat.
2. Geser muka kompartemen batréna.
3. Pasangkeun hiji batré 9V, pastikeun polaritasna bener (+/-).
4. Tutup panutup kompartemen batré aman.

A low battery indicator will appear on the LCD display when the battery needs replacement.

Parentah Operasi

Operasi umum:

1. Pencét éta Tombol Daya pikeun ngahurungkeun alat.
2. Pencét éta Tombol Mode to select the desired scanning mode.
3. Place the scanner flat against the wall surface.
4. Pencét jeung tahan tombol Tombol Scan. Wait for the calibration to complete (usually a few seconds).
5. Slowly slide the scanner horizontally across the surface.
6. Observe the LCD display and listen for audible alerts to identify objects.

Modeu Scan:

The Huepar SFO1 offers five distinct scanning modes for various detection needs:

Diagram ieu méré gambaran anu jelasview of all five scanning modes, detailing their respective detection depths for different materials like studs, AC wires, and metal.

• Stud Scan (1/2 inch / 13mm): Detects wood and metal studs up to 1/2 inch (13mm) deep.
• Stud Scan (1 inch / 25mm): Detects wood and metal studs up to 1 inch (25mm) deep.
• Stud Scan (1 1/2 inch / 38mm): Detects wood and metal studs up to 1 1/2 inches (38mm) deep.
• Metal Scan (up to 2 1/2 inches / 60mm): Detects ferrous and non-ferrous metals.
• AC Scan (up to 2 inches / 51mm): Detects live unshielded AC wires.

This image shows the different depth capabilities of the stud scan modes, indicating how the device can detect objects at varying distances behind the wall surface.

Hasil Interprétasi:

The LCD display will show indicators for detected objects, including the center and edges of studs or metal. An audible beep will also sound when an object is detected. For AC wires, a specific warning icon will appear.

This image illustrates the 'easy to use' feature, showing how the audio alarm guides the user to precisely locate both the center and edges of a stud, enhancing accuracy.

This image emphasizes the device's crucial safety feature: the ability to efficiently detect live AC wires, helping users avoid potential electrical damage during drilling or renovation.

This image illustrates the versatile detection capabilities of the Huepar wall scanner, highlighting its ability to locate various hidden objects within walls.

Émbaran Kasalametan

Always prioritize safety when working with tools and around electrical systems. Failure to follow these safety guidelines may result in electric shock, fire, or serious injury.

• AC Wire Warning: The device detects live AC wires. Always exercise extreme caution when AC wire detection is indicated. Turn off power to the area at the circuit breaker before drilling or cutting into walls.
• Verify Readings: Always scan the same area multiple times from different directions to confirm readings.
• Faktor Lingkungan: Performance may be affected by moisture, wall texture, or other environmental factors.
• Not a Substitute for Professional Advice: This device is an aid and should not be used as a substitute for professional judgment or safety procedures.
• Tetep garing: Ulah ngalaan alat ka cai atawa kaleuleuwihan Uap.
• Barudak: Jauhkeun tina jangkauan barudak.

Pangropéa

Proper maintenance ensures the longevity and accuracy of your wall scanner.

• beberesih: Ngusap alat ku lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
• Panyimpenan: Store the device in a dry, dust-free environment when not in use. Remove the battery if storing for extended periods to prevent leakage.
• Ngagantian batré: Ganti batré 9V nalika indikator batré lemah nembongan dina tampilan.

Pamérésan masalah

If you encounter issues with your Huepar SFO1 wall scanner, refer to the following common problems and solutions:

spésifikasi

• merek: Huepar
• model: SFO1
• warna: Héjo
• Beurat barang: 140 gram
• Jenis Batré: Batré 9V
• Tipe Pamasangan: Wall Mount (referring to its application)
• Jero Scan Stud: 1/2 inch (13mm), 1 inch (25mm), 1 1/2 inch (38mm)
• Metal Scan Depth: Up to 2 1/2 inches (60mm)
• AC Scan Depth: Nepi ka 2 inci (51mm)

Garansi sareng Rojongan

Specific warranty information and customer support contact details are not provided within this manual. For warranty claims, technical assistance, or further inquiries, please refer to the product packaging, the official Huepar website, or contact the retailer from whom you purchased the product.
