Kinzo 400W Jigsaw Instruction Manual

1. Bubuka

Thank you for choosing the Kinzo 400W Jigsaw. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new power tool. Please read this manual thoroughly before first use and keep it for future reference. Proper use and maintenance will ensure optimal performance and extend the lifespan of your jigsaw.

Image 1.1: Kinzo 400W Jigsaw, a versatile tool for various cutting tasks.

2. Émbaran Kasalametan

Always observe general power tool safety warnings to reduce the risk of electric shock, fire, and serious injury. Keep this manual accessible for safety guidelines.

• Kasalametan Area Gawé: Tetep wewengkon gawé beresih jeung well-cahayana. Wewengkon nu pabalatak atawa poek ngondang kacilakaan. Ulah ngajalankeun parabot kakuatan dina atmosfir ngabeledug, kayaning ku ayana cair kaduruk, gas, atawa lebu.
• Kasalametan listrik: Colokan alat listrik kedah cocog sareng stop kontak. Pernah ngarobah colokan dina sagala cara. Hindarkeun kontak awak sareng permukaan bumi atanapi grounded. Ulah ngalaan alat listrik ka hujan atawa kaayaan baseuh.
• Kasalametan Pribadi: Salawasna maké panyalindungan panon. Paké panyalindungan dédéngéan nalika operasi pikeun période nambahan. Pakéan anu leres; ngahindarkeun pakéan atawa perhiasan leupas. Ngamankeun buuk panjang.
• Pamakéan sareng Perawatan Alat: Ulah maksakeun alat kakuatan. Anggo alat kakuatan anu leres pikeun aplikasi anjeun. Pegatkeun sambungan colokan ti sumber listrik samemeh nyieun sagala panyesuaian, ngaganti asesoris, atawa nyimpen parabot kakuatan.
• Pangropéa: Ngajaga alat listrik. Pariksa misalignment atanapi mengikat bagian anu ngalir, ngarusak bagian, sareng kaayaan naon waé anu tiasa mangaruhan operasi alat listrik.

3. Produk Langkungview

The Kinzo 400W Jigsaw is designed for precise cutting in various materials. Its ergonomic design ensures comfortable handling and control during operation.

Fitur konci:

• Precision motong: Ideal for intricate cuts, curves, and small pieces.
• Pakem ergonomis: Provides secure and comfortable handling for enhanced control.
• Kasaluyuan bahan serbaguna: Suitable for wood up to 65mm and metal up to 6mm, as well as various plastics and ceramic plates.
• Port ékstraksi lebu: Allows connection to a vacuum cleaner for a cleaner work environment.
• Panutup sabeulah pelindung: Offers additional safety from the sharp, flexible saw blade while maintaining visibility of the cutting line.
• Kabel Daya Dipanjangkeun: A 1.8-meter cable provides ampkabébasan gerak.

komponén:

The Kinzo Jigsaw includes the following components:

• Jigsaw Unit
• Saw Blade
• Protective Blade Cover
• Allen Key (for blade changes)

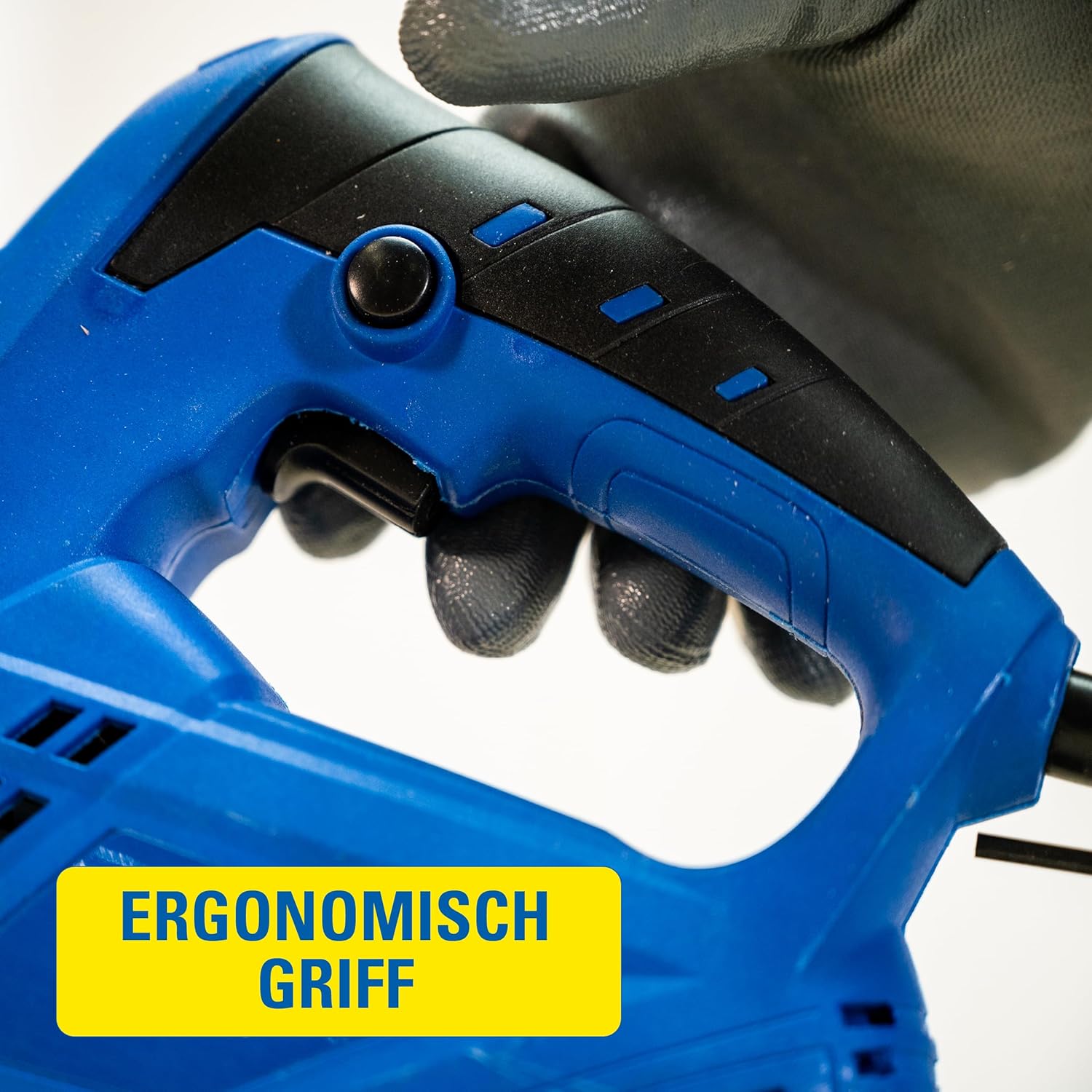

Image 3.1: The ergonomic grip ensures comfortable and secure handling during operation.

4. Setélan

4.1 Pamasangan sabeulah

1. Pastikeun jigsaw dicabut tina sumber listrik.
2. Manggihan sabeulah clamp mechanism, typically secured with an Allen screw.
3. Use the provided Allen key to loosen the screw.
4. Selapkeun sabeulah ragaji kana cl nuamp kalawan huntu nyanghareup ka hareup.
5. Tighten the screw firmly with the Allen key to secure the blade.

Image 4.1: The saw blade is easily replaced using the provided Allen key.

4.2 Protective Cover Attachment

1. Slide the transparent protective cover into its designated slot at the front of the saw base.
2. Ensure it clicks securely into place, providing a barrier between the user and the moving blade.

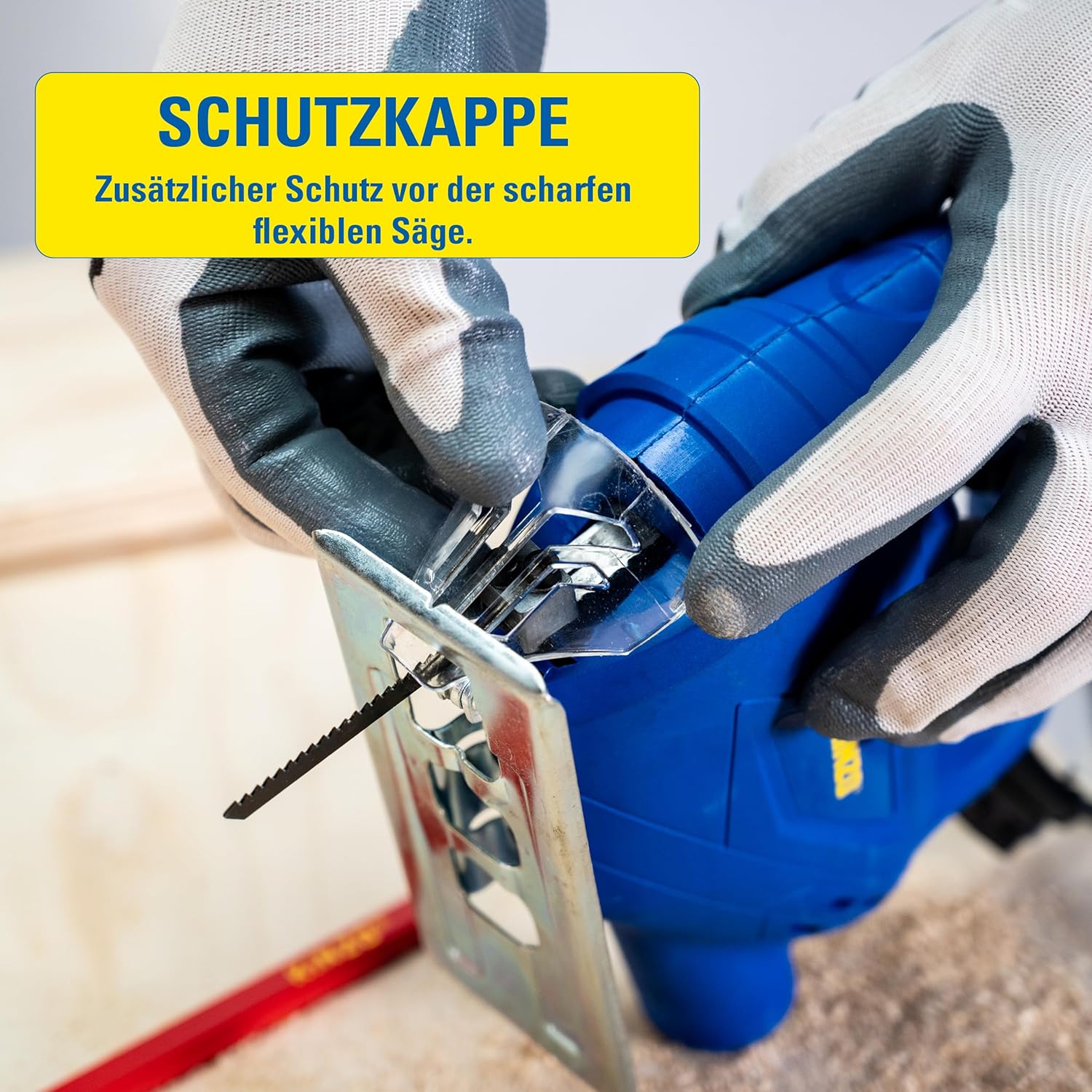

Image 4.2: The protective cover offers additional safety and maintains visibility of the cutting line.

4.3 Dust Extraction Connection

1. Locate the dust extraction port at the rear of the jigsaw.
2. Connect a suitable vacuum cleaner hose to this port to minimize dust and debris during operation.

Image 4.3: The dust extraction port can be connected to a vacuum cleaner for a cleaner workspace.

5. Parentah Operasi

5.1 Nyiapkeun pikeun motong

• Pastikeun workpiece geus aman clamped pikeun nyegah gerakan nalika motong.
• Cirian garis motong anjeun jelas dina bahan.
• Select the appropriate saw blade for the material you are cutting (e.g., wood, metal, plastic).

5.2 Nyieun cut a

1. Plug the jigsaw into a suitable 230V power outlet.
2. Hold the jigsaw firmly by its ergonomic grip.
3. Place the base plate of the jigsaw flat on the workpiece, ensuring the blade is clear of the material.
4. Start the jigsaw by pressing the trigger. Allow the blade to reach full speed before engaging the material.
5. Slowly guide the blade into the material along your marked cutting line. Apply steady, even pressure. Do not force the tool.
6. Maintain a firm grip and keep the base plate flat against the workpiece throughout the cut.
7. Once the cut is complete, release the trigger and allow the blade to stop completely before lifting the tool from the workpiece.

Image 5.1: The Kinzo Jigsaw is capable of cutting wood up to 65mm thickness.

6. Pangropéa

Regular maintenance ensures the longevity and safe operation of your Kinzo Jigsaw.

• beberesih: After each use, unplug the tool and clean it with a dry cloth. Remove any sawdust or debris from the ventilation slots and the blade area. Ensure the dust extraction port is clear.
• Inspeksi sabeulah: Regularly inspect the saw blade for wear, damage, or dullness. Replace dull or damaged blades promptly to ensure efficient and safe cutting.
• Inspeksi kabel: Check the power cord for any signs of damage, cuts, or fraying. If damaged, have it replaced by a qualified technician.
• Panyimpenan: Store the jigsaw in a dry, secure location, out of reach of children.

7. Cara ngungkulan

If you encounter issues with your Kinzo Jigsaw, refer to the following common troubleshooting steps:

• Alat henteu ngamimitian: Pariksa naha kabel listrik dicolokkeun sacara aman kana stop kontak anu tiasa dianggo. Pastikeun saklar kakuatan dina posisi 'ON'.
• Sabeulah Teu Motong Éféktif: The blade might be dull or incorrect for the material. Replace the blade or ensure you are using the appropriate type. Check if the blade is securely installed.
• Geter kaleuleuwihan/Noise: This could indicate a loose blade or a damaged blade. Ensure the blade is correctly installed and not bent. If the issue persists, discontinue use and contact customer support.
• Dust Extraction Ineffective: Check if the dust extraction port is clear of blockages and if the vacuum cleaner is properly connected and functioning.

For problems not addressed here, please contact Kinzo customer support.

8. Spésifikasi

Image 8.1: Key specifications of the Kinzo Jigsaw, including power, weight, and cable length.

Image 8.2: Physical dimensions of the Kinzo Jigsaw.

9. Garansi jeung Rojongan

For warranty information, technical support, or service inquiries, please refer to the contact details provided with your purchase documentation or visit the official Kinzo websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
