1. Bubuka
This manual provides essential information for the safe and efficient use of your new Hyundai 43-inch 4K Ultra HD Smart LED TV, model UHDHY43WSR4BYI5. Please read these instructions thoroughly before operating the television and retain them for future reference. This guide covers setup, operation, maintenance, and troubleshooting to ensure you get the best experience from your device.
Image: Hyundai 43-inch 4K Smart LED TV front view kalawan Webpanganteur OS.
2. Émbaran Kasalametan
Pikeun ngirangan résiko kejutan listrik, kahuruan, atanapi karusakan kana televisi, tuturkeun pancegahan kaamanan dasar ieu:
- Sumber Daya: Sambungkeun TV ngan ka stop kontak listrik AC jeung vol nu benertage sakumaha dituduhkeun dina labél produk.
- Ventilasi: Ensure adequate ventilation around the TV. Do not block ventilation openings or place the TV on soft surfaces that may block airflow.
- Cai sareng Uap: Ulah ngalaan TV ka hujan atawa beueus. Ulah nempatkeun barang-barang anu dieusi cairan, sapertos vas, dina TV.
- beberesih: Cabut TV sateuacan beberesih. Paké lawon lemes, garing. Ulah make cleaners cair atawa cleaners aerosol.
- panempatan: Teundeun TV dina permukaan datar anu stabil. Hindarkeun nempatkeunna dina sinar panonpoé langsung atanapi caket sumber panas.
- Barudak: Supervise children to ensure they do not climb on the TV or furniture it is placed on.
3. Eusi Paket
Pastikeun yén sadaya item aya dina bungkusan:
- 1 x Hyundai 43-inch LED TV
- 1 x Remote Control (Magic Remote)
- 1 x Manual Pamaké
- 1 x Kartu Garansi
- 1 x Pair of Table Stand
- 1 x témbok Gunung Kit
4. Setélan fisik
4.1. Pasang TV
Your TV supports both table-top placement and wall mounting. Choose the method that best suits your environment.
Pamasangan Stand Méja:
- Teundeun TV sacara saksama dina permukaan anu lemes sareng bersih pikeun nyegah karusakan layar.
- Attach the provided table stands to the designated slots on the bottom of the TV using the screws included in the kit. Ensure they are securely fastened.
- Tempatkeun TV dina tempat anu stabil sareng rata.
Pamasangan Wall Mount:
Use the included wall mount kit. Follow the instructions provided with the wall mount kit for safe and secure installation. It is recommended to have professional assistance for wall mounting.
Image: Diagram illustrating the dimensions of the Hyundai 43-inch Smart LED TV, showing width, height, and depth with stand. Also indicates screen size and weights.
4.2. Nyambungkeun Kabel
Connect the power cord to the TV and then to a wall outlet. Connect your external devices (e.g., set-top box, gaming console, Blu-ray player) to the appropriate ports.
- HDMI: For high-definition audio and video. Your TV has multiple HDMI ports.
- USB: For connecting USB storage devices for media playback. Your TV has 2 USB ports.
- RF IN: Pikeun nyambungkeun anteneu atawa TV kabel.
- Ethernet (RJ45): Pikeun sambungan internét kabel.
- AV IN: Pikeun nyambungkeun alat nu leuwih heubeul maké video komposit jeung kabel audio stereo.
- Optik: Pikeun kaluaran audio digital ka soundbar atawa sistem home theater.
Gambar: Tukangeun view of the Hyundai 43-inch Smart LED TV, showing the mounting points and general layout of the back panel.

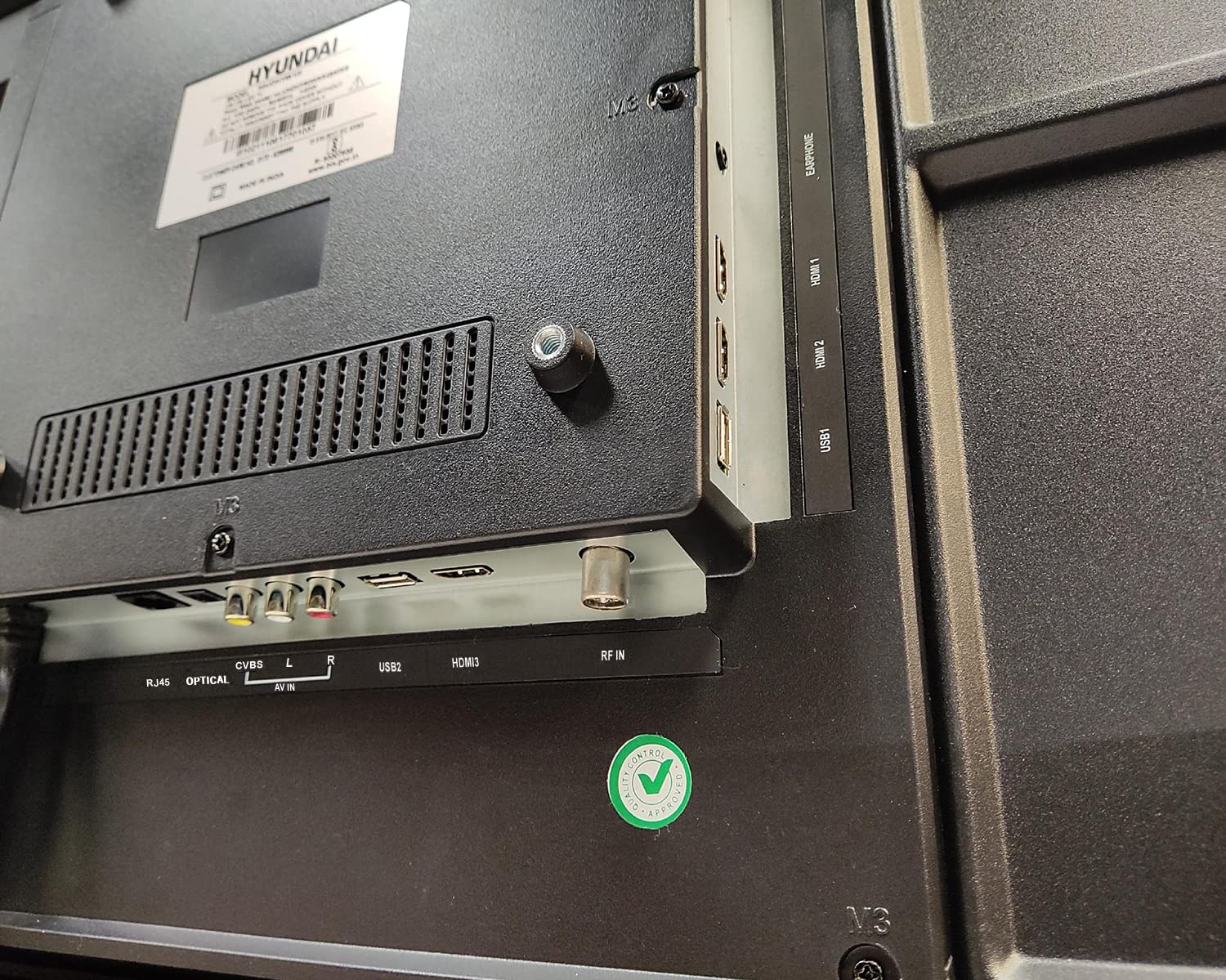

Gambar: Deukeut view of the connectivity ports on the rear of the Hyundai 43-inch Smart LED TV, including HDMI, USB, RF IN, AV IN, Optical, and RJ45 Ethernet.
5. Initial Power On & Basic Operation
5.1. Mimiti-waktos Setup
Saatos nyambungkeun daya, pencét tombol daya dina remot kontrol atanapi TV. TV bakal nungtun anjeun dina prosés setelan awal, anu kalebet:
- Pilihan basa
- Country/Region selection
- Sambungan jaringan (Wi-Fi atanapi Ethernet)
- Channel scanning (for antenna/cable TV)
- Narima sarat jeung kaayaan
5.2. Using the Magic Remote
Your Hyundai TV comes with a Magic Remote, offering intuitive control through pointing, clicking, scrolling, and voice commands.
Image: Diagram detailing the features of the Hyundai Magic Remote, including Air Mouse, Single Click Access, Scroll wheel, Voice Control, Universal Control, and Hot Keys for Netflix and Prime Video.
- Beurit hawa: Point the remote at the screen to move the cursor.
- Gulung kabayang: Use the wheel to scroll through menus and web pages, or zoom in/out.
- Kontrol sora: Press the microphone button and speak your commands to search for content or control the TV.
- Tombol Panas: Dedicated buttons for popular streaming services like Netflix and Prime Video for quick access.
- Kontrol universal: The Magic Remote can control compatible external devices such as set-top boxes and sound systems.
Image: Front and angled side view of the Hyundai Magic Remote, showcasing desain ergonomis na perenah tombol.
6. Fitur TV Pinter (WebOS)
Your Hyundai TV is powered by WebOS, offering a user-friendly interface and access to a wide range of smart features.
6.1. Nyambung ka Internét
For smart features, connect your TV to the internet:
- Wifi: Go to Settings > Network > Wi-Fi Connection, select your network, and enter the password. The TV supports 5 GHz / 2.4 GHz Dual Band Wi-Fi.
- Ethernet: Sambungkeun kabel Ethernet ti router anjeun ka port RJ45 dina TV.
6.2. Napigasi WebOS and Apps
The WebOS launcher bar provides quick access to installed applications, inputs, and settings. Use the Magic Remote to navigate.
- Aplikasi anu tos dipasang: Enjoy popular streaming services like Netflix, Prime Video, Disney+ Hotstar, YouTube, ZEE5, SonyLIV, Voot, ALT Balaji, and Hungama.
- Content Store: Unduh aplikasi tambahan tina WebToko Eusi OS.
- ThinQ AI: Utilize AI features for personalized recommendations and smart home integration.
- Magic Mobile Connection: Easily connect your smartphone to the TV for content sharing.
- Kontrol Bagikeun: Bagikeun eusi tina alat sélulér anjeun ka TV.
- Miracast: Wirelessly mirror your compatible device's screen to the TV.
Image: Hyundai 43-inch Smart TV displaying WebOS home screen with various smart features like ThinQ AI, 4K Upscaling, HDR10, Magic Remote, MEMC, Miracast, Bezel-less design, Dual Band Wi-Fi, Dolby Audio, Bluetooth 5.0, Real Cinema Experience, and Alexa.
Gambar: luhur-handap view of the Hyundai 43-inch Smart TV screen showing popular streaming app logos including Netflix, Disney+ Hotstar, Prime Video, ZEE5, SonyLIV, Voot, YouTube, ALT Balaji, and Hungama.
7. Pangropéa
7.1. Ngabersihan TV
Sok cabut TV samemeh beberesih.
- layar: Ngusap layar nganggo kaén anu lembut sareng teu aya serat. Pikeun tanda pengkuh, enteng dampen kaen nganggo cai atanapi pembersih layar khusus (pastikeun éta aman pikeun layar LED) sareng usap sacara saksama. Ulah nyemprot cairan langsung kana layar.
- awak: Wipe the TV frame and back panel with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
7.2. Apdet parangkat lunak
Your TV may receive software updates to improve performance and add new features. It is recommended to keep your TV connected to the internet to receive these updates automatically or check for them manually in the settings menu.
8. Cara ngungkulan
Upami anjeun ngalaman masalah sareng TV anjeun, tingal masalah sareng solusi umum ieu:
| Masalah | Solusi anu mungkin |
|---|---|
| Taya kakuatan | Check if the power cord is securely plugged into both the TV and the wall outlet. Ensure the outlet is working. Try a different power outlet. |
| Taya gambar atawa sora | Verify that the correct input source is selected. Check all cable connections (HDMI, AV, etc.). Ensure external devices are powered on. |
| Kadali jauh teu jalan | Check the batteries and replace them if necessary. Ensure there are no obstructions between the remote and the TV. Re-pair the Magic Remote if it has become disconnected. |
| Masalah sambungan Wi-Fi | Restart your router and modem. Check the Wi-Fi password. Ensure the TV is within range of your Wi-Fi router. Try a wired Ethernet connection. |
| Smart features not responding | Check your internet connection. Restart the TV by unplugging it for a few minutes and plugging it back in. Ensure the TV's software is up to date. |
Lamun masalah persists sanggeus nyobian solusi ieu, mangga ngahubungan rojongan customer.
9. Spésifikasi
Key technical specifications for the Hyundai UHDHY43WSR4BYI5 TV:
- model: UHDHY43WSR4BYI5
- Ukuran layar: 109 cm (43 inci)
- Resolusi: 4K Ultra HD (3840 x 2160 piksel)
- Téknologi tampilan: LED, Tipe Tampilan A+
- Sistem operasi: WebOS
- Prosesor: ARM CA55 1.1 GHz Quad Core Processor
- RAM: 1.5 GB
- ROM: 8 GB
- Laju Refresh: 60 Hz
- Kaluaran Audio: 20 Watts Box Speakers, Dolby Ultra Surround
- Konektipitas: Wi-Fi (Dual Band 5 GHz / 2.4 GHz), Bluetooth 5.0, HDMI (multiple), USB (2 ports), Ethernet (RJ45), Headphone, AV In, Optical
- Fitur husus: Simplink (HDMI CEC), Magic Mobile Connection, Share Control, ThinQ AI, Magic Remote with Voice Control and Air Mouse, HDR10, 4K Upscaling, MEMC, Miracast, Bezel-less design, Alexa built-in.
- Ukuran produk (L x W x H): 96.2 x 56.7 x 9 cm (tanpa stand)
- Beurat barang: 6.7 kg (without stand), 6.8 kg (with table stand)
- Sumber Daya: AC 130 Volts, 108 Watts
- Viewdina Angle: 178 darajat
10. Garansi jeung Rojongan
Your Hyundai 43-inch 4K Ultra HD Smart LED TV comes with a 1-Taun Garansi from the date of purchase. Please retain your purchase receipt and warranty card for any warranty claims.
For technical support, service requests, or further assistance, please contact Goldenarch Consumer Electronics Pvt. Ltd., the manufacturer, at smiles@Hyundaice.in or call 0172 52-99-999.
