Bubuka
The FlowXtreme PRO VS II Inground Pool Pump is designed to provide efficient and quiet water circulation for your inground pool. This variable speed pump features a permanent magnet motor and an intuitive LED control panel, allowing for customizable operation and significant energy savings. It is engineered to meet DOE 2021 efficiency standards, ensuring optimal performance while reducing electricity consumption.
fitur konci ngawengku:
- Energy-Efficient Variable Speed Motor: Reduces energy consumption by adjusting pump speed to your pool's needs.
- Timer anu tiasa diprogram: Customize up to four daily filtration periods with adjustable RPM settings.
- DOE Compliant: Meets 2021 efficiency standards for optimized energy-saving performance.
- Wangunan awét: Constructed for reliable performance and long-term use.
Émbaran Kasalametan
Please read all safety instructions carefully before installation and operation to prevent injury or damage. Failure to follow these instructions can result in serious injury or death.
- Kasalametan listrik: This pump operates on 230V / 60Hz. All electrical wiring must be performed by a qualified electrician and comply with local and national electrical codes. Ensure the power supply is disconnected before any installation or maintenance.
- Kasalametan cai: Do not operate the pump if the water level is below the skimmer opening. Ensure proper ventilation around the pump to prevent overheating.
- Barudak: Jauhkeun barudak tina pompa sareng sambungan listrik.
- Tekanan: Do not attempt to open the pump or filter while the system is under pressure.
Disetél
Proper installation is crucial for the pump's performance and longevity. This pump is designed for inground pool systems and requires professional electrical wiring.
Ngabongkar sareng Inspeksi
Carefully remove the pump from its packaging. Inspect for any signs of shipping damage. If damage is found, contact your supplier immediately.
panempatan
Position the pump on a solid, level surface, preferably concrete, close to the pool and filter system. Ensure the location is well-ventilated and protected from direct sunlight and excessive moisture. The pump dimensions are approximately 19.2 inches (L) x 7.72 inches (W) x 11 inches (H).
Image: The FlowXtreme PRO VS II pump showing its approximate dimensions: 19.2 inches in length, 7.72 inches in width, and 11 inches in height.
Sambungan Pipa
The pump is compatible with 2-inch union-style fittings. Use appropriate PVC piping and fittings for a secure, leak-free connection to your pool's filtration system. Ensure all connections are sealed properly to prevent air leaks, which can affect pump performance.

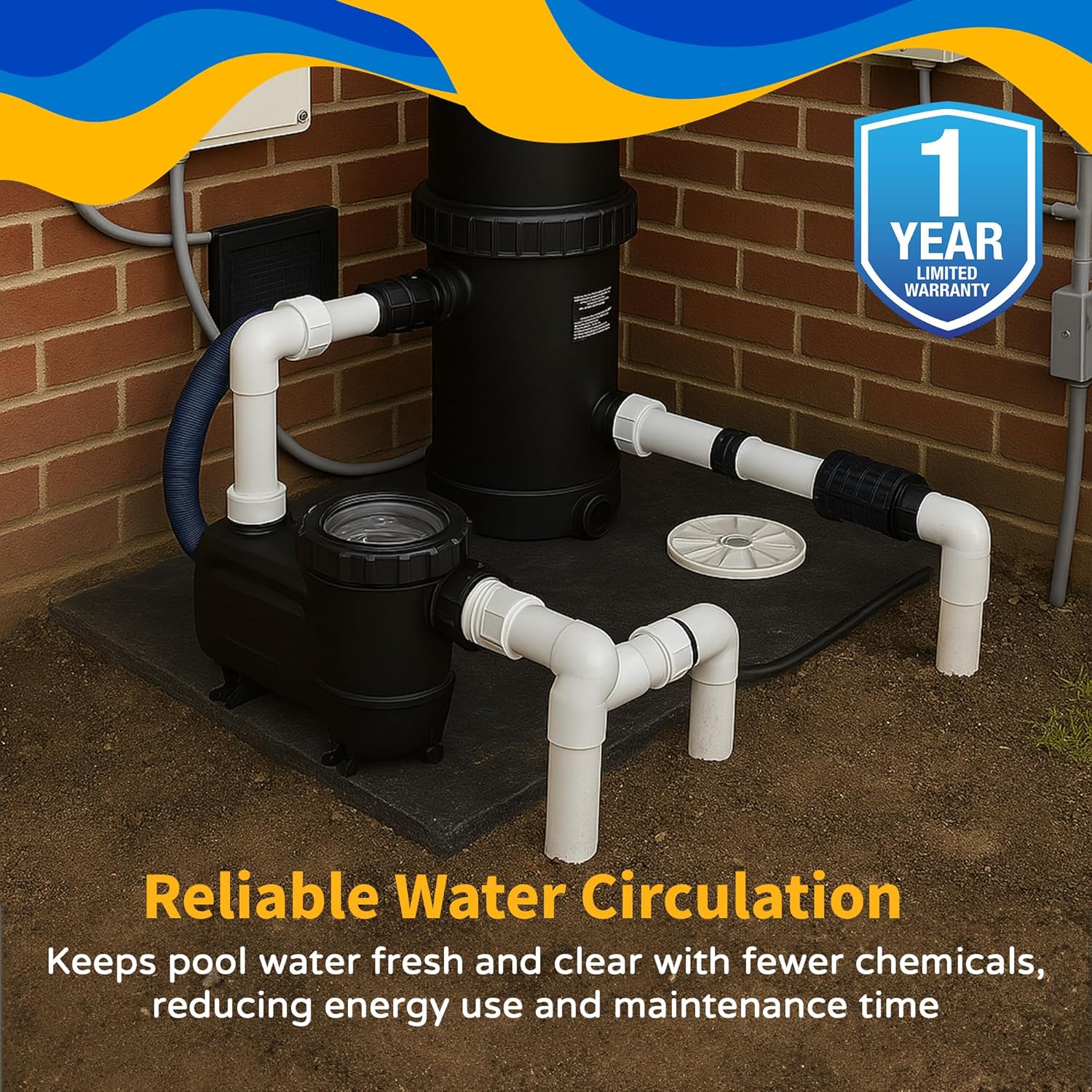

Image: An installed FlowXtreme PRO VS II pump connected to a pool's filtration system with white PVC pipes, demonstrating a typical setup.
Wiring Listrik
This pump requires a 230V / 60Hz power supply. Professional wiring by a certified electrician is required for installation. Ensure the circuit is properly grounded and protected by a Ground Fault Circuit Interrupter (GFCI) as per local electrical codes. Refer to the wiring diagram provided in the pump's terminal box for correct connections.

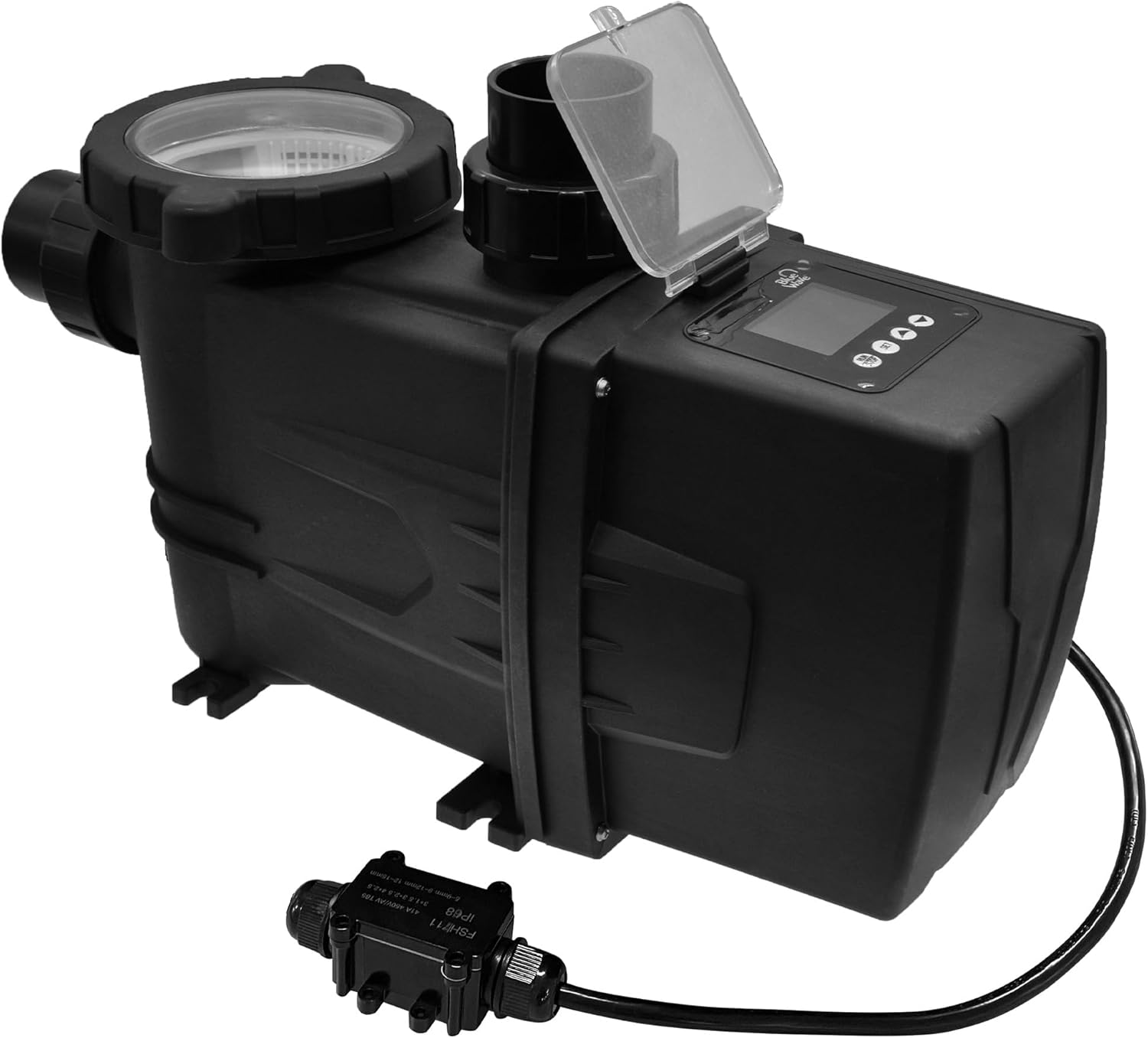

Image: The Blue Wave FlowXtreme PRO VS II Inground Pool Pump, showing its main components including the motor, control panel, and inlet/outlet ports.
Ngoperasikeun
The FlowXtreme PRO VS II pump features an intuitive LED control panel for easy programming and operation.
Mimitian-Up
- Ensure the pump is properly plumbed and wired.
- Fill the pump's strainer basket with water to prime the pump.
- Ensure all valves are open to allow water flow to and from the pump.
- Hurungkeun catu daya ka pompa.
- The pump will begin to prime. If it does not prime within a few minutes, turn off the power, re-check water levels and connections, and try again.
Control Panel and Programming
The LED control panel allows you to set up to four daily filtration periods and adjust the RPM settings for each period. This variable speed capability allows you to optimize energy use by running the pump at lower speeds when full power is not required, such as during filtration cycles, and at higher speeds for tasks like vacuuming or backwashing.
Gambar: A close-up view of the pump's LED control panel, showing the digital display and control buttons for programming.
Refer to the detailed instructions in the full manual for specific programming steps for the timer and RPM settings. The pump's speed can be adjusted within a range of 1150 to 3450 RPM.

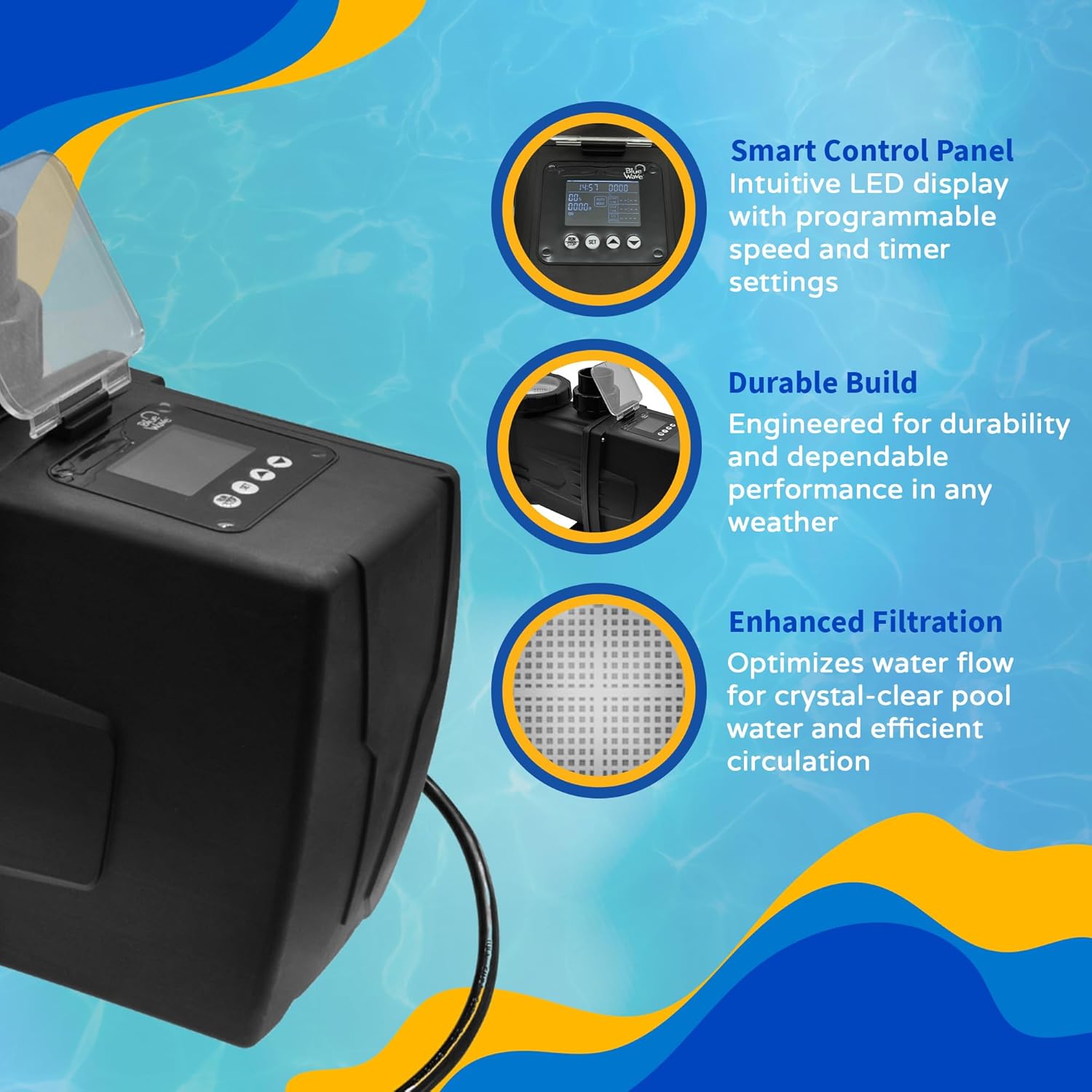

Image: The FlowXtreme PRO VS II pump with callouts emphasizing its smart control panel, durable construction, and enhanced filtration capabilities.
Pangropéa
Pangropéa rutin ngajamin kinerja optimal sareng manjangkeun umur pompa anjeun.
Strainer Basket Cleaning
The pump's strainer basket collects debris before it enters the pump impeller. Check and clean the basket regularly, especially after heavy use or storms. To clean:
- Pareuman pompa sareng pegatkeun kakuatan.
- Tutup sagala valves diperlukeun pikeun nyegah aliran cai.
- Remove the strainer lid.
- Lift out the basket and empty debris.
- Bilas karanjang ku cai.
- Replace the basket and secure the lid, ensuring the O-ring is properly seated.
Mangrupikeun usum salju
In areas subject to freezing temperatures, the pump must be properly winterized to prevent damage. Consult a pool professional for specific winterization procedures for your region.
- Drain all water from the pump and plumbing lines.
- Store the pump in a dry, heated area if possible.
- Cap or plug all open ports to prevent debris from entering.
Pamérésan masalah
Bagian ieu nyayogikeun solusi pikeun masalah umum anu anjeun tiasa pendak sareng pompa kolam renang anjeun.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Pompa teu ngamimitian | No power; tripped breaker/GFCI; faulty wiring; motor issue | Check power supply, reset breaker/GFCI. Verify wiring (consult electrician). Contact support if motor is faulty. |
| Low water flow / Poor suction | Clogged strainer basket; air leak in suction line; low water level; clogged impeller | Clean strainer basket. Check all suction line connections for leaks. Ensure adequate pool water level. Inspect impeller for debris. |
| Pompa ribut | Air leak; cavitation (not enough water); worn bearings | Check for air leaks in suction line. Ensure pump is fully primed and water level is sufficient. If noise persists, bearings may be worn (contact support). |
| Pompa leungiteun perdana | Air leak in suction line; low water level; clogged basket; check valve issue | Inspect suction line for leaks. Maintain proper pool water level. Clean strainer basket. Check if check valve is stuck open. |
Upami anjeun mendakan masalah anu henteu didaptarkeun di dieu atanapi upami solusi henteu ngabéréskeun masalah, mangga ngahubungi dukungan palanggan.
spésifikasi
Detailed technical specifications for the FlowXtreme PRO VS II Inground Pool Pump.
| Fitur | Spésifikasi |
|---|---|
| merek | Gelombang Biru |
| Nomer modél | NE9882 |
| Warna | Hideung |
| Bahan | palastik |
| Gaya | Leuleumpangan |
| Ukuran produk (L x W x H) | 19.2" x 7.72" x 11" |
| Item Beurat | 23.15 pon |
| Sumber Daya | Kabel Listrik |
| Voltage | 230V |
| Ampumur | 3.3A |
| Daya kuda (HP) | 1 hp |
| Rentang speed | 1150-3450 RPM |
| Laju Aliran Cai | 4876 GPH (Galon Per Jam) |
| Max. Sirah | 43.96 ft |
| UPC | 672875007820 |
| Negara asal | Cina |
Image: The FlowXtreme PRO VS II pump with a list of its technical specifications including amps, power, voltage, speed, water flow, and max head.
Garansi sareng Rojongan
The Blue Wave FlowXtreme PRO VS II Inground Pool Pump is backed by a 1-taun jaminan kawates. Garansi ieu nyertakeun cacad dina bahan sareng pagawean dina panggunaan normal.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Blue Wave customer support. Keep your proof of purchase for warranty validation.
For further assistance, visit the official Blue Wave websitus atanapi ngahubungan departemén layanan palanggan maranéhna.
