Bubuka
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Blue Wave FlowXtreme PRO VS 115V Above Ground Pool Pump. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
The FlowXtreme PRO VS pump is designed to provide energy-efficient water circulation for above-ground pools. It features a variable speed motor and a programmable timer for optimized performance and reduced energy consumption.
Image: The Blue Wave FlowXtreme PRO VS 115V Above Ground Pool Pump, showcasindesainna anu ringkes sareng panel kontrol anu terintegrasi.
Fitur konci
- Quiet, Powerful, and Energy-Efficient: Features a 1HP variable speed motor with water-cooled, permanent magnet technology for reduced energy use and quiet operation.
- Timer Function with Adjustable RPM: Allows setting of pump RPMs and scheduling up to four filtration periods per day for consistent water circulation.
- Energy Star Certified and DOE Compliant: Meets 2021 efficiency standards for optimized operation and lower electricity consumption.
- Kasaluyuan: Designed for above-ground pools with standard 1.5-inch hose fittings.
- Konstruksi awét: Engineered for long-term durability, operating on 115V / 60Hz.

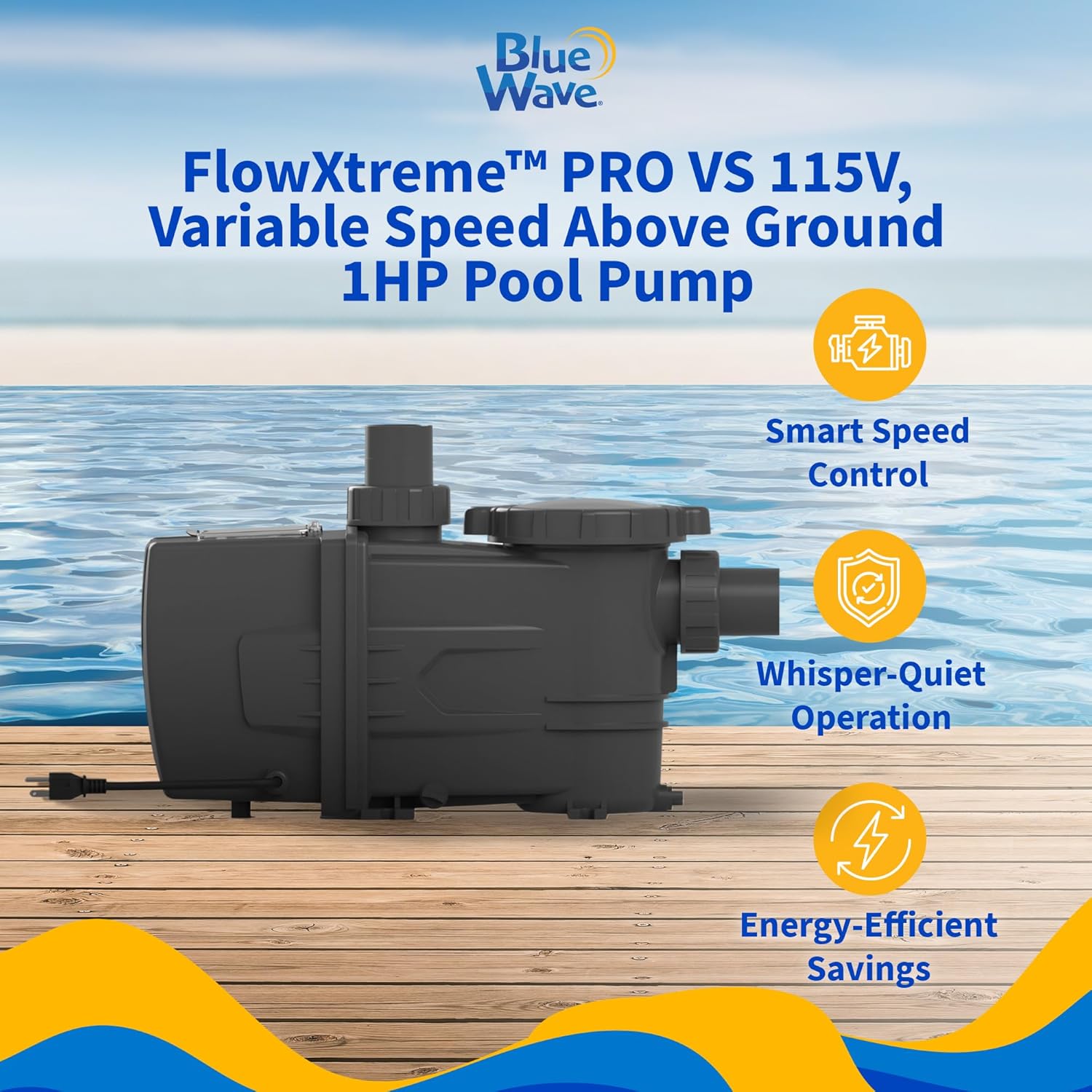

Image: An illustration of the FlowXtreme PRO VS pump highlighting its smart speed control, whisper-quiet operation, and energy-efficient savings.
Setup sareng Instalasi
Precautions Kasalametan
- Salawasna pegatkeun listrik sateuacan nyobian masang atanapi pangropéa naon waé.
- Ensure the pump is installed on a solid, level surface, protected from direct sunlight and excessive moisture.
- Sadaya sambungan listrik kedah saluyu sareng kodeu sareng peraturan lokal.
- Do not operate the pump dry. Ensure the pump is primed with water before starting.
Nyambungkeun Pompa
- Position the pump near your above-ground pool, ensuring it is below the water level for easier priming.
- Connect the pool's skimmer line to the pump's inlet (suction) port using 1.5-inch hose connections.
- Connect the pump's outlet (discharge) port to your pool's filter system inlet using 1.5-inch hose connections.
- Pastikeun sadaya sambungan anu kedap tur bocor-gratis.
- Fill the pump's strainer basket with water to prime the pump before initial startup.
- Connect the pump to a grounded 115V / 60Hz electrical outlet.
Image: The FlowXtreme PRO VS pump integrated into an above-ground pool's filtration system, demonstrating reliable water circulation.
Parentah Operasi
Kontrol Panel Langkungview
The FlowXtreme PRO VS pump features an intuitive LED control panel for easy operation and programming.
Gambar: A lengkep view of the pump's smart control panel, highlighting its intuitive LED display for speed and timer settings.
Ngamimitian Pompa
- Ensure the pump is properly primed and all valves are open to allow water flow.
- Press the power button on the control panel to turn on the pump.
- The pump will start at a default speed.
Adjusting Speed and Programming Timer
- Use the control panel buttons to adjust the RPM (revolutions per minute) of the pump. Lower RPMs consume less energy and are suitable for continuous filtration, while higher RPMs are ideal for backwashing or vacuuming.
- Access the timer function through the control panel to set up to four daily filtration periods. This allows the pump to run automatically at specified times and speeds.
- Refer to the detailed programming instructions in the separate quick start guide for specific steps on setting schedules.
Image: The FlowXtreme PRO VS pump illustrating its customizable performance, enhanced water quality benefits, and user-friendly controls.
Pangropéa
Ngabersihan rutin
- Karanjang Saringan: Regularly inspect and clean the strainer basket located at the front of the pump. Turn off the pump, release pressure, remove the lid, empty debris, and rinse the basket.
- Bagian Luar Pompa: Keep the pump exterior clean and free of debris to ensure proper ventilation and prevent overheating.
Mangrupikeun usum salju
Before freezing temperatures arrive, it is crucial to properly winterize your pool pump to prevent damage:
- Pegatkeun sambungan listrik kana pompa.
- Buang sadaya cai tina pompa ku cara nyabut sumbat solokan.
- Store the pump in a dry, warm place during the off-season.
- Ensure all hoses and connections are also drained and stored appropriately.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Pompa teu ngamimitian | No power; tripped breaker; motor overload; faulty wiring. | Check power supply, reset breaker, allow motor to cool, inspect wiring (consult electrician if needed). |
| Aliran cai lemah | Clogged strainer basket; clogged impeller; air leak in suction line; low water level in pool. | Clean strainer basket, inspect impeller for debris, check for air leaks, ensure adequate pool water level. |
| Pompa ribut | Air leak in suction line; cavitation (insufficient water); worn bearings. | Check for air leaks, ensure pump is properly primed, verify adequate water supply, contact support for bearing issues. |
| Pump leaks water | Loose connections; worn O-rings or seals; cracked housing. | Tighten connections, replace O-rings/seals, inspect housing for damage. |
spésifikasi
| Atribut | Nilai |
|---|---|
| merek | Gelombang Biru |
| Nomer modél | NE9881 |
| Sumber Daya | Kabel Listrik |
| Voltage | 115 Volt (AC) |
| Daya kuda (HP) | 1 hp |
| Rentang speed | 1200-3450 RPM |
| Aliran Cai | 2880-4863 GPH |
| Max. Sirah | 42.65 ft. |
| Dimensi produk | 19.2 "L x 7.72" W x 11" H |
| Item Beurat | 23.15 pon |
| Bahan | palastik |
| Warna | Hideung |
Image: The FlowXtreme PRO VS pump displaying its versatile application and key technical specifications such as AMPS, POWER, VOLTAGE, SPEED, WATER FLOW, and MAX. HEAD.
Garansi sareng Rojongan
Garansi Produsén
This Blue Wave FlowXtreme PRO VS 115V Above Ground Pool Pump is backed by a one-year manufacturer warranty. This warranty covers defects in materials and workmanship under normal use and service.
Rojongan Palanggan
For technical assistance, warranty claims, or replacement parts, please contact Blue Wave customer support. Refer to the product packaging or the official Blue Wave websitus pikeun inpo kontak panganyarna.
When contacting support, please have your product model number (NE9881) and purchase date available.
