Negrari Wall-Mounted Resin Utility Sink (Model 2051DAM)

Bubuka

Thank you for choosing the Negrari 2051DAM Wall-Mounted Resin Utility Sink. This product is designed for durability and versatility, suitable for various indoor and outdoor applications such as laundry rooms, gardens, terraces, garages, and verandas. Manufactured from virgin polypropylene resin, it offers excellent resistance to common acids and atmospheric agents. This manual provides essential information for safe installation, proper use, and effective maintenance of your new utility sink.

Gambar: Umum view of the Negrari 2051DAM wall-mounted utility sink.

Émbaran Kasalametan

• Salawasna nganggo alat pelindung pribadi (PPE) anu cocog sapertos sarung tangan sareng panyalindungan panon nalika dipasang.
• Ensure the mounting surface is structurally sound and capable of supporting the weight of the sink when filled with water.
• Pareuman sumber cai utama sateuacan ngamimitian padamelan pipa ledeng naon waé.
• Do not overtighten plumbing connections, as this may damage components.
• Jauhkeun bagian leutik tina jangkauan barudak.
• Upami anjeun teu yakin kana léngkah-léngkah pamasangan naon waé, konsultasi ka ahli anu mumpuni.

Eusi pakét

Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:

• Negrari 2051DAM Utility Sink (White)
• Wall Fixing Kit (Dowel pins, screws)
• Self-cleaning Siphon
• Drain with overflow and cover cap
• Extended flexible pipe for siphon (with plastic nut 1" 1/4 and outlet Ø32 and Ø40)

Note: A mixer tap is not included and must be purchased separately.

Setup sareng Instalasi

The Negrari 2051DAM sink is designed for wall-mounted installation. Follow these steps carefully:

1. Nyiapkeun Area Pamasangan

• Choose a suitable wall location, ensuring it is strong enough to support the sink and its contents.
• Ensure access to water supply lines and a drainage point.
• Mark the desired height for the sink. The sink dimensions are approximately 42 cm (width) x 34 cm (depth) x 21 cm (height).

2. Mark Drilling Points

Position the sink against the wall at the desired height and mark the locations for the wall fixing kit screws. Refer to the technical sheet for precise measurements.

Image: Technical sheet with detailed dimensions and suggested drilling points.

Image: Product dimensions diagram. The sink measures 42cm in width, 34cm in depth, and 21cm in height.

3. Drill Holes and Install Wall Fixings

• Bor liang dina titik anu ditandaan nganggo mata bor anu cocog pikeun jinis témbok anjeun.
• Insert the provided dowel pins into the drilled holes.
• Secure the sink to the wall using the screws from the wall fixing kit. Ensure the sink is level and firmly attached.

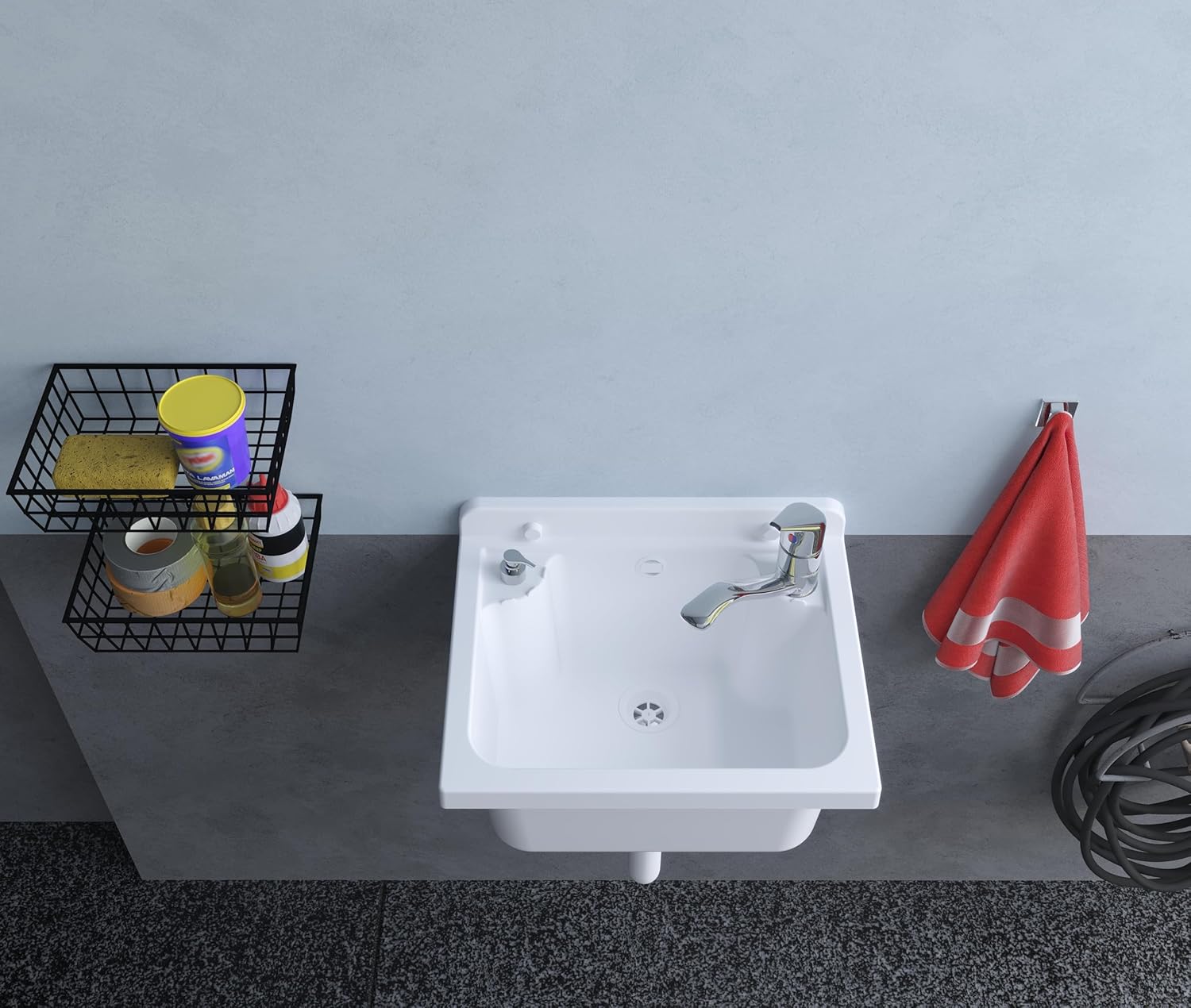

Gambar: Hareupeun view of the installed Negrari utility sink.

4. Install the Drain and Siphon

• Assemble the drain with overflow and cover cap according to the instructions provided with the drainage kit.
• Connect the self-cleaning siphon to the drain outlet.
• Attach the extended flexible pipe to the siphon and connect it to your household drainage system. Ensure all connections are watertight.

5. Install the Mixer Tap (Optional)

• The sink features a pre-drilled area for a mixer tap. If installing a tap, carefully drill through the designated area.
• Mount the mixer tap according to its manufacturer's instructions.
• Connect the tap's hot and cold water supply lines.

Gambar: Sisi view of the installed Negrari utility sink, highlighting its compact design.

Gambar: Tukangeun view of the Negrari utility sink, showing the wall mounting points.

6. Test pikeun Bocor

• Sakali sadaya sambungan dijieun, lalaunan hurungkeun suplai cai utama.
• Check all plumbing connections for any signs of leaks. Tighten connections as necessary, but do not overtighten.

Parentah Operasi

The Negrari utility sink is designed for general washing and utility tasks. Its robust polypropylene construction makes it suitable for handling various liquids and materials.

• Pamakéan umum: Use the sink for washing hands, cleaning tools, watering plants, or other utility purposes.
• Suhu: While resistant to various conditions, avoid pouring extremely hot liquids (boiling water) directly into the sink for prolonged periods, as this may affect the material over time.
• Kimia: The sink is resistant to common household acids. However, avoid strong industrial chemicals or solvents that may damage the polypropylene.
• Kapasitas beurat: Do not place excessively heavy objects in the sink or apply undue pressure to its edges.

Pangropéa

Regular cleaning and proper care will ensure the longevity and appearance of your Negrari utility sink.

• beberesih: Clean the sink regularly with mild soap or detergent and a soft cloth or sponge. Rinse thoroughly with water.
• Noda: For stubborn stains, a non-abrasive cleaner suitable for plastic surfaces can be used. Avoid abrasive pads or harsh chemical cleaners, which can scratch or dull the surface.
• Pangropéa saluran: Periodically check the siphon for any blockages and clean as necessary to ensure proper drainage. The self-cleaning siphon helps prevent common clogs.
• Pamakéan outdoor: For outdoor installations, periodically inspect the sink and its fixings for any signs of wear or weather damage. The material is UV-resistant, but extreme prolonged exposure may cause slight fading over many years.

Pamérésan masalah

Ieu sababaraha masalah umum sareng solusi poténsialna:

spésifikasi

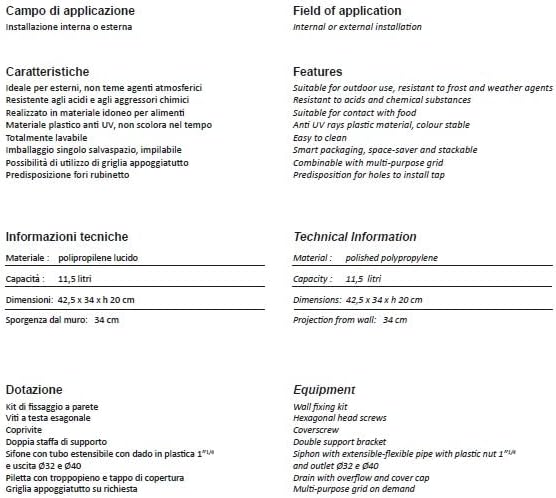

Image: Technical information table. This table provides details on the material (polished polypropylene), capacity (11.5 liters), dimensions (42.5 x 34 x 20 cm), projection from wall (34 cm), and included equipment.

Émbaran jaminan

Negrari products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the documentation provided at the time of purchase or contact Negrari customer support. Generally, products are covered against manufacturing defects for a period specified by local consumer protection laws.

Rojongan Palanggan

If you have any questions, require assistance with installation, or need to report a problem, please contact Negrari customer support through their official website or the retailer where you purchased the product. Please have your model number (2051DAM) and purchase date available when contacting support.
