1. Bubuka
This manual provides detailed instructions for the installation, operation, and maintenance of your Bella Depot 42-inch Retractable Ceiling Fan with Lights and Remote, Model DC4264-B. Please read this manual thoroughly before installation and use to ensure safe and efficient operation of your new ceiling fan.
Image 1.1: Bella Depot 42-inch Retractable Ceiling Fan with Remote Control.
The Bella Depot retractable ceiling fan is designed to offer both illumination and air circulation with a modern aesthetic. It features a 6-speed DC motor for quiet operation, CCT LED lighting with adjustable color temperature, and reversible blades for year-round comfort, all controlled via a convenient remote.
2. Émbaran Kasalametan
PERHATOSAN: Pikeun ngurangan résiko seuneu, shock listrik, atawa tatu pribadi, salawasna turutan pancegahan dasar ieu:
- Baca sadaya pitunjuk kalayan saksama sateuacan masang sareng ngoperasikeun kipas.
- Pastikeun suplai listrik dipegatkeun dina kotak sekering utama atawa circuit breaker saméméh instalasi atawa ngalayanan.
- All electrical connections must be made in accordance with local codes, ordinances, and the National Electric Code. If you are unfamiliar with wiring, consult a qualified electrician.
- The fan must be mounted to a ceiling outlet box marked "Acceptable for Fan Support of 35 lbs (15.9 kg) or less" and use the mounting screws provided with the outlet box.
- Ulah beroperasi kipas kalayan kabel kakuatan ruksak atawa colokan.
- Hindarkeun nempatkeun objék dina jalur bilah kipas.
- Kipas ieu kanggo dianggo di jero rohangan hungkul.
3. Eusi Paket
Pastikeun yén sadaya komponén anu didaptarkeun di handap kalebet kana pakét anjeun:
- Ceiling Fan Unit with Retractable Blades
- LED Light Kit (integrated)
- Kadali jauh
- Receiver for Remote Control
- Downrods (2 included, typically 5" and 10")
- Pamasangan Bracket sareng Hardware
- Instruksi Manual
4. Spésifikasi
| merek | Bella Depot |
| Ngaran modél | DC4264-B |
| Warna | Hideung |
| Desain kipas listrik | Kipas Ceuli |
| Sumber Daya | DC |
| Gaya | DC Retractable Ceiling Fan |
| Dimensi produk | 42"D x 42"W x 13.4"H (with 5" downrod) |
| Tipe Kamar | Indoor (e.g., Dining Room, Living Room, Bedroom) |
| Fitur husus | Adjustable Height, LED Light, Remote Controlled, Timer, Reversible Blades |
| Jumlah wilah | 3 (retractable) |
| Voltage | 120 volt |
| Jenis Bohlam | LED |
| Item Beurat | 18.72 pon |
5. Setup jeung Instalasi
Before beginning installation, ensure you have all necessary tools and that the power is turned off at the circuit breaker. It is recommended to have two people for installation.
5.1 Masang kipas
- Secure the mounting bracket to the ceiling outlet box. Ensure the outlet box is rated for fan support.
- Assemble the downrod with the canopy and hang the fan motor assembly onto the mounting bracket hook (if provided) to free your hands for wiring.
5.2 Sambungan Wiring
- Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full manual. Typically, this involves connecting live, neutral, and ground wires.
- Insert the remote control receiver into the canopy or mounting bracket, ensuring it fits securely without pinching wires. Connect the receiver to the fan and household wiring as per the diagram.
- Taliti keun sadaya kawat kana kotak outlet.
5.3 Majelis ahir
- Attach the canopy to the mounting bracket, securing it with screws.
- Ensure all connections are tight and the fan is securely mounted.
Image 5.1: Item dimensions and sloped ceiling adaptability. The fan is adaptable for sloped ceilings up to 15 degrees and includes two adjustable downrods.
6. Parentah Operasi
Your Bella Depot ceiling fan is operated using the included remote control. Ensure the remote has working batteries (not included).
6.1 Fungsi Remote Control
Image 6.1: Remote Control Layout. The remote allows independent control of fan and light functions.
- Saklar lampu: Turns the light ON/OFF and cycles through color temperatures.
- Saklar Master: Ngahurungkeun/mareuman sakabéh unit.
- 6 Speed Buttons (1-6): Adjusts fan speed from gentle breeze (1) to strong winds (6).
- Pareum kipas: Mareuman motor kipas.
- Running Fan: Activates the fan in forward mode.
- Reversing Fan: Activates the fan in reverse mode.
- Mode Angin Alami: Simulates natural breezes by varying fan speed.
- Timing (1H, 2H, 4H): Nyetél kipas supados pareum sacara otomatis saatos 1, 2, atanapi 4 jam.
6.2 Fan Speed Control
The fan features a 6-speed DC motor for precise airflow control. Use buttons 1-6 on the remote to select your desired speed:
- 1-2 Speed: Comfortable Breeze
- 3-4 Speed: Natural Winds
- 5-6 Speed: Angin Kakuatan

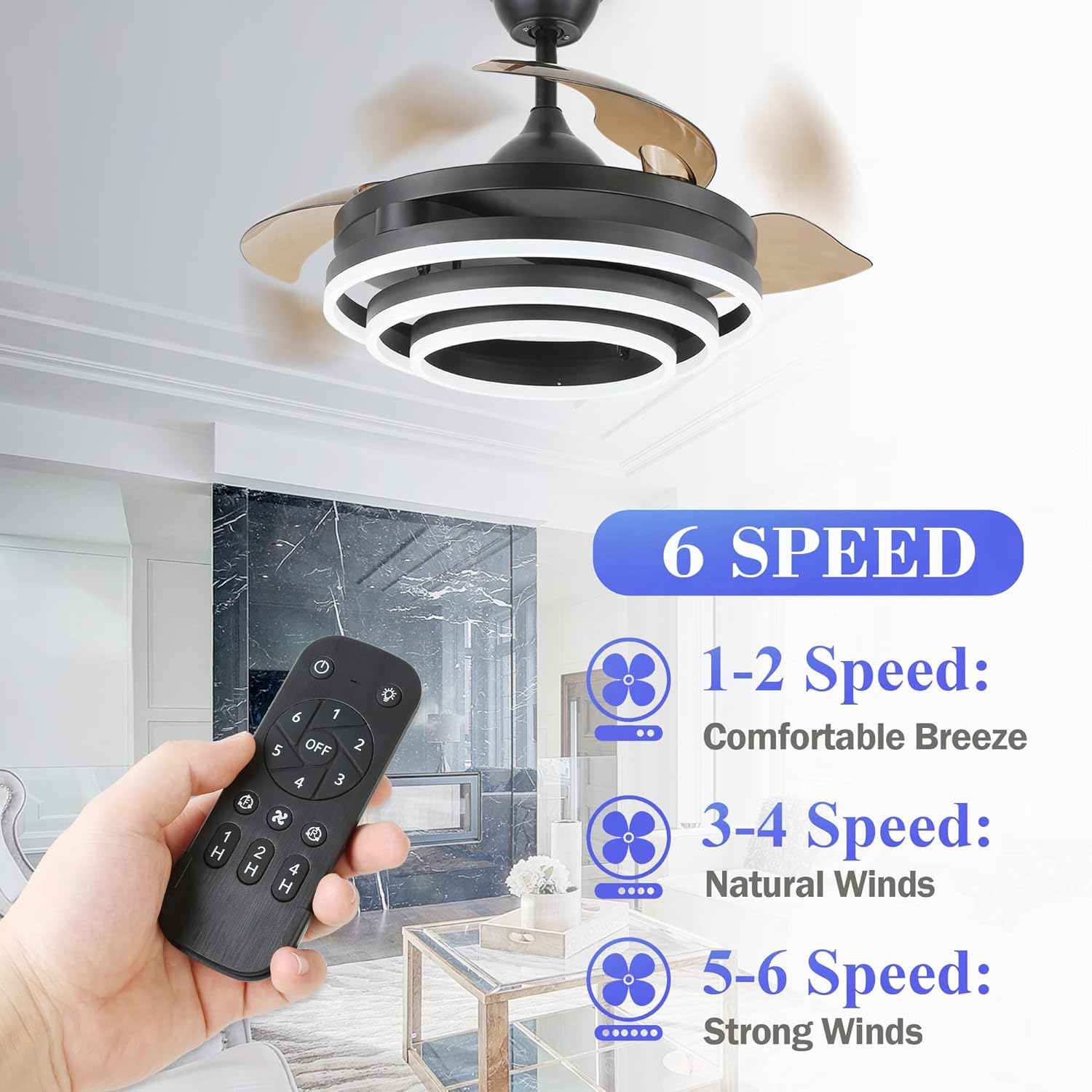

Image 6.2: Fan Speed Settings. Choose from 6 speeds for optimal comfort.
6.3 Agul malik
The fan includes a reversible function to optimize air circulation for different seasons:
- Modeu Maju (Usum Panas): Blades rotate counter-clockwise, pushing air downwards to create a cooling effect.
- Modeu Tibalik (Usum Tiris): Bilahna muter searah jarum jam, narik hawa ka luhur pikeun ngiderkeun hawa haneut anu kajebak di deukeut lalangit.
Use the 'Reversing Fan' button on the remote to switch between modes.
Image 6.3: Reversible Airflow. Adjust fan direction for seasonal comfort.
6.4 CCT LED Light Control
The integrated LED light offers three color temperature options:
- Lampu Haneut (3000K): For a cozy and inviting atmosphere.
- Bodas Netral (4500K): Balanced light for general tasks.
- Cahaya Bodas (6000K): Bright, cool light for focused activities.
Press the 'Light Switch' button on the remote to cycle through these color temperatures.
Image 6.4: Color Temperature Adjustment. Select from three light settings.
6.5 Operasi Tenang
The fan is equipped with an ultra-quiet DC motor, designed to operate with minimal noise, ensuring a peaceful environment.
Image 6.5: Quiet Operation. The fan operates at a low noise level for comfort.
7. Pangropéa
Pangropéa rutin ngabantosan manjangkeun umur sareng kinerja kipas siling anjeun.
- beberesih: Périodik usap wilah kipas jeung perumahan motor ku lemes, damp lawon. Ulah nganggo pembersih atanapi pangleyur anu abrasif. Pastikeun listrikna pareum sateuacan dibersihkeun.
- Sekrup pengencang: Check all screws on the fan and mounting hardware annually to ensure they are securely tightened. Loose screws can cause noise and wobble.
- Sumber cahaya: The LED light source is integrated and generally does not require replacement. If issues arise, contact customer support.
8. Cara ngungkulan
Upami anjeun mendakan masalah sareng kipas anjeun, tingali masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas teu ngamimitian | No power supply; Loose wire connections; Remote control battery dead or not paired. | Check circuit breaker/wall switch; Verify all wire connections are secure; Replace remote battery or re-pair remote with receiver (refer to full manual for pairing instructions). |
| Kipas angin ngagelebug | Sekrup pemasanganna leupas; Bilahna teu saimbang; Pemasanganna teu bener. | Ensure all mounting screws are tight; Check if blades are properly seated and balanced (a balancing kit may be required); Re-check installation steps. |
| Lampu teu jalan | Loose wire connection to light kit; Remote control battery dead or not paired; LED driver issue. | Check light kit wiring; Replace remote battery or re-pair remote; If problem persists, contact customer support. |
| Kadali jauh teu jalan | Dead battery; Not paired with receiver; Obstruction between remote and receiver. | Replace battery; Re-pair remote with receiver; Ensure clear line of sight to receiver. |
If these solutions do not resolve the issue, please contact Bella Depot customer support for further assistance.
9. Garansi jeung Rojongan
Your Bella Depot 42" Retractable Ceiling Fan (Model DC4264-B) comes with a garansi 2 taun ti tanggal beuli. Garansi ieu nyertakeun cacad dina bahan sareng pagawean dina panggunaan normal.
For warranty claims, technical support, or any questions regarding your product, please contact Bella Depot customer service. You can find contact information on the official Bella Depot websitus atawa ngaliwatan platform pameseran Anjeun.
For more information about Bella Depot products, visit the Toko Bella Depot di Amazon.
