Bubuka
Hatur nuhun pikeun meuliasing the Bella Depot 36" Retractable Ceiling Fan with Lights and Remote. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before installation and retain them for future reference.
Émbaran Kasalametan penting
- PERHATOSAN: To reduce the risk of fire, electric shock, or personal injury, always turn off the main power supply at the circuit breaker before installation or maintenance.
- Sadaya kabel kedah saluyu sareng kode listrik nasional sareng lokal. Taroskeun ka tukang listrik anu mumpuni upami anjeun teu yakin ngeunaan kabel.
- Pastikeun tempat pamasangan tiasa nahan beurat kipas (sakitar 5.84 kg).
- Ulah ngoperasikeun kipas upami bilahna rusak.
- Jaga leungeun, pakean, sareng barang-barang sanésna jauh tina bilah kipas nalika kipas nuju dioperasikeun.
- Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kalebet murangkalih) anu ngirangan kamampuan fisik, indrawi atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana.
Eusi pakét
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- Siling Fan Motor Perumahan
- Retractable Fan Blades (4)
- Lampu Lampu LED
- Kadali jauh
- Downrods (5" and 10" included)
- Ningkatna Kurung
- Paket Hardware (screws, mur kawat, jsb.)
- Instruksi Manual
Setup sareng Instalasi
Pamasangan profésional disarankeun. Pastikeun kakuatan dipegatkeun dina pamutus sirkuit sateuacan neraskeun.
- Pamasangan bracket dipasang: Pasangkeun braket pemasangan kana kotak sambungan lalangit. Pastikeun kotak sambungan dipasang pageuh kana struktur wangunan sareng tiasa nahan beurat kipas.
- Majelis Downrod: Choose the appropriate downrod (5" or 10") for your ceiling height. Feed the electrical wires from the fan motor through the downrod.
- Gantung kipas: Carefully lift the fan assembly and place the downrod ball into the mounting bracket.
- Sambungan Wiring: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the separate wiring guide (if applicable) or standard electrical practices (Live to Live, Neutral to Neutral, Ground to Ground). Use the provided wire nuts.
- Pamasangan Kanopi: Geser kanopi ka luhur ka lalangit teras pageuhkeun kana braket pemasangan nganggo sekrup anu disayogikeun.
- Lampiran sabeulah: The retractable blades are pre-installed and will deploy when the fan is turned on.
- Pamasangan Kit Lampu: Connect the light kit wires to the fan motor housing wires. Secure the light kit to the fan housing.
Parentah Operasi
Your Bella Depot ceiling fan is operated via the included remote control.

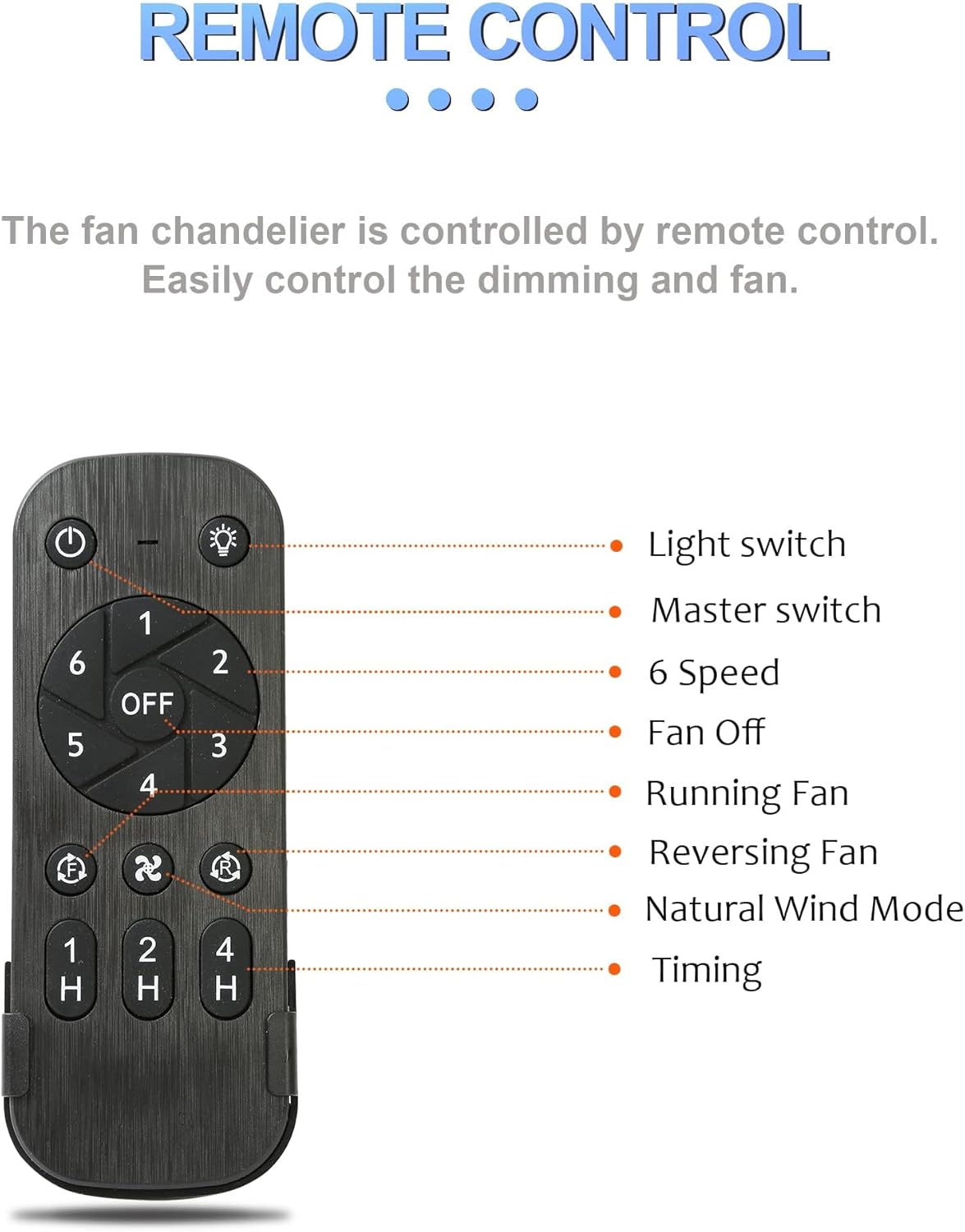

Fungsi Remote Control:
- Tombol Daya (Hidup/Pareum): Ngahurungkeun atawa mareuman kipas jeung lampu.
- Saklar lampu: Toggles the light on/off.
- Saklar Master: Controls overall power to the fan and light.

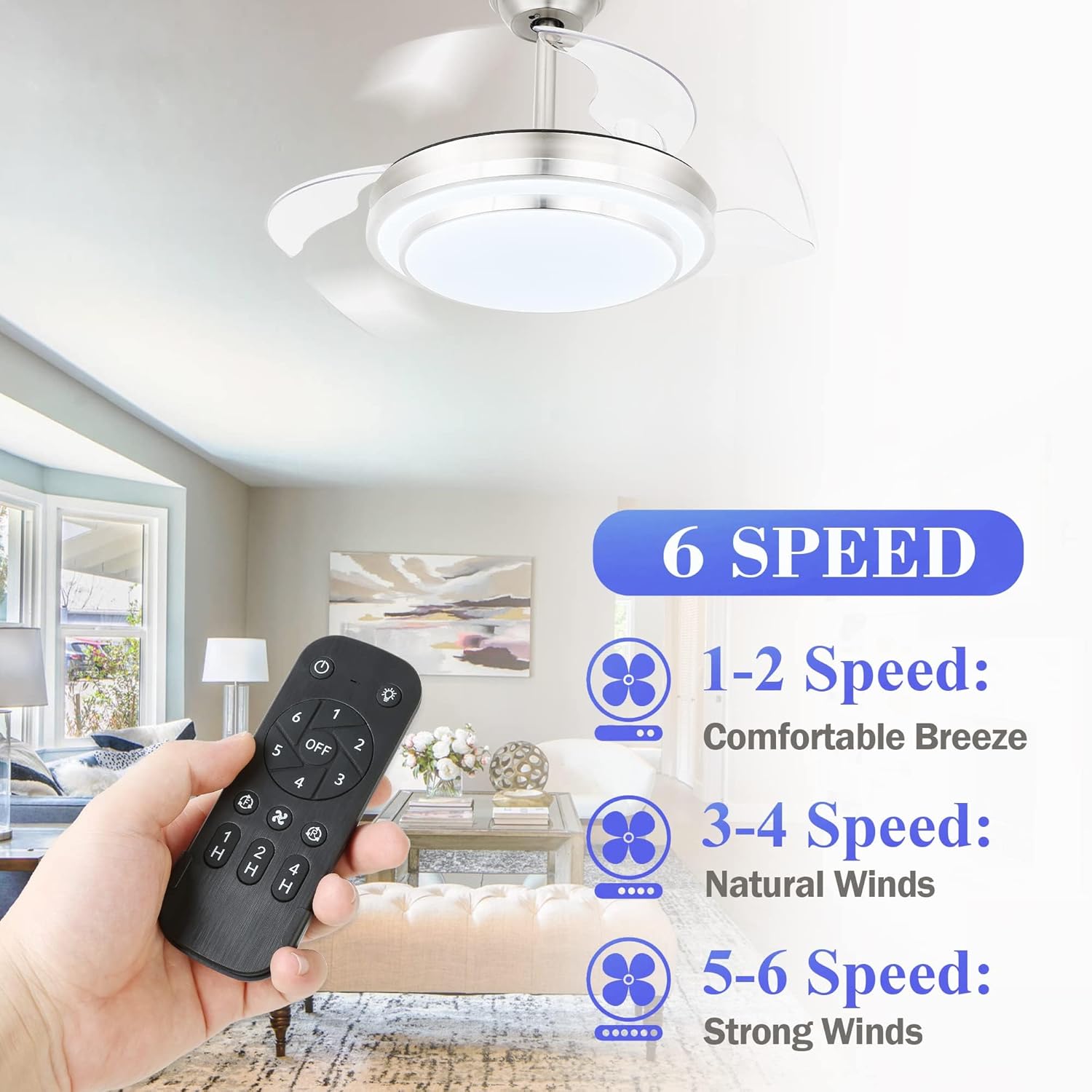

- Laju Kipas (1-6): Nyetél kagancangan kipas.
- 1-2 Speed: Angin Nyaman
- 3-4 Speed: Angin Alami
- 5-6 Speed: Angin Kenceng
- Pareum kipas: Ngeureunkeun kipas.
- Running Fan: Activates the fan.
- Reversing Fan: Changes the direction of the fan blades for summer (downward airflow) or winter (upward airflow).
- Mode Angin Alami: Simulasi angin alami ku cara ngarobah-robah kecepatan kipas.
- Timing Options (1H, 2H, 4H): Nyetél kipas supados pareum sacara otomatis saatos 1, 2, atanapi 4 jam.

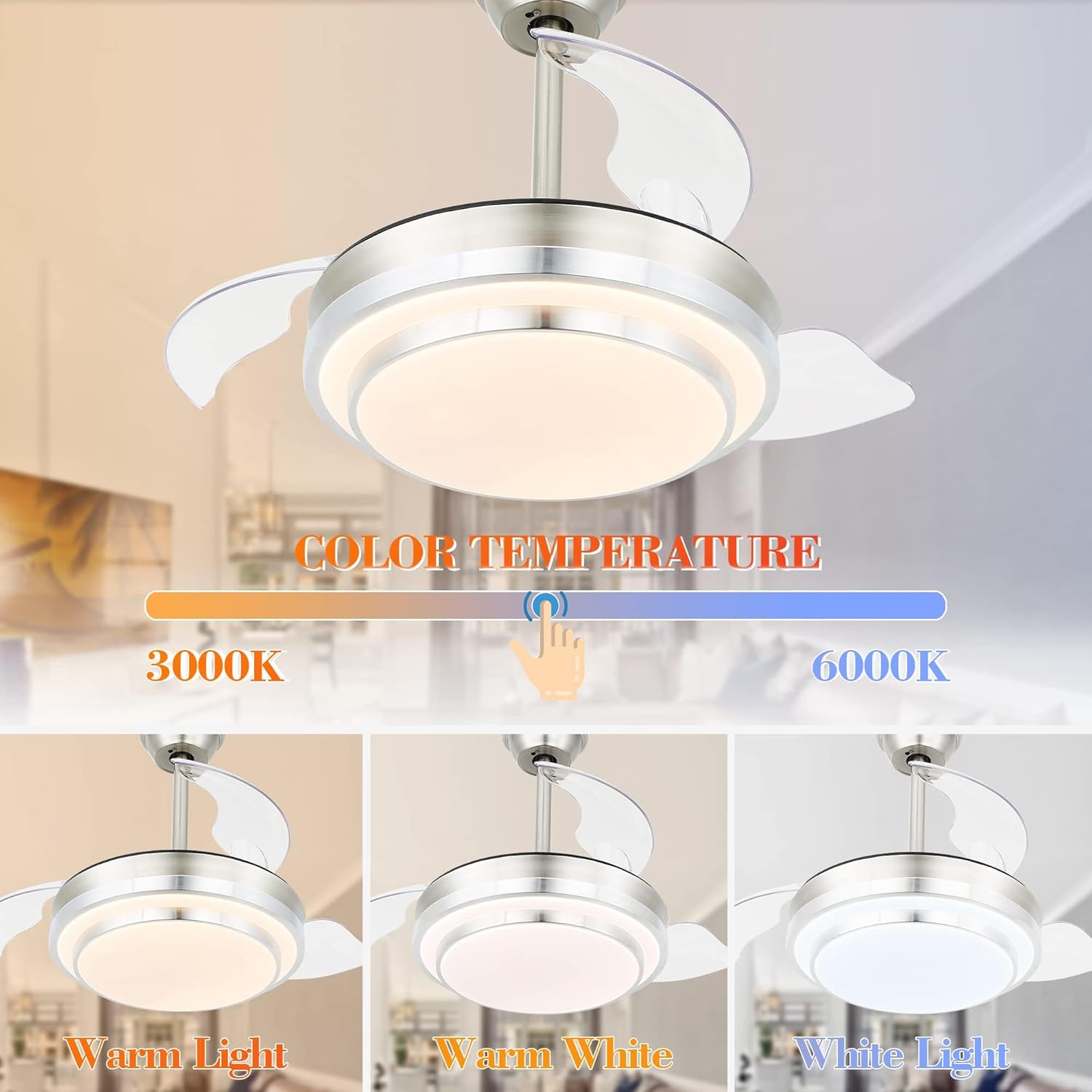

Pangaturan Suhu Warna Lampu:
The light color temperature can be adjusted from 3000K (Warm Light) to 6000K (White Light) using the remote control. Press the light button repeatedly to cycle through the color temperatures.
Reversible Blades Function:
The fan features reversible blades to optimize airflow for different seasons. Use the "Reversing Fan" button on the remote control to switch direction.
- Modeu Usum Panas (Maju): Blades rotate counter-clockwise, pushing air downwards to create a cooling effect.
- Modeu Usum tiis (Balik): Blades rotate clockwise, pulling air upwards to circulate warm air near the ceiling.
Operasi jempé:
The fan is designed with a DC motor for quiet operation, minimizing noise disturbance.
Pangropéa
- beberesih: Periodically clean the fan blades and light kit with a soft, damp lawon. Ulah make cleaners abrasive atawa pangleyur. Pastikeun kakuatan pareum sateuacan beberesih.
- Sekrup pengencang: Pariksa sadaya sekrup sareng sambungan unggal taun pikeun mastikeun éta aman.
- Ngagantian bohlam lampu: The LED light kit is integrated. If replacement is needed, contact customer support.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas teu ngamimitian | Taya kakuatan pikeun kipas; sambungan kabel leupas; batré kadali jauh low. | Pariksa circuit breaker; Pastikeun sadaya sambungan kabel aman; Ganti batré kadali jauh. |
| Lampu teu jalan | Loose wire connection; LED light kit malfunction. | Check light kit wiring; Contact customer support for replacement. |
| Kipas angin ngagelebug | Loose mounting screws; Unbalanced blades; Downrod not seated correctly. | Tighten all mounting screws; Ensure blades are securely attached; Re-seat downrod in mounting bracket. |
| Kadali jauh teu jalan | Low battery; Remote not paired with fan. | Replace batteries; Refer to remote pairing instructions (if applicable, usually in a separate guide). |
spésifikasi
- merek: Bella Depot
- Jumlah modél: DC3604
- Ukuran produk: 91.44 x 8.51 x 30.48 cm (36" x 3.35" x 12")
- Beurat barang: 5.84 kg (12.87 lbs)
- Bahan: Logam, Plastik
- Gaya: Modern
- Tipe Kamar: Bedroom (suitable for various indoor spaces)
- Jenis pamasangan: siram Gunung
- Sumber Daya: Kabel Listrik
- Laju kipas: 6-Speed DC Motor
- Jenis sabeulah: Retractable, Reversible
- Jenis cahaya: LED, Dimmable, Color Temperature Adjustable (3000K-6000K)
- Kontrol: Kadali jauh
Garansi sareng Rojongan
For warranty information or technical support, please refer to the warranty card included with your product or contact Bella Depot customer service directly. Keep your purchase receipt as proof of purchase.
Pikeun pitulung salajengna, mangga buka kami website or contact our support team:
- Websitus: www.belladepot.com
- Surélék: support@belladepot.com
