IBELL EO40LGDLX Electric Oven Toaster Grill (OTG) User Manual

Parentah Kasalametan penting

Mangga baca sadaya parentah kalayan saksama sateuacan nganggo alat ieu. Simpen buku panduan ieu kanggo rujukan ka hareup.

• Salawasna pastikeun alat ieu disimpen dina permukaan anu stabil sareng tahan panas, jauh tina bahan anu gampang kaduruk.
• Ulah noél surfaces panas. Anggo sarung tangan oven atanapi sarung tangan nalika nanganan barang atanapi bagian panas.
• To protect against electrical shock, do not immerse the cord, plug, or any non-removable parts of the oven in water or other liquids.
• Pengawasan anu ketat diperyogikeun nalika alat naon waé dianggo ku atanapi caket barudak.
• Cabut colokan tina stop kontak nalika henteu dianggo sareng sateuacan beberesih. Ngidinan pikeun niiskeun sateuacan dipasang atanapi nyabut bagian.
• Entong ngoperasikeun alat naon waé nganggo kabel atanapi colokan anu ruksak, atanapi saatos alatna teu tiasa dianggo atanapi parantos ruksak dina cara naon waé.
• Entong nganggo kantétan anu henteu disarankeun ku produsén alat.
• Ulah nempatkeun dina atawa deukeut gas panas atawa burner listrik, atawa dina oven dipanaskeun.
• Awas pisan kedah dianggo nalika mindahkeun alat anu ngandung minyak panas atanapi cairan panas sanés.
• Ulah nutupan baki crumb atawa bagian tina oven jeung foil logam. Ieu bakal ngabalukarkeun overheating oven.
• Ulah ngabersihan ku hampang scouring logam. Potongan tiasa ngarecah pad sareng ngarampa bagian listrik, nyiptakeun résiko kejutan listrik.
• Ulah nyimpen bahan naon wae, lian ti asesoris dianjurkeun produsén urang, dina oven ieu lamun teu dipake.
• Ulah nempatkeun salah sahiji bahan handap dina oven: kertas, kardus, plastik, atawa bahan sarupa.
• Entong nyelapkeun tuangeun anu ageung ageung atanapi perkakas logam kana oven sabab tiasa nyababkeun seuneu atanapi résiko kejutan listrik.
• Do not use the oven for purposes other than its intended use.

Produk Leuwihview

Komponén jeung Fitur

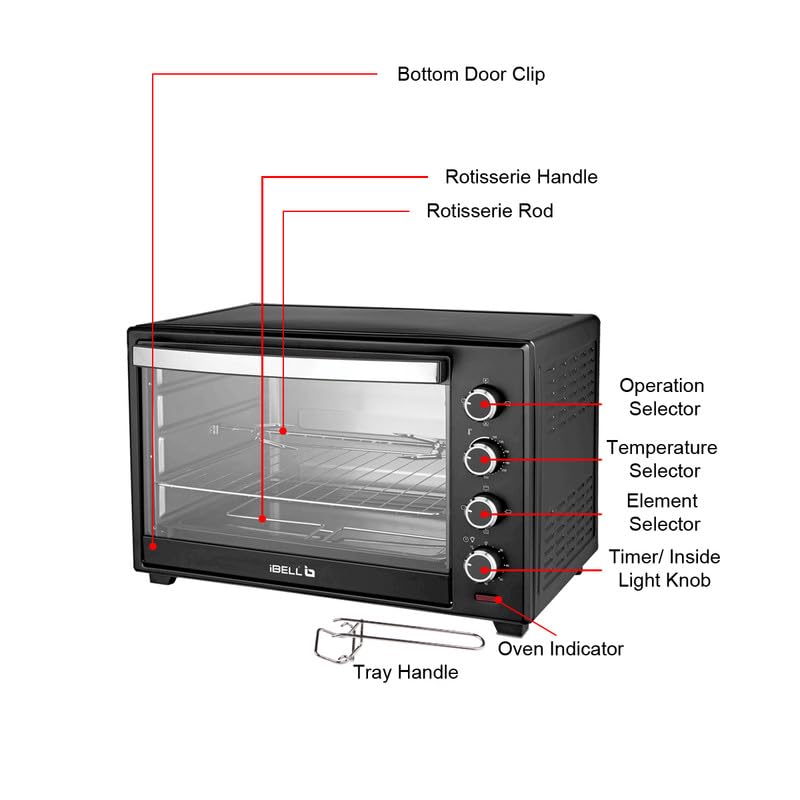

Gambar 1: Labeled diagram of the IBELL EO40LGDLX Electric Oven Toaster Grill, showing key components such as the Operation Selector, Temperature Selector, Element Selector, Timer/Inside Light Knob, Oven Indicator, Rotisserie Handle, Rotisserie Rod, Bottom Door Clip, and Tray Handle.

Gambar 2: Leuwihview of the IBELL EO40LGDLX OTG highlighting its main features: Convection Fan, Rotisserie Function, 60-minute Timer, 40 Litre Capacity, and 1800W Power.

The IBELL EO40LGDLX is a versatile Electric Oven Toaster Grill (OTG) designed for various cooking needs. It features a 40-liter capacity and 1800 watts of power, ensuring efficient performance.

• Kipas Konveksi: Circulates hot air for faster and more even cooking.
• Motorized Rotisserie: Allows for even roasting of large meats.
• Multiple Heating Options: Offers bake, grill, toast, and rotisserie functions.
• Illuminated Chamber: Provides clear visibility of food during cooking.
• Timer 60-Menit: With an auto-shutoff feature for precise cooking control.
• Kontrol Suhu: Adjustable ti 0 ° C nepi ka 250 ° C.
• Baki Crumb anu tiasa dicabut: Pikeun gampang beberesih sarta perawatan.

Setup jeung pamakéan munggaran

Ngabongkar bungkusan

1. Cabut oven sareng sadaya asesoris tina bungkusna kalayan ati-ati.
2. Remove any packing materials, stickers, or labels from the oven and its accessories.
3. Wash all removable parts (baking tray, wire rack, rotisserie fork, tray handle, rotisserie handle) in warm, soapy water. Rinse and dry thoroughly.
4. Ngusap interior sareng luar oven nganggo iklanamp lawon.

panempatan

• Teundeun oven dina datar, stabil, permukaan tahan panas.
• Ensure there is adequate ventilation around the oven (at least 10-15 cm clearance on all sides).
• Do not place the oven near curtains, walls, or other flammable materials.
• Colokkeun kabel listrik kana stop kontak listrik grounded.

Sateuacan Paké Kahiji

It is recommended to run the oven empty for approximately 15 minutes to burn off any manufacturing residues and odors.

1. Setel pamilih suhu ka 250°C.
2. Set the function selector to the 'Bake' mode (top and bottom heating elements).
3. Setel timer ka 15 menit.
4. Bau atanapi haseup sakedik tiasa aya nalika operasi awal ieu; ieu hal anu normal. Pastikeun daérah éta gaduh ventilasi anu saé.
5. Once the timer rings, the oven will switch off. Allow the oven to cool completely before its first cooking use.

Operating Your IBELL OTG

Kontrol Panel Langkungview

Gambar 3: Diwincik view of the control panel, showing the Operation Selector, Temperature Selector, Element Selector, and Timer & Inside Light Knob.

• Operation Selector (Top Knob): Controls the overall function, including convection fan and rotisserie.
• Temperature Selector (Second Knob): Nyaluyukeun suhu masak ti 0°C nepi ka 250°C.
• Element Selector (Third Knob): Chooses which heating elements are active (top, bottom, or both).
• Timer & Inside Light Knob (Bottom Knob): Sets the cooking time up to 60 minutes and activates the interior light.

Fungsi

The IBELL EO40LGDLX offers multiple cooking modes:

• Panggang: Typically uses both top and bottom heating elements. Ideal for cakes, cookies, and casseroles.
• Panggangan: Uses the top heating element for browning and crisping. Suitable for grilling vegetables, cheese toast, or finishing dishes.
• Roti bakar: Uses both top and bottom elements for toasting bread or small items.
• Konveksi: Activates the convection fan to circulate hot air, ensuring faster and more even cooking. Can be combined with bake or grill functions.
• Rotisserie: Engages the motorized rotisserie spit for slow, even roasting of poultry or other meats.

Gambar 4: Visual examples of dishes prepared using the oven's bake, grill, and roast functions.

Nyetel Suhu sareng Waktos

1. Simpen kadaharan dina rak atanapi baki anu cocog di jero oven.
2. Hurungkeun Pamilih Suhu knob to the desired temperature setting.
3. Hurungkeun Element Selector knob to choose the heating elements (top, bottom, or both) suitable for your cooking method.
4. Hurungkeun Operation Selector knob to activate the convection fan or rotisserie if required.
5. Hurungkeun Timer & Inside Light Knob to set the desired cooking time (up to 60 minutes). The oven will start heating, and the indicator light will illuminate. For continuous operation, turn the timer past 60 minutes to the 'Stay On' position.
6. When the set time elapses, the oven will automatically switch off, and a bell will sound. If using 'Stay On', manually turn the timer knob to 'OFF' when cooking is complete.

Ngagunakeun Rotisserie

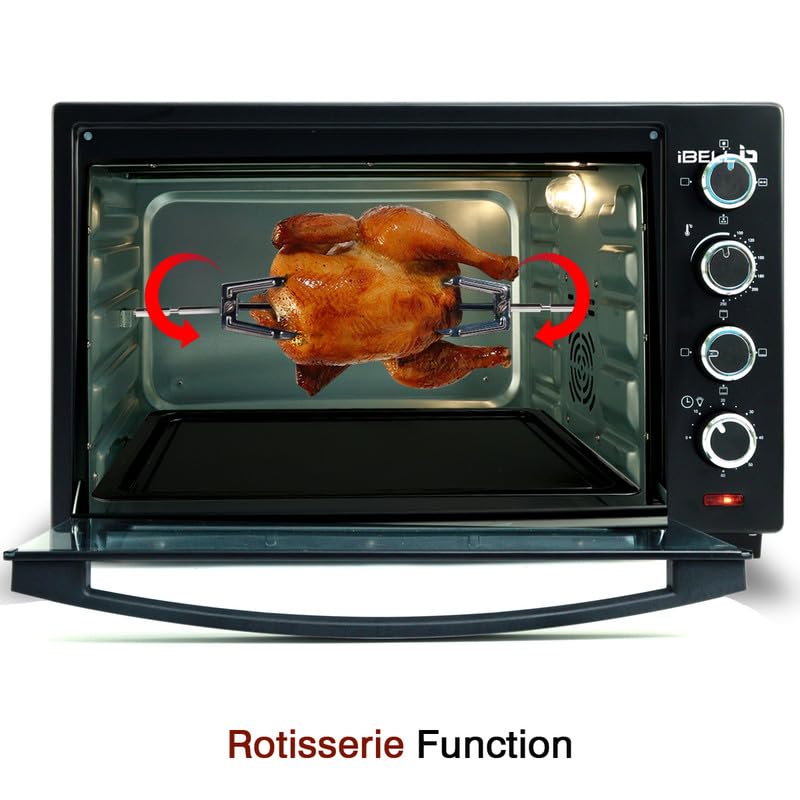

Gambar 5: The motorized rotisserie function in action, evenly roasting a chicken inside the oven.

1. Assemble the rotisserie spit by securing the forks onto the meat. Ensure the meat is centered and balanced on the spit.
2. Insert the pointed end of the rotisserie spit into the drive socket on the right side of the oven cavity.
3. Rest the square end of the spit onto the support on the left side.
4. Nyetél Pamilih Suhu to the desired roasting temperature.
5. Nyetél Element Selector to 'Top Heating Element' or 'Both Top and Bottom' as per recipe.
6. Hurungkeun Operation Selector to the rotisserie icon.
7. Nyetél Timer & Inside Light Knob for the required cooking duration.
8. To remove the hot rotisserie, use the rotisserie handle (Figure 1) to lift the spit from its supports.

Perawatan sareng Pangropéa

Proper care and regular maintenance will ensure the longevity and optimal performance of your IBELL OTG.

beberesih umum

1. Salawasna cabut oven ti stop kontak listrik sarta ngidinan pikeun niiskeun sagemblengna saméméh beberesih.
2. Do not use abrasive cleaners, scrubbing brushes, or chemical cleaners, as these can damage the non-stick surfaces.
3. Ngusap bagian luar oven nganggo iklanamp lawon jeung detergent hampang. Garing tuntas.
4. Ngabersihan pedalaman ku iklanamp lawon jeung hampang, solusi beberesih non-abrasive. Pikeun noda nekad, némpelkeun baking soda sareng cai tiasa dianggo.
5. Wash the baking tray, wire rack, rotisserie fork, and handles in warm, soapy water. These accessories are not dishwasher safe.
6. Pastikeun sadaya bagian garing pisan sateuacan dipasang deui sareng disimpen oven.

Removable Crumb Dulang

• The crumb tray is located at the bottom of the oven. Pull it out to remove crumbs and food particles.
• Clean the crumb tray regularly to prevent grease buildup and potential fire hazards.
• Wash the crumb tray in warm, soapy water, rinse, and dry thoroughly before placing it back into the oven.

Pitunjuk Ngungkulan

Tingali tabel ieu kanggo masalah umum sareng solusina.

Spésifikasi teknis

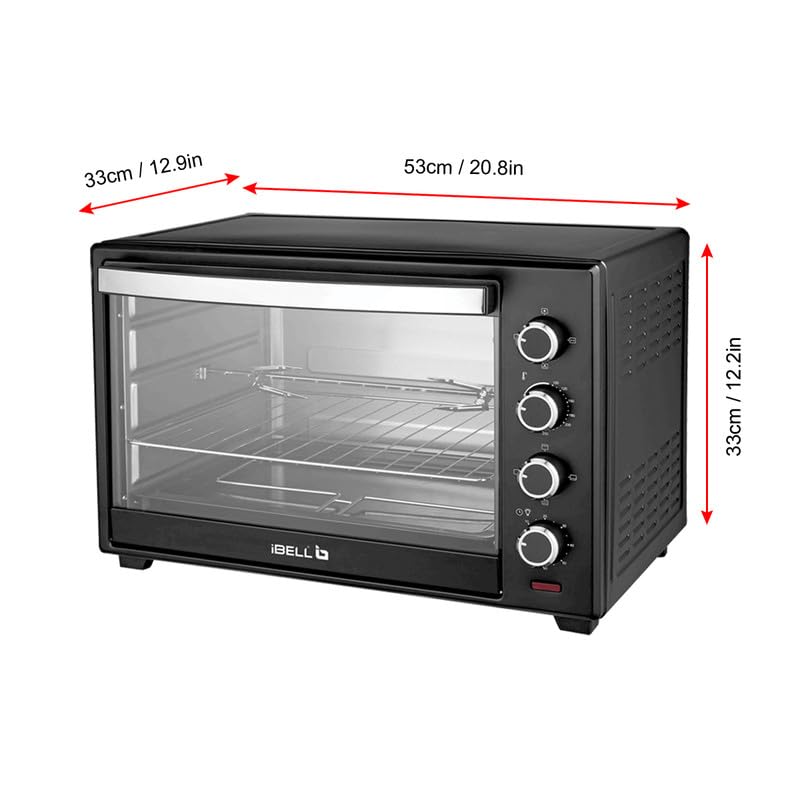

Gambar 6: Product dimensions of the IBELL EO40LGDLX OTG.

Garansi sarta Rojongan Palanggan

Émbaran jaminan

The IBELL EO40LGDLX Electric Oven Toaster Grill comes with a 1 Taun jaminan baku. Hiji tambahan 1 Taun jaminan can be availed upon free registration. Registration must be completed within 30 days from the date of purchase.

Rojongan Palanggan

For any warranty claims, product assistance, or technical support, please contact IBELL customer service:

• Nomer Bebas Pulsa: 1800-2020-260
• Surélék: connect@ibellstore.com
• Alamat Pabrikan: Innovative Technologies, iBELL Fida's Building, Thottumugham P.O, Aluva, Kerala - 683105
