Severin MW7771 Microwave Oven with Grill User Manual

1. Parentah Kasalametan

Please read these safety instructions carefully before using the appliance. Improper use may result in personal injury or damage to the appliance.

• Do not operate the microwave oven if the door is damaged or if the seals are faulty.
• Pastikeun ventilasi anu leres di sabudeureun alat.
• Ulah panas cair atawa kadaharan séjén dina wadahna disegel, sabab bisa ngabeledug.
• Ukur nganggo parabot anu aman pikeun microwave.
• Rutin ngabersihkeun rohangan oven sareng cabut endapan dahareun.
• Ulah nyobian ngalayanan atanapi ngalereskeun alat sorangan. Kontak tanaga jasa mumpuni.

2. Produk Langkungview

The Severin MW7771 is a 20-liter microwave oven with an integrated grill function, designed for versatile cooking. It features intuitive rotary controls for power and time settings.

komponén:

• Unit Oven Microwave
• Glass Turntable (Ø 24.5 cm)
• Cingcin Turntable
• Raka Panggang

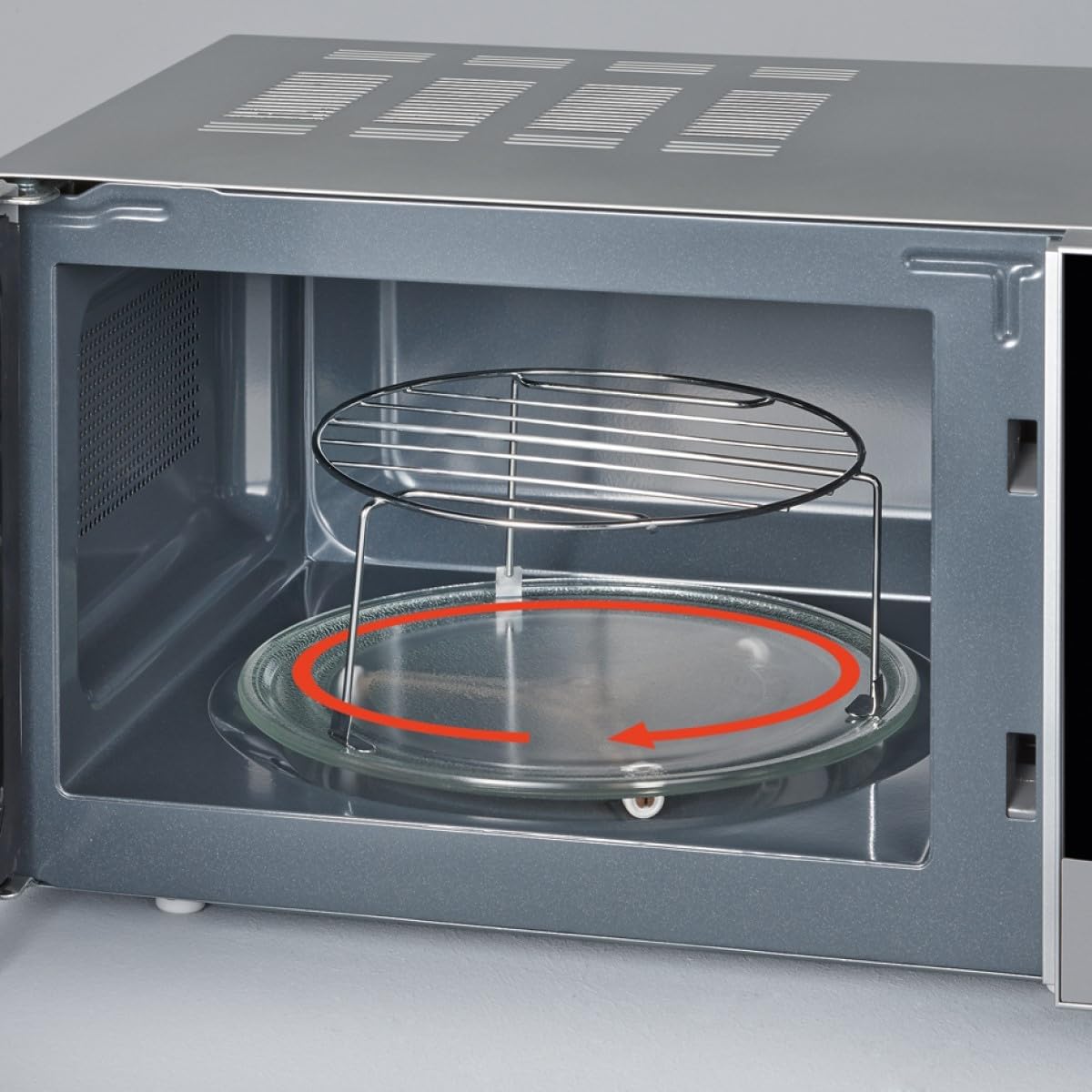

Interior view of the Severin MW7771 microwave oven, highlighting the removable glass turntable and the metal grill rack. Ensure these components are correctly placed before operation.

3. Setup jeung Instalasi

Ngabongkar bungkusan:

Carefully remove the microwave oven and all packaging materials from the box. Inspect the appliance for any damage. Do not remove the light brown mica sheet inside the cavity, as it protects the magnetron.

panempatan:

• Teundeun oven dina datar, stabil, permukaan tahan panas.
• Ensure adequate ventilation: leave at least 20 cm clearance above, 10 cm at the rear, and 5 cm on each side for proper airflow.
• Ulah nempatkeun oven deukeut sumber panas atawa dina iklanamp lingkungan.

Majelis:

1. Place the turntable ring in the depression on the oven floor.
2. Position the glass turntable securely on top of the turntable ring.
3. For grill cooking, place the grill rack on the glass turntable.

4. Parentah Operasi

The microwave oven features two rotary knobs for easy operation.

Kadali:

• Upper Rotary Knob: Selects the cooking function and power level (Microwave, Grill, Combination).
• Lower Rotary Knob: Sets the cooking time (up to 30 minutes) or defrost weight/time.

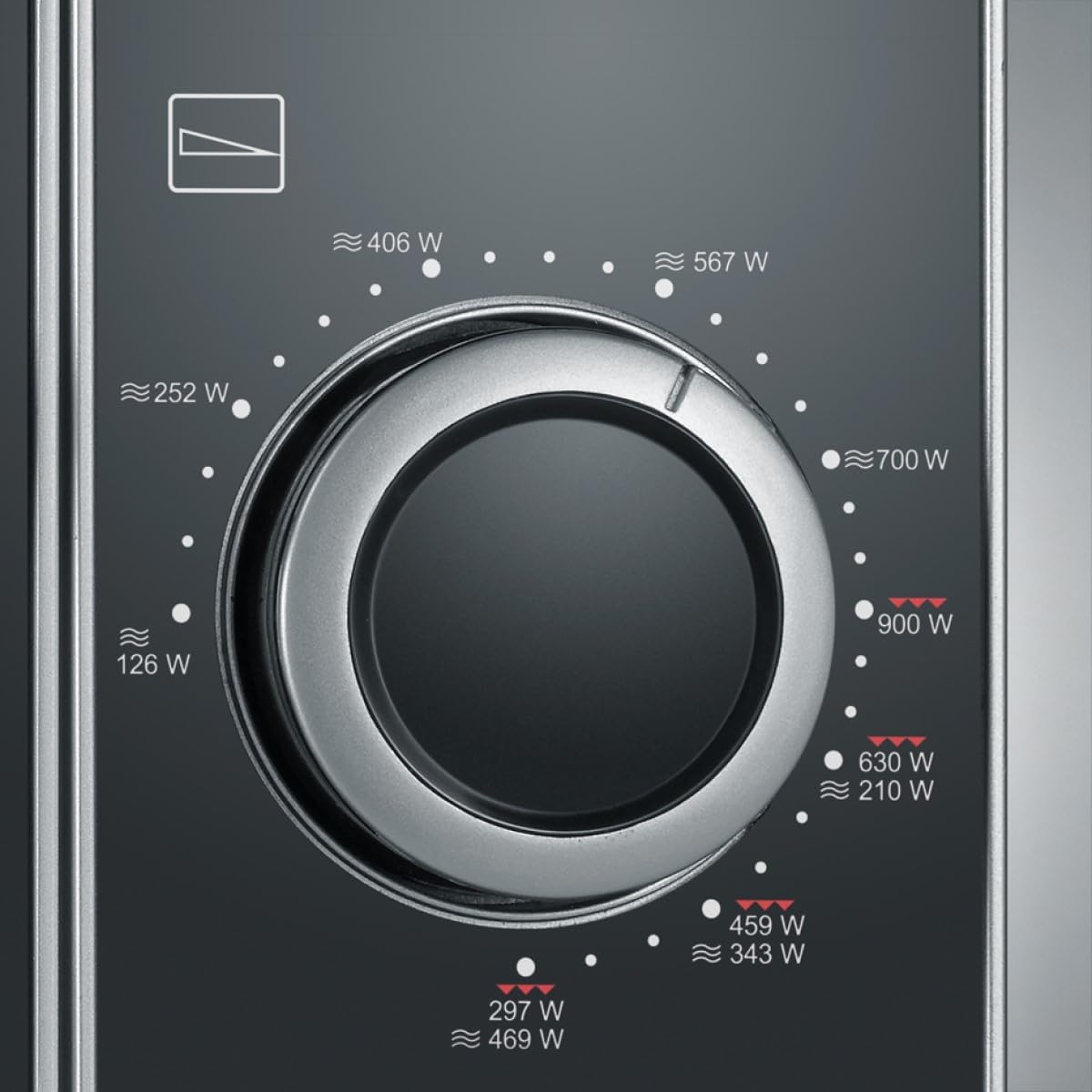

This image shows the upper rotary knob used to select the desired power level for microwave cooking, grill function, or combination modes. Settings range from low wattage for gentle heating to 900W for maximum power.

This image displays the lower rotary knob, which controls the cooking timer (up to 30 minutes) and the defrost function. The defrost settings allow for selection by time or by food weight.

Masak gelombang mikro:

1. Teundeun dahareun dina wadah microwave-aman dina turntable kaca.
2. Tutup panto oven aman.
3. Turn the upper rotary knob to select the desired microwave power level (e.g., 900W for high power).
4. Turn the lower rotary knob to set the cooking time. The oven will start automatically.
5. A bell will sound when the cooking time is complete.

Fungsi grill:

1. Place food on the grill rack, which should be positioned on the glass turntable.
2. Tutup panto oven.
3. Turn the upper rotary knob to the grill symbol.
4. Turn the lower rotary knob to set the grilling time.

Masak kombinasi:

This function combines microwave and grill cooking for faster results and browning.

1. Teundeun dahareun dina rak grill.
2. Tutup panto oven.
3. Turn the upper rotary knob to select a combination mode (e.g., Microwave + Grill).
4. Turn the lower rotary knob to set the cooking time.

Fungsi Defrost:

The defrost function allows you to thaw food based on time or weight.

1. Teundeun kadaharan beku dina wadahna cocog dina turntable kaca.
2. Tutup panto oven.
3. Turn the lower rotary knob to the desired defrost time or weight setting.
4. The oven will automatically adjust the power for defrosting.

5. Pangropéa jeung beberesih

Pembersih rutin ngajamin kinerja optimal sareng manjangkeun umur alat anjeun.

Sateuacan beberesih:

• Salawasna cabut colokan listrik tina oven microwave.
• Ngidinan oven pikeun niiskeun lengkep sateuacan beberesih.

Ngabersihan Interior:

• Wipe the oven cavity with a damp lawon sarta detergent hampang.
• Remove any food spills or splatters immediately to prevent stubborn stains and odors.
• The glass turntable and turntable ring can be washed in warm soapy water or in a dishwasher.
• The grill rack can be cleaned with warm soapy water.

Ngabersihan Luar:

• Ngusap permukaan luar kalayan lemes, damp lawon.
• Ulah make cleaners abrasive, bahan kimia kasar, atawa scouring pad, sabab ieu bisa ngaruksak finish.

6. Cara ngungkulan

Upami anjeun mendakan masalah sareng oven microwave anjeun, mangga tingal masalah sareng solusi umum ieu:

Lamun masalah persists sanggeus mariksa titik ieu, mangga ngahubungan rojongan customer.

7. Spésifikasi

• model: MW 7771
• Kapasitas: 20 Liter
• Kakuatan gelombang mikro: 700 Watt
• kakuatan grill: 900 Watt
• Tingkat kakuatan: 9
• Timer: 30 minutes with end signal
• Ukuran (L x W x H): 45.4 x 35.4 x 26.4 cm
• beurat: 10.83 kg
• Bahan: Stainless Steel (exterior), Lacquered cavity (interior)
• Diaméter turntable: 24.5 cm
• Komponén Kaasup: Glass turntable, Turntable ring, Grill rack

8. Garansi jeung Rojongan

Garansi:

This Severin appliance comes with a garansi 2 taun from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and material faults under normal household use.

Rojongan Palanggan:

For further assistance, spare parts, or service inquiries, please visit the official Severin websitus atanapi ngahubungi departemén layanan palangganna. Anjeun tiasa mendakan langkung seueur inpormasi di Toko Merek Severin.
