This manual provides detailed instructions for the safe installation, operation, and maintenance of your Ohniyou 52 Inch Ceiling Fan with Light and Remote. Please read all instructions carefully before beginning installation and retain this manual for future reference.
The Ohniyou 52-inch ceiling fan features a reversible DC motor, integrated LED lighting with adjustable color temperature, and remote control functionality. It is designed for both indoor and outdoor use in covered areas such as patios, living rooms, kitchens, and dining rooms.
2. Émbaran Kasalametan
- Pareuman heula daya dina pemutus sirkuit sateuacan dipasang atanapi diropéa.
- Pastikeun sadaya sambungan listrik saluyu sareng kode sareng peraturan lokal. Upami anjeun teu yakin, konsultasi ka tukang listrik anu mumpuni.
- The fan must be mounted to a structurally sound ceiling capable of supporting the fan's weight (approximately 16.46 lbs).
- Jaga jarak minimum 7 suku ti lantai ka handapeun bilah kipas.
- Ulah beroperasi kipas lamun bagian mana wae nu ruksak.
- Ulah selapkeun objék kana jalur tina bilah kipas.
- This fan is not intended for use with dimmer switches for the fan speed function.
3. Eusi Paket
Verify that all components are present and undamaged before proceeding with installation. If any parts are missing or damaged, contact Ohniyou customer support.
- Siling Fan Majelis Motor
- 5 Fan Blades (reversible finish: Wood Black / Oak)
- Ningkatna Kurung
- Downrod (pilihan 5 inci sareng 10 inci)
- Canopy and Canopy Cover
- Lampu Lampu LED
- Jauh Control jeung panarima
- Paket Hardware (screws, washers, mur kawat)
- Instruksi Manual
4. Majelis jeung Instalasi
Installation typically requires 1 to 2 people and takes approximately 0.5 to 1 hour. Ensure you have the necessary tools, including a screwdriver, wrench, and drill.
4.1 Pasang bracket
Secure the mounting bracket to the ceiling junction box. Ensure the bracket is firmly attached and can support the fan's weight.
Figure 1: Mounting options for flat and sloped ceilings.
4.2 Assembling the Fan Blades
Attach the fan blades to the motor assembly using the provided screws and washers. The blades feature a double-sided finish (Wood Black and Oak), allowing you to choose your preferred aesthetic.
Figure 2: Double finish fan blades.
4.3 Attaching the Downrod and Wiring
Select the appropriate downrod (5-inch for low ceilings or 10-inch for regular ceilings) and feed the fan wires through it. Secure the downrod to the motor assembly. Connect the receiver wires to the fan motor wires according to the wiring diagram in your printed manual. Carefully tuck all wires into the canopy.

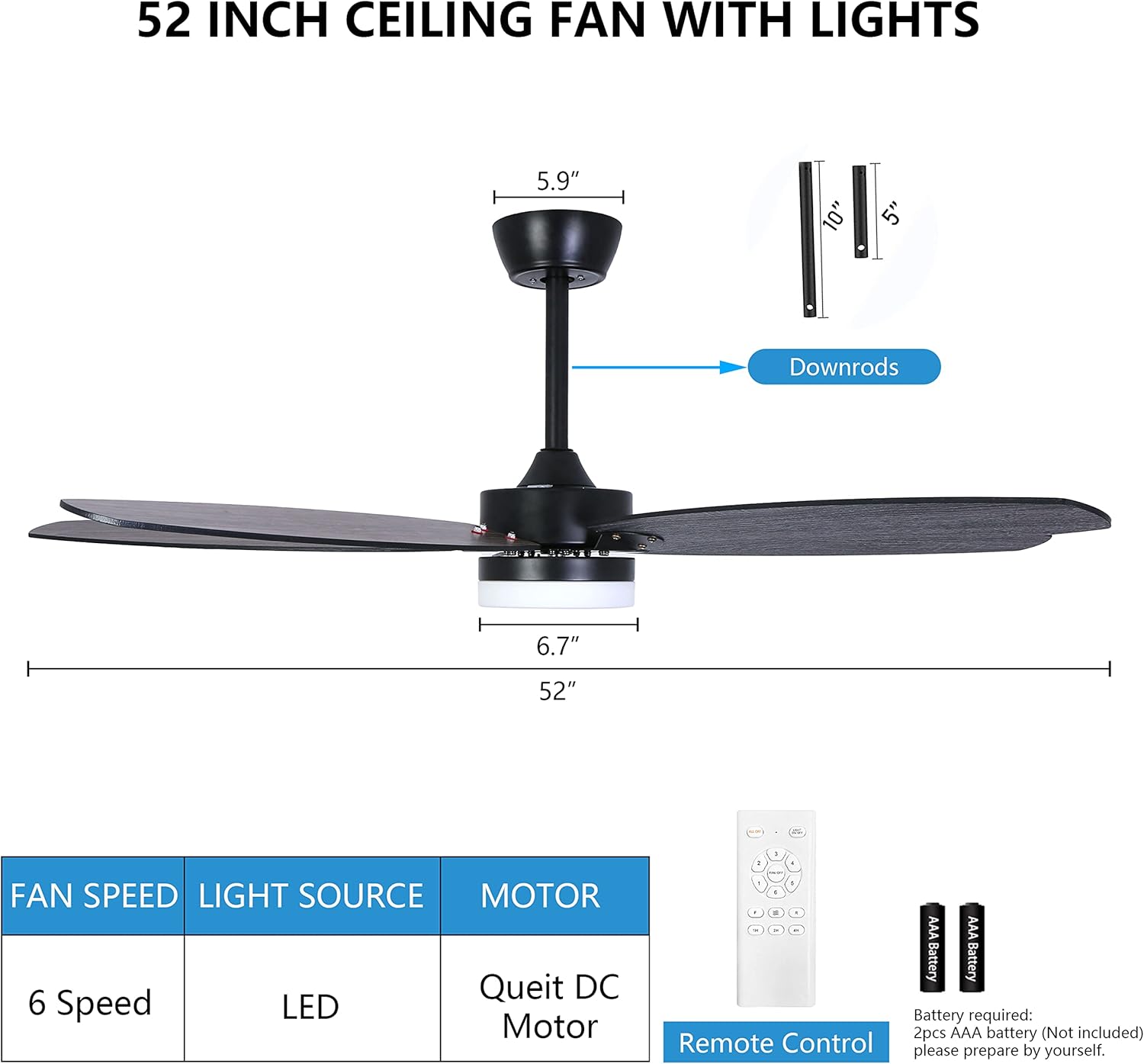

Figure 3: Fan dimensions and downrod options.
Figure 4: Included downrod lengths.
4.4 Securing the Fan to the Ceiling
Lift the fan assembly and hang it onto the mounting bracket. Make the final electrical connections from the fan to your household wiring. Ensure all connections are secure. Slide the canopy up to cover the mounting bracket and secure it.
4.5 Attaching the Light Kit
Connect the LED light kit wires to the corresponding wires from the fan motor assembly. Secure the light kit to the bottom of the fan motor housing.
4.6 Video Installation Guide
Kanggo pituduh visual, mangga tingali pidéo pamasangan resmi di handap ieu:
Video 1: OHNIYOU 52'' Ceiling Fan Light Assembly Guide. This video demonstrates the step-by-step assembly and installation process for the ceiling fan and light kit.
5. Parentah Operasi
Your Ohniyou ceiling fan is operated via the included handheld remote control. Ensure the remote has working batteries (2pcs AAA battery, not included).
5.1 Fan Speed Control
The remote allows you to select from 6 fan speeds. Press the fan speed buttons to increase or decrease the airflow.
5.2 Light Control and Color Temperature
The integrated LED light offers three color temperatures: 3000K (Warm Light), 4500K (Neutral Light), and 6000K (Cool Light). Cycle through these options by pressing the light button on the remote. The light is not dimmable via a wall switch.
Figure 5: Three adjustable light color temperatures.
5.3 Reversible DC Motor (Seasonal Modes)
The fan features a reversible DC motor for year-round comfort. Use the remote to switch between downdraft mode (summer) and updraft mode (winter).
- Modeu Downdraft (Usum Panas): Bilahna muter ka arah sabalikna jarum jam, ngadorong hawa tiis ka handap.
- Modeu Updraft (Usum Tiris): Blades rotate clockwise, drawing cool air up and circulating warm air.

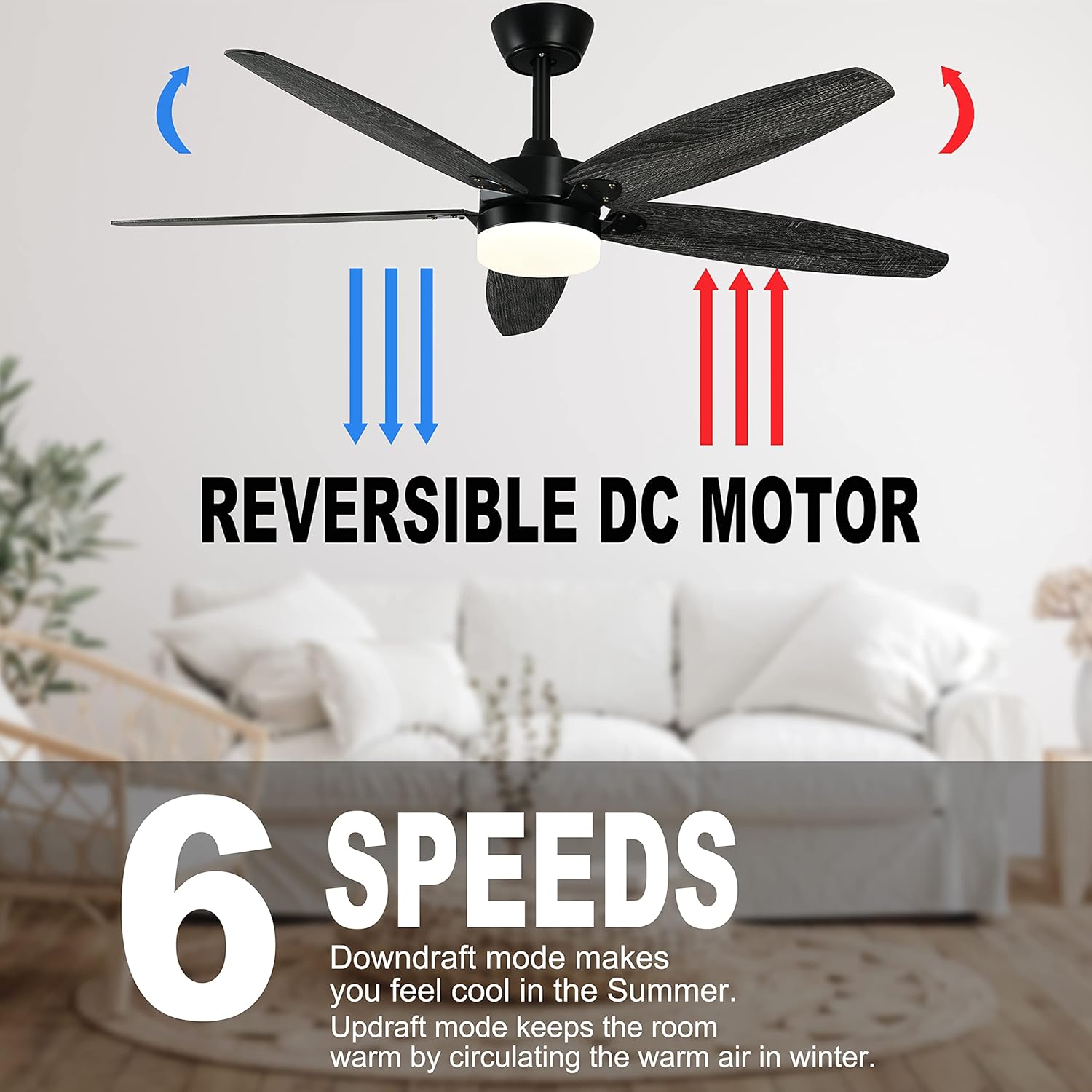

Figure 6: Reversible DC motor for seasonal use.
5.4 Fungsi Timer
Set the fan to automatically turn off after 1, 2, or 4 hours using the timer buttons on the remote control.
6. Pangropéa
Pangropéa rutin ngajamin kinerja optimal sareng umur panjang kipas siling anjeun.
- beberesih: Debu bilah kipas sareng perumahan motor sacara périodik kalayan lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
- Sekrup pengencang: Check all screws on the fan blades and mounting hardware annually to ensure they are secure.
- Kasaimbangan Blade: If the fan wobbles, ensure all blades are securely attached and use a balancing kit if necessary (not included).
7. Cara ngungkulan
Upami anjeun ngalaman masalah sareng kipas siling anjeun, tingali masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas teu ngamimitian | No power; loose wiring; remote control issue. | Check circuit breaker. Ensure all wiring connections are secure. Replace remote batteries. |
| Light flickers or turns on/off randomly | Loose wiring in light kit; faulty LED driver. | Pariksa sambungan kabel lampu. Upami masalahna terus-terusan, hubungi dukungan palanggan. |
| Fan makes rubbing noise | Loose screws on blades or motor housing; blades hitting an obstruction. | Tighten all screws. Ensure blades have clear clearance from ceiling and walls. |
| Kipas ngageter kaleuleuwihi | Loose mounting bracket; unbalanced blades. | Ensure mounting bracket is securely fastened. Check blade screws. Use a blade balancing kit. |
| Kadali jauh teu jalan | batré maot; jauh teu dipasangkeun. | Replace batteries. Refer to your printed manual for remote pairing instructions. |
8. Spésifikasi
- merek: Ohniyou
- model: 1
- Ukuran produk: 52 "D x 52" W x 15" H
- Beurat barang: 16.46 pon
- Jumlah agul: 5
- Panjang sabeulah: 52 inci
- Tipe Motor: Motor DC (Tiasa Dibalikkeun)
- Laju kipas: 6
- Sumber cahaya: LED
- Suhu warna: 3000K, 4500K, 6000K
- Métode kontrol: Jauh
- Tipe Pamasangan: Downrod Mount (suitable for flat and sloped ceilings up to 15 degrees)
- Pamakéan Indoor/Outdoor: Indoor, Outdoor (covered areas)
- Sumber Daya: DC
9. Garansi jeung Rojongan
For warranty information or technical support, please refer to the documentation included with your purchase or contact Ohniyou customer service directly. If you have any questions during the installation or operation process, do not hesitate to reach out for assistance.
