BIHUI LLG12 Laser Level with 12 Lines User Manual

1. Bubuka

This user manual provides comprehensive instructions for the safe and effective operation, maintenance, and troubleshooting of your BIHUI LLG12 Laser Level. Please read this manual thoroughly before using the device to ensure optimal performance and to prevent damage or injury.

2. Parentah Kasalametan

Always adhere to the following safety guidelines when operating the BIHUI LLG12 Laser Level:

• Radiasi laser: Do not stare directly into the laser beam. Avoid direct eye exposure. The laser level emits Class 2 laser radiation.
• Kacamata pelindung: Use the provided laser enhancement glasses (if included) to improve visibility of the laser lines, but note they do not offer eye protection against direct laser exposure.
• Barudak: Jauhkeun alat tina jangkauan barudak.
• Lingkungan: Ulah ngajalankeun tingkat laser dina atmosfir ngabeledug, kayaning ku ayana cairan kaduruk, gas, atawa lebu.
• Modifikasi: Ulah nyobian ngarobih atanapi ngabongkar level laser. Perbaikan ngan ukur kedah dilakukeun ku petugas servis anu diidinan.
• Kasalametan batré: Follow all battery manufacturer instructions for charging, handling, and disposal. Do not expose batteries to excessive heat or fire.
• Panyimpenan: Simpen alat dina tempat anu garing sareng tiis upami henteu dianggo.

3. Produk Langkungview

The BIHUI LLG12 Laser Level is designed for precise leveling and alignment tasks. It projects 12 bright green laser lines (4 horizontal, 8 vertical) for comprehensive coverage.

Figure 3.1: The BIHUI LLG12 Laser Level with its complete set of accessories, including the main unit, carrying case, magnetic bracket, mini tripod, and laser enhancement glasses.

Komponén konci:

• Pemancar Laser: Projects the green laser lines.
• Panél kontrol: Buttons for power, mode selection (horizontal/vertical lines), and pulse mode.
• Kompartemen batré: Imah batré rechargeable.
• Pendulum Lock: Secures the pendulum for transport and manual mode operation.
• Thread pamasangan: For attaching to a tripod or magnetic bracket.
• Bracket Magnét: Allows attachment to metal surfaces.
• Tripod Mini: Provides a stable base for precise adjustments.
• Laser Enhancement Glasses: Improve visibility of laser lines in bright conditions.

Figure 3.2: The BIHUI LLG12 Laser Level and its accessories neatly organized within the custom-fit protective carrying case, ensuring safe transport and storage.

4. Setélan

1. Ngabongkar bungkusan: Carefully remove the laser level and all accessories from the carrying case. Inspect for any signs of damage.
2. Pamasangan batré: Open the battery compartment and insert the rechargeable battery, ensuring correct polarity. Close the compartment securely. Charge the battery fully before first use.
3. panempatan: Place the laser level on a stable, level surface. For elevated or precise positioning, attach it to the mini tripod or magnetic bracket using the mounting thread. Ensure the pendulum lock is in the unlocked position for self-leveling mode.
4. Lingkungan: Ensure the working area is free from obstructions and that the ambient light conditions allow for clear visibility of the laser lines.

5. Parentah Operasi

The BIHUI LLG12 offers multiple operating modes for various applications.

1. Hurungkeun/Pareuman:
   • To power on, slide the pendulum lock switch to the unlocked position. The laser level will automatically enter self-leveling mode and project horizontal and vertical lines.
   • To power off, slide the pendulum lock switch back to the locked position. This also secures the pendulum for transport.
2. Modeu leveling diri:
   • When the pendulum lock is unlocked, the device will self-level within its specified range (typically ±3°). If the device is outside this range, the laser lines will flash rapidly to indicate it cannot self-level. Adjust the position of the device until the lines become stable.
3. Manual Mode (Slope Function):
   • To activate manual mode, power on the device with the pendulum lock in the locked position. The laser lines will be projected but will not self-level, allowing you to project lines at any angle.
   • This mode is useful for tasks like installing handrails or decorative patterns that require non-level lines.
4. Line Selection:
   • Press the 'H' button to cycle through horizontal line combinations (e.g., one horizontal, two horizontal, all horizontal).
   • Press the 'V' button to cycle through vertical line combinations (e.g., one vertical, two vertical, all vertical).
   • Press both 'H' and 'V' buttons to activate all 12 lines.
5. Pulse Mode (Outdoor Mode):
   • Press the pulse mode button (often indicated by a 'P' or a receiver icon) to activate pulse mode. This mode is used when working with a laser receiver (not included) for extended working ranges or in bright outdoor conditions. The laser lines will appear dimmer to the naked eye in this mode.

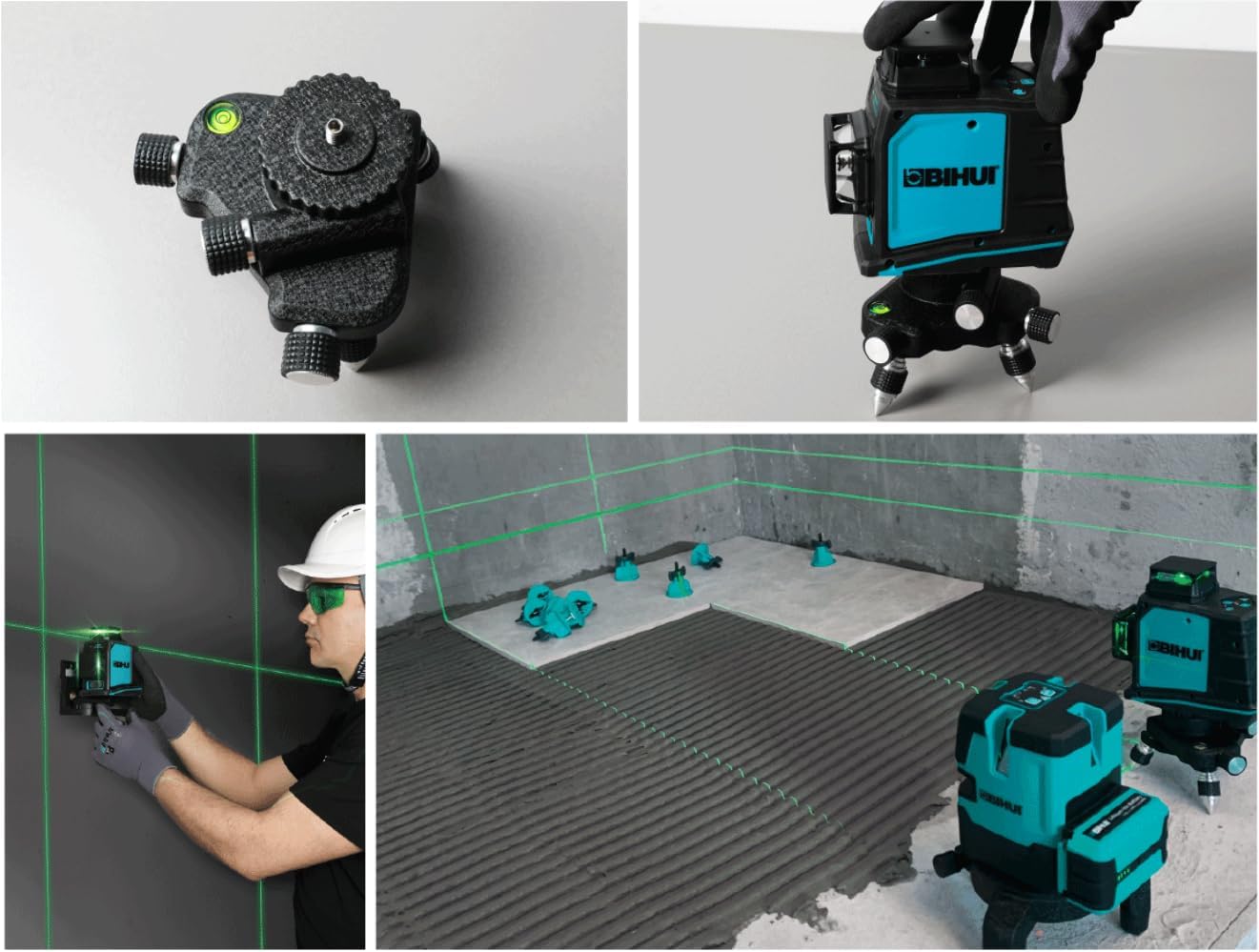

Gambar 5.1: Kelamples of the BIHUI LLG12 Laser Level in use for different construction and DIY applications, demonstrating its versatility for precise alignment on walls and floors.

6. Pangropéa

Proper maintenance ensures the longevity and accuracy of your laser level.

• beberesih: Ngagunakeun lemes, damp cloth to clean the device. Do not use abrasive cleaners or solvents. Keep the laser emission windows clean for optimal beam clarity.
• Panyimpenan: Always engage the pendulum lock before storing or transporting the device. Store the laser level in its protective carrying case in a dry, cool place, away from direct sunlight and extreme temperatures.
• Perawatan batré: If the device will not be used for an extended period, remove the battery to prevent leakage. Recharge the battery periodically to maintain its health.
• Kalibrasi: While the device is factory-calibrated, extreme impacts or prolonged use may affect its accuracy. If you suspect calibration issues, contact authorized service personnel.

7. Cara ngungkulan

Tingali tabel di handap ieu pikeun masalah umum sareng solusina:

8. Spésifikasi

The following are the technical specifications for the BIHUI LLG12 Laser Level:

Note: Specific performance metrics like accuracy, working range, and battery life may vary based on environmental conditions and usage.
