Cosco Kids Progress Car Seat Instruction Manual

Émbaran Kasalametan penting

Please read all instructions carefully before installing and using the Cosco Kids Progress Car Seat. Keep this manual in a safe place for future reference. Failure to follow these instructions can result in serious injury or death.

• Always secure your child in the car seat using the appropriate harness system or vehicle seat belt.
• Pernah ninggalkeun anak anjeun unattended dina korsi mobil.
• Do not use this car seat on a front passenger seat equipped with an active airbag.
• Ensure the car seat is correctly installed and secured in the vehicle according to the instructions for your child's weight and age group.
• This car seat is approved by INMETRO according to ABNT NBR 14400 for children from birth up to 36 kg.

Image: The Cosco Kids Progress Car Seat, showcasing desain sareng sistem harness-na.

Image: Close-up of the car seat indicating INMETRO approval, confirming compliance with safety standards.

Produk Leuwihview

The Cosco Kids Progress Car Seat is a versatile safety seat designed to grow with your child, accommodating weights from 0 to 36 kg (approximately from birth up to 10 years old). It features a comfortable, padded design with multiple recline positions and an adjustable headrest and harness system.

Image: A baby comfortably seated and secured in the Cosco Kids Progress Car Seat, illustrating its suitability for infants.

Setup sareng Instalasi

1. Installation for Infants (Rear-Facing: 0-13 kg)

For newborns and infants weighing 0 to 13 kg, the car seat must be installed in a rear-facing position on the vehicle's back seat. Ensure the car seat is reclined to the most inclined position suitable for newborns.

1. Place the car seat rear-facing on the vehicle's back seat.
2. Route the vehicle's 3-point seat belt through the blue belt guides located on the car seat base.
3. Buckle the vehicle seat belt and pull it tightly to remove all slack, ensuring the car seat is firmly secured and does not move more than 2.5 cm (1 inch) in any direction at the belt path.
4. Verify the recline angle is appropriate for a newborn, preventing the child's head from falling forward.

Image: The car seat positioned rear-facing in a vehicle, demonstrating the correct orientation for infants up to 13 kg.

Image: Close-up of the car seat's base showing the color-coded guides for intuitive seat belt routing during installation.

2. Installation for Toddlers and Older Children (Forward-Facing: 9-36 kg)

For children weighing 9 to 36 kg, the car seat can be installed in a forward-facing position on the vehicle's back seat.

For children 9-18 kg (using 5-point harness):

1. Simpen jok mobil nyanghareup ka hareup dina jok tukang kendaraan.
2. Route the vehicle's 3-point seat belt through the red belt guides on the car seat.
3. Buckle the vehicle seat belt and pull it tightly to remove all slack.
4. Secure the child using the car seat's internal 5-point harness system.

For children 15-36 kg (using vehicle's 3-point seat belt as a booster):

1. Remove the car seat's internal 5-point harness system (refer to the specific instructions for harness removal).
2. Simpen jok mobil nyanghareup ka hareup dina jok tukang kendaraan.
3. Seat the child in the car seat.
4. Route the vehicle's 3-point seat belt over the child and through the car seat's red belt guides, ensuring the lap belt is low on the child's hips and the shoulder belt crosses the center of the child's shoulder and chest.
5. Buckle the vehicle seat belt and pull it tightly to remove all slack.

Image: An older child seated in the car seat, demonstrating the adjustable headrest feature for growing children.

3. Pangaluyuan Sandaran Kepala sareng Harness

The headrest and the 5-point harness system adjust simultaneously in 9 different height positions to ensure a proper fit as your child grows.

1. To adjust the height, locate the adjustment lever at the top of the headrest.
2. Squeeze the lever and slide the headrest up or down to the desired position.
3. Ensure the harness straps are at or slightly below the child's shoulders when rear-facing, and at or slightly above the child's shoulders when forward-facing.

Image: The car seat with its headrest fully extended, illustrating the range of height adjustments available.

Parentah Operasi

1. Ngamankeun Anak Anjeun nganggo Harness 5 Titik

When using the 5-point harness (for children 0-18 kg):

1. Tempatkeun anak anjeun dina korsi mobil kalayan tonggongna rata kana tonggong korsi.
2. Bring the shoulder straps over your child's shoulders and connect the buckle tongues into the crotch buckle.
3. Pull the harness adjustment strap located at the front of the seat to tighten the harness snugly. Ensure you cannot pinch any excess webngusapan taktak budak éta.
4. Posisikeun klip dada dina tingkat kelek.

Image: A close-up of a baby secured in the car seat with the 5-point harness, highlighting the buckle and chest clip.

2. Posisi Ngagoler

The Cosco Kids Progress Car Seat offers multiple recline positions for optimal comfort and safety:

• One Super Inclined Position: Specifically designed for rear-facing installation (0-13 kg) to provide maximum recline for newborns.
• Two Additional Positions: Available for forward-facing installation (9-36 kg), allowing for comfortable seating as the child grows.

To adjust the recline, locate the recline lever (usually at the front or side of the base) and follow the instructions on the seat for selecting the appropriate position.

Image: The car seat shown in various recline angles, illustrating its adjustable positions for child comfort.

Pangropéa

Cleaning the Car Seat

Regular cleaning helps maintain the car seat's hygiene and appearance.

• Fabric Cover and Pads: The fabric cover and internal pads are removable and machine washable. Refer to the care label attached to the fabric for specific washing instructions (e.g., cold water, gentle cycle). Do not use bleach or harsh detergents. Air dry only; do not tumble dry.
• Tali Harness: Lap tali harness nganggo iklanamp lawon sareng sabun hampang. Ulah ngumbah mesin atanapi ngalelepkeun tali harness kana cai, sabab ieu tiasa ngaleuleuskeun webbing.
• Bagian Plastik sareng Logam: Wipe plastic and metal components with a damp lawon jeung sabun hampang. Ulah make cleaners abrasive.

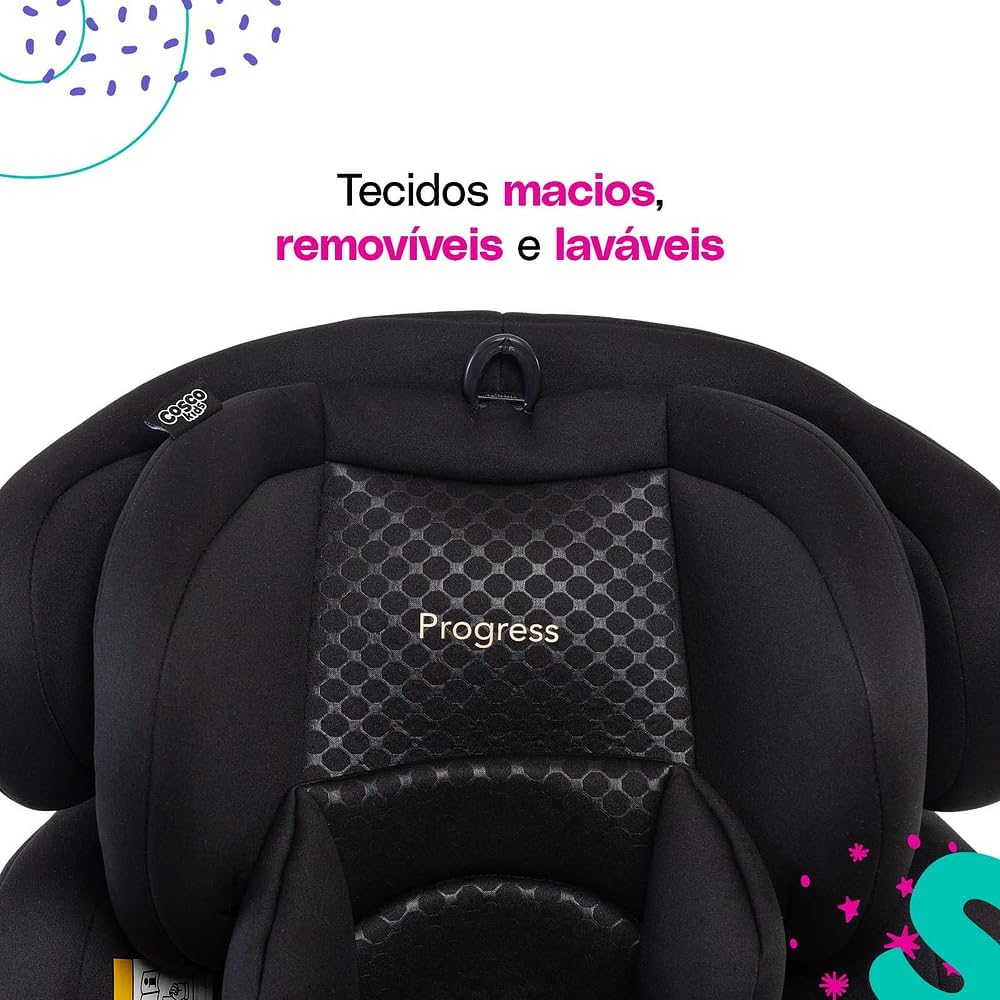

Image: A close-up of the car seat's fabric, highlighting its soft texture and indicating its removable and washable nature.

Pamérésan masalah

If you encounter any issues with your Cosco Kids Progress Car Seat, refer to the following common problems and solutions:

• Harness feels too loose: Ensure the harness straps are properly routed through the correct slots for your child's height. Pull the adjustment strap firmly to remove all slack. Check that the harness is not twisted.
• Car seat feels unstable after installation: Re-read the installation instructions carefully. Ensure the vehicle's seat belt is routed correctly through the designated guides and pulled as tightly as possible. The car seat should not move more than 2.5 cm (1 inch) at the belt path.
• Child appears uncomfortable: Verify that the headrest and harness are adjusted to the correct height for your child. For infants, ensure the infant inserts are properly used and the seat is in the most reclined position.
• Difficulty adjusting headrest/harness: Ensure the adjustment lever is fully squeezed. Check for any obstructions or debris in the adjustment mechanism.

If you are unable to resolve an issue, please contact customer support for further assistance.

spésifikasi

Image: A diagram illustrating the key dimensions (width, depth, height) of the Cosco Kids Progress Car Seat.

Émbaran jaminan

This Cosco Kids Progress Car Seat is covered by a standard manufacturer's warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your original purchase. Keep your proof of purchase for warranty claims.

Extended warranty options may be available for purchase separately. Please check with your retailer or the manufacturer's websitus pikeun leuwih rinci.

Rojongan Palanggan

For any questions, concerns, or assistance with your Cosco Kids Progress Car Seat, please contact our customer support team.

You can find additional resources and contact information by visiting the official Cosco Kids store page:

Visit the Cosco Kids Store
