Bubuka
Hatur nuhun pikeun meuliasing the Studebaker Avanti SB2165 Retro Stereo Boombox. This manual provides essential information for the safe and efficient operation of your new audio system. Please read it thoroughly before use and retain it for future reference.
The Studebaker Avanti SB2165 combines vintage aesthetics with modern functionality, featuring a top-loading CD player, FM stereo radio, Bluetooth receive and transmit capabilities, USB playback, an Aux-in jack, and an integrated 15W subwoofer for enhanced bass. It also includes amber LED light effects that synchronize with music.
Émbaran Kasalametan
- Sumber Daya: Use only the specified AC adapter or the built-in rechargeable battery.
- Cai sareng Uap: Ulah ngalaan unit ka hujan atawa Uap pikeun nyegah seuneu atawa shock bahaya.
- Ventilasi: Pastikeun ventilasi nyukupan. Ulah meungpeuk bukaan ventilasi.
- Panas: Jauhkeun unit tina sumber panas sapertos radiator, register panas, kompor, atanapi aparat sanésna (kalebet ampLiifiers) anu ngahasilkeun panas.
- beberesih: Cabut colokan unit tina stop kontak témbok sateuacan dibersihkeun. Anggo lawon anu lemes sareng garing.
- Palayanan: Entong nyobian ngalayanan produk ieu nyalira. Rujuk sadayana ngalayanan ka tanaga jasa anu mumpuni.
Disetél
Ngabongkar bungkusan
Carefully remove the unit from its packaging. Ensure all accessories are present. Inspect the unit for any signs of damage during transit.
Sambungan Daya
The boombox can be powered by the included AC adapter or its internal rechargeable battery.
- Daya AC: Connect the AC adapter to the DC jack on the unit and then plug it into a standard wall outlet. The unit will automatically begin charging the internal battery.
- Daya Batré: For portable use, ensure the internal rechargeable battery is fully charged. The battery provides power when the AC adapter is disconnected.
Anténeu Setup
Extend the telescopic FM antenna for optimal radio reception. Adjust its position for the best signal clarity.

Parentah Operasi
Kadali Umum
- Hurungkeun/Pareuman: Pencét tombol Daya pikeun ngaktipkeun atanapi mareuman unit.
- Kontrol volume: Use the rotary volume knob to adjust the overall sound level.
- Kontrol Bass/Treble: Use the dedicated rotary knobs to adjust bass and treble levels for personalized audio.

Operasi Pamuter CD
The unit features a top-loading CD player compatible with CD/MP3 discs.
- Buka panutup kompartemen CD.
- Teundeun CD kalayan sisi labélna ngadep ka luhur kana spindel.
- Tutupkeun panutup kompartemen CD pageuh-pageuh.
- Pencét éta CD/USB/BT tombol pikeun milih modeu CD.
- Pencét éta Play / Reureuh tombol pikeun ngamimitian playback.
- Ngagunakeun éta Skip / Pilarian tombol pikeun nganapigasi antara lagu.
- The CD player supports 20 programmable tracks. Refer to the full manual for programming instructions.

Radio Stereo FM
The boombox includes an FM stereo analog radio with a backlit dial scale.
- Pencét éta FM tombol pikeun milih modeu radio FM.
- Ngagunakeun éta Tuning knob to manually tune to your desired radio station.
- Panjangkeun sareng saluyukeun anteneu teleskopik pikeun nampi panarimaan anu optimal.
Bluetooth Operation (Receive and Transmit)
The unit can receive audio from Bluetooth-enabled devices and transmit audio to Bluetooth headphones/speakers.
- Bluetooth Receive:
- Pencét éta CD/USB/BT button to select Bluetooth mode. The display will show "PAIRING".
- On your external Bluetooth device (e.g., smartphone), enable Bluetooth and search for "SB2165".
- Select "SB2165" to pair. Once connected, the display will show "CONNECTED".
- Anjeun ayeuna tiasa ngalirkeun data audio tina alat anjeun ka boombox.
- Pangiriman Bluetooth:
- Ensure the boombox is playing audio from CD, USB, or Aux-in.
- Pencét jeung tahan tombol Pangiriman Bluetooth button (refer to unit diagram for exact location). The unit will enter transmit pairing mode.
- Pasang headphone atanapi spiker Bluetooth anjeun kana mode papasangan.
- The boombox will automatically connect to the nearest available Bluetooth receiving device.
USB Playback
Puterkeun MP3 files from a USB flash drive (up to 32GB).
- Selapkeun USB flash drive kana port USB.
- Pencét éta CD/USB/BT tombol pikeun milih modeu USB.
- Putereun bakal dimimitian sacara otomatis. Anggo Skip / Pilarian tombol pikeun nganapigasi lagu.
Sambungan Aux-in
Sambungkeun alat audio éksternal nganggo kabel audio 3.5mm (teu kaasup).
- Connect one end of a 3.5mm audio cable to the Aux-in jack on the boombox.
- Sambungkeun tungtung nu sejen ka jack headphone atawa kaluaran audio tina alat éksternal Anjeun.
- Pencét éta Aux-in tombol pikeun milih modeu Aux-in.
- Kontrol playback sareng volume tina alat éksternal anjeun.
Pangaruh Lampu LED

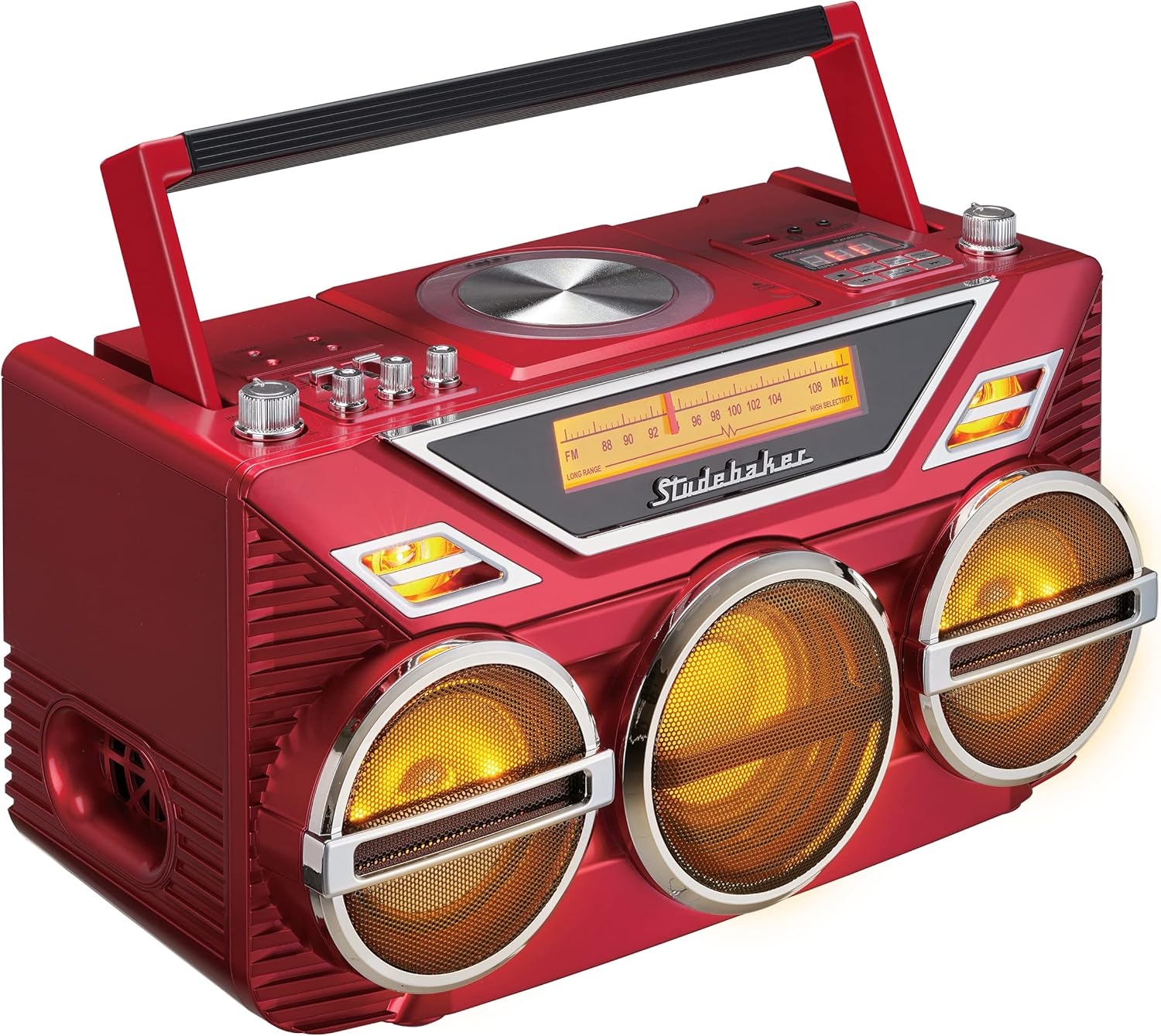

The unit features amber LED light effects that synchronize with the music.
- Pencét éta Tembongkeun cahaya button to toggle the LED light effects on or off.

Pangropéa
Ngabersihkeun Unit
To maintain the appearance of your boombox, wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Perawatan Pamuter CD
To ensure optimal performance of the CD player:
- Anggo CD dina sisi-sisina pikeun nyingkahan sidik jari sareng goresan.
- Bersihkeun CD nganggo lawon anu lemes sareng henteu buluan, usap ti tengah ka luar.
- Do not use CD cleaning sprays or abrasive materials.
Perawatan batré
Pikeun manjangkeun umur batré anu tiasa dicas deui:
- Ngeusi batre sapinuhna saméméh pamakéan munggaran.
- Hindarkeun sering-sering ngosongkeun batré.
- If storing the unit for an extended period, charge the battery to approximately 50% every few months.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya kakuatan | AC adapter not connected; Battery drained | Ensure AC adapter is securely plugged in; Charge the internal battery. |
| Taya sora | Volume too low; Incorrect source selected; Headphones connected | Increase volume; Select correct input source (CD, FM, BT, USB, Aux); Disconnect headphones. |
| CD teu diputer/ngaliwat | CD dirty or scratched; CD inserted incorrectly | Clean or replace CD; Insert CD with label side up. |
| Bluetooth teu nyambung | Device not in pairing mode; Boombox too far from device | Ensure both devices are in pairing mode; Move devices closer (within 30 feet); Disconnect other Bluetooth devices. |
| Panarimaan FM Goréng | Antenna not extended/adjusted | Fully extend and adjust the telescopic antenna for best signal. |
spésifikasi
- model: SB2165
- Ukuran produk: 7.87 x 15.75 x 8.5 inci
- Beurat barang: 11.18 pon
- Sumber Daya: AC Adaptor / Rechargeable Battery
- Téknologi konektipitas: Bantu, Bluetooth
- Tipe Speaker: Stereo with 15W Subwoofer
- Pamuter CD: Top Loading, 20 Programmable Tracks (CD/MP3)
- Radio: FM Stereo Analog Radio with Backlit Dial Scale
- Port USB: For Playback (USB Drive up to 32GB)
- Fitur tambahan: Aux-in Jack, Headphone Jack, DC Jack, Amber LED Light Effects
Garansi sareng Rojongan
For warranty information and customer support, please refer to the documentation included with your product or visit the official Studebaker websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
