1. Parentah Kasalametan
Mangga baca parentah kaamanan ieu kalawan saksama sateuacan ngoperasikeun alat ieu. Simpen manual ieu kanggo rujukan ka hareup.
- Kasalametan listrik: Ensure the appliance is connected to a properly grounded power outlet. Do not use extension cords or ungrounded adapters.
- Ventilasi: Maintain adequate ventilation around the appliance to prevent overheating. Do not block any ventilation openings.
- panempatan: Place the wine cooler on a stable, level surface away from direct sunlight, heat sources, and extreme temperatures.
- Panto Kaca: The appliance features a glass door. Handle with care to avoid breakage.
- Barudak: Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kalebet murangkalih) anu ngirangan kamampuan fisik, indrawi atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana.
- Refrigerant kaduruk: This appliance contains flammable refrigerant. Ensure proper handling and disposal according to local regulations.
2. Produk Langkungview
The Klarstein Vinsider 36 Built-In Uno is a single-zone wine cooler designed for optimal wine storage. It features a sleek design with a glass door and touch control panel.
Fitur konci:
- Kapasitas: Stores up to 36 standard wine bottles with a total volume of 92 liters.
- Single Cooling Zone: Maintains a consistent temperature between 5-20°C, suitable for both red and white wines.
- Panel Kontrol Toél: Easy temperature adjustment and control with an intuitive LCD display.
- Perlindungan UV: Glass door with UV protection shields wine from harmful light.
- Geter lemah: Compressor technology ensures minimal vibration, protecting wine sediment.
- Operasi sepi: Dijalankeun dina tingkat noise low 41 dB.
- Wooden Shelves: Four removable wooden shelves for organized storage.
Komponén produk:
Gambar 2.1: Hareupeun view of the Klarstein Vinsider 36 Built-In Uno wine cooler, showcasing panto kaca sareng rak internalna.

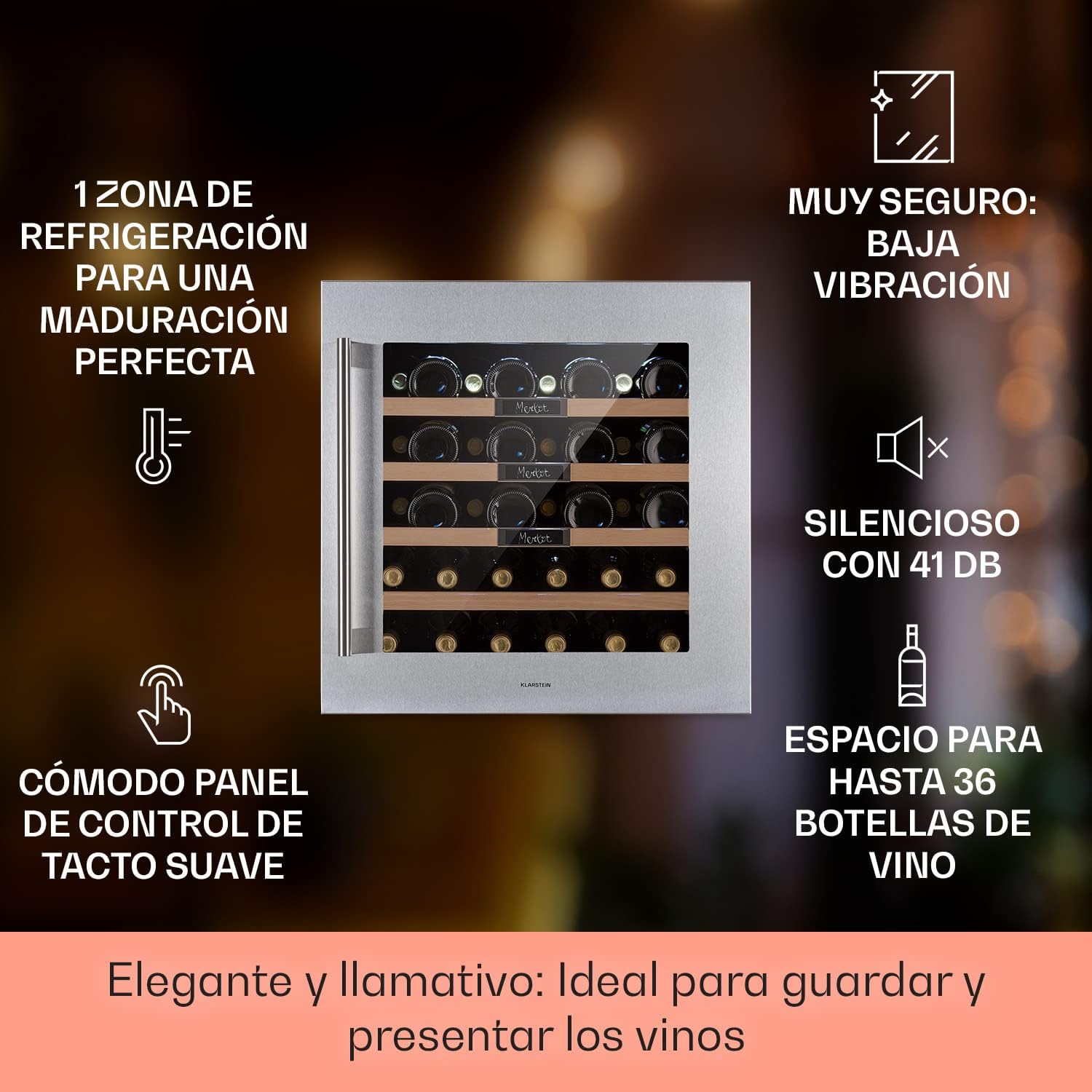

Gambar 2.2: Leuwihview of key features including single cooling zone, low vibration, quiet operation, touch control, and 36-bottle capacity.
Gambar 2.3: Close-up of the UV protective glass, intuitive touch control panel, and removable wooden shelves.
3. Setélan
3.1 Ngabongkar bungkusan
Carefully remove the wine cooler from its packaging. Inspect for any damage during transit. Keep packaging materials for future transport or disposal.
3.2 Panempatan sareng Ventilasi
Choose a location that is well-ventilated and away from direct sunlight or heat sources. Ensure there is sufficient space around the appliance for proper air circulation. This model is designed for built-in installation.
Gambar 3.1: Example of the wine cooler integrated into kitchen cabinetry, showing its dimensions for a perfect fit.
3.3 Naratas
Adjust the leveling feet at the bottom of the appliance to ensure it is stable and level. This is crucial for proper operation and to minimize vibration.
3.4 Sambungan Daya
Before plugging in, allow the appliance to stand upright for at least 2-4 hours to allow the refrigerant to settle. Connect the power cord to a dedicated, grounded electrical outlet.
3.5 Mimiti Mimiti
After connecting to power, the wine cooler will begin to cool. Allow it to run for several hours empty to reach the desired temperature before loading bottles.
4. Parentah Operasi
4.1 Kontrol Suhu
The wine cooler features a touch control panel with an LCD display. Use the up and down arrows to set your desired temperature between 5°C and 20°C. The display will show the current internal temperature.

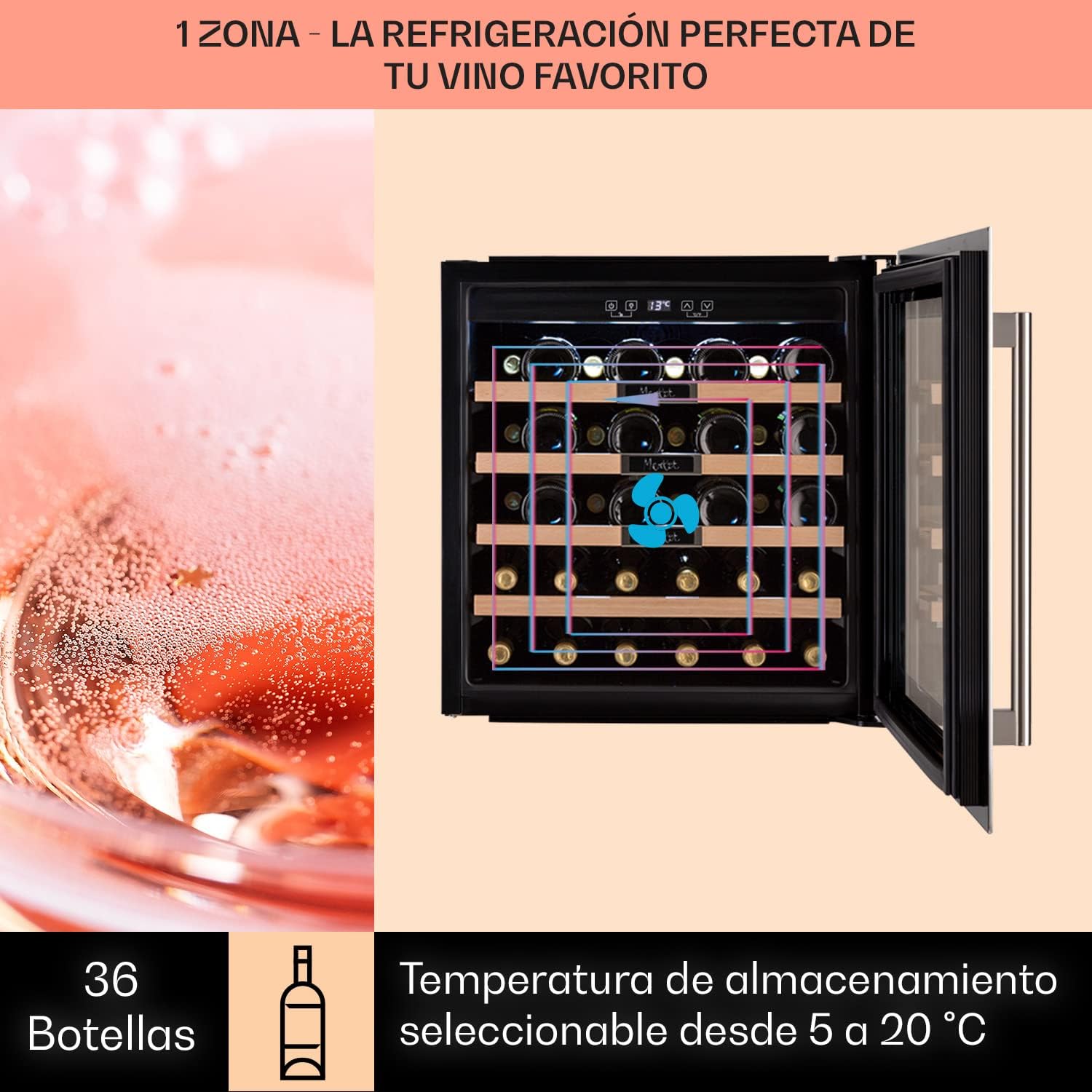

Gambar 4.1: The single cooling zone ensures uniform temperature distribution for optimal wine preservation.
4.2 Cahaya internal
The internal LED lighting can be switched on or off via the control panel. This allows you to illuminate your wine collection without affecting the internal temperature.
4.3 Ngamuat Botol
Place wine bottles horizontally on the wooden shelves to keep corks moist. Ensure bottles are not touching the back wall to allow for proper air circulation. The shelves are removable for flexible storage.
Gambar 4.2: The compressor cooling system and well-insulated glass door contribute to low vibration and stable temperatures.
5. Pangropéa
5.1 Ngabersihan Interior
To clean the interior, unplug the appliance and remove all bottles and shelves. Wipe the interior surfaces with a soft cloth dampdikumbah ku larutan deterjen anu hampang. Bilas ku cai bersih teras garingkeun dugi ka garing sateuacan masang deui rak sareng botol.
5.2 Ngabersihan Exterior
Clean the exterior surfaces with a soft cloth and a mild, non-abrasive cleaner. For the glass door, use a glass cleaner. Avoid harsh chemicals that could damage the finish.
5.3 Defrosting
The Klarstein Vinsider 36 Built-In Uno features an automatic defrosting system. Frost will melt and drain into an evaporation tray at the back of the unit. Ensure the drain hole is not blocked.
5.4 Panto Seal Pangropéa
Regularly check and clean the door gasket to ensure a tight seal. A damaged or dirty gasket can lead to inefficient cooling and increased energy consumption.
6. Cara ngungkulan
If you encounter issues with your wine cooler, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Perkakas henteu tiasa dianggo | Taya catu daya; kabel listrik teu dipasang; circuit breaker tripped. | Pariksa sambungan kakuatan; ngareset circuit breaker. |
| Suhu teu cukup tiis | Door not closed properly; excessive door opening; warm ambient temperature; poor ventilation; temperature setting too high. | Ensure door is sealed; reduce door openings; move appliance to cooler location; ensure proper ventilation; lower temperature setting. |
| Geter atawa noise kaleuleuwihan | Appliance not level; bottles touching each other or interior walls. | Saluyukeun suku anu ngaratakeun; susun deui botol pikeun nyegah kontak. |
| Tumpukan Uap di jero | High humidity; frequent door openings; damaged door seal. | Ensure door is sealed; reduce door openings; check and clean door gasket. |
Lamun masalah persists sanggeus nyobian solusi ieu, mangga ngahubungan rojongan customer.
7. Spésifikasi
- merek: KLARSTEIN
- Jumlah modél: Vinsider 36 Built-In Uno
- Kapasitas: 92 Liter / 36 Botol
- Rentang Suhu: 5-20°C
- Tingkat Noise: 41 dB
- Ukuran (W x D x H): 54.5 x 54.5 x 58.6 cm (kira-kira 55 x 55 x 59 cm)
- beurat: 32 kg
- Jenis pamasangan: Diwangun-di
- Fitur husus: Glass door, Touch control, LCD display, Elegant lighting, Low noise, Automatic defrosting.
- Patalina Basis Data EPREL: https://eprel.ec.europa.eu/qr/1223069
Gambar 7.1: Energy label for the wine cooler, showing energy efficiency class G and annual energy consumption of 139 kWh/annum.
Gambar 7.2: Detailed product information sheet with technical specifications and compliance details.
8. Garansi jeung Rojongan
Your Klarstein Vinsider 36 Built-In Uno wine cooler comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions.
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Klarstein customer support. Contact details can typically be found on the manufacturer's websitus atanapi dina dokuméntasi pameseran Anjeun.
