Welcome to the Ovsuqu A3 R1390 UV Flatbed Printer user manual. This guide provides essential information for setting up, operating, maintaining, and troubleshooting your new UV printer. Please read this manual thoroughly before operating the device to ensure safe and efficient use.
Figure 1: Ovsuqu A3 R1390 UV Flatbed Printer Overview
Produk Leuwihview
The Ovsuqu A3 R1390 UV Flatbed Printer is designed for versatile printing on a wide range of materials. It features an R1390 printhead capable of simultaneous color and white printing, a white ink circulation system to prevent nozzle blockage, and support for both flatbed and rotary axis printing.
Fitur konci:
- R1390 Printhead: Enables simultaneous color and white ink printing for vibrant and opaque results.
- White Ink Circulation System: Prevents white ink sedimentation and nozzle clogging, ensuring consistent print quality and reducing ink waste.
- Percetakan serbaguna: Supports printing on various flat materials (plastic, wood, leather, metal, etc.) and cylindrical items (bottles, cups, golf balls) with the included rotary axis.
Figure 2: Diagram illustrating the White Ink Circulation System, designed to prevent ink precipitation and blockage, optimizing ink usage.
Figure 3: The A3 R1390 UV Printer configured for cylindrical object printing using the rotary axis.
Guide Setup
1. Unboxing sareng Inspeksi Awal
Carefully remove all components from the packaging. Verify that all items listed in the packing list are present and undamaged. Keep the original packaging for future transport or service needs.
Figure 4: A visual representation of the items included in the printer's packing list, such as the printer unit, rotary axis, ink, and various accessories.
2. Water Pump Setup
Before the first use, inject cooling fluid or water into the water pump. Regularly inspect the water tank monthly to ensure adequate water levels. This is crucial for the printer's cooling system.

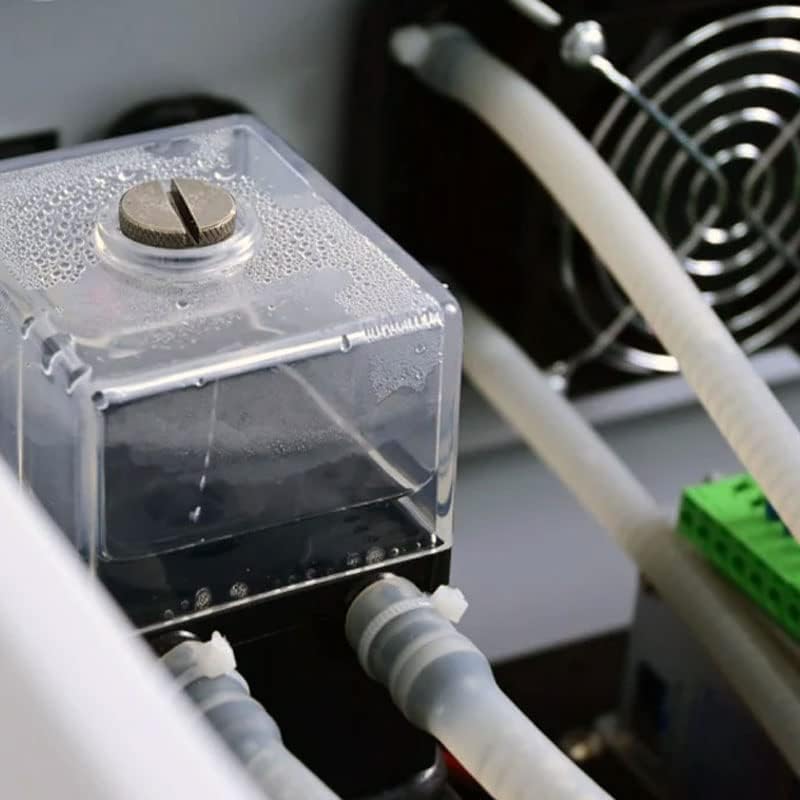

angka 5: Tutup-up view of the water pump system, essential for maintaining optimal operating temperature.
Figure 6: Warning label indicating the water inlet and the importance of filling the cooling fluid before operation.
3. Ink Loading
Carefully add the appropriate UV inks (color and white) into their designated reservoirs. Ensure proper connection of all ink tubes to prevent leaks and maintain the white ink circulation system.
Figure 7: The ink system with clearly labeled bottles for different UV ink colors, including white, and their connections.
Parentah Operasi
The A3 R1390 UV printer offers versatile printing capabilities for various materials and applications.
1. Flatbed Printing
Place your flat material (e.g., phone case, wood, acrylic) securely on the flatbed. Use the software to prepare your design and initiate the printing process. The printer supports various effects, including embossed textures.
Figure 8: A small object positioned on the printer's flatbed, ready for UV printing.
Video 1: Demonstration of the UV Printer creating an embossed effect on a flat surface.
2. Rotary Axis Printing (Cylindrical Items)
Attach the rotary axis to the printer. Secure cylindrical items such as bottles, cups, or pens onto the rotary fixture. Adjust settings in the software for cylindrical printing to ensure accurate and consistent results around the curved surface.
Video 2: An A3 UV Printer demonstrating the printing process on four bottles simultaneously, including a varnish effect.
Video 3: The UV Printer in action, printing a design onto a phone case.
3. DTF Printing (Stickers)
For DTF (Direct to Film) printing, load the specialized film onto the printer. The printer will apply the design, which can then be transferred to various surfaces as stickers. This method is ideal for creating custom labels and decals.
Video 4: A demonstration of the UV DTF Printer creating prints on both gold films and ordinary AB films, showcasing the versatility for sticker production.
Figure 9: A diagram showcasing various UV print samples on different materials, including acrylic, fabric, cylindrical cans, wood, glass bottles, and phone cases.
Pangropéa
Regular maintenance is crucial for the longevity and optimal performance of your Ovsuqu A3 R1390 UV Flatbed Printer. Follow these guidelines:
- Pembersihan Kepala Cetak: Perform daily automatic printhead cleaning cycles. If print quality degrades, perform a manual cleaning using a lint-free cloth and appropriate cleaning solution.
- White Ink Circulation: Ensure the white ink circulation system is always active to prevent pigment settling.
- Water Pump Check: Verify the water level in the cooling system monthly. Refill with distilled water or cooling fluid as needed.
- beberesih umum: Keep the print bed and surrounding areas clean from dust and ink residue. Use a soft, damp cloth for external surfaces.
- Ink Expiration: Monitor ink expiration dates and replace cartridges or bottles as necessary to maintain print quality.
Pamérésan masalah
Ieu sababaraha masalah umum sareng solusi poténsialna:
- Nozzle Clogging: If print quality shows lines or missing colors, perform a printhead cleaning cycle. If persistent, consider a deeper manual clean or professional service.
- Poor Ink Adhesion: Ensure the material surface is clean and properly pre-treated (if required). Check UV lamp intensity and curing settings.
- White Ink Sedimentation: Verify the white ink circulation system is functioning correctly. Shake white ink bottles gently before loading if they have been stored for a long time.
- Printer teu ngabales: Check all cable connections (power, USB). Ensure the emergency stop button is not engaged. Restart the printer and computer.
- Kasalahan parangkat lunak: Consult the software manual or contact support. Ensure your operating system and printer drivers are up to date.
spésifikasi
Detailed technical specifications for the Ovsuqu A3 R1390 UV Flatbed Printer:
| Fitur | Spésifikasi |
|---|---|
| Ngaran modél | A3 R1390 UV Printer |
| Téhnologi percetakan | UV |
| Printhead | R1390 (Color & White) |
| Ukuran Média Maksimum | 10.5 x 16.5 inches (A3) |
| Jinis Média Dirojong | Plastic, PVC, ABS, Acrylic, Wood, Bamboo, Leather, Stone, Metal, Paper, Bottles, Cups, Golf Balls, Phone Cases, etc. |
| Tipe Tinta | UV Curable Ink |
| Warna Tinta | Black, Cyan, Magenta, Yellow, White, Varnish |
| White Ink System | Circulation System |
| Konektipitas | USB |
| Dimensi produk | 29.92 x 26.77 x 29.53 inci |
| Item Beurat | 176 pon |
Figure 10: Diagram illustrating the compact dimensions of the Ovsuqu A3 R1390 UV Flatbed Printer.
Garansi sareng Rojongan
Ovsuqu provides comprehensive after-sales support for your A3 R1390 UV Flatbed Printer.
- Garansi: The machine comes with a 2-year warranty. Please note that damaged ink contact parts are not covered under warranty.
- Rojongan: We offer comprehensive installation videos, detailed user manuals, accessory warranties, and lifetime remote assistance.
- Kontak: If you encounter any issues or have questions, please contact our professional after-sales team for consultation, exchange, or refund.
