Bubuka
This manual provides detailed instructions for the installation, operation, and maintenance of your BLNAN 18W LED Ceiling Light with Motion Sensor. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Image: Two BLNAN 18W LED Ceiling Lights with motion sensors installed.
Émbaran Kasalametan
Salawasna tuturkeun pancegahan kaamanan dasar nalika masang sareng ngoperasikeun produk listrik pikeun ngirangan résiko seuneu, kejutan listrik, sareng tatu pribadi.
- Ensure the power supply is disconnected at the circuit breaker before installation or maintenance.
- Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni upami anjeun henteu yakin.
- Do not install in locations with high humidity or extreme temperatures.
- Entong nyobian ngarobih produk.
- Jauhkeun tina jangkauan barudak.
Eusi pakét
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- BLNAN 18W LED Ceiling Light (2 units)
- Mounting accessories (screws, wall anchors, wire connector)
- Manual pamaké
Fitur produk
The BLNAN 18W LED Ceiling Light offers advanced features for convenient and efficient lighting:
- Sénsor gerak terpadu: Automatically detects movement within a 3.5m range and 120° sensing angle, activating the light.
- Adjustable Hold Time: Selectable light duration of 30s, 120s, or 180s after motion detection.
- Tilu Modeu Cahaya: ON (always on), AUTO (motion + light sensor), and G (motion sensor only).
- Suhu Warna anu tiasa diatur: Choose between 3000K (Warm White), 4000K (Natural White), and 5000K (Cool White).
- Énergi Éfisién: 18W power consumption with 1800LM output, suitable for 5-10m² areas. Standby power is only 0.25W.
- Desain ultra-ipis: Modern 2.5 cm ultra-thin profile with backlight for uniform, soft illumination.
- Konstruksi kualitas luhur: Uses high-quality SMD2835 lamp beads and V2 flame-retardant polycarbonate material for durability and safety.
- Pamasangan Gampang: Lightweight polycarbonate material and metal safety cable simplify mounting without needing a ground wire.
Gambar: Detil view of the motion sensor and adjustment switches.
Parentah instalasi
Follow these steps to install your BLNAN LED Ceiling Light:
- Nyiapkeun pikeun Instalasi: Disconnect the main power supply at the circuit breaker before starting. Ensure the mounting surface is clean and dry.
- Pilih Suhu Warna: Before mounting, use the slide switch on the back of the light panel to select your desired color temperature (3000K, 4000K, or 5000K). This setting cannot be changed easily after installation.
- Pasang Base Plate: Position the light base on the ceiling or wall. Mark the drilling points. Drill holes and insert wall anchors if necessary. Secure the base plate using the provided screws.
- Sambungkeun Wiring: Hang the light fixture using the metal safety cable to prevent it from falling during wiring. Connect the live and neutral wires from your ceiling to the corresponding terminals on the light fixture using the provided wire connector. This light does not require a ground wire due to its insulated polycarbonate material.
- Pasang Lampu Lampu: Align the light fixture with the mounted base plate. Push and rotate the light to securely attach it to the base.
- Mulangkeun Daya: Sakali lampu parantos dipasang kalayan pageuh, pasang deui daya dina pemutus sirkuit.
Image: Adjusting color temperature before installation.
Image: Step-by-step installation guide.
Recommended Installation Height and Detection Range:
- Ceiling Mount: Recommended height 2.4 - 3.5 meters, with a maximum detection range of 6 meters.
- Wall Mount: Recommended height 1.8 - 2.4 meters.

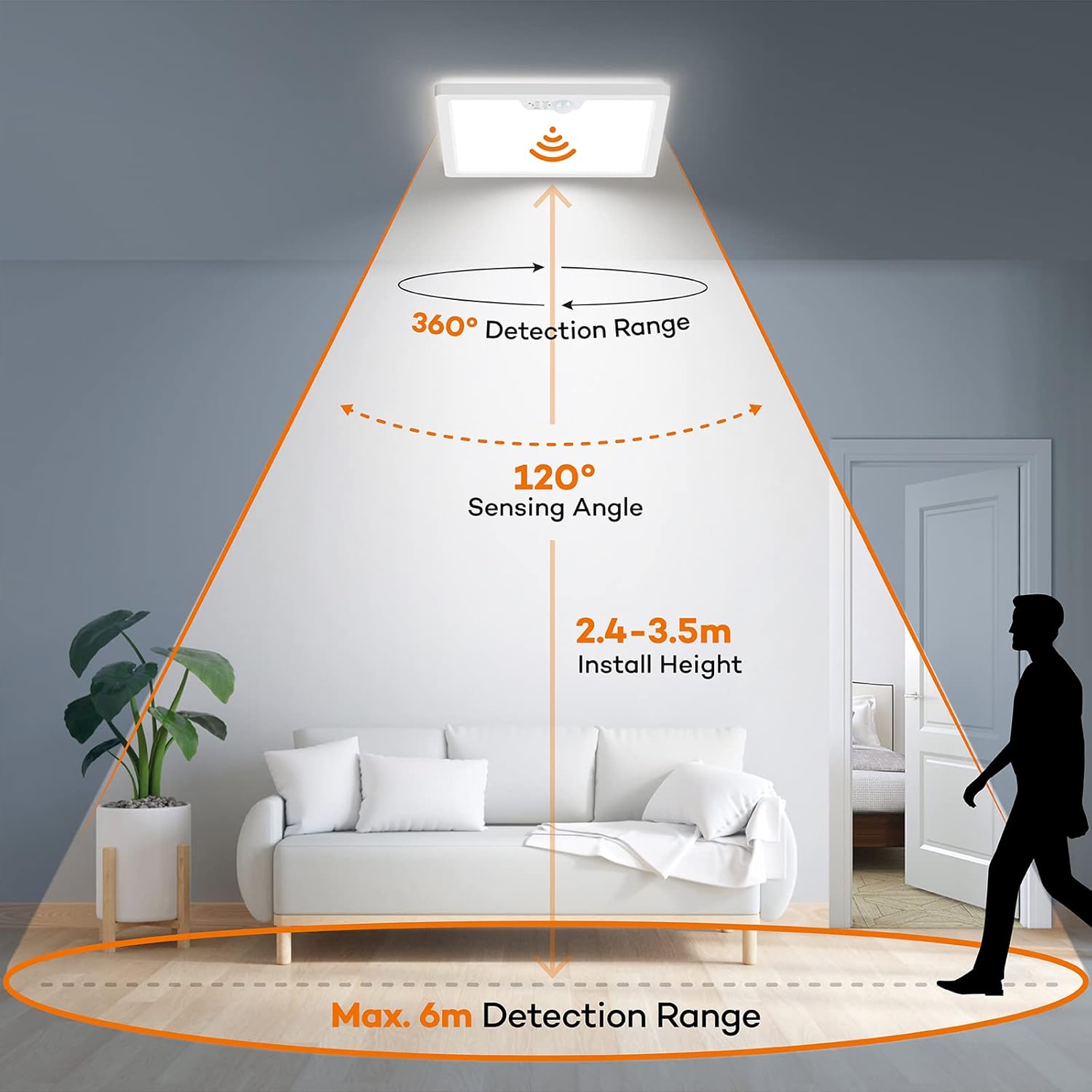

Image: Motion sensor detection range and sensing angle.
Image: Recommended installation heights for wall and ceiling mounting.
Parentah Operasi
Your BLNAN LED Ceiling Light features adjustable settings for motion detection and light duration.
1. Adjusting Detection Modes and Hold Time
Use the slide switch located on the surface of the light, next to the motion sensor, to select the desired mode and hold time:
Gambar: Leuwihview of the three detection modes.
- Mode ON: The light will remain continuously on, functioning as a standard ceiling light. Motion detection is disabled.
- Mode otomatis: (Motion Sensor + Light Sensor) The light will only activate at night or in low-light conditions when motion is detected. During the day, it remains off.
- Mode G: (Motion Sensor Only) The light will activate whenever motion is detected, regardless of ambient light conditions (day or night).
For AUTO and G modes, use the adjacent slide switch to set the light duration (hold time) after motion detection:
- 30s: Lampuna tetep hurung salami 30 detik.
- 120s: Lampuna tetep hurung salami 120 detik.
- 180s: Lampuna tetep hurung salami 180 detik.
2. Nyaluyukeun Suhu Warna
The color temperature is set using a slide switch on the back of the light panel. This should be adjusted before final installation.
- 3000K: Warm White light, suitable for cozy environments.
- 4000K: Natural White light, ideal for general illumination.
- 5000K: Cool White light, suitable for task-oriented areas.
Image: Visual representation of different color temperatures.
Pangropéa
To ensure optimal performance and longevity of your BLNAN LED Ceiling Light:
- beberesih: Cabut daya sateuacan dibersihkeun. Lap beungeutna ku lawon anu lemes sareng garing. Entong nganggo pembersih atanapi pangleyur anu abrasif.
- Pamariksaan: Periodically check for any loose connections or damage. If any issues are found, disconnect power and consult a qualified technician.
- The LED light source is designed for long-term use (30,000 hours) and does not require bulb replacement.
Pamérésan masalah
If you encounter issues with your BLNAN LED Ceiling Light, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lampu henteu hurung. | No power supply; Incorrect wiring; Sensor not detecting motion. | Check circuit breaker and wall switch. Verify wiring connections. Ensure sensor is not obstructed and is set to an appropriate mode (AUTO or G). |
| Lampu terus hurung. | Mode set to "ON"; Constant motion in detection area. | Switch mode to "AUTO" or "G". Ensure there is no continuous movement within the sensor's range. |
| Light turns on randomly. | Sensor sensitivity too high; Environmental factors (e.g., drafts, small animals, insects). | Ensure the sensor area is clear of obstructions or sources of false triggers. Consider adjusting the sensor's position if possible, or ensure it's not in a high-traffic area if random activation is problematic. |
| Lampu henteu pareum. | Hold time set too long; Continuous motion. | Check the hold time setting (30s, 120s, 180s). Ensure no continuous motion is detected. |
| Light only works at night. | Mode set to "AUTO". | If you want it to work during the day, switch the mode to "G". |
spésifikasi
Detailed technical specifications for the BLNAN 18W LED Ceiling Light:
| Fitur | Spésifikasi |
|---|---|
| merek | BLNAN |
| Nomer modél | LS-CL-I18W-M-C |
| Ukuran (L x W x H) | 22 x 22 x 2.5 cm |
| Beurat | 1.05 kg |
| Bahan | Polikarbonat (PC) |
| Kakuatan | 18 Watt |
| Fluks Luminous | 1800 Lumén |
| Voltage | AC180-240V (230 Volts) |
| Suhu Warna | 3000K / 4000K / 5000K (Saluyukeun) |
| Indéks Rendering Warna (CRI) | >80 |
| Sénsor gerak Sudut Deteksi | 120° |
| Rentang Deteksi Sensor Gerak | Nepi ka 3.5 méter |
| Tahan Setélan Waktu | 30s / 120s / 180s |
| LED Lifespan | 30,000 jam |
| Énergi Efficiency Rating | F (as per EU standards) (Tautan EPREL) |
| Tipe Pamasangan | Gunung siling |
| Jero rohangan / pamakéan outdoor | jero rohangan |
Gambar: Label Énergi Énergi.
Garansi sareng Rojongan
For any questions, concerns, or technical support regarding your BLNAN LED Ceiling Light, please contact the seller or manufacturer directly through your purchase platform. Keep your purchase receipt for warranty claims.
