iCarsoft i800 Plus OBD2 Scanner Diagnostic Tool User Manual

1. Produk Langkungview

The iCarsoft i800 Plus is an advanced OBD2 scanner designed for comprehensive vehicle diagnostics. It provides a range of functions including reading and clearing fault codes, monitoring live data, performing I/M readiness tests, and checking battery health.

Image: The iCarsoft i800 Plus scanner displaying its main menu and diagnostic features.

2. Naon dina Box

Pastikeun yén sadaya item aya dina bungkusan:

• iCarsoft i800 Plus OBD2 Scanner
• Manual pamaké
• PC Connecting Cable

Image: The iCarsoft i800 Plus package contents, including the scanner, user manual, and PC cable.

3. Setup jeung Operasi Awal

Follow these steps to set up and begin using your iCarsoft i800 Plus diagnostic tool:

1. Manggihan Port OBDII: Port OBDII biasana ayana di handapeun dasbor di sisi supir kendaraan.
2. Sambungkeun scanner: Plug the scanner's cable firmly into the vehicle's OBDII port.
3. Hurungkeun Ignition: Turn the vehicle's ignition to the 'ON' position without starting the engine. The scanner will power on automatically.
4. Napigasi Menu: Use the arrow keys and 'ENTER' button on the scanner to navigate through the diagnostic menu.

Operation Guide Video

Video: This video demonstrates the setup and basic operation of the iCarsoft i800 Plus OBD2 Scanner, including connecting to the vehicle, reading and clearing fault codes, and viewngolah data langsung.

4. Fungsi Operasi

The iCarsoft i800 Plus offers a variety of diagnostic functions:

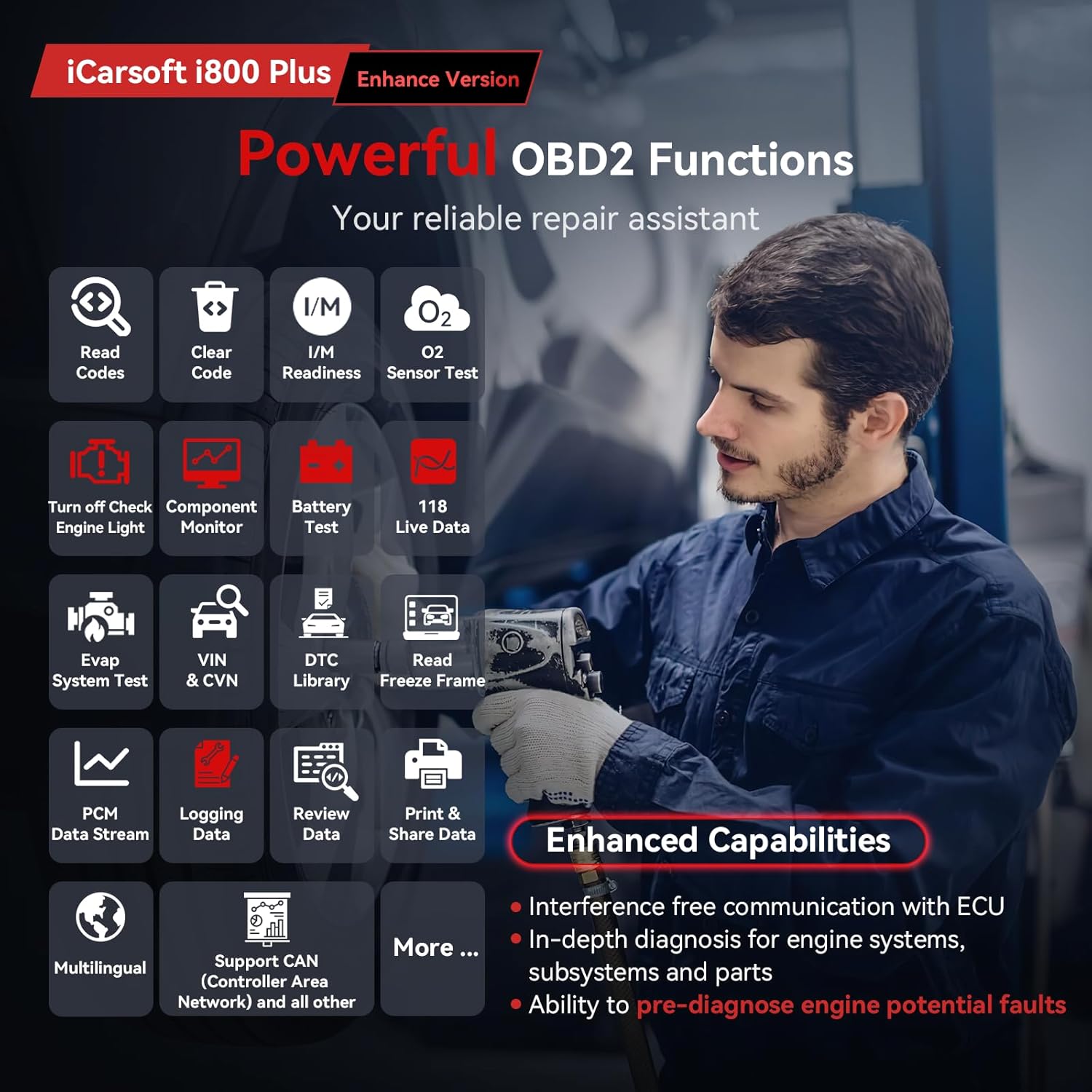

Image: The iCarsoft i800 Plus displaying its comprehensive OBD2 functions.

4.1. Maca & Hapus Kodeu Kasalahan

This function allows you to retrieve Diagnostic Trouble Codes (DTCs) from the vehicle's Engine Control Unit (ECU) and clear them. Clearing codes will turn off the Check Engine Light (MIL).

1. Tina ménu utama, pilih 'OBDII/EOBD'.
2. Milih 'Read Codes' ka view kodeu ayeuna, nu keur ditunda, jeung permanén.
3. Pikeun mupus kodeu, pilih 'Erase Codes'. Confirm the action when prompted. Ensure the ignition is on but the engine is off before clearing codes.

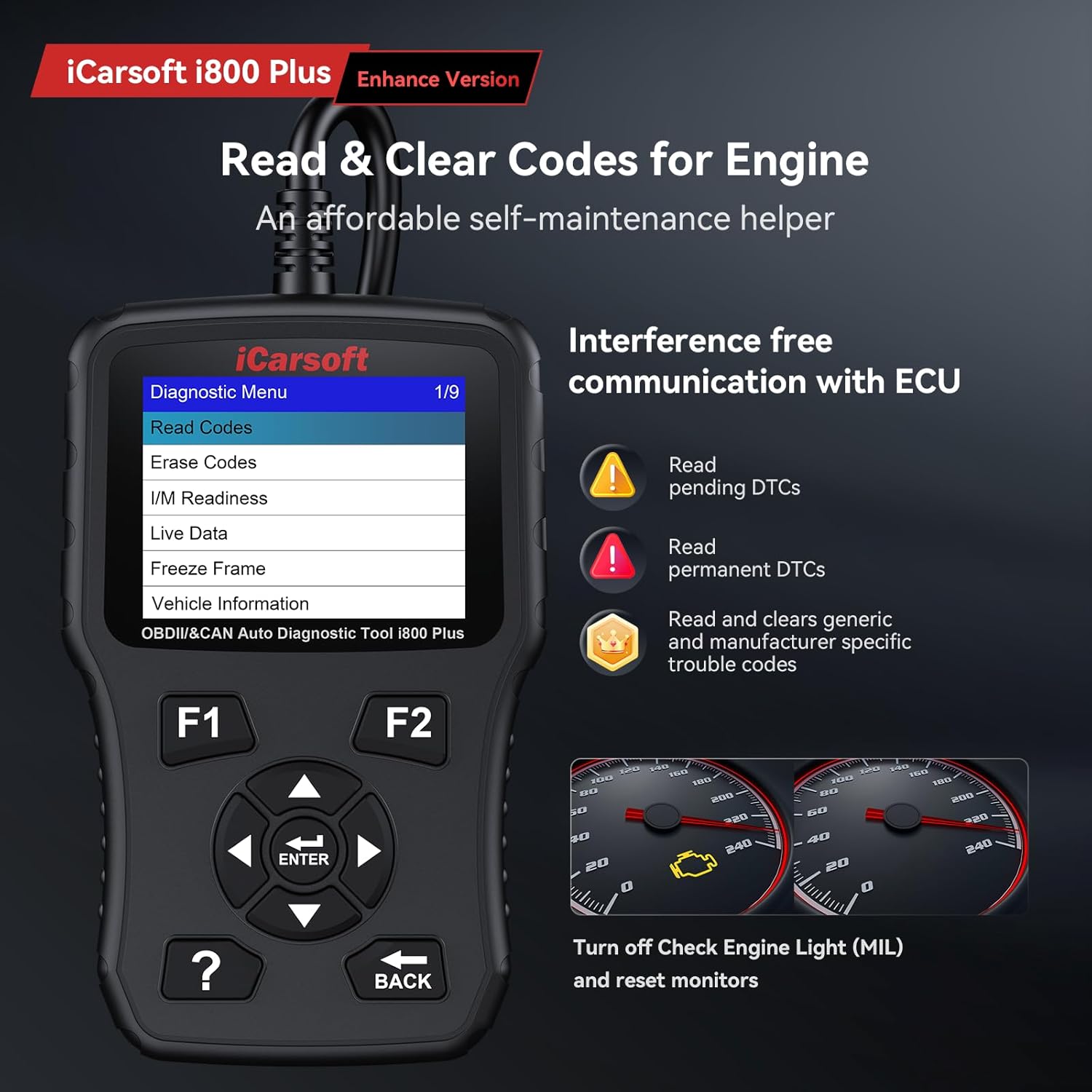

Image: The scanner's screen showing options for reading and erasing kodeu.

4.2. Abdi / M Kasadiaan

The I/M Readiness function checks the status of the vehicle's emission-related monitoring systems to determine if they are ready for an inspection. A 'Ready' status indicates that the system has completed its diagnostic tests.

1. Tina ménu utama, pilih 'OBDII/EOBD'.
2. Milih 'I/M Readiness' ka view the status of various monitors (e.g., Misfire Monitor, Fuel System Monitor, Catalyst Monitor).

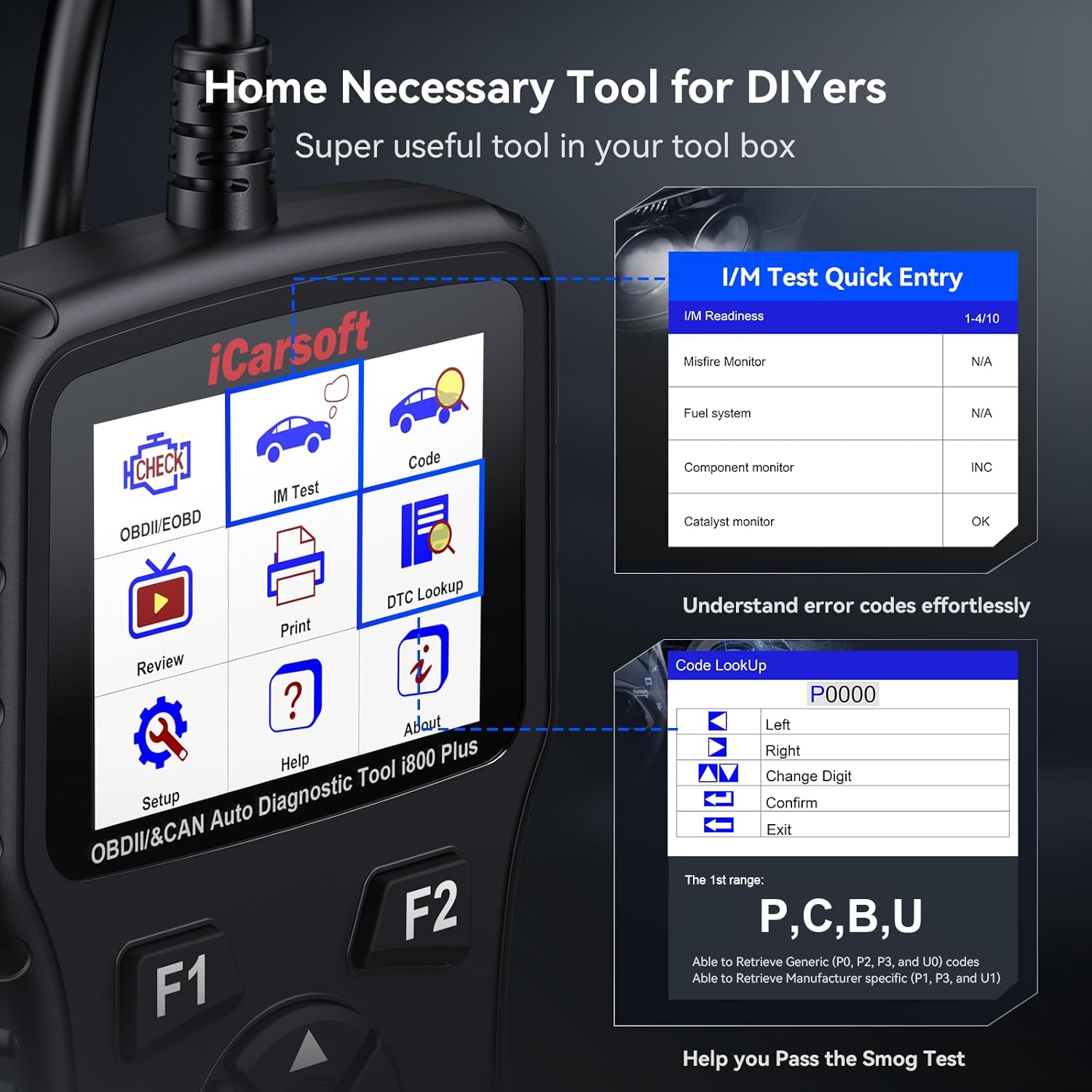

Image: The scanner displaying I/M Readiness monitor status.

4.3. Live Data Monitor

Monitor real-time data from the vehicle's sensors and components. This includes parameters such as engine speed, ignition coil voltage, transmission temperature, oil pressure, coolant temperature, and short-term fuel trim. This data can be displayed in text or graphical format.

1. Tina ménu utama, pilih 'OBDII/EOBD'.
2. Milih 'Live Data'. You can select specific parameters to view or choose 'All Supported' to see all available data.
3. Use the arrow keys to scroll through data and the 'ENTER' button to switch between text and graph views.

Image: The scanner displaying live data in both numerical and graphical formats.

4.4. Freeze Data pigura

When an emission-related fault occurs, the ECU stores a 'freeze frame' of vehicle operating conditions at the time of the fault. This data can help identify the cause of the problem.

1. Tina ménu utama, pilih 'OBDII/EOBD'.
2. Milih 'Freeze Frame' ka view data nu disimpen.

4.5. O2 Monitor Test

This function retrieves the oxygen sensor monitor test results for the most recently completed tests from the vehicle's on-board computer.

1. Tina ménu utama, pilih 'OBDII/EOBD'.
2. Milih 'O2 Monitor Test' and select the desired sensor to view its test results.

4.6. Pilarian DTC

The built-in DTC library allows you to look up definitions for generic and manufacturer-specific trouble codes directly on the device.

1. Tina ménu utama, pilih 'DTC Lookup'.
2. Enter the DTC code using the arrow keys to change digits and 'ENTER' to confirm.

4.7. Battery Charging System Check

Monitor the vehicle's battery health and charging system status. This helps prevent vehicle startup failures or electrical issues caused by battery problems.

1. Tina ménu utama, pilih 'OBDII/EOBD'.
2. Milih 'Battery Test' ka view detailed battery voltage information, often presented with a dynamic graph.

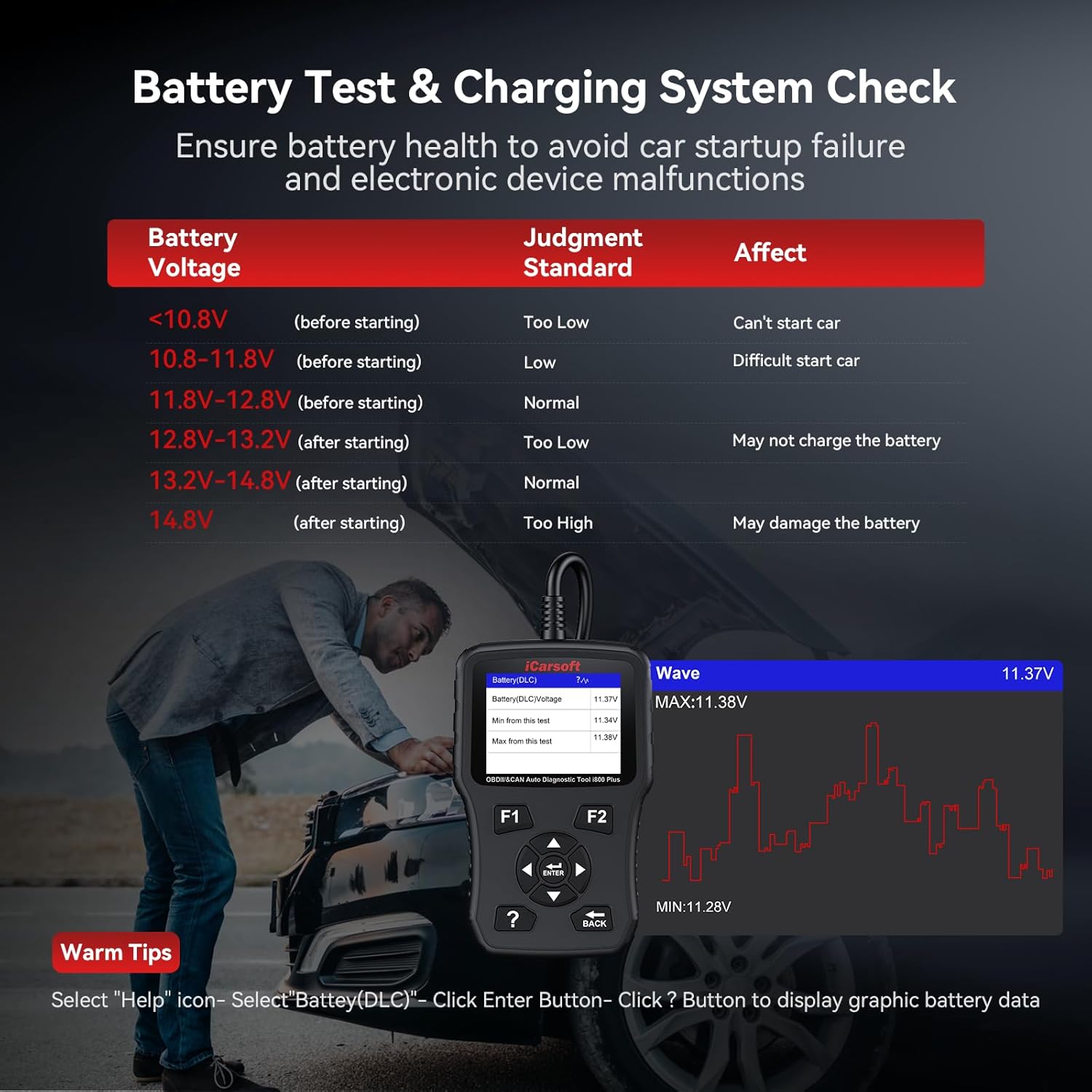

Image: The scanner displaying battery voltage jeung status sistem ngecas.

5. Pangropéa

5.1. Apdet parangkat lunak

iCarsoft provides lifetime free updates for the i800 Plus scanner. Regularly updating the software ensures access to the newest car parameter database for in-depth engine system diagnosis and improved communication with ECU modules. Connect the device to a computer via the provided USB cable and visit the official iCarsoft websitus kanggo parentah apdet sareng parangkat lunak.

5.2. beberesih

Pikeun ngabersihkeun alat, paké lemes, damp lawon. Ulah nganggo pembersih abrasif atanapi pelarut anu tiasa ngaruksak layar atanapiasing.

6. Cara ngungkulan

6.1. Isu kasaluyuan

Due to manufacturer restrictions on certain ECUs and systems in newer or specific car models, compatibility issues may arise. If you encounter any problems, please contact iCarsoft technical support for assistance.

Image: Global vehicle compatibility map for the iCarsoft i800 Plus.

6.2. Alat Teu Dihurungkeun

Ensure the scanner is securely connected to the vehicle's OBDII port and the vehicle's ignition is in the 'ON' position. If the issue persists, try connecting the scanner to a different vehicle to rule out a vehicle-specific power supply problem.

7. Spésifikasi

8. Garansi jeung Rojongan

The iCarsoft i800 Plus comes with a 1-year warranty. iCarsoft also provides lifetime free updates and lifetime free hardware repair. For any concerns or technical support, please contact iCarsoft customer service.
