Bubuka
Thank you for choosing the Beghelli 4340F 100 Lumen LED Emergency Lamp. This device is designed to provide reliable emergency lighting in various environments. Please read this manual carefully before installation and use to ensure proper function and safety.
Produk Leuwihview

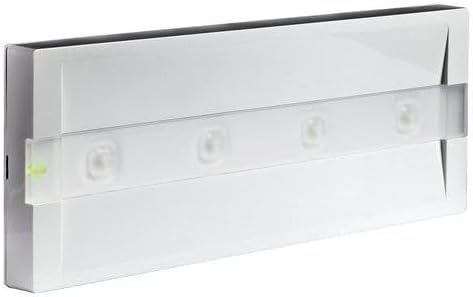

The Beghelli 4340F is a compact and efficient LED emergency lamp, featuring a built-in battery for automatic operation during power outages. Its modern design and durable plastic construction make it suitable for both indoor and outdoor applications.
Naon dina Box
- Beghelli 4340F 100 Lumen LED Emergency Lamp
- Pamasangan hardware
- Manual pamaké
Émbaran Kasalametan
- Salawasna pegatkeun sambungan kakuatan saméméh instalasi atawa perawatan.
- Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni saluyu sareng peraturan kabel lokal.
- Do not expose the unit to extreme temperatures or direct moisture unless specified for outdoor use.
- Do not attempt to open or repair the unit yourself. Refer to qualified service personnel.
- Ensure the mounting surface is stable and can support the weight of the lamp.
Setup sareng Instalasi
The Beghelli 4340F emergency lamp is designed for wall-mounted installation, typically recessed into a standard electrical box. Follow these steps for proper setup:
1. Nyiapkeun Unit
Carefully remove the front cover of the emergency lamp to access the internal components. Connect the battery to the circuit board if it is not already connected. Ensure all connections are secure.
Image: The Beghelli 4340F emergency lamp with its front cover removed, revealing the internal battery and circuit board. This view is essential for initial setup and battery connection.
2. Mounting the Base
Install the black recessed box (not included, but shown in video as a typical installation method) into the wall according to standard electrical practices. Ensure the box is securely fastened and flush with the wall surface.
3. Kabel
Connect the mains power supply (230V~50Hz) to the terminals on the circuit board. Refer to the wiring diagram provided with the product for specific connections. Ensure correct polarity and secure all wires.
4. Assemble the Lamp
Once the wiring is complete and tested, carefully place the lamp's internal assembly (with the battery and circuit board) into the white casing. Then, secure the white casing into the recessed box. Finally, attach the front cover to the white casing, ensuring it clicks firmly into place.
Video: This video demonstrates the assembly process of the Beghelli emergency lamp, including connecting the battery, placing the internal components into the casing, and securing the unit into a recessed box.
Video: This video illustrates the final steps of installing the emergency lamp into a recessed wall box, showing how the unit fits securely and the cover is attached.
Video: This video provides another perspective on the installation of the Beghelli emergency lamp, demonstrating the secure placement of the lamp into its housing.
Parentah Operasi
The Beghelli 4340F emergency lamp operates automatically once properly installed and connected to the mains power supply.
- Operasi normal: When mains power is present, the lamp's internal battery will charge. The lamp bakal tetep pareum.
- Operasi Darurat: Upami listrik pareum, lamp will automatically switch on, providing 100 lumens of LED light from its built-in battery.
- Lilana batré: Anu lamp is designed to provide illumination for a specified duration during an emergency. Refer to the specifications for battery autonomy.
- Uji coba: It is recommended to periodically test the emergency lamp by temporarily cutting the mains power to ensure it functions correctly.
Pangropéa
Regular maintenance ensures the longevity and reliability of your emergency lamp.
- beberesih: Ngabersihan exterior tina lamp ku lawon lemes, garing. Ulah make cleaners abrasive atawa pangleyur.
- Pariksa batré: The built-in battery has a limited lifespan. If the lamp's emergency duration significantly decreases, the battery may need replacement. This should be done by a qualified technician.
- Uji fungsionalitas: Perform a monthly test by simulating a power outage to confirm the lamp activates and provides adequate light.
- Inspeksi Visual: périodik mariksa lamp pikeun sagala tanda karuksakan atawa maké.
Pamérésan masalah
If you encounter issues with your Beghelli 4340F emergency lamp, tingal masalah umum sareng solusi ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Lamp teu hurung nalika listrik dipareumantage. | No mains power; Battery not charged; Battery faulty; Internal wiring issue. | Check mains power supply; Allow 24 hours for initial battery charge; Replace battery (qualified technician); Contact support. |
| Lamp tetep on terus. | Mains power not connected; Faulty charging circuit. | Verify mains power connection; Contact support. |
| Reduced emergency lighting duration. | degradasi batré. | Replace battery (qualified technician). |
spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Beghelli |
| Modél | 4340F |
| Jenis produk | Perlengkapan cahaya |
| Fluks Luminous | 100 lumén |
| Jenis Bohlam | LED |
| Sumber Daya | Mains Powered (230V~50Hz) with Built-in Battery |
| Jenis Batré | Pb 4V 3Ah (as per product label) |
| Energy Consumption Class (EU) | 125 lm/W |
| Bahan | palastik |
| Warna | Bodas |
| Wangun | Sagi opat |
| Tipe Pamasangan | Wall Mount (Recessed) |
| Mangpaat husus | Luar |
| Sertifikasi | CE |
| Item Beurat | 1 kg |
Garansi sareng Rojongan
Beghelli products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the official Beghelli websitus atanapi ngahubungan distributor lokal Anjeun. Simpen resi pameseran anjeun salaku bukti pameseran.
