1. Bubuka
Hatur nuhun pikeun meuliasing the Proventa Premium Ceiling Fan with Light. This product combines a stylish ceiling lamp with practical fan functionality, designed to provide comfort in any living, bedroom, or dining area. This manual provides essential information for safe installation, operation, and maintenance of your new ceiling fan.
Figure 1: Proventa Premium Ceiling Fan with Light in a living room setting, demonstrating remote control use.
2. Parentah Kasalametan
Mangga baca sadaya pitunjuk kaamanan kalayan saksama sateuacan dipasang sareng dianggo. Gagal nuturkeun pitunjuk ieu tiasa nyababkeun sengatan listrik, kahuruan, atanapi tatu anu parah.
- Kasalametan listrik: Ensure the power supply is disconnected at the main circuit breaker before installation, maintenance, or cleaning. All electrical connections must be made in accordance with local codes and regulations. If you are unsure, consult a qualified electrician.
- Lokasi Instalasi: kipas lamp must be mounted at a minimum height of 2.3 meters (7.5 feet) from the floor to the bottom of the fan blades. Ensure the mounting surface can support the weight of the fan (approximately 5.12 kg).
- Ventilasi: Do not install the fan in areas with high humidity or direct water exposure.
- Barudak jeung Pets: Keep children and pets away from the fan during operation. Do not insert any objects into the fan blades.
- beberesih: Salawasna pegatkeun listrik sateuacan beberesih. Anggo lap anu lemes sarengamp lawon. Ulah make cleaners abrasive atawa pangleyur.
3. Eusi Paket
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- 1 x Proventa Premium Ceiling Fan with Light unit
- 1 x Remote Control (2 AAA batteries included)
- 4 x sekrup
- 4 x Tukang Tembok
- 1 x Manual Pamaké (dokumén ieu)

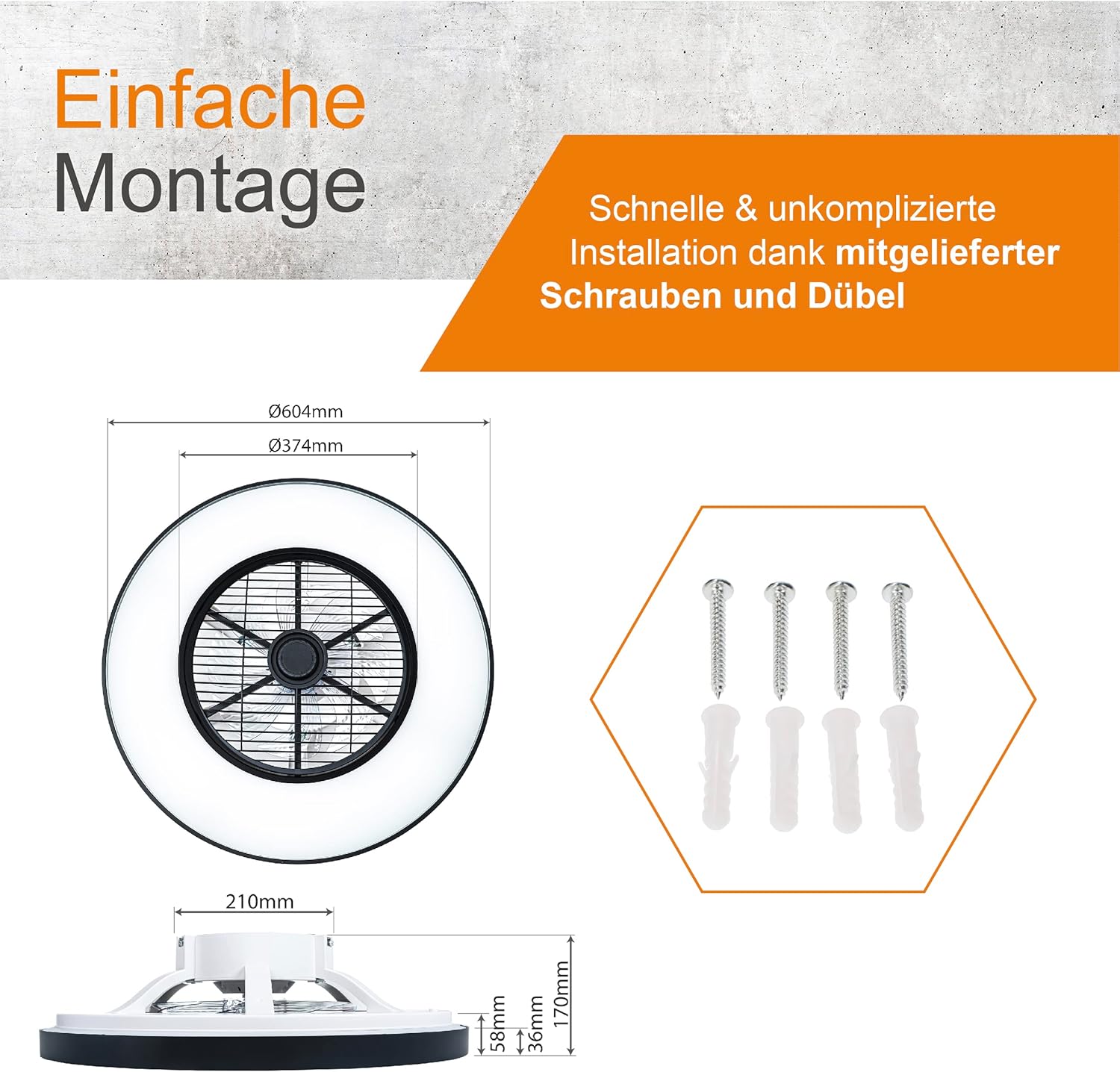

Figure 2: Package contents and fan dimensions (60.4 cm diameter, 17 cm height).
4. Fitur Produk
Your Proventa Ceiling Fan with Light offers a range of features for enhanced comfort and convenience:
- Pencahayaan terpadu: A perfect combination of a stylish ceiling lamp and a functional fan.
- Modeu Usum Panas sareng Usum Tiris:
- Modeu Usum Panas (Aliran Udara Ka Handap): Creates a cooling breeze by pushing air downwards.
- Modeu Usum Tiris (Aliran Udara Ka Luhur): Circulates warm air trapped near the ceiling, distributing it throughout the room for energy efficiency.
Figure 3: Summer (cooling) and Winter (heat circulation) modes.
- Operasi Remote Control: Independently control fan speed and light settings with the included remote.
- Adjustable Light Temperature and Dimmability:
- Switch color temperature from warm white (2000K) to neutral white (4000K).
- Brightness is fully dimmable to create the desired ambiance.
Figure 4: Adjustable light temperature and dimming capabilities.
- Bahan kualitas luhur: Constructed with durable Acrylonitrile Butadiene Styrene (ABS) and a powder-coated finish, featuring a modular system with opal diffuser and removable frame.
Figure 5: High-quality materials and modular design.
5. Setup jeung Instalasi
Follow these steps for quick and easy installation. Ensure power is disconnected before starting.
- Nyiapkeun Area Instalasi: Choose a suitable location on the ceiling, ensuring it is structurally sound and can support the fan's weight. The minimum height from the floor to the fan blades must be 2.3 meters.
- Tanda titik pangeboran: Use the mounting bracket as a template to mark the drilling points on the ceiling.
- liang bor: Bor liang dina titik ditandaan terus selapkeun colokan témbok.
- Bracket Pamasangan Aman: Ngagantelkeun bracket ningkatna kana siling ngagunakeun screws disadiakeun.
- Sambungan listrik: Connect the fan's electrical wires to your household wiring. Ensure correct polarity (Live, Neutral, Ground). If unsure, consult a qualified electrician.
- Mount the Fan Unit: Carefully lift the fan unit and attach it to the mounting bracket, ensuring it is securely fastened.
- Fungsi Uji: Mulangkeun kakuatan sareng uji fungsi kipas sareng lampu nganggo kadali jauh.
For detailed visual instructions, refer to the installation diagram in Figure 2.
6. Parentah Operasi
Your ceiling fan is operated via the included remote control. Ensure the remote has 2 AAA batteries installed (included).
angka 6: Layout kadali jauh.
Fungsi Remote Control:
- Tombol Daya (⏻): Ngahurungkeun/mareuman kipas sareng lampu.
- Light ON/OFF Button (💡): Ngahurungkeun atanapi mareuman lampu sacara mandiri.
- Fan Speed Buttons (☁): Adjusts the fan speed (typically multiple levels).
- Light Temperature Buttons (WHITE / MENU): Cycles through warm white, neutral white, and potentially cool white color temperatures (2000K to 4000K).
- Brightness Adjustment (BRT+ / BRT-): Dims or brightens the light.
- Summer/Winter Mode Button (↻): Switches between downward (summer) and upward (winter) airflow directions.
- Tombol Pangatur Waktu (⏰): Sets a timer for the fan to turn off automatically.
The fan and light settings can be controlled independently. The last light setting (color temperature and brightness) will be remembered when the light is turned off and on again, even without the remote if controlled via a wall switch.
7. Pangropéa
Pangropéa rutin ngajamin kinerja optimal sareng umur panjang kipas siling anjeun.
- beberesih:
- Before cleaning, ensure the power supply to the fan is disconnected.
- Wipe the fan and light housing with a soft, damp lawon.
- Do not use abrasive materials, harsh chemicals, or solvents, as these can damage the finish.
- Periodically check for dust accumulation on the fan blades and light diffuser and clean as necessary.
- Kasaimbangan Blade: If the fan wobbles during operation, check that all screws on the mounting bracket and fan blades are securely tightened.
- Sumber cahaya: Sumber lampu LED anu terintegrasi dirancang pikeun umur anu panjang sareng henteu tiasa digentos ku pangguna. Upami lampuna rusak, hubungi dukungan palanggan.
8. Cara ngungkulan
If you encounter issues with your Proventa Ceiling Fan, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas angin teu hurung. | No power supply; Remote control batteries are dead; Loose wiring connection. | Check circuit breaker; Replace remote batteries; Verify all electrical connections are secure (ensure power is off first). |
| Lampu henteu hurung. | No power supply; Remote control batteries are dead; Light function not activated. | Check circuit breaker; Replace remote batteries; Press the light ON/OFF button on the remote. |
| Kipas goyangan. | Sekrup pemasanganna leupas; Mata pisauna teu saimbang. | Ensure all mounting screws are tightened; Check if blades are securely attached. |
| Kadali jauh teu jalan. | Dead batteries; Obstruction between remote and fan; Remote not paired (if applicable). | Replace batteries; Ensure clear line of sight; Refer to pairing instructions (if any, not specified in data). |
If the problem persists after trying these solutions, please contact Proventa customer support.
9. Spésifikasi
Detailed technical specifications for your Proventa Ceiling Fan with Light:
| Atribut | Nilai |
|---|---|
| merek | Proventa |
| Nomer modél | 80061x-PVT |
| Dimensi produk | 60.4 x 60.4 x 17 cm |
| Beurat | 5.12 kg |
| Bahan | Acrylonitrile Butadiene Styrene (ABS) |
| Bérés | Dilapis bubuk |
| Warna | Hideung |
| Jumlah wilah | 3 |
| Tipe Lampu | LED |
| Wattage | 60 watt |
| Voltage | 230 volt |
| Suhu Warna | 2000K to 4000K (Adjustable) |
| Fitur husus | Dimmable, Remote Control, Summer/Winter Mode |
| Sumber Daya | Kabel Listrik |
| Batré Diperlukeun | Leres (2 AAA, kalebet) |
| Sertifikasi | CE, RoHS |
| Énergi Efficiency Rating | F |
Figure 7: Energy Efficiency Label. For more details, visit the Basis data EPREL.
10. Garansi jeung Rojongan
Proventa products are designed for quality and reliability. For warranty information or technical support, please contact your retailer or visit the official Proventa websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
