Alpine S2-S40C - Next-Generation S-Series 4" Component Speaker Set User Manual

Bubuka

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Alpine S2-S40C Next-Generation S-Series 4" Component Speaker Set. Designed for superior audio reproduction, these speakers are Hi-Res Audio Certified, offering an exceptional listening experience. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of your speakers.

Fitur konci

• Disertipikasi Audio Hi-Res: Elevate your audio experience with the Next-Generation S-Series S2-S40C 4" Component Speakers, now Hi-Res Audio Certified. With a frequency response of up to 40kHz, these speakers deliver exceptional sound quality at an entry-level price, providing you with accurate and natural audio reproduction.
• Kinerja anu dipercaya: Experience clean and accurate audio with the S2-S40C speakers. Crafted with a unique combination of Poly Propylene, Glass Fiber, and Mica Cone materials, these speakers are designed for lightweight construction, high output, and low distortion. Enjoy a superior audio experience with clear and precise sound reproduction.
• HAMR Surround Technology: The Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology integrated into the speaker design allows for maximum cone movement. This technology enables the S2-S40C speakers to deliver powerful and accurate bass notes, immersing you in deep and impactful sound.
• Versatile Component Design: The S2-S40C speakers feature a woofer size of 4" and included 1" tweeters with threaded removable housing. With the ability to handle a maximum peak power of 140W and a maximum RMS power of 45W, these component speakers offer a dynamic and versatile audio performance.
• OEM Fitment and In-Line Crossovers: Enjoy a seamless integration into your vehicle's audio system with the S2-S40C speakers' OEM fitment design. The included in-line crossovers ensure optimized sound separation and distribution between the woofer and tweeter, resulting in a balanced and immersive listening experience. Upgrade your car's audio system with ease and enjoy high-quality sound that complements your vehicle's interior.

Naon dina Box

• Two 4" Woofers
• Two 1" Tweeters with threaded removable housing
• Two In-line Crossovers

Image: The complete Alpine S2-S40C component speaker set, including two woofers and two tweeters.

Setup sareng Instalasi

Proper installation is crucial for optimal sound performance. It is recommended that installation be performed by a qualified professional. Always disconnect the vehicle's battery before beginning any electrical work.

Pamasangan Woofer

1. Nyiapkeun Lokasi Pasang: Ensure the mounting location in your vehicle is clean and free of obstructions. The S2-S40C woofers are designed for OEM fitment, but minor modifications may be required for certain vehicle models.
2. Sambungkeun Wiring: Connect the woofer wires to the appropriate output channels from your amplifier or head unit. Pay close attention to polarity (+/-).
3. Secure Woofer: Mount the woofer securely using the provided screws or appropriate mounting hardware. Ensure a tight seal to prevent sound leakage.

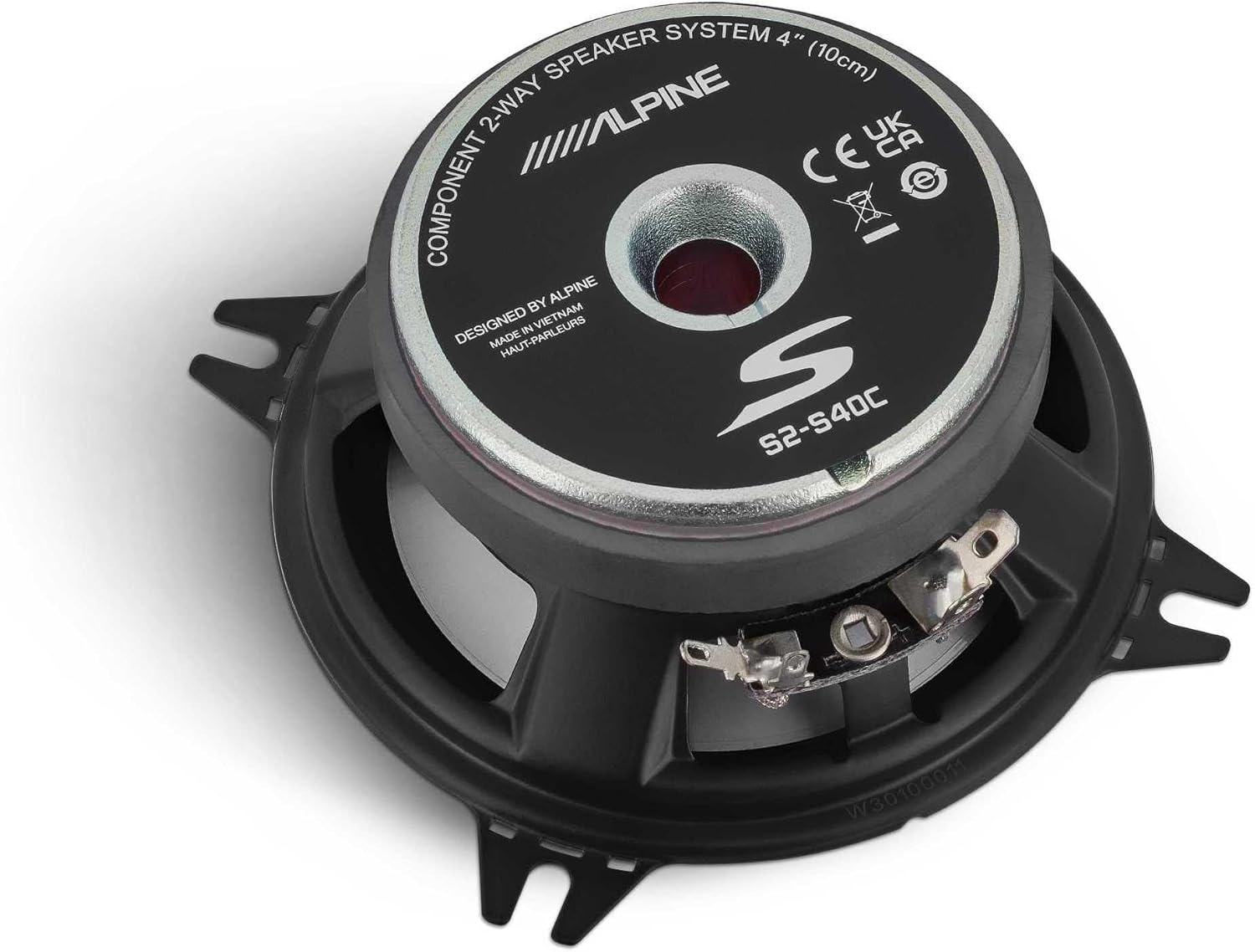

Gambar: Rupa-rupa views of the Alpine S2-S40C woofer, showcasing desain jeung titik ningkatna na.

Instalasi Tweeter

1. Pilih Metode Pemasangan: The 1" tweeters come with threaded removable housing, allowing for various mounting options (e.g., flush mount, surface mount). Select the method best suited for your vehicle's interior and desired sound staging.
2. Connect In-line Crossover: Connect the tweeter to the in-line crossover. The crossover separates the audio signal, sending only high frequencies to the tweeter for clear treble reproduction.
3. Connect Crossover to Source: Connect the in-line crossover to the appropriate output from your ampliifier atanapi head unit.
4. Secure Tweeter: Mount the tweeter securely in its chosen location.

Gambar: Deukeut view of the Alpine S2-S40C tweeter and its associated in-line crossover.

Wiring Diagram (Conceptual)

While a detailed wiring diagram is typically provided with the product packaging, the general connection flow is as follows:

• Audio Source (Head Unit/Amplifier) → In-line Crossover Input
• In-line Crossover Woofer Output → Woofer
• In-line Crossover Tweeter Output → Tweeter

Pastikeun sadaya sambungan aman sareng insulated pikeun nyegah sirkuit pondok.

Ngoperasikeun Speaker anjeun

Once installed, your Alpine S2-S40C speakers will integrate with your vehicle's audio system. The quality of sound will depend on the source unit, amplifier, and proper tuning.

• Sumber Audio: Play audio through your vehicle's head unit or external audio source.
• Kontrol volume: Adjust the volume to a comfortable listening level. Avoid excessively high volumes that can cause distortion or damage to the speakers.
• Sarua: Anggo unit sirah anjeun atanapi amplifier's equalization settings to fine-tune the sound to your preference. The Hi-Res Audio certification ensures a wide frequency response, allowing for detailed adjustments.
• Titik silang: Upami nganggo éksternal amplifier with adjustable crossovers, set the high-pass filter for the woofers and tweeters appropriately to protect them from low frequencies they are not designed to reproduce. The included in-line crossovers handle this automatically for basic setups.

Pangropéa

Your Alpine S2-S40C speakers are designed for durability and require minimal maintenance.

• beberesih: Gently usap grilles spiker jeung sabudeureun ku lawon lemes, garing. Hindarkeun ngagunakeun bahan kimia anu kasar atanapi pembersih abrasive.
• Faktor Lingkungan: Lindungi speaker tina suhu anu ekstrim, sinar panonpoé langsung, sareng kalembaban anu kaleuleuwihi.
• Inspeksi rutin: Periodically check speaker connections for looseness or corrosion.

Pamérésan masalah

Upami anjeun ngalaman masalah sareng speaker anjeun, tingal masalah sareng solusi umum ieu:

If the problem persists after attempting these solutions, please contact Alpine customer support or a certified car audio technician.

spésifikasi

Garansi sareng Rojongan

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Alpine websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.

Alpine Official Websitus: www.alpine-usa.com
