Zündapp Ananda D15 E-Bike Display User Manual

1. Bubuka

This manual provides essential information for the installation, operation, and maintenance of your Zündapp Ananda D15 E-Bike Display. This display unit is designed to replace a defective screen on compatible Zündapp e-bikes, restoring full control and functionality.

Figure 1: Zündapp Ananda D15 E-Bike Display (Front View)

The image shows the compact, black Zündapp Ananda D15 E-Bike Display. It features a clear LED screen on the right, displaying battery charge levels and assist levels. On the left, there are three tactile buttons: a plus (+) button at the top, a power/mode button in the middle, and a minus (-) button at the bottom. A cable extends from the top of the unit.

2. Fitur Produk

• Kasaluyuan: Specifically designed for Zündapp e-bikes equipped with an Ananda drive system.
• Rojongan modél: Compatible with Zündapp models Z503, Z504, Z505, Z802, Z80S, Z898, and Green 7.7 (from 2021 onwards).
• Indikator batré: Displays the current battery charge level of your e-bike.
• Assist Level Control: Allows selection and display of 5 different assistance levels.
• Fungsi Pencahayaan: Enables control of the e-bike's lighting system, if equipped.
• Push Assist: Provides a low-speed assist function for walking alongside the bike.
• Antarmuka anu ramah-pamaké: Features an easy-to-use LED display with intuitive button controls.
• Desain ringan: Weighs approximately 46 grams for minimal impact on bike weight.

3. Setup jeung Instalasi

The Ananda D15 display is designed for straightforward replacement. Ensure your e-bike is powered off before beginning installation.

3.1 Pakakas diperlukeun

• Small Phillips head screwdriver (if existing mount needs removal)
• Hex key set (for handlebar mount, if applicable)

3.2 Léngkah-léngkah Instalasi

1. Pareum listrik: Ensure your e-bike's battery is disconnected or the bike is completely powered off.
2. Hapus Tampilan Lama: Carefully disconnect the cable from the old display unit. If mounted, unfasten the old display from the handlebar or stem mount.
3. Mount New Display: Attach the new Ananda D15 display to your preferred location on the handlebar or stem. The display supports stem mount and handlebar mount types. Secure it firmly using the appropriate fasteners.
4. Sambungkeun kabel: Locate the corresponding cable from your e-bike's wiring harness. Connect the round plug of the Ananda D15 display to this cable. Ensure the connection is secure and fully seated.
5. Manajemén Kabel: Route the cable neatly and secure it to the bike frame using cable ties if necessary, to prevent snagging or damage.
6. Daya Hurung: Reconnect your e-bike's battery or power on the system. The display should illuminate.

Figure 2: Zündapp Ananda D15 E-Bike Display (Back View with Cable)

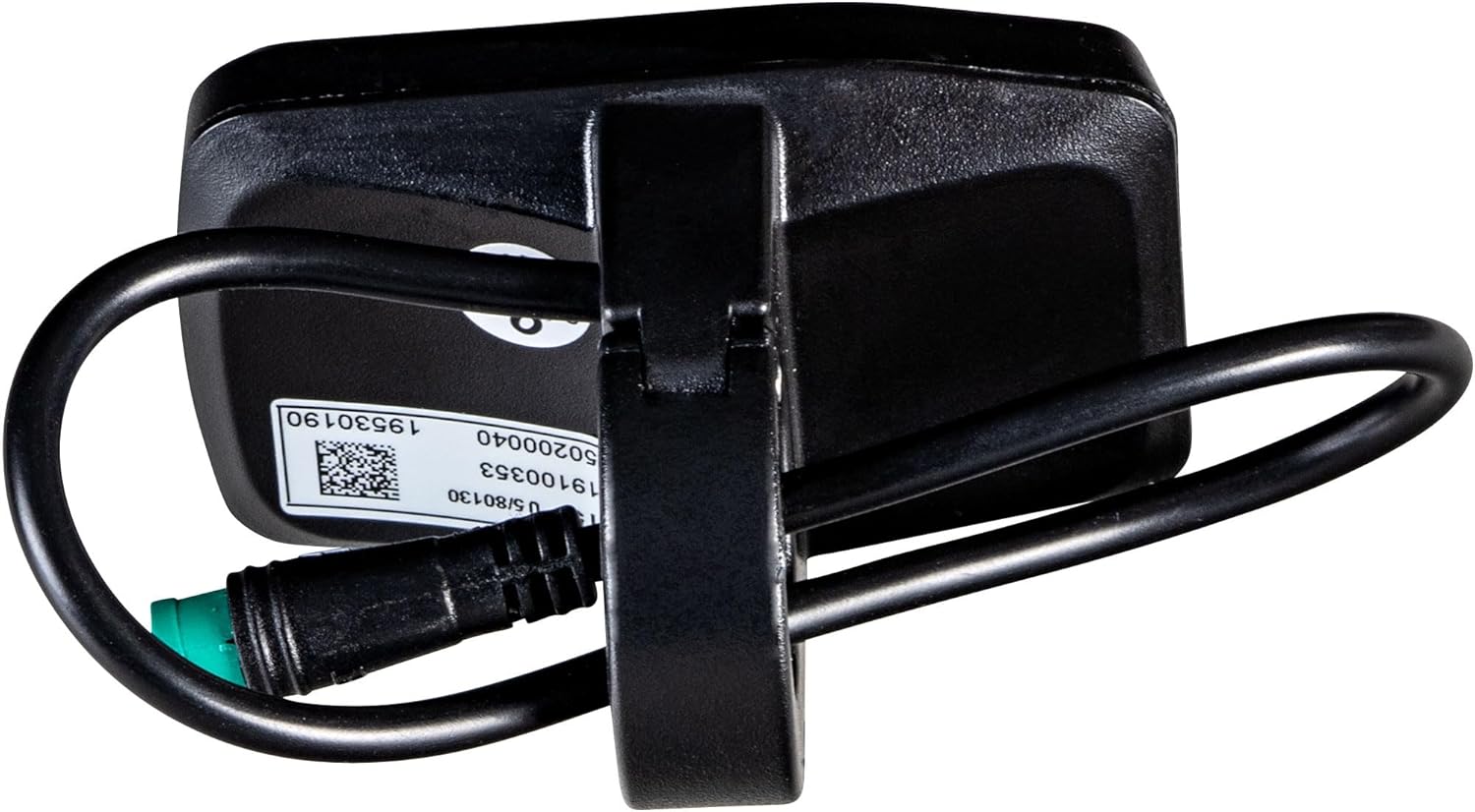

This image shows the rear of the Zündapp Ananda D15 E-Bike Display. A sturdy black mounting bracket is visible, designed to attach to the bike's handlebar or stem. The main cable extends from the top of the unit, curving around the back. A green-tipped round connector is visible at the end of the cable, ready for connection to the e-bike's wiring harness. A white label with product information is affixed to the back of the unit.

Figure 3: Zündapp Ananda D15 E-Bike Display (Connector Detail)

A lengkep view of the Zündapp Ananda D15 E-Bike Display's cable and connector. The image highlights the round, multi-pin connector with a distinctive green tip, which ensures proper connection to the e-bike's system. Adjacent to the connector, a white product label is visible, displaying model information and a QR code, confirming the unit's authenticity and specifications.

4. Parentah Operasi

The Ananda D15 display features an intuitive button interface for controlling your e-bike's functions.

4.1 Fungsi Tombol

• (+) Tombol:
  • Increases the assistance level.
  • Activates the lighting function (long press, if equipped).
• Tombol Daya/Modeu (␣/M):
  • Powers the display on/off (long press).
  • Switches between display modes (e.g., trip distance, total distance - if supported by the e-bike's main controller).
• (-) Tombol:
  • Decreases the assistance level.
  • Activates the push assist function (long press).

4.2 Indikator tampilan

• Tingkat batré: Indicated by a series of bars, showing the remaining charge.
• Tingkat Bantuan: Indicated by a series of bars or numbers, showing the current power assist setting (0-5 levels).
• Lighting Indicator: An icon (e.g., a lightbulb) may illuminate when the e-bike's lights are active.
• Push Assist Indicator: An icon (e.g., a walking person) may illuminate when push assist is active.

5. Pangropéa

The Ananda D15 display requires minimal maintenance to ensure long-term performance.

• beberesih: Wipe the display surface with a soft, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
• Pariksa sambungan: Periodically check that the cable connection to the e-bike is secure and free from corrosion.
• Perlindungan Lingkungan: While designed for outdoor use, avoid prolonged exposure to extreme weather conditions (e.g., heavy rain, direct sunlight for extended periods) when the bike is not in use.
• Panyimpenan: If storing the e-bike for an extended period, ensure the display is clean and dry.

6. Cara ngungkulan

Tingali kana tabel di handap pikeun masalah umum sareng solusi poténsialna.

7. Spésifikasi

8. Garansi jeung Rojongan

For warranty information and technical support, please refer to the documentation provided with your original Zündapp e-bike or contact Zündapp customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, visit the official Zündapp websitus atanapi ngahubungan puseur layanan otorisasi maranéhanana.
