Winjet LED Headlights Assembly for 2016-2023 Toyota Tacoma (Chrome Housing Clear Lens) - Instruction Manual

1. Produk Langkungview

This manual provides detailed instructions for the installation, operation, and maintenance of your Winjet LED Headlights Assembly. Please read this manual thoroughly before installation and use to ensure proper function and safety.

1.1 Eusi pakét

• 1 Set of Winjet LED Headlights (Driver & Passenger Side)
• H11 High/Low Beam Bulbs (Included)
• Necessary wiring and connectors for plug-and-play installation

1.2 Kasaluyuan

This Winjet LED Headlights Assembly is compatible with the following Toyota Tacoma models:

• 2016-2019 Toyota Tacoma (All models)
• 2020-2023 Toyota Tacoma (SR, SR5, TRD Sport models only)

Catetan: This product is not directly compatible with models equipped with factory full LED headlights (TRD Off-road, Limited, TRD Pro models). Converters may be required for these models (not included).

Image: Automotive Fitment Guide showing compatible Toyota Tacoma models and years.

2. Setup jeung Instalasi

The Winjet LED Headlights are designed for a plug-and-play installation, replacing factory parts without requiring drilling or modifications. All assemblies are SAE and DOT approved, meeting standard safety and OEM requirements.

2.1 Daptar pariksa Pra-Pamasangan

• Ensure your vehicle is turned off and the battery is disconnected.
• Verify all package contents are present and undamaged.
• Gather necessary tools (e.g., screwdriver, socket wrench set).

2.2 Léngkah-léngkah Instalasi

1. Carefully remove the existing factory headlights. This typically involves unscrewing mounting bolts and disconnecting electrical connectors.
2. Connect the new Winjet LED Headlights to the vehicle's existing wiring harness. The design ensures a direct fit without special wiring.
3. Align the new headlight assembly with the vehicle's mounting points. The factory bolt-on fitment ensures a secure and precise installation.
4. Secure the headlight assembly using the original mounting bolts.
5. Reconnect the vehicle's battery and test all lighting functions (Daytime Running Lights, Turn Signals, High Beam, Low Beam).

Gambar: Tukangeun view of the Winjet LED Headlight Assembly, highlighting the wiring and connectors for installation.

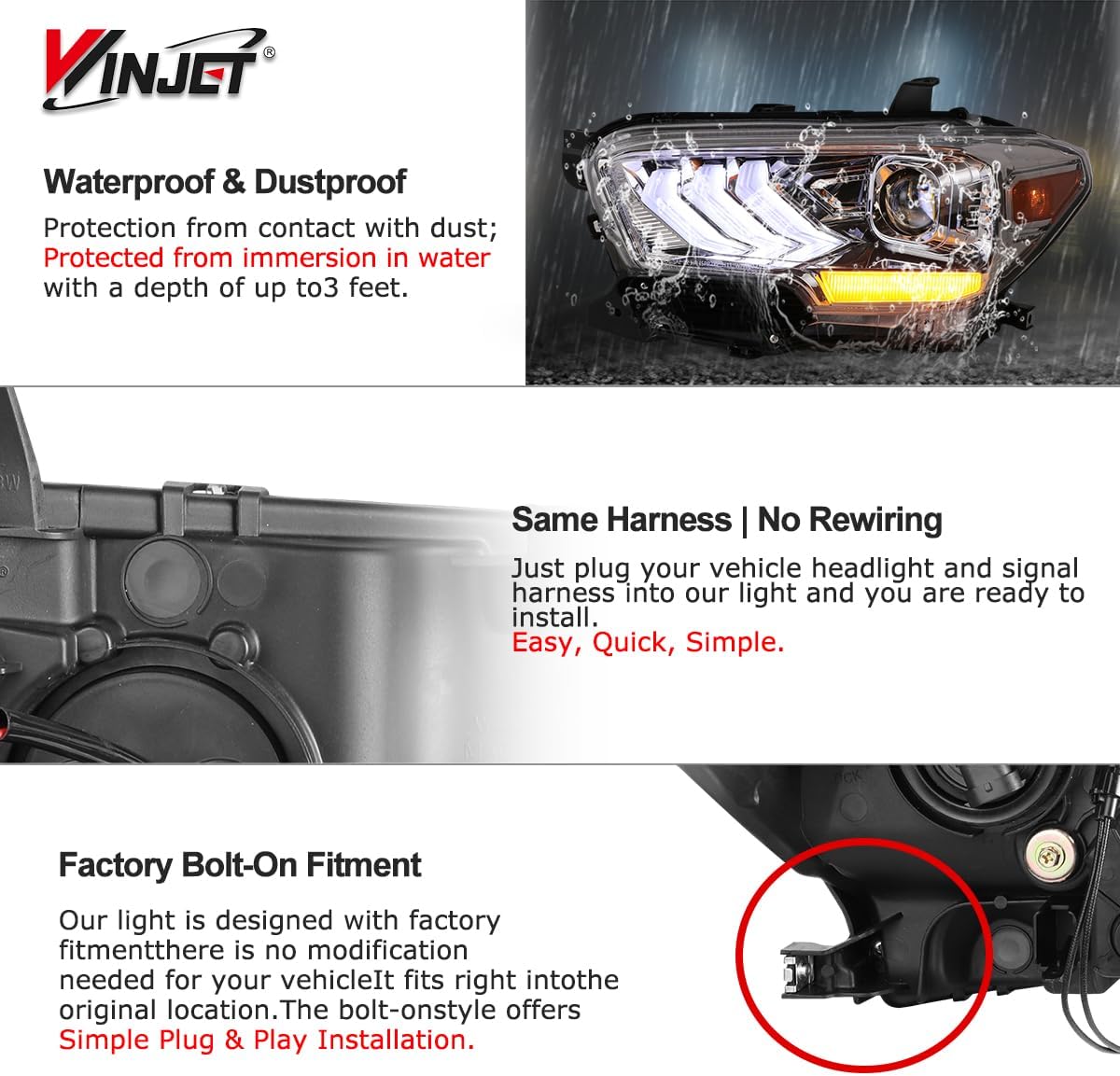

Image: Diagram illustrating the waterproof design, compatibility with the same harness, and factory bolt-on fitment for simplified installation.

For optimal results and safety, professional installation is recommended.

3. Parentah Operasi

The Winjet LED Headlights feature a unique LED style with brighter dual beams, offering enhanced visibility and a modern aesthetic. The LED light source provides higher power efficiency and a longer lifespan compared to conventional incandescent lamps.

3.1 Fungsi Pencahayaan

• Lampu Siang (DRL): LED DRLs enhance vehicle visibility during daylight hours.
• Lampu Sinyal Hurungkeun: Integrated LED turn signals provide clear indication of your vehicle's intended direction.
• High & Low Beam: Independent high and low beam functions provide bright and clear lighting for various driving conditions, improving safety in darkness, rain, or fog.

Gambar: Detil view of the Winjet LED Headlight, labeling the High/Low Beam, Day Running Light, Turn Signal Light, and Side Mark Light components.

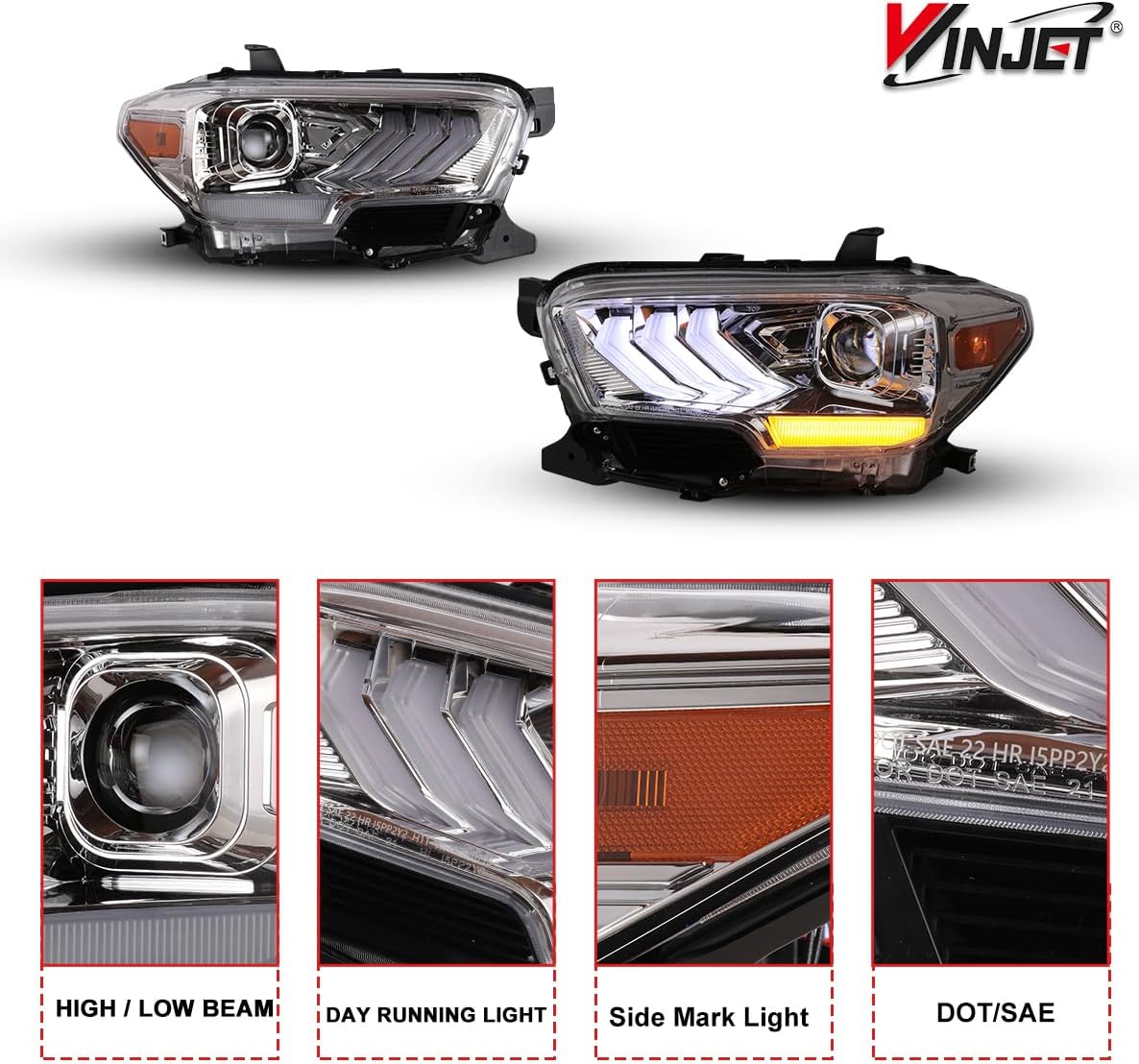

Image: Close-up showcasing the High/Low Beam, Day Running Light, Side Mark Light, and the DOT/SAE compliance markings on the headlight.

Image: Illustration of the dynamic LED design and micro-prism reflectors, emphasizing improved performance and enhanced visibility.

3.2 Product Showcase Videos

View these videos for a visual demonstration of the Winjet LED Headlights' features and operation:

4. Pangropéa

Proper maintenance ensures the longevity and optimal performance of your Winjet LED Headlights.

4.1 beberesih

• Clean the headlight lenses regularly with a soft cloth and mild automotive cleaning solution.
• Avoid abrasive cleaners or harsh chemicals that can damage the lens material.

4.2 Protection Cuaca

The headlights feature a full sealed design and IP67 weatherproof rating, ensuring durability against heavy rain and harsh weather conditions. The well-designed breather system aids in heat dissipation, extending the lifespan of the lights.

5. Cara ngungkulan

If you experience any issues with your Winjet LED Headlights, please refer to the following common troubleshooting tips:

• Lampu Teu Fungsi: Check all electrical connections to ensure they are secure. Verify that the vehicle's fuses related to lighting are intact.
• Lampu kedip-kedip: Ensure all connections are tight and free from corrosion. Check for proper grounding.
• Kondensasi di Jero Lénsa: Minor condensation can occur due to temperature changes and usually dissipates. If excessive or persistent, ensure the breather is clear and the housing is properly sealed.

For persistent issues or complex problems, it is recommended to consult a qualified automotive technician or contact Winjet customer support.

6. Spésifikasi

7. Garansi jeung Rojongan

All Winjet products come with a one-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures product quality.

7.1 Rojongan Téknis

Winjet provides 24-hour technical support for all customers. If you encounter any issues during the warranty period, or have questions regarding purchase, installation, or after-sales service, please contact us at any time. We are committed to assisting you in resolving any problems.
